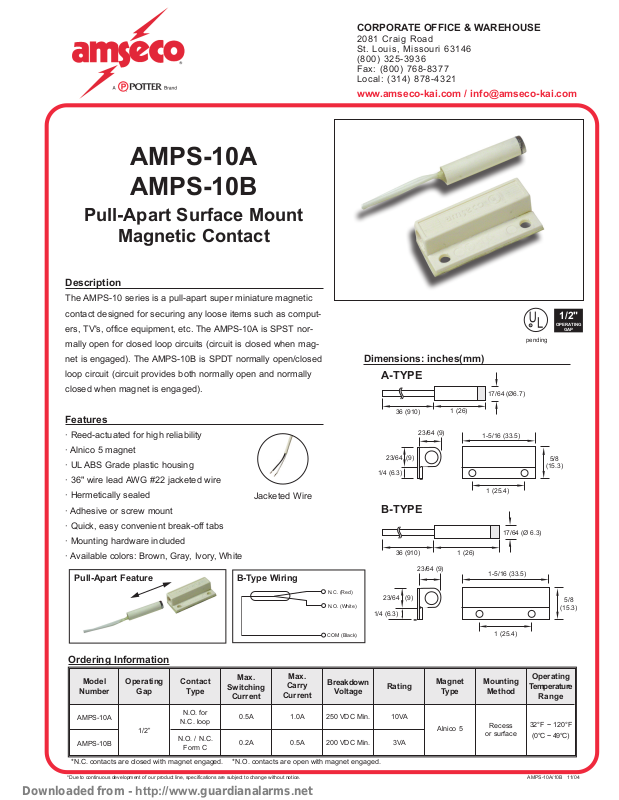

Amseco AMPS-10A User Guide

AMPS-10A
AMPS-10B

Pull-Apart Surface Mount

Magnetic Contact

AMPS-10A/10B 11/04*Due to continuous development of our product line, specifications are subject to change without notice.

Description

The AMPS-10 series is a pull-apart super miniature magnetic

contact designed for securing any loose items such as comput-

ers, TV's, office equipment, etc. The AMPS-10A is SPST nor-

mally open for closed loop circuits (circuit is closed when mag-

net is engaged). The AMPS-10B is SPDT normally open/closed

loop circuit (circuit provides both normally open and normally

closed when magnet is engaged).

Features

· Reed-actuated for high reliability

· Alnico 5 magnet

· UL ABS Grade plastic housing

· 36" wire lead AWG #22 jacketed wire

· Hermetically sealed

· Adhesive or screw mount

· Quick, easy convenient break-off tabs

· Mounting hardware included

· Available colors: Brown, Gray, Ivory, White

*N.C. contacts are closed with magnet engaged. *N.O. contacts are open with magnet engaged.

Dimensions: inches(mm)

Model

Number

AMPS-10A

1/2”

N.O. for

N.C. loop

0.5A

1.0A

250 VDC Min. 10VA

AMPS-10B

N.O. / N.C.

Form C

0.2A 0.5A 200 VDC Min. 3VA

Alnico 5

Recess

or surface

32°F ~ 120°F

(0°C ~ 49°C)

Operating

Gap

Contact

Type

Max.

Switching

Current

Max.

Carry

Current

Breakdown

Voltage

Rating

Magnet

Type

Mounting

Method

Operating

Temperature

Range

Jacketed Wire

pending

Pull-Apart Feature

B-Type Wiring

Ordering Information

CORPORATE OFFICE & WAREHOUSE

2081 Craig Road
St. Louis, Missouri 63146
[phone]
Fax: [phone]
Local: [phone]

www.amseco-kai.com / [e-mail]

A-TYPE

17/64 (Ø6.7)

36 (910)

23/64 (9)

23/64 (9)

1/4 (6.3)

1 (26)

1-5/16 (33.5)

1 (25.4)

B-TYPE

17/64 (Ø 6.3)

1 (26)

1-5/16 (33.5)

N.C. (Red)

N.O. (White)

36 (910)

23/64 (9)

23/64 (9)

1/4 (6.3)

OPERATING

5/8

(15.3)

1/2"

GAP

5/8

(15.3)

Downloaded from - http://www.guardianalarms.net

COM (Black)

1 (25.4)
