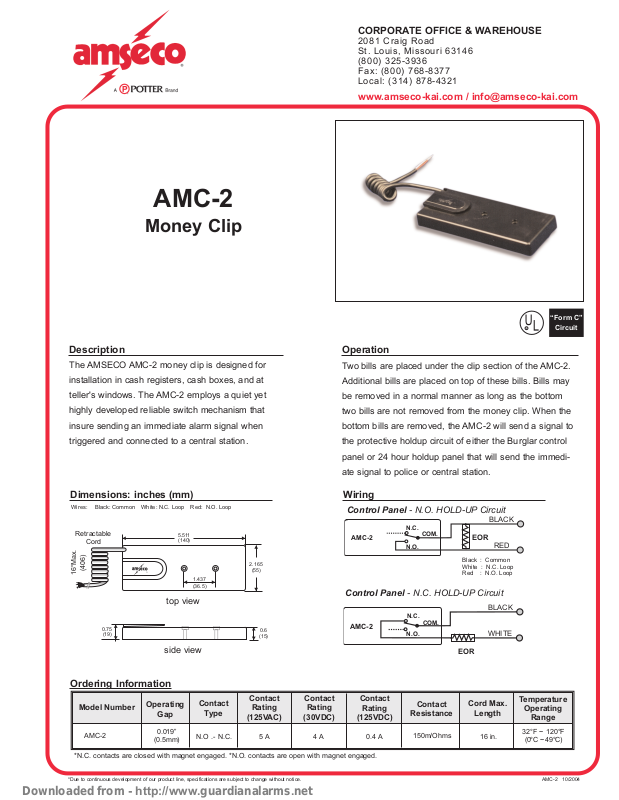

AMC-2
Money Clip
AMC-2 10/2004*Due to continuous development of our product line, specifications are subject to change without notice.
Description
The AMSECO AMC-2 money clip is designed for
installation in cash registers, cash boxes, and at
teller's windows. The AMC-2 employs a quiet yet
highly developed reliable switch mechanism that
insure sending an immediate alarm signal when
triggered and connected to a central station.
Dimensions: inches (mm)
Operation
Two bills are placed under the clip section of the AMC-2.
Additional bills are placed on top of these bills. Bills may
be removed in a normal manner as long as the bottom
two bills are not removed from the money clip. When the
bottom bills are removed, the AMC-2 will send a signal to
the protective holdup circuit of either the Burglar control
panel or 24 hour holdup panel that will send the immedi-
ate signal to police or central station.
top view
side view
Wiring
Control Panel - N.O. HOLD-UP Circuit
Control Panel - N.C. HOLD-UP Circuit
*N.C. contacts are closed with magnet engaged. *N.O. contacts are open with magnet engaged.
Model Number
AMC-2
Contact
Rating
(30VDC)
Cord Max.
Length
Contact
Resistance
Temperature
Operating
Range
32°F ~ 120°F
(0°C ~ 49°C)
4 A
16 in.
Ordering Information
Operating
Gap
0.019”
(0.5mm)
5 A
Contact
Rating
(125VAC)
Contact
Type
N.O .- N.C.
Contact
Rating
(125VDC)
0.4 A
150m/Ohms
CORPORATE OFFICE & WAREHOUSE
2081 Craig Road
St. Louis, Missouri 63146
(800) 325-3936
Fax: (800) 768-8377
Local: (314) 878-4321
www.amseco-kai.com / info@amseco-kai.com
“Form C”
Circuit
Wires: Black: Common White: N.C. Loop Red: N.O. Loop
Retractable
Cord
16“Max.
(406)
0.75
(19)
5.511
(140)
1.437
(36.5)
2.165
(55)
0.6
(15)
N.C.
AMC-2
COM.
N.O.
N.C.
AMC-2
COM.
N.O.
EOR
BLACK
EOR
RED
Black : Common
White : N.C. Loop
Red : N.O. Loop
BLACK
WHITE
