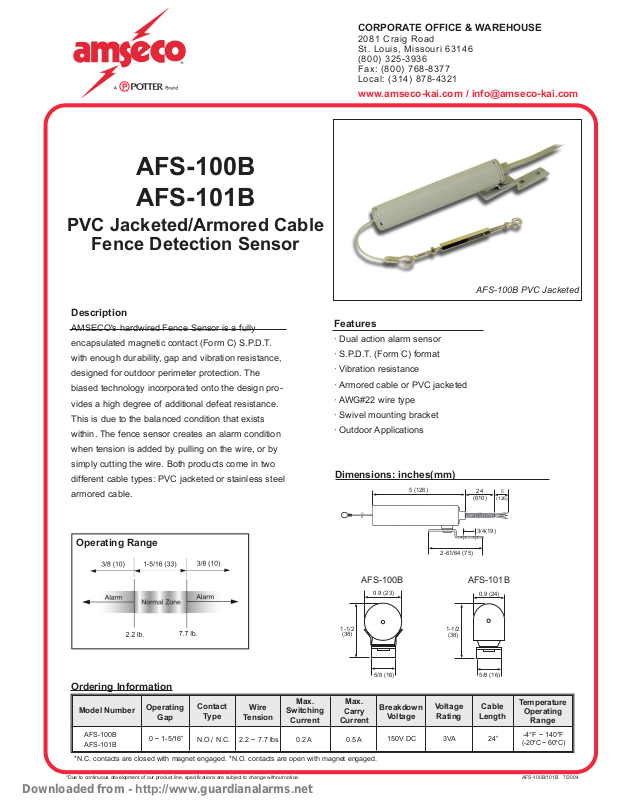

Amseco AFS-100B User Guide

AFS-100B
AFS-101B

PVC Jacketed/Armored Cable

Fence Detection Sensor

AFS-100B/101B 7/2004*Due to continuous development of our product line, specifications are subject to change without notice.

Description

AMSECO's hardwired Fence Sensor is a fully

encapsulated magnetic contact (Form C) S.P.D.T.

with enough durability, gap and vibration resistance,

designed for outdoor perimeter protection. The

biased technology incorporated onto the design pro-

vides a high degree of additional defeat resistance.

This is due to the balanced condition that exists

within. The fence sensor creates an alarm condition

when tension is added by pulling on the wire, or by

simply cutting the wire. Both products come in two

different cable types: PVC jacketed or stainless steel

armored cable.

Dimensions: inches(mm)

AFS-100B PVC Jacketed

Operating Range

AFS-100B

AFS-101B

*N.C. contacts are closed with magnet engaged. *N.O. contacts are open with magnet engaged.

Model Number

AFS-100B
AFS-101B

Max.

Switching

Current

Cable

Length

Voltage

Rating

Breakdown

Voltage

Temperature

Operating

Range

-4°F ~ 140°F

(-20°C ~ 60°C)

0.2 A

24”

3VA

Ordering Information

Operating

Gap

0 ~ 1-5/16”

2.2 ~ 7.7 lbs

Wire

Tension

Contact

Type

N.O./ N.C.

Max.

Carry

Current

0.5 A

150V DC

Features

· Dual action alarm sensor

· S.P.D.T. (Form C) format

· Vibration resistance

· Armored cable or PVC jacketed

· AWG#22 wire type

· Swivel mounting bracket

· Outdoor Applications

CORPORATE OFFICE & WAREHOUSE

2081 Craig Road
St. Louis, Missouri 63146
[phone]
Fax: [phone]
Local: [phone]

www.amseco-kai.com / [e-mail]

5 (126)

24

(610)

(126)

5

Downloaded from - http://www.guardianalarms.net

1-1/2

(38)

0.9 (23)

5/8 (16)

2-61/64 (75)

1-1/2

(38)

3/4(19)

0.9 (24)

5/8 (16)
