3.19
10
Bell Box Dimensions: inches (mm)
Side View
Motor Driven Bell
Dimensions: inches
ABB-1033 10/2004*Due to continuous development of our product line, specifications are subject to change without notice.

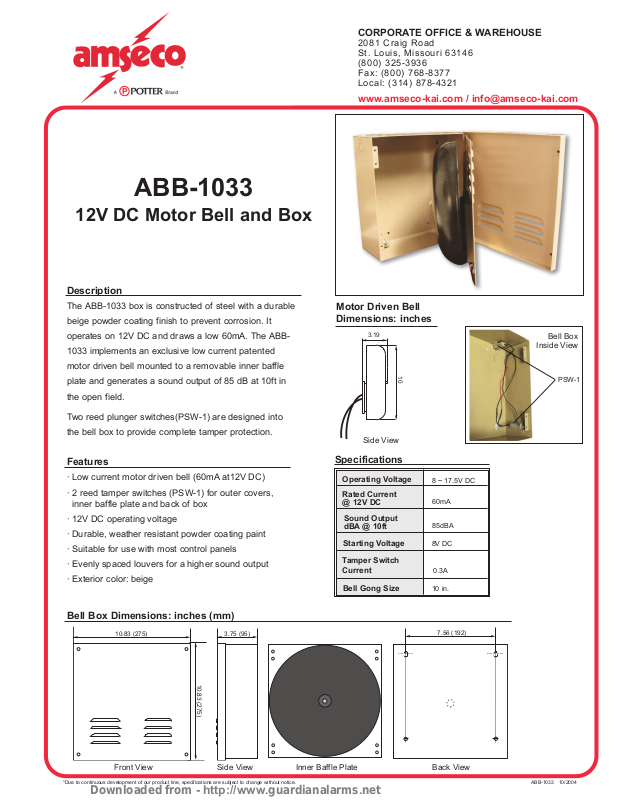

ABB-1033
12V DC Motor Bell and Box
Description
The ABB-1033 box is constructed of steel with a durable
beige powder coating finish to prevent corrosion. It
operates on 12V DC and draws a low 60mA. The ABB-
1033 implements an exclusive low current patented
motor driven bell mounted to a removable inner baffle
plate and generates a sound output of 85 dB at 10ft in
the open field.
Two reed plunger switches(PSW-1) are designed into
the bell box to provide complete tamper protection.
Features
· Low current motor driven bell (60mA at12V DC)
· 2 reed tamper switches (PSW-1) for outer covers,
inner baffle plate and back of box
· 12V DC operating voltage
· Durable, weather resistant powder coating paint
· Suitable for use with most control panels
· Evenly spaced louvers for a higher sound output
· Exterior color: beige
8 ~ 17.5V DC
Operating Voltage
60mA
Rated Current
@ 12V DC
85dBA
Sound Output
dBA @ 10ft
8V DC
Starting Voltage
Tamper Switch
Current
0.3A
Bell Gong Size
10 in.
Specifications
Side View
Front View
Back View
Inner Baffle Plate
PSW-1
Bell Box
Inside View
CORPORATE OFFICE & WAREHOUSE
2081 Craig Road
St. Louis, Missouri 63146
(800) 325-3936
Fax: (800) 768-8377
Local: (314) 878-4321
www.amseco-kai.com / info@amseco-kai.com
10.83 (275)
3.75 (95)
10.83 (275)
7.56 (192)
