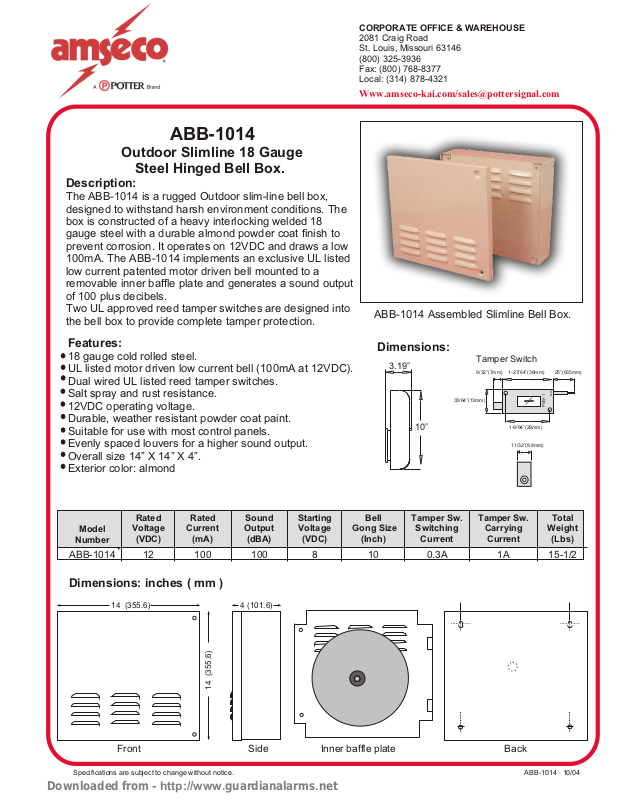

ABB-1014
Outdoor Slimline 18 Gauge
Steel Hinged Bell Box.
Description:
The ABB-1014 is a rugged Outdoor slim-line bell box,
designed to withstand harsh environment conditions. The
box is constructed of a heavy interlocking welded 18
gauge steel with a durable almond powder coat finish to
prevent corrosion. It operates on 12VDC and draws a low
100mA.
low current patented motor driven bell mounted to a
removable inner baffle plate
of 100 plus decibels.
Two UL approved reed tamper switches are designed into
the bell box to provide complete tamper protection.
The ABB-1014 implements an exclusive UL listed
and generates a sound output
CORPORATE OFFICE & WAREHOUSE
2081 Craig Road
St. Louis, Missouri 63146
(800) 325-3936
Fax: (800) 768-8377
Local: (314) 878-4321
Www.amseco-kai.com/[email protected]
ABB-1014 Assembled Slimline Bell Box.
Features:
18 gauge cold rolled steel.
UL listed motor driven low current bell (100mA at 12VDC).
Dimensions:
3.19”
Tamper Switch
9/32”(7mm)
1-27/64”(36mm) 25”(635mm)
Dual wired UL listed reed tamper switches.
Salt spray and rust resistance.
12VDC operating voltage.
Durable, weather resistant powder coat paint.
Suitable for use with most control panels.
Evenly spaced louvers for a higher sound output.
10”
33/64”(13mm)
1-9/64”(29mm)
11/32”(8.8mm)
N.O.
SWP -1
Overall size 14” X 14” X 4”.
Exterior color: almond
Rated
Model
Number
Voltage
(VDC)
Specifications:
ABB-1014 12 100 100 8 10 0.3A 1A 15-1/2
Rated
Current
(mA)
Sound
Output
(dBA)
Starting
Voltage
(VDC)
Bell
Gong Size
(Inch)
Tamper Sw.
Switching
Current
Tamper Sw.
Carrying
Current
Total
Weight
(Lbs)
Dimensions: inches ( mm )
14 (355.6)
4 (101.6)
14 (355.6)
Front
Specifications are subject to change without notice. ABB-1014 10/04
Side
Inner baffle plate
Back
