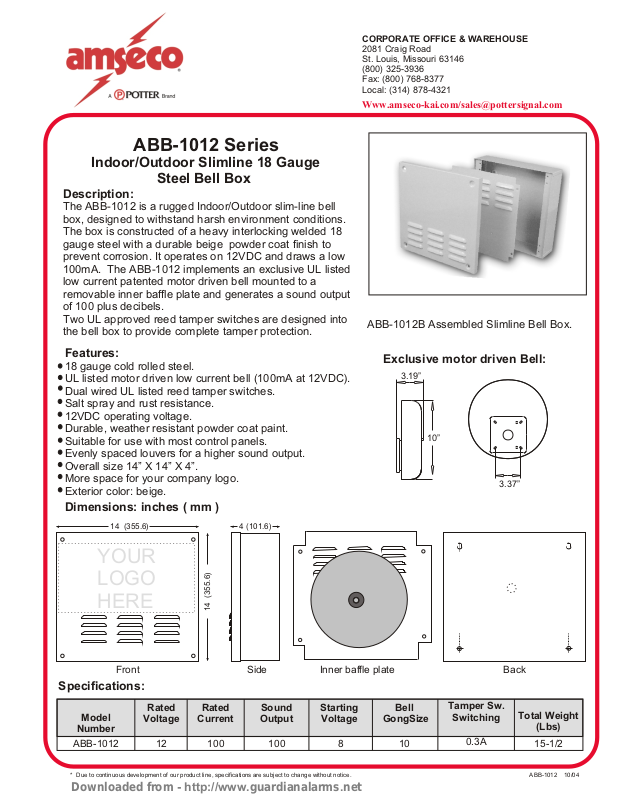

ABB-1012 Series
Indoor/Outdoor Slimline 18 Gauge
Steel Bell Box
Description:
The ABB-1012 is a rugged Indoor/Outdoor slim-line bell
box, designed to withstand harsh environment conditions.
The box is constructed of a heavy interlocking welded 18
gauge steel with a durable beige powder coat finish to
prevent corrosion. It operates on 12VDC and draws a low
100mA.
low current patented motor driven bell mounted to a
removable inner baffle plate
of 100 plus decibels.
Two UL approved reed tamper switches are designed into
the bell box to provide complete tamper protection.
The ABB-1012 implements an exclusive UL listed
and generates a sound output
CORPORATE OFFICE & WAREHOUSE
2081 Craig Road
St. Louis, Missouri 63146
(800) 325-3936
Fax: (800) 768-8377
Local: (314) 878-4321
Www.amseco-kai.com/sales@pottersignal.com
ABB-1012B Assembled Slimline Bell Box.
Features:
18 gauge cold rolled steel.
UL listed motor driven low current bell (100mA at 12VDC).
Dual wired UL listed reed tamper switches.
Salt spray and rust resistance.
12VDC operating voltage.
Durable, weather resistant powder coat paint.
Suitable for use with most control panels.
Evenly spaced louvers for a higher sound output.
Overall size 14” X 14” X 4”.
More space for your company logo.
Exterior color: beige.
Dimensions: inches ( mm )
14 (355.6)
4 (101.6)
YOUR
LOGO
HERE
14 (355.6)
Exclusive motor driven Bell:
3.19”
10”
3.37”
Front Back
Side Inner baffle plate
Specifications:
Model
Number
ABB-1012
* Due to continuous development of our product line, specifications are subject to change without notice. ABB-1012 10/04
Rated
Voltage
12
Rated
Current
100
Sound
Output
100
Starting
Voltage
8
Bell
GongSize
10
Tamper Sw.
Switching
0.3A
Total Weight
(Lbs)
15-1/2
