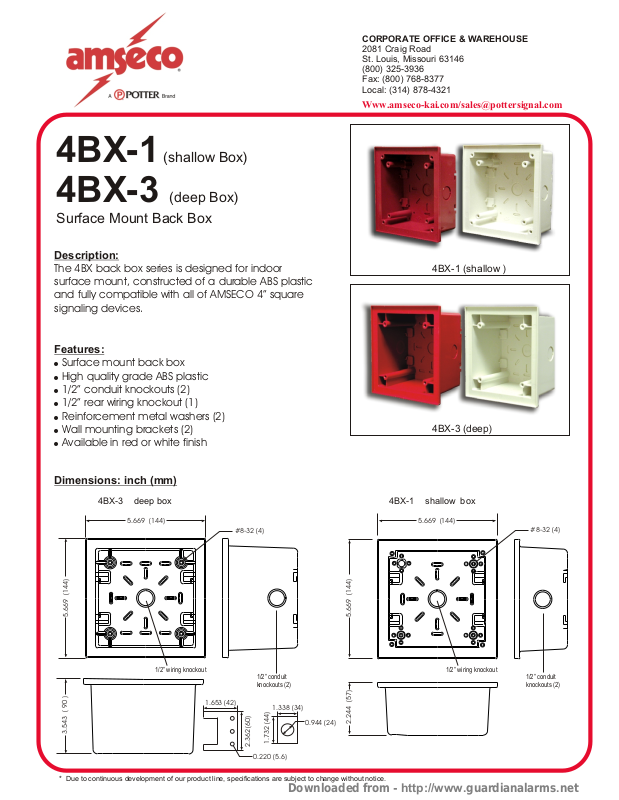

4BX-1 (shallow Box)
4BX-3 (deep Box)
Surface Mount Back Box
Description:
The 4BX back box series is designed for indoor
surface mount, constructed of a durable ABS plastic
and fully compatible with all of AMSECO 4” square
signaling devices.
CORPORATE OFFICE & WAREHOUSE
2081 Craig Road
St. Louis, Missouri 63146
(800) 325-3936
Fax: (800) 768-8377
Local: (314) 878-4321
Www.amseco-kai.com/sales@pottersignal.com
4BX-1 (shallow )
Features:
! Surface mount back box
! High quality grade ABS plastic
! 1/2” conduit knockouts (2)
! 1/2” rear wiring knockout (1)
! Reinforcement metal washers (2)
! Wall mounting brackets (2)
! Available in red or white finish
Dimensions: inch (mm)
4BX-3 deep box 4BX-1 shallow box
5.669 (144)
5.669 (144)
#8-32 (4)
4BX-3 (deep)
5.669 (144)
#8-32 (4)
5.669 (144)
1/2” wiring knockout
1.653 (42)
3.543 ( 90 )
* Due to continuous development of our product line, specifications are subject to change without notice.
1/2” conduit
knockouts (2)
1.732 (44)
2.362 (60)
0.220 (5.6)
1.338 (34)
0.944 (24)
2.244 (57)
