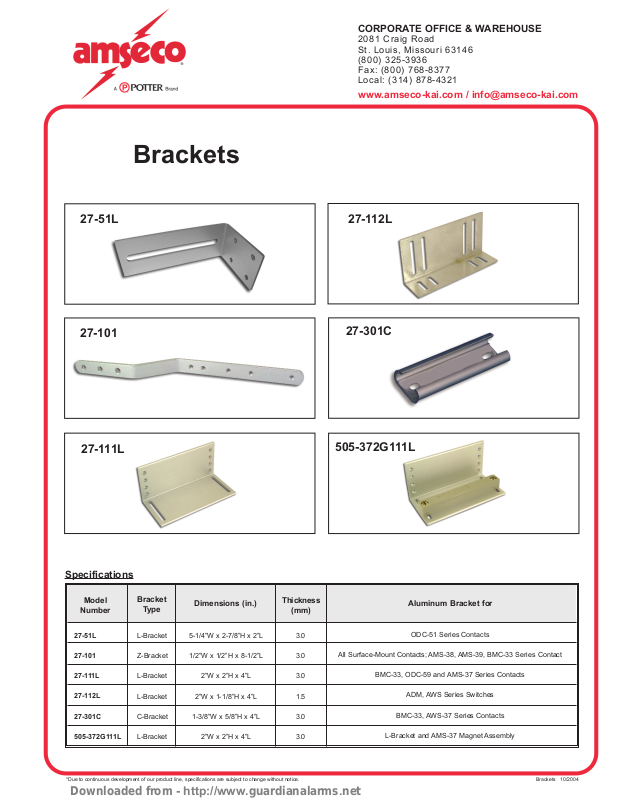

Amseco 27-51L, 27-101, 27-111L, 27-112L, 27-301C User Guide

Brackets

Brackets 10/2004*Due to continuous development of our product line, specifications are subject to change without notice.

Specifications

ODC-51 Series Contacts

All Surface-Mount Contacts; AMS-38, AMS-39, BMC-33 Series Contact

BMC-33, ODC-59 and AMS-37 Series Contacts

ADM, AWS Series Switches

BMC-33, AWS-37 Series Contacts

L-Bracket and AMS-37 Magnet Assembly

L-Bracket

Z-Bracket

L-Bracket

L-Bracket

C-Bracket

L-Bracket

3.0

3.0

3.0

1.5

3.0

3.0

5-1/4”W x 2-7/8”H x 2”L

1/2”W x 1/2”H x 8-1/2”L

2”W x 2”H x 4”L

2”W x 1-1/8”H x 4”L

1-3/8”W x 5/8”H x 4”L

2”W x 2”H x 4”L

Aluminum Bracket for

Bracket

Type

Thickness

(mm)

Dimensions (in.)

27-51L

27-101

27-111L

27-112L

27-301C

505-372G111L

Model

Number

27-101

27-111L

27-112L

27-301C

27-51L

505-372G111L
