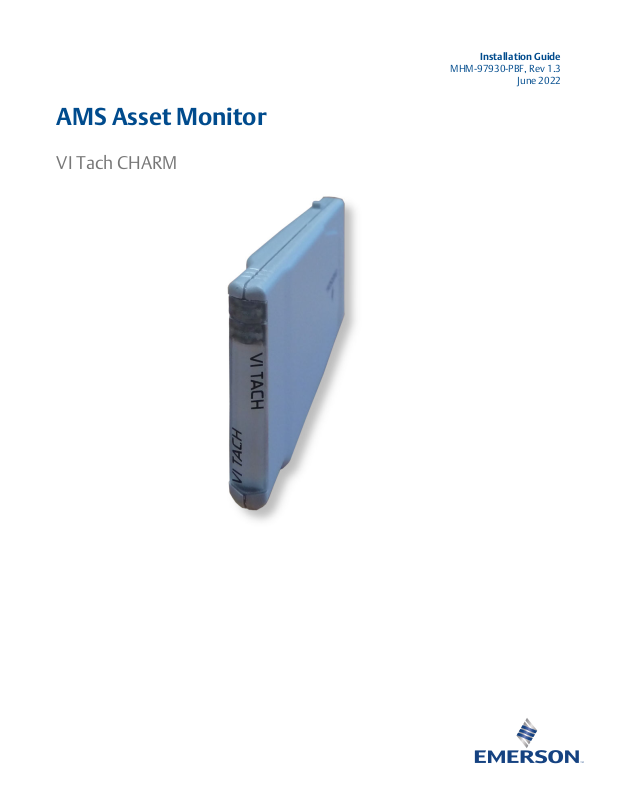

AMS Asset Monitor
VI Tach CHARM
Installation Guide
MHM-97930-PBF, Rev 1.3
June 2022
Copyright
©
2022 by Emerson. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form by any means without the written permission of Emerson.
Disclaimer
This manual is provided for informational purposes. EMERSON MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS
MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. Emerson shall not be liable for errors, omissions, or inconsistencies that may be contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material. Information in this document is
subject to change without notice and does not represent a commitment on the part of Emerson. The information in this manual is
not all-inclusive and cannot cover all unique situations.
Patents
The product(s) described in this manual are covered under existing and pending patents.
Vermerk zur Installation der Messketten in explosionsgefährdeter Umgebung.
Soll die Messkette in explosionsgefährdeter Umgebung installiert werden, so ist auf die Einhaltung der in der
Gebrauchsanweisung enthaltenen Installationshinweise zu achten. Sollten dabei sprachliche Schwierigkeiten
auftreten, wenden Sie sich bitte an die Herstellerfirma, sie wird Ihnen eine Übersetzung der relevanten Artikel in der
Landessprache des Verwendungslandes zukommen lassen.
Nota fuq l−installazzjoni tal−ktajjen tal−kejl f’ambjent esplożiv
Jekk il−katina tal−kejl suppost li tigi installata f’ambjent esplożiv, hu importanti li ssegwi l−istruzzjonijiet pertinenti
tal−manwal.Jekk issib xi diffikultà bil−lingwa, jekk joghgbok ikkuntattja lill−manifattur biex tikseb traduzz-joni tal
−paragrafi rilevanti fil−lingwa mehtiega.
Anmärkning beträffande installation av mätkedjorna i explosionsfarlig miljö.
Ska mätkedjan installeras i explosionsfarlig miljö, måste de anvisningar följas som ges i instruktionsboken
beträffande installationen. Skulle därvid språkproblem uppstå, ber vi dig kontakta det tillverkande företaget som
då kommer att sända dig en översättning av de relevanta artiklarna på användningslandets språk.
Opomba za namestitev merilne verige v eksplozivno ogroženem okolju
Èe se merilna veriga namešèa v eksplozivno ogroženem okolju, je potrebno upoštevati namestitvena opozorila, ki
so v Navodilih za uporabo. Èe se pri tem pojavijo jezikovne težave, se posvetujte z izdelovalcem; poslali vam bodo
prevod ustreznih èlankov v jeziku države, kjer se naprava uporablja.
Záznam k inštalácii meracích reťazcov vo výbušnom prostredí
Ak má byť merací reťazec inštalovaný vo výbušnom prostredí, treba dbať na dodržiavanie pokynov k inštalácii,
uvedených v návode na použitie. V prípade, že by sa pritom vyskytli jazykové problémy, obráťte sa prosím na
výrobcu, ktorý Vám zašle preklad relevantných èlánkov v jazyku Vašej krajiny.
Nota referente à instalação de cadeias de agrimensor em ambientes potencialmente explosivos
Caso a cadeia de agrimensor deva ser instalada em um ambiente potencialmente explosivo, é imprescindível
observar e cumprir as indicações de instalação das instruções de serviço. Caso tenha dificuldades idiomáticas,
queira entrar em contato com a firma produtora, esta poderá enviar−lhe uma tradução dos capítulos mais
importantes no idioma do país onde o produto deverá ser empregado.
Wskazówka dotycząca instalacji łańcuchów mierniczych w otoczeniach zagrożonych eksplozją.
Jeżeli łańcuch mierniczy ma być zainstalowany w otoczeniu zagrożonym eksplozją, należy uwzględnić wskazówki
dotyczące instalacji, które są zawarte w instrukcji obsługi. Jeżeli w trakcie lektury wystąpią jakiekolwiek problemy
związane ze zrozumieniem tekstu, prosimy zwrócić się do producenta, który chętnie wykona tłumaczenie
wybranych części dokumentacji na język danego kraju.
2
Opmerking m.b.t. installatie van elektrische meet circuits in explosiegevaarlijke omgeving
Dient de installatie van elektrische meet circuits in een explosiegevaarlijke omgeving te geschieden, moet men
toezien dat de in de gebruikshandleiding opgenomen installatieinstructies worden nageleefd. Bij taalkundige
problemen gelieve contact op te nemen met de fabrikant, deze zal u vervolgens een vertaling in de taal van het
gebruiksland doen toekomen.
Pastaba dėl matavimo grandinės įrengimo sprogimo atžvilgiu pavojingoje aplinkoje
Jei matavimo grandinė turi būti įrengta sprogimo atžvilgiu pavojingoje aplinkoje, privaloma laikytis vartotojo
instrukcijoje pateiktų įrengimo nurodymų. Jei kiltų sunkumų dėl kalbos, prašome kreiptis į gamintojo įmonę, kuri
pateiks Jums reikiamo skyriaus vertimą į vartotojo valstybės kalbą.
Nota sull’installazione delle catene per misurazione in ambienti a rischio di esplosioni
Nel caso in cui si debbano installare le catene per misurazione in ambienti a rischio di esplosioni, è necessario
attenersi alle avvertenze per l’installazione contenute nelle istruzioni d’uso. Per difficoltà di carattere linguistico,
rivolgetevi alla ditta produttrice. Quest’ultima Vi farà pervenire una traduzione degli articoli rilevanti nella lingua
del paese d’impiego.
Megjegyzės a mėrőláncok robbanásveszėlyes környezetben törtėnő szerelėsėhez.
Ha a mėrőláncot robbanásveszėlyes környezetben kell felszerelni, akkor ügyeljen a Használati útmutatóban közölt
szerelėsi utasítások betartására. Amennyiben nyelvi nehėzsėgek merülnek fel, szíveskedjen a gyártó céghez
fordulni, amely elküldni Önnek a felhasználó ország nyelvėre lefordított, erre vonatkozó cikket.
Remarque concernant l’installation des chaînes de mesure dans un environnement présentant un risque
d’explosion
Si la chaîne de mesure doit être installée dans un environnement présentant un risque d’explosion, il est impératif
de veiller à respecter les consignes d’installation contenues dans les instructions de service. S’il devait ce faisant
surgir des problèmes linguistiques, veuillez vous adresser à la société fabricante: elle vous fera parvenir une
traduction des articles significatifs dans la langue du pays de mise en oeuvre.
Huomautus mittausketjun asentamisesta räjähdysalttiissa ympäristössä
Jos mittausketju tulee asentaa räjähdysalttiissa ympäristössä, on käyttöohjeessa annettuja asennusohjeita
noudatettava. Jos käyttöohjeessa käytetty kieli aiheuttaa ongelmia, kääntykää valmistajayrityksen puoleen. Se
toimittaa käyttöönne tarvittavat artikkelit käyttömaan vir alliselle kielelle käännettynä.
Juhend mõõdukettide ülespanemiseks plahvatusohtlikus piirkonnas.
Kui panna üles mõõdukettid plahvatusohtlikkus piirkonnas, nii tuleb jälgida kasutusjuhendis sisaldatud
instalationimärkmeid. Juhul kui tekkivad raskused keelega, siis pöörduge palun tootja poole. Tootja saadab
emakeelse tõlge vastavalt artiklile ning maale.
Notas sobre la instalación de cadenas de medición en un entorno potencialmente explosivo.
Si ha de instalar la cadena de medición en un entorno potencialmente explosivo, deberá respetar las indicaciones
sobre la instalación, contenidas en el manual de uso. Si surgieran dificultades lingüísticas, póngase en contacto con
la empresa fabricante, que le facilitará una traducción del artículo en la lengua del país donde se emplee.
Note on the installation of the measuring chains in an explosive environment
If the measuring chain is supposed to be installed in an explosive environment, it is important to follow the
pertinent installation instructions in the manual. Should you encounter difficulties with the language, please
contact the manufacturer to obtain a translation of the relevant paragraphs into the language required.
3
Σημεíωση για τηυ εγκατáσταση αλuσíδωυ μέτρησης σε περιβáλλου, στο oπoío uπàρΧει κíυδuυoς έκρηξης
Εáυ η αλuσυδα μέτρησης πρóκειται υα εγκατασταΘεí σε περιβáλλoυ, στo oπoío uπáρΧει κíυδuυoς έκρηξης, πρέπει
υα τηρηΘoúυ oπωσδńπoτε oι oδηγíες εγκατáστασης πoυ περιλαμβáυoυται στις oδηγíες Χρńσης. Εáυ υπáρξouυ
γλωσσικές δuσκoλíες καταυóησης, παρακαλoúμε υα απεuΘuυΘεíτε στηυ κατασκεuáστρια εταιρεíα, η oπoíα Θα
ϕρoυτíσει για τηυ απoστoλń μιας μετáϕρασης τωυ σΧετικωυ áρΘρωυ στη γλωσσα της Χωρας Χρńσης.
Info vedrørende installation af målekæderne i eksplosionstruede omgivelser
Hvis målekæden skal installeres i eksplosionstruede omgivelser, skal installationsanvisningerne i brugsanvisningen
følges. Hvis der i denne forbindelse opstår sproglige problemer, bedes De henvende Dem til produktionsfirmaet,
som så vil sørge for, at De modtager en oversætelse af den relevante artikel på Deres sprog.
Poznámka k instalaci mĕřicích řetězců v prostředí s nebezpečím výbuchu.
Když má být měřicí řetězec (sestávající z čidla a konvertoru) instalován v prostŕedí s nebezpečím výbuchu, tak je
třeba respektovat instalační pokyny, které jsou součástí návodu k upotřebení. Kdyby při tom došlo k jazykovým
potížím, tak prosíme kontaktujte výrobní firmu, která Vám relevantní článek zašle v jazyku krajiny použití.
Piezīme par mērīšanas ķēžu instalēšanu sprādziena bīstamās zonās.
Ja mērīšanas ķēde jāuzstāda sprādzienbīstamā zonâ, ir jāievēro lietošanas instrukcijā dotie instalēšanas norādījumi.
Ja rodas kādas valodas grūtības, lūdzu griezieties pie izgatavotāja firmas, kas Jums nosūtīs nozīmīgâko nodaļu
tulkojumus lietotāja valsts valodā.
Emerson
epro GmbH
Jöbkesweg 3
48599 Gronau
Germany
T +49 2562 709 0
F +49 2562 709 401
www.Emerson.com
4
Installation Guide Contents
MHM-97930-PBF June 2022
Contents
Chapter 1 General.......................................................................................................................... 7
1.1 About this manual............................................................................................................................ 7
1.2 Symbols............................................................................................................................................7
1.3 Liability and guarantee..................................................................................................................... 8
1.4 Incoming goods inspection.............................................................................................................. 8
1.5 Technical support.............................................................................................................................9
1.6 Storage and transport.......................................................................................................................9
1.7 Disposal of the device.......................................................................................................................9
1.8 China RoHS Compliance................................................................................................................. 10
1.9 Installation awareness.................................................................................................................... 10
Chapter 2 Safety instructions....................................................................................................... 11
2.1 Using the device............................................................................................................................. 11
2.2 Owner's responsibility.....................................................................................................................11
2.3 Radio interference.......................................................................................................................... 11
2.4 ESD safety...................................................................................................................................... 12
Chapter 3 Installing the VI Tach CHARM hardware........................................................................13
3.1 About the VI Tach CHARM hardware...............................................................................................13
3.2 Install the VI Tach CHARM.............................................................................................................. 14
Chapter 4 Remove the CHARM..................................................................................................... 19
Chapter 5 Maintenance, troubleshooting, and repair................................................................... 21
5.1 Maintenance.................................................................................................................................. 21
5.2 Troubleshooting.............................................................................................................................21
5.3 Repair.............................................................................................................................................25
5.4 Replace a VI Tach CHARM...............................................................................................................25
Chapter 6 Technical data..............................................................................................................27
6.1 Electrical data.................................................................................................................................27
6.2 Environmental conditions and mechanical design.......................................................................... 28
Chapter 7 Certificates.................................................................................................................. 29
MHM-97930-PBF, Rev. 1.3 v
Contents Installation Guide
June 2022 MHM-97930-PBF
vi MHM-97930-PBF, Rev. 1.3
Installation Guide General
MHM-97930-PBF June 2022
1 General
1.1 About this manual
This manual contains specifications, wiring diagrams, dimensions, and step-by-step
instructions for installing the VI Tach CHARM.
Read this guide completely prior to starting installation of the device. Comply with all
safety instructions.
This installation guides applies to VI Tach CHARMs with a hardware revision listed in Table
1-1. See type plate for revision level.
Table 1-1: Hardware revision
Component Revision
VI Tach CHARM 01, 02
Include the installation guide when transferring the device to third parties.
Note
When requesting technical support, indicate type and serial number from the type plate.
See Table 1-2 for a list of documents referred to in this installation guide.
Table 1-2: Referenced documents
MHM Number Document name
MHM-97924-PBF Operating Manual AMS Asset Monitor
MHM-97923-PBF Installation Guide AMS Asset Monitor
See Table 1-3 for product type and ordering numbers of the hardware referred to in this
installation guide.
Table 1-3: Product type and ordering numbers
Hardware Product type number Ordering number
VI Tach CHARM AM 5312 SE8701V03-TH
Standard Terminal Block KL4502X1-BA1 SE4501-RS
1.2 Symbols
Note
This symbol marks passages that contain important information.
MHM-97930-PBF, Rev. 1.3 7
General
June 2022 MHM-97930-PBF
Installation Guide
CAUTION
This symbol marks operations that can lead to malfunctions or faulty measurements, but
will not damage the device.
DANGER
A danger indicates actions that can lead to property damage or personal injury.
According to IEC 61010, this symbol means that this device must be
operated with DC voltage.
Warning, electric shock hazard.
According to IEC 61010, this symbol means that the documentation of
the device must completely be read and understood before installing and
commissioning of the device. Observe all safety related instructions in this
document.
1.3 Liability and guarantee
Emerson is not liable for damages that occur due to improper use. Proper use also includes
the knowledge of, and compliance with, this document.
Customer changes to the device that have not been expressly approved by Emerson will
result in the loss of guarantee.
Due to continuous research and further development, Emerson reserves the right to
change technical specifications without notice.
1.4 Incoming goods inspection
Check the content of the shipment to ensure that it is complete. Inspect the goods to
determine if the device has been damaged during transport. The following parts are
included in the scope of delivery and must be contained in the shipment:
• VI Tach CHARM
If the contents are incomplete, or if you observe any defects, file a complaint with the
carrier immediately. Inform the responsible Emerson sales organization, so your device
can be replaced. In this case, attach a tag with customer name and the observed defect.
Additional parts are required to use the VI Tach CHARM, see About the VI Tach CHARM
hardware for details.
8 MHM-97930-PBF, Rev. 1.3
Installation Guide General
MHM-97930-PBF June 2022
1.5 Technical support
You may need to ship this product for return, replacement, or repair to an Emerson
Product Service Center. Before shipping this product, contact Emerson Product Support to
obtain a Return Materials Authorization (RMA) number and receive additional instructions.
Product Support
Emerson provides a variety of ways to reach your Product Support team to get the answers
you need when you need them:
Phone
Email
Web
To search for documentation, visit http://www.emerson.com.
To view toll free numbers for specific countries, visit http://www.emersonprocess.com/
technicalsupport.
Note
If the equipment has been exposed to a hazardous substance, a Material Safety Data Sheet
(MSDS) must be included with the returned materials. An MSDS is required by law to be
available to people exposed to specific hazardous substances.
Toll free 800.833.8314 (U.S. and Canada)
+1.512.832.3774 (Latin America)
+63.2702.1111 (Asia Pacific, Europe, and Middle East)
Guardian.GSC@Emerson.com
http://www.emerson.com/en-us/contact-us
1.6 Storage and transport
Store and transport the device only in its original packaging. Technical data specifies the
environmental conditions for storage and support.
1.7 Disposal of the device
Provided that no repurchase or disposal agreement exists, recycle the following
components at appropriate facilities:
• Recyclable metal
• Plastic elements
Sort the remaining components for disposal, based on their condition. National laws or
provisions on waste disposal and protection of the environment apply.
Note
Environmental hazards! Electrical waste and electronic components are subject to
treatment as special waste and may only be disposed by approved specialized companies.
MHM-97930-PBF, Rev. 1.3 9
General Installation Guide
June 2022 MHM-97930-PBF
1.8 China RoHS Compliance
Our products manufactured later than June 30, 2016 and those which are sold in the
People's Republic of China are marked with one of the following two logos to indicate the
Environmental Friendly Use Period in which it can be used safely under normal operating
conditions.
Products without below mentioned marking are either manufactured before June 30 or
are non-electrical equipment products (EEP).
Circling arrow symbol with "e": The product contains no hazardous substances over
the Maximum Concentration Value and it has an indefinite Environmental Friendly
Use Period.
Circling arrow symbol with a number: This product contains certain hazardous
substances over the Maximum Concentration Value and it can be used safely under
normal operating conditions for the number of years indicated in the symbol. The
names and contents of hazardous substances can be found in the folder "China
RoHS Compliance Certificates" on the documentation CD or DVD enclosed with the
product.
1.9 Installation awareness
Note
When planning a measurement, observe the following items:
• Consider environmental conditions which might have an influence on the
measurement such as temperature, humidity, substances aggressive to the sensor,
and pollution.
• Always use a stiff and vibration-free sensor holder.
• Define a suitable measuring range, not larger than necessary, in consultation with the
operator of the plant.
• Define the trip limit in consultation with the operator of the plant.
• Take measurement deviations into account when defining the trip limit.
• Use a sensor that meets the requirements of the defined measuring range.
• Ensure an EMC-compatible installation including the use of proper cables.
• Ensure proper function of the measurement before activating the measurement for
regular operation.
10 MHM-97930-PBF, Rev. 1.3
Installation Guide Safety instructions
MHM-97930-PBF June 2022
2 Safety instructions
To ensure safe operation, carefully observe all instructions in this manual.
The correct and safe use of this device requires that operating and service personnel both
understand and comply with general safety guidelines and observe the special safety
comments listed in this manual. Where necessary, safety-sensitive points on the device
are marked.
DANGER
Because the device is electrical equipment, commissioning and service must be performed
only by trained and authorized personnel. Maintenance must be carried out only by
trained, specialized, and experienced personnel.
2.1 Using the device
Install and use the device as specified in this document.
If the device is used in a manner not specified by the manufacturer, the functions and
protection provided by the device may be impaired.
2.2 Owner's responsibility
If there is a reason to suspect that hazard-free operation, and thus, adequate machine
protection is no longer possible, take the device out of operation and safeguard it from
unintentional operation. This is the case:
• if the device shows visible damage.
• if the device no longer works.
• after any kind of overload that has exceeded the permissible limits (such as those
detailed in chapter "Technical data," section "Environmental conditions").
DANGER
If device tests have to be completed during operation or if the device has to be replaced or
decommissioned, it will impair the machine protection and may cause the machine to
shut down. Make sure to deactivate machine protection before starting such work, and
reactivate it after work has been completed.
2.3 Radio interference
The device is carefully shielded and tested to be technically immune to radio interference
and complies with current standards. However, if you operate this device together with
other peripheral devices that are not properly shielded against radio interference,
disturbances and radio interferences may occur.
MHM-97930-PBF, Rev. 1.3 11
Safety instructions Installation Guide
June 2022 MHM-97930-PBF
2.4 ESD safety
DANGER
Internal components can be damaged or destroyed due to electrostatic discharge (ESD)
during the handling of the device.
Take suitable precautions before handling the device to prevent electrostatic discharges
through the sensor electronics. Such measures might include, for example, wearing an
ESD bracelet. Transport and storage of electronic components may only be made in ESDsafe packaging.
Handle the device with particular care during dry meteorological conditions with relative
humidity below 30% as electrostatic discharges can appear more frequently.
12 MHM-97930-PBF, Rev. 1.3
Installation Guide Installing the VI Tach CHARM hardware
MHM-97930-PBF June 2022
3 Installing the VI Tach CHARM
hardware
3.1 About the VI Tach CHARM hardware
The VI Tach CHARM is a single channel measuring module for the connection of:
• Externally powered eddy current sensor outputs
• Passive magnetic sensors
• Hall-effect sensors
The CHARM is equipped with an internal power supply to directly supply Hall-effect
sensors. The CHARM calculates speeds and generates key-signals from the input signal.
The generated key-signal is within a frequency range of up to 2000 Hz. Parameters for the
input signal processing are software configurable. The key-signal is available within the
AMS Asset Monitor, in which the CHARM is installed, for other CHARMs that require a key
signal for signal processing.
The VI Tach CHARM can be installed in the AMS Asset Monitor. The standard CHARM
Terminal Block KL4502X1-BA1 is required for the installation.
The maximum permissible input voltage of the VI Tach CHARM is 30.3 V AC. The
maximum input voltage of 30.3 V AC is also the maximum permissible input voltage when
using the VI Tach CHARM in explosion-hazardous areas.
MHM-97930-PBF, Rev. 1.3 13
Installing the VI Tach CHARM hardware Installation Guide
June 2022 MHM-97930-PBF
Figure 3-1: VI Tach CHARM
A. Bicolor LED (red and green), see
B. Connector
Table 5-1 for meaning of the indication.
3.2 Install the VI Tach CHARM
The recommended procedure depends on the system in which the VI Tach CHARM is to be
installed. See AMS Asset Monitor manual for the recommended procedure. The described
procedure is a recommendation and can be changed to the needs of your project.
CAUTION
Any work on the system may impair asset health monitoring and machine protection.
Prerequisites
• A prepared slot with an already installed CHARM Terminal Block (KL4502X1-BA1) in a
compatible system such as an AMS Asset Monitor
• A suitable flat-tip screwdriver for the terminal screws of the CHARM Terminal Block
• Ensure that the electrical requirements of the sensor to be connected comply with the
electrical input requirements of the VI Tach CHARM
14 MHM-97930-PBF, Rev. 1.3
Installation Guide Installing the VI Tach CHARM hardware
MHM-97930-PBF June 2022
CAUTION
Do not swap the polarity of the CHARM's voltage supply. Because of the internal
connection of the signal input GND and the power supply GND, it is not possible to use the
+24 V power supply as a -24 V power supply.
Select from Step 3 to Step 5 the step that is in accordance to the used sensor.
Procedure
1. Ensure that the latch of the CHARM Terminal Block is in the open position. If the
latch is in the closed position, move it outwards to open it.
2. Gently push the VI Tach CHARM straight into the already installed CHARM Terminal
Block. The CHARM latch locks with an audible click in the closed position.
Note
The CHARM is hot-swappable. It is not necessary to switch off the power supply of
the system before installing or removing the CHARM.
Figure 3-2: CHARM installation
A. Standard CHARM Terminal Block (KL4502X1-BA1)
B. VI Tach CHARM
The CHARM Terminal Block contains keying posts that are automatically set and
locked to the unique position of the installed CAHRM. The keys prevent the
insertion of an incorrect CHARM during maintenance activities.
To reset the keying mechanism, remove the CHARM Terminal Block from the
CHARM Baseplate, flip the terminal block 180°, and use your fingers to push the two
keying posts completely in so they are sub flush to the bottom face of the terminal
block. Sub flush is the neutral position. You will hear a click when the posts are in
the neutral position. When the posts are in the neutral position, the terminal block
can receive a different CHARM type.
MHM-97930-PBF, Rev. 1.3 15
Installing the VI Tach CHARM hardware Installation Guide
June 2022 MHM-97930-PBF
DANGER
Do not try to install the VI Tach CHARM into a CHARM Terminal Block with keying
posts set for another CHARM type. This might damage Terminal Block and CHARM.
3. Connect a signal of an eddy current sensor to the CHARM Terminal Block. The
supplying of an eddy current converter is not supported by the CHARM.
Figure 3-3: Sensor connection – eddy current sensor signal
A. VI Tach CHARM
B. CHARM Baseplate
C. Standard CHARM Terminal Block
D. Signal GND
E. Signal OUT
F. External power supply for the eddy current measuring chain
G. Eddy current converter
H. Cable shield connection
I. Eddy current sensor
a) Connect terminal Out of the eddy current measuring chain to terminal 1 of
the CHARM Terminal Block.
b) Connect terminal GND of the eddy current measuring chain to terminal 2 of
the CHARM Terminal Block.
16 MHM-97930-PBF, Rev. 1.3
Installation Guide Installing the VI Tach CHARM hardware
MHM-97930-PBF June 2022
c) Connect the cable shield to a grounding terminal.
4. Connect a magnetic pickup to the CHARM Terminal Block.
Figure 3-4: Sensor connection – magnetic pickup
A. VI Tach CHARM
B. CHARM Baseplate
C. Standard CHARM Terminal Block
D. Signal Out
E. Signal GND
F. Magnetic pickup
G. Cable shield connection
a) Connect terminal Out of the magnetic pickup to terminal 1 of the CHARM
Terminal Block.
b) Connect terminal GND of the magnetic pickup to terminal 2 of the CHARM
Terminal Block.
c) Connect the cable shield to a grounding terminal.
5. Connect a Hall-effect sensor to the CHARM Terminal Block.
MHM-97930-PBF, Rev. 1.3 17
Installing the VI Tach CHARM hardware Installation Guide
June 2022 MHM-97930-PBF
Figure 3-5: Sensor connection – Hall-effect sensor
A. VI Tach CHARM
B. CHARM Baseplate
C. Standard CHARM Terminal Block
D. GND
E. Signal output
F. +24 V power supply
G. Cable shield connection
H. Hall-effect sensor
a) Connect terminal Signal output of the Hall-effect sensor to terminal 1 of the
CHARM Terminal Block.
b) Connect terminal GND of the Hall-effect sensor to terminal 2 of the CHARM
Terminal Block.
c) Connect terminal +24 V Power supply of the Hall-effect sensor to terminal 3
of the CHARM Terminal Block.
d) Connect the cable shield to a grounding terminal.
1
Only if the cable shield is not used for signal GND and supply GND.
1
1
18 MHM-97930-PBF, Rev. 1.3
Installation Guide Remove the CHARM
MHM-97930-PBF June 2022
4 Remove the CHARM
Follow these steps to remove a VI Tach CHARM from the system.
CAUTION
Any work on the system may impair asset health monitoring and machine protection.
Note
The CHARM is hot-swappable. It is not necessary to switch off the power supply of the
system before installing or removing the CHARM.
Procedure
1. To remove the CHARM from its Terminal Block, push the latch of the Terminal Block
upwards.
Figure 4-1: Remove the VI Tach CHARM
A. Latch
B. CHARM Terminal Block
C. VI Tach CHARM
The CHARM is unlocked.
2. Pull the VI Tach CHARM out of the CHARM Terminal Block to remove it completely.
MHM-97930-PBF, Rev. 1.3 19
Remove the CHARM Installation Guide
June 2022 MHM-97930-PBF
20 MHM-97930-PBF, Rev. 1.3
Installation Guide Maintenance, troubleshooting, and repair
MHM-97930-PBF June 2022
5 Maintenance, troubleshooting, and
repair
5.1 Maintenance
The VI Tach CHARM does not require any maintenance during normal operation.
5.2 Troubleshooting
Follow these first troubleshooting steps in case of an unexpected behavior of the VI Tach
CHARM.
Procedure
1. Check the firmware version of the VI Tach CHARM. Does the CHARM have the latest
firmware version installed?
Update the firmware of the CHARM if a newer version is available. See AMS Asset
Monitor manual for the recommended procedure.
2. Check the bicolored LED at the front of the CHARM.
Table 5-1: Meaning of the LED indication
Event LED indication
LED Color Blinking pattern
CHARM is functioning normally Green Solid
CHARM is healthy but configuration is incomplete Green Flashing (2 Hz)
During tuning phase (after saving the configuration
or after a sensor is connected)
CHARM has a communication fault Red Solid
Signal wiring fault, but CHARM passed all self tests Red Flashing (2 Hz)
CHARM failed to get address assignment Red Flashing (5 Hz)
Non-fatal fault detected Green/Red Alternating (5
Hz)
During recognition by the AMS Asset Monitor Green/Red Alternating for 2
to 3 seconds
Until CHARM is configured Green Flashing (3 Hz)
3. Start with the solutions provided by the table below to solve the issue.
MHM-97930-PBF, Rev. 1.3 21
Maintenance, troubleshooting, and repair Installation Guide
June 2022 MHM-97930-PBF
Table 5-2: Proposed solutions
Event Proposed solutions
CHARM is healthy but
configuration is incomplete
CHARM has a
communication fault
Signal wiring fault, but
CHARM passed all self tests
CHARM failed to get address
assignment
Complete the commissioning of the VI Tach CHARM. See
operating manual of the system where the CHARM is
installed.
a. Check the system where the CHARM is installed for
configuration issues.
b. Check the hardware. Are there any contact problems
between the baseplate and the CHARM Terminal block
or between the CHARM Terminal Block and the
CHARM?
c. Replace the CHARM and the CHARM Terminal Block to
exclude hardware faults.
d. In case of an hardware fault, replace the defective
component.
a. Check the sensor wiring for cable break, loosened
contacts, and wiring faults.
b. Measure the sensor signal. Does the sensor signal meet
the limits of Figure 5-1, Figure 5-2, or Figure 5-3
(depending on the connected sensor)?
a. Check the system where the CHARM is installed for
configuration issues.
b. Check the hardware. Are there any contact problems
between the baseplate and the CHARM Terminal block
or between the CHARM Terminal Block and the
CHARM?
c. Check the Address Plug of the system where the
CHARM is installed.
d. Replace the CHARM, the CHARM Terminal Block, the
Address Plug, and the CHARM Address Terminal Block
to exclude hardware faults.
e. In case of an hardware fault, replace the defective
component.
Non-fatal fault detected
22 MHM-97930-PBF, Rev. 1.3
Check the online display of the system where the CHARM is
installed to get further information on this event message.
Installation Guide Maintenance, troubleshooting, and repair
MHM-97930-PBF June 2022
Figure 5-1: Signal OK limits – eddy current sensor signal
A. Converter output voltage
B. Upper signal not OK limit
C. DC offset (distance between sensor and tooth surface)
D. Lower signal not OK limit
E. Maximum converter output voltage
F. Time
G. Output voltage over a gap
H. Output voltage over a tooth
I. Signal not OK area
MHM-97930-PBF, Rev. 1.3 23
Maintenance, troubleshooting, and repair Installation Guide
June 2022 MHM-97930-PBF
Figure 5-2: Signal – Magnetic pickup
A. Output voltage
B. Maximum permissible peak-to-peak voltage (85 V peak-to-peak)
C. Time
D. Output voltage over a tooth
E. Output voltage over a gap
24 MHM-97930-PBF, Rev. 1.3
Installation Guide Maintenance, troubleshooting, and repair
MHM-97930-PBF June 2022
Figure 5-3: Signal – Hall-effect sensor
A. Output voltage
B. Maximum output voltage (approximately 24 V)
C. 0 V
D. Time
E. Output voltage over a tooth
F. Output voltage over a gap
4. Continue troubleshooting with the assistance of the technical support if the CHARM
is still not working as expected.
5.3 Repair
Repair of a defective VI Tach CHARM is not possible. In case of defects, the VI Tach CHARM
must be replaced.
5.4 Replace a VI Tach CHARM
It is not possible to repair a VI Tach CHARM. In case of defects, the CHARM must be
replaced. Follow the steps listed below if a CHARM needs to be replaced.
CAUTION
Any work on the system may impair asset health monitoring and machine protection.
Note
The CHARM is hot-swappable. It is not necessary to switch off the power supply of the
system before installing or removing the CHARM.
MHM-97930-PBF, Rev. 1.3 25
Maintenance, troubleshooting, and repair Installation Guide
June 2022 MHM-97930-PBF
The configuration of the CHARM is stored in the system. So it is not necessary to create a
backup of the configuration before replacing the CHARM.
Procedure
1. Remove the CHARM from the CHARM Terminal Block. See Remove the CHARM.
2. Install the new CHARM. See Install the VI Tach CHARM.
The CHARM is automatically detected by the system.
3. Ensure that the CHARM has been correctly detected by the system and is working
fault free.
Check the status LED on the front of the CHARM and the status indication on the
system software.
26 MHM-97930-PBF, Rev. 1.3
Installation Guide Technical data
MHM-97930-PBF June 2022
6 Technical data
Only specifications with indicated tolerances or limit values are obligatory. Data without
tolerances or without error limits are informative data and not guaranteed. Technology is
under constant development and specifications are subject to change without notice. If
not otherwise specified, all data refer to a nominal supply voltage of 24 V DC and an
environmental temperature of +23°C.
6.1 Electrical data
Supply for Hall-effect sensor
Sensor supply voltage
Sensor supply load 35 mA Short circuit proof
Power requirements 60 mA at 24 V DC
Power dissipation 0.6 W
+24 V +10%/-20%
Signal input
Sensor types
Nominal signal range -24 to +24 V
Extended signal range 30.3 V AC
Input frequency range 0.01667 Hz to 20 kHz at minimum 2 V peak-peak
Number of teeth 1 to 1000 pulses per revolution
Passive sensor supervision 110 Ω to 10 kΩ
Sensing current 240 μA (typical) Required for open sensor
Hall-effect
Magnetic Pickup (MPU)
Converter output signal
85 V peak-to-peak (sine wave)
0.5 mA
pulse amplitude, duty cycle
30% to 50%
circuit detection of Hall-effect
and passive magnetic sensors.
The sensing current causes an
open-circuit voltage of +12 V to
+17 V, independently of the
configured sensor type.
Input impedance 40 to 160 kΩ
MHM-97930-PBF, Rev. 1.3 27
Technical data Installation Guide
June 2022 MHM-97930-PBF
6.2 Environmental conditions and mechanical design
Environmental conditions
Operating temperature -40 to +70°C
Storage temperature -40 to +85°C
Humidity 5 to 95% Noncondensing
IP protection class IP20 According to IEC 60529
Shock 150 m/s
Vibration 0.15 mm 10 to 58.1 Hz
20 m/s
2
2
According to IEC 60068-2-27,
4000 shocks per axis
58.1 to 150 Hz
According to IEC 60068-2-6,
floating sinus, 20 cycles, three
axes
Operating altitude <2000 m Above sea level
Mechanical design
Status indication
Weight Approximately 35 g Without packaging
Dimensions See Figure 6-1
LED One red/green bicolored LED
Figure 6-1: Dimension
A. 116 mm
B. 47 mm
C. 11 mm
28 MHM-97930-PBF, Rev. 1.3
Installation Guide Certificates
MHM-97930-PBF June 2022
7 Certificates
MHM-97930-PBF, Rev. 1.3 29
Certificates Installation Guide
June 2022 MHM-97930-PBF
30 MHM-97930-PBF, Rev. 1.3
Installation Guide
MHM-97930-PBF June 2022
MHM-97930-PBF, Rev. 1.3 31
MHM-97930-PBF
Rev. 1.3
2022
Emerson
12001 Technology Drive
Eden Prairie, MN 55344 USA
T 1(952)828-3000
www.Emerson.com
Emerson
835 Innovation Drive
Knoxville, TN 37932 USA
T +1 865-675-2400
F +1 865-218-1401
www.Emerson.com
©
2022, Emerson. All rights reserved.
The contents of this publication are presented for informational purposes only, and while diligent
efforts were made to ensure their accuracy, they are not to be construed as warranties or
guarantees, express or implied, regarding the products or services described herein or their use or
applicability. All sales are governed by our terms and conditions, which are available on request. We
reserve the right to modify or improve the designs or specifications of our products at any time
without notice.
The Emerson logo is a trademark and service mark of Emerson Electric Co. The AMS logo is a mark of
one of the Emerson family of companies. All other marks are the property of their respective owners.
Emerson
Jöbkesweg 3
48599 Gronau
Germany
T +49 2562 709 0
F +49 2562 709 401
www.Emerson.com/ams
