1 Introduction

This AMS Device Manager Installation Guide contains the following information:

• Chapter 1, Introduction – Provides an overview of AMS Device Manager installation

and directs you to the appropriate procedures for installing AMS Device Manager for your setup and circumstances.

• Chapter 2, System requirements – Lists the system requirements for AMS Device

Manager, including hardware, software, and security requirements. This chapter also defines additional requirements for system interface networks.

• Chapter 3, Install AMS Device Manager – Describes the procedures for installing AMS

Device Manager. This chapter also details AMS Device Manager installation on a DeltaV or Ovation network.

• Chapter 4, Before using AMS Device Manager – Describes configuration steps

needed before using AMS Device Manager.

• Chapter 5, Troubleshoot installation errors – Provides troubleshooting steps you can

take if you have problems installing AMS Device Manager.

Introduction

Before you begin

To install and use AMS Device Manager software effectively, you should be familiar with the basic functions and operation of:

• Microsoft Windows

• Your local area network (LAN) configuration and security

• Your communication devices and field devices

• Network components installed on your system

You should also be aware of:

• AMS Device Manager system requirements (see page 7)

• Database backup procedures (see page 3)

• Database restore procedures (see page 3)

NOTICE

Do not use the Windows compress feature on the PC drive where AMS Device Manager is installed. AMS Device Manager will be unable to open your database information. Reinstallation of AMS Device Manager will be required.

Introduction

Installation overviews

The following overviews direct you to specific information and procedures required for your type of installation.

Install a standalone AMS Device Manager system

A standalone AMS Device Manager system is a Server Plus Station that maintains the AMS Device Manager database, with no associated Client SC Stations.

1. Read Before you begin on page 1.

2. Confirm that your system meets AMS Device Manager requirements on page 7.

3. Do one of the following:

• For a new installation, follow the Server Plus Station installation steps on

page 35.

• For upgrading from AMS Device Manager 11.0 or later, see page 30.

Install a distributed AMS Device Manager system

A distributed AMS Device Manager system is a client/server deployment of AMS Device Manager Stations. It allows multiple AMS Device Manager Stations access to a common database and all connected devices in the distributed system.

1. Read Before you begin on page 1.

2. Confirm that your system meets AMS Device Manager requirements on page 7.

3. Do one of the following:

• For a new installation, follow the Server Plus Station and Client SC Station

installation steps on page 29.

• For upgrading from AMS Device Manager 11.0 or later, see page 30.

Install AMS Device Manager on a DeltaV system

1. Read Before you begin on page 1.

2. Confirm that your system meets minimum requirements for a co-deployment (refer to the documentation provided with your DeltaV system).

3. Follow the installation steps on page 49.

Install AMS Device Manager on an Ovation system

1. Read Before you begin on page 1.

2. Confirm that your system meets minimum requirements for a co-deployment (refer to the documentation provided with your Ovation system).

3. Follow the installation steps on page 50.

Introduction

Database operations

The following database procedures are essential to successfully install or upgrade to AMS Device Manager 13.1.1:

• Back up a database on page 3 – Do this procedure before upgrading to AMS

Device Manager 13.1.1.

• Restore a database on page 3 – Do this procedure after upgrading AMS Device

Manager from version 11.0 or earlier.

Back up a database

Note

If performing a database backup on a PC with User Account Control enabled, log in with a Windows administrator user to avoid multiple error messages.

1. Enter Database Backup on the Start screen and click Database Backup.

2. In the Backup Database dialog, enter or select the name of the backup file. Select a secure location on your local drive outside the AMS folder.

3. Click Save.

4. Enter Database Verify Repair on the Start screen and click Database Verify Repair to check the database for duplicate, missing, and corrupt records.

Notes

For a very large database, the Verify/Repair operation can take a long time.

5. Do one of the following:

• If Database Verify Repair does not return any errors, repeat steps 1 to 3.

• If Database Verify Repair returns any errors, run Database Verify Repair until

there are no more errors and repeat steps 1 to 3.

Restore a database

Notes

• If you are restoring a database that was created on a different PC and you want to retain the

Device Monitor List and Alert Monitor alerts, before you restore the database on the new station, ensure that the names of the PC and system interfaces configured on the new station are the same as the original station.

• If performing a database restore on a PC with User Account Control enabled, log in with a

Windows administrator user to avoid multiple error messages.

• Ensure your Windows user has System > Database Utilities > Restore Database permission in AMS

Device Manager User Manager. See AMS Device Manager Books Online for more information.

Introduction

1. Close AMS Device Manager and any related applications (for example, Alert Monitor, Server Plus Connect), if open.

2. Stop all database connections.

3. Right-click the AMS Device Manager Server icon in the Microsoft Windows system tray and select Stop AMS Device Manager Server from the context menu.

4. If the database backup file is located on a network drive, copy it to a local drive.

5. Enter Database Restore on the Start screen and click Database Restore.

6. Select the database backup file you want to restore and click Open.

Uninstall AMS Device Manager

You must uninstall AMS Device Manager if you are upgrading from any versions lower than

11.5. You do not need to uninstall the current AMS Device Manager software if you are

upgrading from version 11.5 or higher.

Note

If you have SNAP-ON applications or an AMS Suite Calibration Connector application installed, uninstall them before uninstalling AMS Device Manager. If your applications use an external database, you must back up that database before you uninstall the application (if you want to keep the data).

1. Back up the database (see page 3).

2. Save your license.dat file in a location outside the AMS folder.

3. Right-click the AMS Device Manager Server icon in the Microsoft Windows system tray and select Stop AMS Device Manager Server from the context menu.

4. Open the Windows Control Panel and use Programs and Features to remove AMS Device Manager.

Reference documents

After AMS Device Manager is installed, the following user information tools are copied to your PC:

• AMS Device Manager Books Online

• AMS Device Manager Installation Guide

• Release Notes

• Supported Device List

Introduction

AMS Device Manager Books Online

AMS Device Manager Books Online provides detailed reference and procedural information for using AMS Device Manager. AMS Device Manager Books Online explains the features and functions of AMS Device Manager. You should become familiar with AMS Device Manager Books Online and refer to it regularly as you use AMS Device Manager.

You can access AMS Device Manager Books Online in two ways:

• Click the Help menu on the AMS Device Manager toolbar and select AMS Device

Manager Books Online.

• Enter Books Online on the Start screen and click Books Online.

Use the Contents, Index, or Search tab in the left pane to locate specific topics. You can save shortcuts to frequently used topics and access them on the Favorites tab.

What’s This? Help

You can get help for device parameters on most AMS Device Manager supported devices

by clicking and then clicking on a field. The help is displayed in a window that you can dismiss by simply clicking anywhere on the screen. This help is provided by the device manufacturer and can also be viewed by clicking in a field and pressing the F1 key.

Electronic documentation

Two user documents are placed on your station when AMS Device Manager is installed. These documents are available as Portable Document Format (PDF) files, and include the AMS Device Manager Installation Guide and the Supported Device List.

You need Adobe Reader to view these files. If you do not have a compatible version of Adobe Reader on your PC already, you can download Adobe Reader from www.adobe.com.

To access an electronic document after Adobe Reader is installed, enter Installation Guide or Supported Device List on the Start screen and click Installation Guide or Supported Device List.

Release Notes

The Release Notes provide information about the current release of AMS Device Manager, including supported devices, compatibility issues, and known discrepancies and workarounds.

The Release Notes are provided in text (.TXT) format. You can access the Release Notes in two ways:

• Enter Release Notes on the Start screen and click Release Notes.

• Double-click the RELNOTES.TXT file located in the AMS folder after installation or on

the AMS Device Manager DVD1

We recommend that you read the Release Notes before using AMS Device Manager.

Introduction

Device manuals

Many device manufacturers provide manuals for their devices in PDF format. Run the AMS_PDF_Installer utility to copy relevant manuals to your hard drive. The utility is located in the Device Documentation Installer folder on the AMS Device Manager DVD 2.

After installing device manuals, you access them in AMS Device Manager by right-clicking a device and selecting Help from the context menu. If a device manual is available, it opens in Adobe Reader. If no manual exists for the selected device, AMS Device Manager Books Online opens. To see a list of device manuals installed on your station, select Help > Device from the AMS Device Manager toolbar. Double-click a device to open the associated manual.

2 System requirements

Each PC in your system must meet minimum software and hardware requirements to ensure successful installation and operation of AMS Device Manager. System interface networks and SNAP-ON applications may have additional requirements.

Hardware requirements

PC processing speed, memory, and disk space

Station Type Minimum requirements

Server Plus Station Intel® Core™ 2 Quad processor, 2.4 GHz or greater

4 GB or more of memory

2 GB or more of free hard disk space

Client SC Station Intel® Core™ 2.4 Duo processor, 2.4 GHz or greater

4 GB or more of memory

2 GB or more of free hard disk space

2, 3, 4, 5

System requirements

Notes

Set virtual memory to 2-3 times the size of the physical memory.

The recommended free hard disk space is the amount needed for AMS Device Manager installation, not the amount needed for daily operation (there are no recommended minimum amounts for daily operation). If you receive a message during installation that you do not have enough hard disk space, free up as much space as possible and then retry the installation.

Additional hard disk space is required for migrating the database if you are upgrading from an earlier version of AMS Device Manager. The amount of space required depends on the size of the existing database.

Additional space may be required on the Server Plus Station for the database, depending on the size of your database.

Additional hard disk space is required for SNAP-ON applications.

Serial interfaces

• An RS-232 serial interface is required for a serial HART multiplexer network or

documenting calibrator.

• A serial port with a dedicated interrupt is required for a serial HART modem.

• The use of serial ports on VMWare and Hyper-V virtual PCs is NOT supported.

USB interfaces

• A USB port and USB HART modem drivers are required to use a USB HART modem.

See the Release Notes for a list of supported modems.

System requirements

• A USB port and USB Fieldbus Interface drivers are required to use the USB Fieldbus

Interface.

• A USB port is required to connect a 375 or 475 Field Communicator using a USB

Infrared Data Association (IrDA) adapter. In some cases, IrDA drivers may be necessary. See the Release Notes for a list of supported adapters.

• A USB port is required to connect a 475 Field Communicator or Bluetooth modem

using a USB Bluetooth adapter. Only Microsoft Bluetooth components are supported (see the Release Notes for more information).

• A USB port and drivers are required to connect Fluke 753 and Fluke 754

Documenting Process Calibrators.

• The use of USB ports on VMWare and Hyper-V virtual PCs is supported.

Network requirements

• AMS Device Manager is designed to operate on an Ethernet network running TCP/IP.

• Mobile AMS Device Manager stations are allowed to connect wirelessly using

wireless plant network technology. Some communications slowdown can be expected with wireless networking.

• AMS Device Manager supports deployment within a single domain or workgroup or

across multiple domains or workgroups. For more information, refer to KBA NA-0800-0113. The Microsoft Windows Management Instrumentation and Workstation services must be running on the PC during installation.

• AMS Device Manager does not support deployment between a network workgroup

and a network domain.

• Named IP services (how PCs identify each other on a network) must be functioning

correctly for stations in an AMS Device Manager distributed system to communicate.

• All stations must be connected to the network before beginning AMS Device

Manager installation. This ensures that all stations can access the AMS Device Manager database. All stations’ computer names should be recorded (see

page 40).

• All stations’ PC clocks must be synchronized (many third-party tools are available for

this purpose). Clock synchronization is important because the date and time of an event recorded in the database is based on the clock in the PC that generated that event.

For information about working with network firewalls, see page 55.

Note

Consult with your IT department about security issues and any other network operation issues or special requirements for your network.

Software requirements

Operating systems

AMS Device Manager supports the following Windows operating systems:

Operating System Version

Windows 7 Professional Service Pack 1

Enterprise Service Pack 1

Windows 8.1 Professional

Enterprise

Windows 10 Professional

Enterprise

Windows Server 2008 Standard Service Pack 2

Enterprise Service Pack 2

Windows Server 2008 R2 Standard Service Pack 1

Enterprise Service Pack 1

Windows Server 2012 R2 Standard

Datacenter

Windows Server 2016 Standard

1,3,4

System requirements

1,3

1,3,4

Notes

32-bit and 64-bit versions of the operating systems are supported. 32-bit versions are supported only when co-

deployed with DeltaV or Ovation.

Only 64-bit versions of the operating systems are supported.

Supported with DeltaV in their virtualized environment.

The Windows Server 2008 read-only domain controller is not supported.

• Desktops, laptops, and tablets with touchscreens are supported on Windows 8.1 and Windows 10.

• AMS Device Manager and associated SNAP-ON applications may not be 64-bit applications but will be able to run on

a 64-bit OS with full functionality.

• Intermixing of operating system families is supported only in the following combinations: Windows 7 and Windows

Server 2012 R2 PCs; Windows 10 and Windows Server 2012 R2 PCs. No other combinations are supported.

• A Server operating system and server-class PC (for example, Dell PowerEdge) are recommended if the database is

expected to be greater than 10 GB due to the SQL Server version required (see page 12); or if AMS Device Manager is installed on a DeltaV ProfessionalPLUS Station, Application Station, or Maintenance Station and Batch Historian or VCAT will be used.

• The correct operating system service pack (SP) must be installed on your PC before installing AMS Device Manager.

If your PC does not have the correct SP installed, or you are unsure, contact your network administrator.

• See Change Windows Firewall settings on page 55 for additional operating system configuration considerations.

• AMS Device Manager is supported on a Hyper-V virtual PC only when co-deployed with DeltaV on the same

operating systems supported in non-virtualized environments.

• AMS Device Manager is supported on a VMWare virtual PC.

• AMS Device Manager also supports localized versions of the listed operating systems.

System requirements

Support for Remote Desktop Services

Remote Desktop Services (also known as Terminal Services) is a component of Microsoft Windows (both server and client versions) that allows you to access applications and data on a remote computer over a network, even from a client computer that is running an earlier version of Windows. To use AMS Device Manager 13.1.1 in a Remote Desktop Services environment, do the following:

• Set up Remote Desktop Services.

• If you are using a Terminal Server, install it before AMS Device Manager. A Terminal

Server requires a license.

• Limit the use of Remote Desktop Services to 5 concurrent sessions when AMS

Device Manager is installed on Windows server-class computers.

• Ensure that Remote Desktop Services is NOT set to Relaxed Security.

Notes

• Do not attempt to install AMS Device Manager on a PC accessed through a Remote Desktop

Services session; this is not a supported installation method and may produce undesirable results.

• If multiple users are running AMS Device Manager on a Terminal Server, and one of the users

runs Terminate Servers, the AMS Device Manager application and AMS Device Manager Servers shut down for all users.

• In a Remote Desktop Services environment, SNAP-ON applications may be limited to only one

session at any given time.

• If AMS Device Manager is co-deployed with DeltaV, Remote Desktop Services is disabled

except on virtual PCs.

Contact Microsoft for Remote Desktop Services licensing information. Questions about AMS Device Manager licensing requirements should be directed to your Emerson Process Management Sales/Service Office.

Web browser

AMS Device Manager requires Microsoft Internet Explorer version 10 or later. If you do not have a supported version of Internet Explorer, contact your IT department for assistance.

AMS Device Manager Web Services

AMS Device Manager Web Services provide the ability to import AMS Device Manager data, in XML format, into business applications such as Microsoft Excel. In addition, Computerized Maintenance Management Systems (CMMS) and Enterprise Resource Planning (ERP) systems can use AMS Device Manager Web Services to retrieve data from AMS Device Manager.

Microsoft Internet Information Services (IIS) and AMS Device Manager 13.1.1 Server Plus Station software must be installed on your system before you can install AMS Device Manager Web Services. AMS Device Manager Web Services is not supported on Client SC Stations. If you do not have IIS installed, contact your IT department for assistance.

System requirements

Notes

• Some control systems do not allow IIS to be installed on the same PC. Check your control

system documentation to determine IIS compatibility.

• If you want to install AMS Device Manager Web Services on a DeltaV station, it must be a

DeltaV Application or ProfessionalPLUS station.

• You need local administrator permission to install AMS Device Manager Web Services.

AMS Device Manager Web Services and AMS Asset Portal 3.2

AMS Asset Portal acquires device data as it is connecting to AMS Device Manager Web Services. To use AMS Device Manager Web Services with AMS Asset Portal for devices, the following requirements must be met:

• AMS Device Manager Server Plus Station software must be installed on the PC.

• Microsoft Internet Information Services (IIS) must be installed on the PC before

installing AMS Device Manager Web Services. Use the Windows Add or Remove Programs and Add/Remove Windows Components functions to install IIS (see the Windows operating system documentation or Windows Help for more information).

• The Data Provider Web Service is required to use AMS Asset Portal. The URL to find

the Web Service is: http://<PCname>/amsdevicemanagerws/ amsdataproviderservice.asmx

AMS Suite: Asset Performance Management

The AMS Suite APM Client Framework can be installed on an AMS Device Manager 13.1.1 station. Other components of AMS Suite APM must be installed on additional non-AMS Device Manager PCs.

Microsoft IIS must be installed and configured on the PC before installing AMS Suite APM. To enable the SQL reporting service in AMS Suite APM, the following IIS features must to be added to the IIS defaults (if you are unsure how to do this, contact your IT department):

• ASP.NET

• NET Extensibility

• Request Filtering

• ISAPI

• ISAPI Extensions

• IIS 6 Management Compatibility

For more information about AMS Suite APM, contact your Emerson Process Management Sales/Service Office.

.NET Framework

AMS Device Manager 13.1.1 requires Microsoft .NET Framework 4.5.2 and 3.5 Service Pack

System requirements

Database

AMS Device Manager 13.1.1 uses a named instance, Emerson2012, of SQL Server 2012 Service Pack 3 for its database. The size of your database determines which edition of SQL Server 2012 Service Pack 3 you must use:

• If your database is less than 10 GB, you can use SQL Server 2012 Express Service Pack

3. The AMS Device Manager 13.1.1 setup installs this version automatically.

• If your database is greater than 10 GB or will be at some future time, we

recommended that you install a full version of SQL Server 2012 Service Pack 3 before you install AMS Device Manager.

• If the AMS Device Manager system will support more than 3000 AMS Tags, use the

User Configuration Reports tool, or have more than 10 AMS Device Manager stations (including AMS Suite APM), a full version of SQL Server 2012 Service Pack 3 is recommended regardless of database size.

A full version of SQL Server 2012 Service Pack 3 must be purchased separately (if you do not already have it). We recommend that the full version of SQL Server 2012 Service Pack 3 is installed on a server operating system. To install a full version of SQL Server 2012, see KBA NK-1500-0168.

Notes

• Contact Microsoft for more information about appropriate licensing for a full installation of

SQL Server 2012 Service Pack 3.

• Additional SQL Server licenses are required when using Client SC Stations. Contact Microsoft

for more information.

• The AMS Device Manager database must be located in the AMS\DB folder on a local partition

of the AMS Device Manager Server Plus Station. Any other location is not supported.

• If you are installing other applications on the computer where AMS Device Manager and a full

version of SQL Server 2012 Service Pack 3 is installed, do NOT use the default Maximum server memory setting in SQL Server Management Studio. See KBA NK-1500-0051 for more information.

The AMS Device Manager installation program installs SQL Server on your PC as follows:

• If SQL Server 2012 Service Pack 3 is not installed, the AMS Device Manager 13.1.1

installation program will install SQL Server 2012 Express Service Pack 3 and create an Emerson2012.

• If an instance of SQL Server 2012 Service Pack 3 is installed, but not the

Emerson2012 named instance, the AMS Device Manager 13.1.1 installation program will create the Emerson2012.

• If the SQL Server 2012 Service Pack 3 Emerson2012 named instance is already

installed, the AMS Device Manager 13.1.1 installation program will continue with the next part of the installation program.

• If you have previously installed a full version of SQL Server 2012 Service Pack 3, you

should create the Emerson2012 named instance before installing AMS Device Manager 13.1.1 (refer to your SQL Server documentation). Otherwise, the AMS Device Manager installation will install SQL Server 2012 Express Service Pack 3.

System requirements

Microsoft Office

The following Microsoft Office applications are supported:

• Microsoft Word 2010, 2013, 2016, and 365 (for Drawings and Notes)

• Microsoft Excel 2010, 2013, 2016, and 365 (for Bulk Transfer)

Note

All stations in a distributed system must use the same application and version for entering Drawings/ Notes.

Windows security requirements

AMS Device Manager installation

You need Windows system administrator rights to install and configure AMS Device Manager. Other network security requirements may also apply to the installation. Contact your network administrator for more information.

AMS Device Manager users

During installation, the AMSDeviceManager Windows user group is created and given access to the AMS folder, subfolders, and files. When an administrator adds existing Windows users in the AMS Device Manager User Manager utility on local or domain PCs (see AMS Device Manager Books Online), these users are automatically added to the AMSDeviceManager Windows user group. However, they may not be able to use all AMS Device Manager features until permissions are assigned to them in User Manager.

For AMS Device Manager stations on a workgroup, Windows users added in the User Manager utility must be manually added to the AMSDeviceManager Windows user group using the Windows Control Panel on the Client SC Stations.

The installation creates a share of the AMS folder. It also allows connected Client SC Stations to use the Drawings/Notes feature of AMS Device Manager. If your situation makes this security configuration undesirable, consult your operating system documentation or your system administrator.

AmsServiceUser

A Windows user account called AmsServiceUser is automatically created on each AMS Device Manager station and added to the AMSDeviceManager Windows user group. The AmsServiceUser account is not created if it exists on the domain controller where AMS Device Manager stations are connected. The local or domain AmsServiceUser accounts are also added to the AMSDeviceManager Windows user group on all AMS Device Manager stations during installation.

System requirements

Note

If you are installing an AMS Device Manager distributed system on domain controller PCs or a mix of domain controllers and non-domain controller PCs, do all the domain controller installations first (see page 46).

This user account runs the AMS Device Manager Servers. If your AMS Device Manager system is located on a network that requires periodic changing of passwords, the AmsServiceUser account password can be changed using the AMSPasswordUtility.exe utility from the AMS\Bin folder on each AMS Device Manager station. You should only run the utility after all AMS Device Manager stations have been installed. Do not use the Windows User Accounts or AMS User Manager to modify this user, or change this password as AMS Device Manager will no longer function.

Note

If the AMS Suite Calibration Connector application (see page 52) is installed when you change the password for the AmsServiceUser, you must also change the password for AmsCalibrationConnectorWS properties. This requires a change in the Windows Services console of your workstation. If you are unsure how to do this, contact your IT department.

Requirements for system interfaces

Requirements for system interfaces are in addition to the hardware and software requirements for AMS Device Manager.

HART modems

HART modems let AMS Device Manager communicate with HART devices using a PC serial port, PC USB port, or Bluetooth connectivity. Serial and USB HART modems attach directly to a PC or laptop computer. Bluetooth HART modems require a self-contained power source as well as a Bluetooth-ready workstation PC. The PC can have Bluetooth capability built-in or use a Bluetooth adapter and Microsoft Bluetooth software components. HART modems are not supported with USB to RS-232 converters or with Ethernet converters.

You must configure AMS Device Manager to send and receive data to and from the PC serial communications port or USB port (USB HART modem software is required). If a Bluetooth HART modem is used, you must prepare the PC for its use. Contact your IT department for assistance. HART modems also allow multidropping up to 16 HART devices.

Notes

• If your USB or Bluetooth HART modem manufacturer provided supporting driver software,

install it before configuring the modem for use with AMS Device Manager.

• Bluetooth is not natively supported on Windows Server 2008, Windows Server 2012, or

Windows Server 2016.

System requirements

Field Communicators

The 475 and 375 Field Communicators are portable, handheld communicators from Emerson Process Management used in the field or in the shop to configure, test, and diagnose HART and FOUNDATION fieldbus devices. For information on using the 475 or 375, see the Field Communicator User's Manual.

The Field Communicator Interface is a licensable option that lets you use a Field Communicator and AMS Device Manager together to transfer HART and FOUNDATION fieldbus data. The 475 communicates with an AMS Device Manager station using a USB IrDA adapter (ordered separately) or the Microsoft Windows Bluetooth interface on a Bluetooth-enabled PC. The 375 communicates with an AMS Device Manager station using a USB IrDA adapter (ordered separately). You can communicate with only one Field Communicator at a time on a PC. Communication between AMS Device Manager and a connected Field Communicator is initiated by the AMS Device Manager software.

Documenting calibrators

With the optional Calibration Assistant SNAP-ON application, a documenting calibrator can be used to automate the collection of device calibration data.

When the documenting calibrator is connected to AMS Device Manager, test definitions can be checked out (downloaded) to the calibrator. The calibrator is then attached to the corresponding field device, tests are run, and data is collected. This data can then be checked in (uploaded) to AMS Device Manager for electronic record keeping and report generation.

See the Release Notes for a list of supported documenting calibrators and pertinent information about individual calibrators. See the AMS Device Manager Supported Device List to determine if a device supports calibration.

8000 BIM

The 8000 BIM System Interface displays HART field devices connected to an 8000 BIM system.

The physical connection between your AMS Device Manager PC and the 8000 BIM system requires one of the following:

• A serial connection using an RS-485 converter (BIM)

• An Ethernet connection using TCP/IP addressing (eBIM)

Supported analog input modules:

• 8101-HI-TX — 4-20mA, 8 channel, Div. 2/2

• 8201-HI-IS — 4-20mA, 8 channel, Div. 2/1

• 8301-HI-IS — 4-20mA, 8 channel, Div. 1/1

Supported analog output modules:

• 8102-HO-IP — 4-20mA, 8 channel, Div. 2/2

System requirements

• 8202-HO-IS — 4-20mA, 8 channel, Div. 2/1

• 8302-HO-IS — 4-20mA, 8 channel, Div. 1/1

ABB

The ABB System Interface lets you use AMS Device Manager to view and configure HART devices connected to I/O modules supported by the ABB System 800xA control system.

AMS Device Manager Client SC Station or Server Plus Station software can be installed on an ABB Station if PC hardware and software requirements are met, or on a separate PC. The ABB Station must have the 800xA station software installed and configured for AMS Device Manager to communicate with HART instruments connected using the ABB Controller. The ABB System Interface requires:

• That the ABB Network is licensed in AMS Device Manager.

• That the ABB Station software version is 5.1 along with the “Performance Pack”

enhancement release from ABB.

• That the ABB communications certificate be manually installed. See

ABBSystemInterface-Readme.pdf inside the SNAP-ONS And Tools\ABB HPT Certificate folder on the AMS Device Manager DVD 1 for installation instructions.

• The AMS Device Manager user must be the same as the ABB user on the station that

runs the "ABB HART Pass Through Service".

• Use of the AC 800M series controllers.

• Use of supported multiplexers, including:

- Pepperl+Fuchs KFD2-HMM-16

- MTL4840

- Elcon Series 2700-G

System requirements

DeltaV

A DeltaV control network is an isolated Ethernet local area network (LAN) that provides communication between the controllers and the stations. It uses one or more Ethernet hubs for communication.

DeltaV System Interface station software requirements:

• AMS Device Manager 13.1.1 can only be installed on the following DeltaV 11.3,

11.3.1, 12.3, 12.3.1, 13.3, 13.3.1 stations:

DeltaV Workstations AMS Device Manager Station Type

ProfessionalPLUS Station Server Plus Station or Client SC Station

ProfessionalPLUS as Remote Client Server Server Plus Station or Client SC Station

Local Application Station

Remote Application Station Server Plus Station or Client SC Station

Local "Operate" Station

- Professional

- Operator

- Base

- Maintenance

Operator Station as Remote Client Server Client SC Station only

Remote "Operate" Station

- Professional

- Operator

- Base

Terminal Services is not supported.

Server Plus Station or Client SC Station

Client SC Station only

• The DeltaV System Interface must be configured on a licensed AMS Device Manager

station that is on the DeltaV network.

• AMS Device Manager supports DeltaV version 11.3 and later in co-deployed

installations only.

• Supported HART I/O hardware and software revisions:

- Analog Input HART Module, 8-channel, Series 1, Revision 2.21 or higher

- Analog Input HART Module, 8-channel, Series 2, Revision 1.26 or higher

- Analog Input HART Module, 16-channel, Revision 1.17 or higher

- Analog Output HART Module, Series 1, Revision 2.25 or higher

- Analog Output HART Module, Series 2, Revision 1.26 or higher

- HART AI 8 Channel Card, S-Series, Revision 1.26 or higher

- HART AI 16 Channel Card, S-Series, Revision 1.17 or higher

- HART AO Card, S-Series, Revision 1.26 or higher

- HART AI Redundant High Density, S-Series, Revision 1.0 or higher

- HART AO Redundant High Density, S-Series, Revision 1.0 or higher

System requirements

• Supported Intrinsically Safe HART I/O hardware and software revisions:

- Analog Input HART Module, 8-channel, Revision 2.39 or higher

- Analog Output HART Module, 8-channel, Revision 2.00 or higher

• Supported Zone I/O hardware and software revision:

- Analog Input or Analog Output, Revision 1.14 or higher

• Supported FOUNDATION fieldbus I/O hardware and software revision:

- Fieldbus H1, Series 1, Revision 1.8 or higher (does not support fieldbus alerts)

- Fieldbus H1, Series 2, Revision 2.2 or higher

- Fieldbus H1, S-Series Integrated Power, Revision 4.87 or higher

- Fieldbus H1, S-Series, Revision 2.2 or higher

- Fieldbus H1, S-Series, 4-port, Revision 1.0 or higher

• Supported CHARM I/O hardware and software revision:

- CHARM I/O Carrier (CIOC), Revision 11.3.1 or higher

- AI 4-20 mA HART CHARM, Revision 1.18 or higher

- AO 4-20 mA HART CHARM, Revision 1.18 or higher

- AI 4-20 mA HART (Intrinsically Safe) IS, Revision 1.74

- AO 4-20 mA HART (Intrinsically Safe) IS, Revision 1.76

• Supported Safety Instrumented System (SIS) CHARM I/O hardware and software

revision:

- CHARMs Logic Solver (CSLS), Revision 1.1 or higher

- LS AI 4-20 mA HART CHARM, Revision 1.15 or higher

- LS AI 4-20 mA HART (Intrinsically Safe) CHARM, Revision 1.15 or higher

- LS DVC HART DTA CHARM, Revision 1.16 or higher

- LS DVC HART (Redundant DTA) CHARM, Revision 1.16 or higher

• Supported PROFIBUS DPV1 I/O hardware and software revision:

- PROFIBUS Series 2+, Revision 1.36 or higher

• Supported Wireless I/O:

- Wireless I/O card (WIOC), Revision 11.3.1 or higher

- Smart Wireless Gateway, Revision 3.95 or higher

• Security – The DeltaV password (if not using the default password) must be entered

in the AMS Device Manager Network Configuration utility (see Add a DeltaV network in AMS Device Manager Books Online).

DeltaV supports:

• FOUNDATION fieldbus devices

• Wired HART Rev. 5, Rev. 6, and Rev. 7 devices

• WirelessHART Rev. 7 devices

• PROFIBUS DPV1 devices

System requirements

• PROFIBUS PA devices (supported on DeltaV 11.3 or higher with an S-Series

PROFIBUS DP I/O card and a PROFIBUS DP/PA Coupler on a PROFIBUS DP segment. See Release Notes for supported couplers.)

• HART safety devices connected to DeltaV SIS logic solvers

• HART safety devices connected to DeltaV 12.3 or later (SIS) CHARMs logic solvers

DeltaV versions 11.3 and later can access devices connected to RS3 and PROVOX I/O systems through the DeltaV Interface for RS3 I/O and DeltaV Interface for PROVOX I/O, respectively. The devices are displayed in the DeltaV network hierarchy in AMS Device Manager. For installation and setup information, refer to the DeltaV Books Online.

To receive alerts from devices connected to PROVOX and RS3 Migration Controllers in your DeltaV network hierarchy, you must run a utility to properly set the DeltaV alert capability (see page 57).

The AMS ValveLink SNAP-ON application is supported for DeltaV and PROVOX I/O cards, but not for RS3 cards. See page 26 for I/O requirements.

The DeltaV System Interface supports AMS ValveLink Diagnostics. Analog output modules configured for HART are required on the DeltaV station for communication with HART FIELDVUE digital valve controllers. FOUNDATION fieldbus FIELDVUE digital valve controllers need only be commissioned and ports downloaded.

Det-Tronics

The Det-Tronics System Interface is used to monitor fire and gas detectors on the DetTronics Eagle Quantum Premier (EQP) fire and gas safety system.

Before configuring the system interface, you must:

• Install the Det-Tronics Safety System Software (S3) application version 8.7.x.x or

higher

• Install the Det-Tronics EQP application

• Program the S3 dongle/key to include the AMS Driver

The Det-Tronics System Interface supports alerts for devices if the following are true:

• AMS Device Manager Server is running on the station where the Det-Tronics

network is connected.

• The device has been previously identified.

• The device is in the Device Monitor List.

FF HSE

The FF HSE System Interface lets you use AMS Device Manager to configure and view alerts for FOUNDATION fieldbus devices connected to FOUNDATION fieldbus linking devices.

The FF HSE System interface requires:

System requirements

• One or more (up to 64) commissioned FF HSE Linking Devices that conform to the

FOUNDATION fieldbus HSE and H1 specifications (for a list of supported linking devices, see the Release Notes). The Remote Operations Controller for FOUNDATION fieldbus (ROC FF) and the ControlWave linking devices are displayed in AMS Device Manager in the FF HSE hierarchy. For setup and configuration of ROC FF and ControlWave linking devices, see the documentation supplied with them.

Note

All linking devices on the same network must have unique tag names. If duplicate tag names are used, the hierarchy will not build properly.

• Commissioning using the device manufacturer’s commissioning/decommissioning

utility.

• Configuring FF HSE Linking Devices with unique TCP/IP addresses.

• An AMS Device Manager station with 1 or 2 Ethernet network interface cards (NIC).

A NIC dedicated to the FF HSE segment is recommended to reduce the amount of competing network communications.

NOTICE

If you have an Ovation System Interface installed, use the network interface card IP address of the FF HSE Server for the FF HSE System Interface.

HART Multiplexer Network

The HART Multiplexer System Interface lets you use AMS Device Manager to communicate with HART devices through a HART multiplexer. HART multiplexers can link many installed HART field devices to an AMS Device Manager station, providing the capability to remotely configure, troubleshoot, and monitor those devices. A typical HART multiplexer network enables one PC COM port to communicate with up to 63 addressable HART multiplexers.

AMS Device Manager supports a variety of multiplexers, each with different capabilities and requirements. Supported multiplexer types can have between 32 and 256 device connections.

A HART multiplexer network requires:

• One serial communication port for each HART multiplexer network.

• An RS-232 to RS-485 converter or a supported Ethernet serial hub (see the Release

Notes for supported models).

• Multiplexers or I/O modules of the following types:

- Arcom

- Elcon

- 8000 BIM

- Pepperl+Fuchs

System requirements

- Spectrum Controls I/O (this is an I/O module that connects to an Allen-Bradley

Programmable Logic Controller, it displays as a multiplexer in AMS Device Manager)

For a list of supported multiplexers and additional requirements for specific types of multiplexers see the Release Notes. For specific information about a supported multiplexer, see the manufacturer’s documentation. For more information about multiplexer networks, see KBA NA-0400-0084.

HART Over PROFIBUS

The HART Over PROFIBUS System Interface lets you use AMS Device Manager to view and configure HART devices that are connected to PROFIBUS remote I/O subsystems via the Softing Ethernet PROFIBUS Interface (xEPI) PROFIBUS Gateway. The interface addresses the gateway by either its DNS or IP address.

Note

Before upgrading to AMS Device Manager 13.1.1 from previous versions supporting HART Over PROFIBUS, contact your Emerson Process Management Sales/Service Office to ensure your system is fully supported. Additional testing may be required.

The HART Over PROFIBUS System Interface requires that:

• AMS Device Manager is installed on a PC running a supported operating system.

• A control system that supports PROFIBUS DPV1 is configured and operational.

• At least one Softing PROFIBUS Gateway for communications is configured and the

current version of the T+H AMS Device Manager Communications Components (TACC) software is installed.

• At least one PROFIBUS DP remote I/O subsystem that supports HART

communications is connected to the control system. Contact your Emerson Process Management Sales/Service Office for a list of supported I/O subsystems.

• At least one HART I/O module is installed in the remote I/O subsystem. See the

Release Notes for a list of supported HART I/O modules.

• At least one HART instrument is present on a module channel.

See the TH AMS Device Manager Communication Components HART Over PROFIBUS User Guide downloaded from Softing for more information.

Kongsberg

The Kongsberg System Interface lets you use AMS Device Manager to communicate with HART devices using I/O modules supported by the Kongsberg Maritime System. The Kongsberg Network communicates with HART devices using the Kongsberg Automation Server which is an application with a Web Service interface.

The Kongsberg System Interface is deployed where there is access to the Kongsberg Automation Server with IIS. Install the Kongsberg Automation Server on an AMS Device Manager station for best communication performance.

System requirements

If you install additional Kongsberg System Interfaces, each must be linked to unique Kongsberg Automation Server URLs. The Kongsberg System Interface supports communications with HART instruments connected to STAHL ISPac HART Multiplexers and STAHL PROFIBUS DP Remote I/O modules for HART.

The Kongsberg System Interface requires that:

• The version of the Kongsberg Control System is AIM v8.3.

• The Kongsberg System is set up and the Automation Server is accessible from the

AMS Device Manager station.

• The URL for the Kongsberg Automation Server is known.

• One or more Remote Control Units (RCUs) are available on the Kongsberg Network

where PROFIBUS Masters or HART Masters may be configured.

- PROFIBUS Masters allow the connection of HART DP Slave and I/O Modules,

which connect HART instruments to the network.

- HART Masters allow the connection of HART Multiplexers, which connect HART

instruments to the network.

OpenEnterprise

The OpenEnterprise System Interface lets you use AMS Device Manager to view and configure wired HART and WirelessHART devices connected to an OpenEnterprise SCADA System and associated Remote Terminal Unit (RTU) controllers (that is, ROC800 series, FloBloss 107, and ControlWave).

The OpenEnterprise System Interface requires that:

• The version of OpenEnterprise Server is 3.2 or higher.

• The OpenEnterprise Server is installed on an AMS Device Manager 13.1.1 PC or on a

network-accessible PC. If the OpenEnterprise Server is on a different PC, you must install an OpenEnterprise OPC Alarms & Events instance on the AMS Device Manager station with an OpenEnterprise System Interface in order to get device alerts.

• Only one OpenEnterprise System Interface is allowed for each AMS Device Manager

station.

The following firmware on controllers are supported on the OpenEnterprise System Interface:

• ROC 800 Series Controller:

- ROC 809, ROC 827 Series 2 FW v3.70

- ROC 800L, FW v1.50

- ROC DL8000 Series 2 FW v1.80

• FloBoss Series Controller:

- FB107 FW v1.80

- FB103 FW v2.15

- FB104 FW v2.15

- FB407 FW v1.14

System requirements

- FB503 FW v2.48

- FB504 FW v2.48

• ControlWave Series Controller:

- ControlWave, ControlWave Micro, FW v5.75

• Modules:

- IEC62591 Smart Wireless Module, Rev 1.11 for ROC800, FloBoss, ControlWave

series

Note

The OpenEnterprise System Interface cannot be installed on an AMS Device Manager station with a DeltaV System Interface.

Ovation

The Ovation System Interface lets AMS Device Manager communicate with HART, FOUNDATION fieldbus, PROFIBUS DPV1, and WirelessHART devices through an existing Ovation network. The Ovation network communicates with devices through one or more Ovation controllers. HART devices communicate with the Ovation controller through I/O modules specifically designed to communicate with HART equipment. FOUNDATION fieldbus devices communicate with the Ovation controller through I/O modules designed to communicate with FOUNDATION fieldbus devices. PROFIBUS DPV1 devices communicate using I/O modules designed for PROFIBUS. WirelessHART devices communicate through the Smart Wireless Gateway. Device information is passed through the Ovation controller to a Windows-based Ovation Station from which AMS Device Manager accesses device data.

FOUNDATION fieldbus device commissioning and decommissioning is accomplished through the Ovation fieldbus engineering software used by the Ovation system. AMS Device Manager is not part of this process. A FOUNDATION fieldbus device must be commissioned before AMS Device Manager can communicate with it.

AMS Device Manager 13.1.1 can be deployed with Ovation as a standalone or co-deployed system.

Ovation System Interface station software requirements:

• AMS Device Manager 13.1.1 can be installed on the following Ovation 3.4.x, 3.5.x,

and 3.6.x stations:

Ovation workstations AMS Device Manager station

Operator Station Server Plus Station or Client SC Station

Database Server Client SC Station

System requirements

Note

If you install AMS Device Manager and configure an Ovation System Interface on a PC that is not an Ovation Station and try to access HART devices, performance will be significantly affected if the host file on the AMS Device Manager station is missing specific entries. To improve performance, add the IP address and hostname for each configured Ovation Safety Data Server to the C:\WINDOWS\SYSTEM32\DRIVERS\ETC\HOSTS file on the AMS Device Manager Station.

• If you have FOUNDATION fieldbus devices, we recommended that a licensed AMS

Device Manager Client SC Station be installed on the Ovation Database Server (see

page 57).

For device support, you can configure AMS Device Manager with an Ovation system as follows:

• For HART devices:

- If you want to access HART devices on your Ovation system, AMS Device

Manager Server Plus Station software and the Ovation System Interface can be installed on any Ovation Station or on a standalone PC.

- AMS Device Manager supports burst mode messages from HART devices on

Ovation Stations using analog output card 5X000167 only.

• For FOUNDATION fieldbus devices:

- For Ovation 3.4, the AMS Device Manager Server Plus Station must be co-

deployed on any Ovation Station with the Ovation fieldbus engineering software installed. Configure the Ovation System Interface on this station.

- For Ovation 3.5 and later, ensure the Ovation HSE Server is installed, and

configure the AMS Device Manager Ovation System Interface with FOUNDATION fieldbus selected on the Ovation Database server. The AMS Device Manager Server Plus Station can be co-deployed on an Ovation Operator Station but not on the Ovation Database Server.

- To receive FOUNDATION fieldbus device alerts in AMS Device Manager, the

Ovation OPC Alarm and Event Server package must be installed on your codeployed Ovation/AMS Device Manager station. The AMS Device Manager Ovation System Interface must also be installed on this station.

Note

Some FOUNDATION fieldbus devices have a feature known as “reannunciation” (or “multibit”). This feature must be disabled for devices on an Ovation 3.5 or later system so that AMS Device Manager can receive alerts from these devices. This feature is typically enabled/ disabled in the AMS Device Manager device Configure/Setup properties screens (the exact location varies by device).

• For WirelessHART devices:

- If you want to access information for WirelessHART devices on an Ovation

system, configure an Ovation System Interface in AMS Device Manager with WirelessHART support enabled and a connection to a Smart Wireless Gateway configured.

• For PROFIBUS DPV1 devices:

System requirements

- If you want to access information for PROFIBUS DPV1 devices on an Ovation 3.4

or later system, configure an Ovation System Interface in AMS Device Manager with PROFIBUS DP support enabled.

- PROFIBUS DPV1 devices will only be supported on Ovation 3.4 or later networks.

A PROFIBUS DP module can contain up to 2 ports. Each port can be connected to up to 124 PROFIBUS DPV1 devices.

• For SIS devices:

- If you want to access SIS HART device information on your Ovation system

through AMS Device Manager, AMS Device Manager can be configured on an Ovation Station or on a non-Ovation Station. Use the AMS Device Manager Network Configuration utility to set up an Ovation System Interface.

Each Ovation controller uses a unique TCP/IP address. AMS Device Manager communicates with HART devices, WirelessHART devices, FOUNDATION fieldbus devices, and devices connected to Ovation Safety Instrumented System (SIS) logic solvers through I/O modules contained in the Ovation controller chassis, or in remote nodes connected to the Ovation controller.

• Supported HART I/O hardware:

- Analog Input, 5X00058/5X00059, Version 9 or higher

- Analog Input High Performance, 5X00106/5X00109, Version 6 or higher

- Analog Output, 5X00062/5X00063, Version 8 or higher

- Analog Output High Performance, 5X00167, Version 1 or higher

• Supported FOUNDATION fieldbus I/O:

- Gateway 5X00151G01 and H1 Series 2 Module 5X00152G01, Version 1 or higher

- Module 5X00301 with cavity insert 1X00458H01 or Module 5X00301 with

Personality Module 5X00327, Version 1 or higher (two each of 5X00301 and 5X00327 may also be configured to provide redundancy)

• Supported Intrinsically Safe controller:

- Ovation SIS Logic Solver, KJ2201X1-PW1, Version 1 or higher

• SIS CHARM I/O

- CHARMs Safety Logic Solver Version 1.1.2.15

• Supported PROFIBUS DP I/O (Ovation 3.4 and later, with the correct Ovation patch):

- PROFIBUS module 5X00300/5X00321, Version 1 or higher (two each of 5X00300

and 5X00321 may also be configured to provide redundancy)

• Supported Wireless Gateway (Ovation 3.4 and later) with Smart WirelessHART

adapter (Ovation 3.4 and later):

- 1X00693H01 through 1X00693H04

PROFIBUS

The PROFIBUS System Interface lets you use AMS Device Manager to view and configure PROFIBUS DPV1 or PROFIBUS PA devices connected to a Softing PROFIBUS Ethernet Gateway or a Softing PROFlusb Modem.

System requirements

The PROFIBUS System Interface requires:

• For Ethernet connections, a Softing FG-100 or FG-300 Ethernet Gateway. The

FG-100 supports one PROFIBUS segment while the FG-300 supports up to 3 PROFIBUS DP segments. Each PROFIBUS DP segment can support up to 32 devices.

• For modem connections, a Softing PROFlusb Modem. It can be used as a master in a

PROFIBUS segment.

• Softing PROFIBUS drivers and API version 5.4x must be installed on the PC that will

use Softing PROFIBUS interface hardware.

• To allow application programs to use the Softing PROFlusb Modem, it must first be

configured using Softing's Driver Configuration utility.

• To allow application programs to use the FG Series/PROFlgate Gateways, each bus

channel must first be configured and scanned using Softing's Driver Configuration utility.

• Ensure that you have installed and configured the Softing device drivers before

configuring the PROFIBUS System Interface.

• For connections using the PROFIBUS Ethernet Gateway, only one DNS name or IP

address can be configured for each PROFIBUS Network.

PROVOX

A PROVOX system controls field devices linked together by a communication network called a highway. All communicating PROVOX field devices, including the SRx Controller Family products, are connected to this network.

Field devices are grouped into communication highways in the PROVOX Data Highway or PROVOX Highway II. Both systems are multi-drop, half-duplex type. A traffic controller supervises the communication on a PROVOX Data Highway; a token-passing technique controls communication on a PROVOX Highway II.

The PROVOX System Interface requires:

• I/O type (inputs)–CL6822, CL6825, or CL6827

• I/O type (outputs)–CL6826 (will only support standard HART messaging, it will not

support AMS ValveLink Diagnostics); CL6828, P3.1 or greater (will support standard HART messaging and AMS ValveLink Diagnostics)

• Controller options–SR90 P5.4 with I/O Driver P5.5 or higher or SRx P5.5 or higher

• System software options–OWP with P1.2 or higher, PROVUE P5.5 or higher, and

ENVOX 3.4 or higher; I/O must be configured as “digital” or “hybrid”

• Dedicated HDL with Ethernet connection (TCP/IP) to AMS Device Manager PC

RS3

A Rosemount System 3 (RS3) system controls field devices linked together through Controller cards connected to a PeerWay through ControlFiles. A PeerWay can accommodate up to 32 system devices, called nodes, to allow each control system device to communicate through the PeerWay and the RS3 Network Interface (RNI).

System requirements

The RS3 System Interface requires:

• I/O hardware–FIC 4.8 or higher I/O cards with smart daughterboard and boot

revision supplied with P1R1.4 or MAIO FIM with 2.6 or higher

• Controller hardware–MPC II Controller Processor or higher, CP-IV Coordinator

Processor or higher

• System software–P1R3.4 or higher with controller image P1.10 or higher

• Dedicated RNI–The RNI needs to be either version 4.1 (NT) or version 5.0 (XP or

Server 2003/2008). A single RNI will support multiple AMS Device Manager connections.

Note

AMS Device Manager and RS3 Operator Station (ROS), or DeltaV Operate for RS3 (DOR) cannot be installed on the same PC.

Siemens

The Siemens System Interface lets you use AMS Device Manager to communicate with HART devices on a Siemens PCS 7 Control Network. An AMS Device Manager Server Plus Station or Client SC Station must be installed on the same station as the Siemens PCS 7 ES/MS Station.

The Siemens System Interface requires that:

• The Siemens Network is licensed.

• A Siemens PCS 7 v7.1 with SP1 or higher is installed on the ES/MS Station and the

DeviceCom v8.0.1.0 interface is accessible from AMS Device Manager.

• PDM v6.0 Service Pack 5 or higher is installed on the Siemens system to make

devices available to the Siemens DeviceCom interface.

• The Siemens PCS 7 project file is copied from the live system.

STAHL

A STAHL HART System Interface supports STAHL systems that communicate with HART field devices. AMS Device Manager can read and write device information through existing plant wiring by communicating with multiple devices through the STAHL network. Various STAHL systems can coexist on a single STAHL network.

The STAHL HART System Interface requires:

• RS-232/RS-485 converter for each network (see the Release Notes for supported

models)

• STAHL ICS Module–9148 Multiplexer Module installed on a 9161 Module Board with

up to 16 HART Transmitter Supply Units (module 9103)

• I.S.1 System–Central Unit Module 9440, Multiplexer Module 9461 (HART analog

input) or 9466 (HART analog output)

• IS PAC 9192 HART multiplexer

System requirements

Note

You may not be able to use AMS Device Manager to communicate with HART devices through a STAHL IS PAC multiplexer at the same time a handheld communicator is communicating with the device loop. Consult your STAHL representative for details.

The ICS Module is a single HART multiplexer that supports HART transmitter supply units connected to field devices. The I.S.1 System routes messages to their multiplexers with attached HART field devices. For additional information on supported STAHL equipment, see the Release Notes and the manufacturer’s documentation.

Wireless

The Wireless System Interface allows you to view and configure WirelessHART devices in a Wireless Network. A Wireless Network is made up of one or more wireless gateways and WirelessHART devices.

The Wireless System Interface requires:

• An Ethernet adapter to connect to the gateway.

• One or more wireless gateways that allow communication between the AMS Device

Manager station and a collection of wireless devices.

• WirelessHART devices. See the AMS Device Manager Supported Device List for a list of

supported WirelessHART devices.

• A valid SSL certificate (if using the recommended Security Setup utility) allowing the

AMS Device Manager station to securely communicate with the gateway. See AMS Device Manager Books Online and the Smart Wireless Gateway manual for more information about the Security Setup utility and certificate.

3 Install AMS Device Manager

AMS Device Manager can be installed as a single-station system or as a multi-station, distributed system. The single-station system is a Server Plus Station that maintains the AMS Device Manager database, with no associated Client SC Stations. A distributed AMS Device Manager system is a client/server deployment of AMS Device Manager Stations. It allows multiple AMS Device Manager Stations access to a common database and all connected devices in the distributed system.

A distributed system contains a Server Plus Station and one or more Client SC Stations. Each station has access to a common database located on the Server Plus Station.

The procedures in this chapter are for installing and configuring AMS Device Manager on the following types of stations:

• Server Plus Station

• Client SC Station

For a distributed system to function as intended, all Client SC Stations must have network access to the Server Plus Station. The Server Plus Station must be able to successfully ping each Client SC Station by computer name. You can install a Client SC Station first if that is required for your network configuration (for example, if installing on domain controllers and non-domain controllers). Otherwise, it is recommended that AMS Device Manager software be installed first on the PC to be the Server Plus Station (see page 35), and then on each PC to be used as a Client SC Station (see page 36). All stations must use the same revision of AMS Device Manager software.

Install AMS Device Manager

If you are installing an AMS Device Manager distributed system on a workgroup, a common username is required and should be added to the AMSDeviceManager Windows user group on every AMS Device Manager station on the workgroup.

If you are installing AMS Device Manager on a DeltaV station, see page 49.

If you are installing AMS Device Manager on an Ovation station, see page 50.

If you are installing an AMS Device Manager distributed system and the Server Plus Station is separated from the Client SC Station(s) by a firewall, refer to KBA NA-0400-0046.

If you are installing AMS Device Manager on a PC that has AMS Wireless Configurator installed, see page 34.

Note

It is recommended that you install AMS Device Manager before installing antivirus software. Check the Knowledge Base Articles if there are known issues with your antivirus software.

Install AMS Device Manager

Upgrade an AMS Device Manager system

When you upgrade to a new version of AMS Device Manager, the installation process overwrites all existing files located in the AMS folder (except the database files and license files).

Before you upgrade, you should back up your database as a precaution against loss of data (see

page 3).

The backup files are not changed during installation. In the unlikely event that database files are damaged or altered in some way, you can use the backup files to restore the database.

Upgrading to AMS Device Manager 13.1.1 from version 11.5 and higher does not require you to uninstall previous versions and restore the database after installation. See Table 3-1 on page 31 to upgrade a Server Plus Station or Table 3-2 on page 32 to upgrade a Client SC Station.

Upgrading to AMS Device Manager 13.1.1 from version 11.0 or lower requires you to back up the database and uninstall the previous version. If you have version 11.0 or lower, see

Table 3-3 on page 33.

CAUTION!

Upgrade an AMS Device Manager Server Plus Station 11.5 or higher Table 3-1:

Server Plus Station to Server Plus Station Server Plus Station to Client SC Station

1. Check in all calibration routes.

2. Clear all existing alerts from Alert Monitor.

3. Back up the database (see page 3).

4. Consolidate existing databases, if necessary (see

page 39).

5. Uninstall SNAP-ON applications, if installed2.

6. Uninstall AMS Suite Calibration Connector application, if installed.

7. Uninstall Softing TACC components, if installed (refer to TACC guides downloaded from Softing).

8. Remove any configured HART Over PROFIBUS System Interfaces.

9. Stop any programs or processes that access AMS Device Manager Server 1.

10. Stop AMS Asset Portal Data Collection or AMS Suite APM, if running.

11. Stop AMS Device Manager Server in system tray if running.

12. Install Server Plus Station software (see page 35).

13. Get new license codes, if required (see page 38).

14. Add or edit users (see AMS Device Manager Books Online).

15. Reapply the DeltaV System Interface4, if applicable.

16. Install required SNAP-ON applications (see page 47)2.

17. Install AMS Suite Calibration Connector application, if applicable.

18. Install new Softing TACC components, if applicable3.

19. Configure HART Over PROFIBUS System Interfaces, if applicable

20. Install the latest version of Web Services, if required (see

page 47).

21. Copy device manuals (see page 6).

22. If you plan to continue using AMS Asset Portal, restart Data Collection, but if you have purchased AMS Suite APM, contact PlantWeb Services for assistance.

3, 5

Install AMS Device Manager

1. Check in all calibration routes.

2. Clear all existing alerts from Alert Monitor.

3. Uninstall SNAP-ON applications, if installed2.

4. Uninstall AMS Suite Calibration Connector application, if installed.

5. Uninstall Softing TACC components, if installed (refer to TACC guides downloaded from Softing).

6. Remove any configured HART Over PROFIBUS System Interfaces.

7. Stop any programs or processes that access AMS Device Manager Server1.

8. Stop AMS Device Manager Server in system tray if running.

9. Uninstall previous AMS Device Manager Server software (see page 4).

10. Install Client SC Station software (see page 36).

11. Install required SNAP-ON applications (see

page 47)2.

12. Add or edit users (see AMS Device Manager Books Online).

13. Configure required communication interfaces5.

14. Install new Softing TACC components, if applicable3.

15. Configure HART Over PROFIBUS System Interfaces, if applicable

3, 5

16. Copy device manuals (see page 6).

Install AMS Device Manager

Upgrade an AMS Device Manager Client SC Station 11.5 or higher Table 3-2:

Client SC Station to Server Plus Station Client SC Station to Client SC Station

1. Check in all calibration routes.

2. Clear all existing alerts from Alert Monitor.

3. Back up the database (see page 3).

4. Uninstall SNAP-ON applications, if installed2.

5. Uninstall Softing TACC components, if installed (refer to TACC guides downloaded from Softing).

6. Remove any configured HART Over PROFIBUS System Interfaces.

7. Stop any programs or processes that access AMS Device Manager Server1.

8. Stop AMS Device Manager Server in system tray if running.

9. Uninstall previous AMS Device Manager Server software (see page 4).

10. Install Server Plus Station software (see page 35).

11. Get new license codes, if required (see page 38).

12. Add or edit users (see AMS Device Manager Books Online).

13. Configure required communication interfaces4.

14. Install required SNAP-ON applications (see page 47)2.

15. Install AMS Suite Calibration Connector application, if applicable (see page 52).

16. Install new Softing TACC components, if applicable3.

17. Configure HART Over PROFIBUS System Interfaces, if applicable

18. Install latest version of Web Services, if required (see

page 47).

19. Copy device manuals (see page 6).

20. If you plan to continue using AMS Asset Portal, restart Data Collection, but if you have purchased AMS Suite APM, contact PlantWeb Services for assistance.

3, 5

1. Uninstall SNAP-ON applications, if installed2.

2. Clear all existing alerts from Alert Monitor.

3. Uninstall Softing TACC components, if installed (refer to TACC guides downloaded from Softing).

4. Remove any configured HART Over PROFIBUS System Interfaces.

5. Stop any programs or processes that access AMS Device Manager Server 1.

6. Stop AMS Device Manager Server in system tray if running.

7. Install Client SC Station software (see page 36).

8. Add or edit users (see AMS Device Manager Books Online).

9. Reapply the DeltaV System Interface, if applicable4.

10. Install required SNAP-ON applications (see page 47)2.

11. Install new Softing TACC components, if applicable3.

12. Configure HART Over PROFIBUS System Interfaces, if applicable

3, 5

13. Copy device manuals (see page 6).

Install AMS Device Manager

Upgrade notes

Processes that must be stopped in Windows Task Manager before upgrading include:

• AMSPlantServer

• AMSFileServer

• AMSConnectionServer

• AMSOPC

• AMSGenericExports

• AMSFFServer

• AmsFFAtDeviceBroker

• AMSLicenseServer

• AmsDeviceAlertServer

• AmsHseServer

• AMSDevTypeRemote

• AMSPBServer

SNAP-ON applications must be uninstalled before installing the latest version.

If you intend to use the HART Over PROFIBUS System Interface, after upgrading AMS Device Manager Server you must

reinstall the Softing TACC components whether or not you install new components.

The DeltaV System Interface requires that you re-apply the interface after upgrading AMS Device Manager. To do this,

in the Network Configuration utility, display the properties of the DeltaV System Interface, click OK, and then click Close.

Refer to the procedure in AMS Device Manager Books Online.

Manually installed Device Descriptions that are still not included in the AMS Device Manager 13.1.1 installation must be reinstalled after the upgrade.

Upgrade from AMS Device Manager 11.0 or lowerTable 3-3:

Upgrade from version 7.x, 8.x, 9.x, 10.x, or 11.0

1. Back up the database (see page 3).

2. Uninstall SNAP-ON applications, if installed2.

3. Uninstall AMS Device Manager 7.x, 8.x, 9.x, or 10.x (see page 4).

4. Ensure the PC meets system requirements (see page 7).

5. Install AMS Device Manager 13.1.1 (see page 35 or page 36, depending on the type of installation needed).

6. Install required SNAP-ON applications (see page 47)1.

7. Restore your database (see page 3).

Notes

SNAP-ON applications must be uninstalled before installing the latest version.

If you are upgrading from a version lower than 7.x, contact your Emerson Process Management Sales/Service Office for assistance.

After you have completed the upgrade, configure any required system interface networks and then open AMS Device Manager 13.1.1. Right-click each of the network icons and select Rebuild Hierarchy followed by Scan > New Devices. If you are using the Alert Monitor feature, click Alert Monitor on the AMS Device Manager toolbar to open the Alert List. Click Station Monitoring on the toolbar and ensure that the station you are monitoring is checked.

Install AMS Device Manager

Upgrade from AMS Wireless Configurator

To install an AMS Device Manager Server Plus Station or Client SC Station on a PC that has AMS Wireless Configurator installed:

1. Contact your Emerson Process Management Sales/Service Office to get new license

2. Back up the database (see page 3).

3. Right-click the AMS Device Manager Server icon in the Microsoft Windows system

4. Open the Windows Control Panel and use Programs and Features to remove AMS

5. Install AMS Device Manager (see Install Server Plus Station software on page 35 or

6. Do one of the following:

codes for AMS Device Manager.

tray and select Stop AMS Device Manager Server from the context menu.

Wireless Configurator.

Install Client SC Station software on page 36).

• If you installed a Server Plus Station in Step 5, license AMS Device Manager (see

page 38) and restore your backed-up database (see page 3).

• If you installed a Client SC Station in Step 5, you may need to consolidate your

backed-up AMS Wireless Configurator database with an existing database (see

page 39).

Upgrade from AMS Device Configurator

AMS Device Configurator is a limited-feature version of AMS Device Manager provided to DeltaV users, and does not require a license. To upgrade to the full version of AMS Device Manager:

1. Contact your Emerson Process Management Sales/Service Office to get new license codes for AMS Device Manager.

2. Right-click the AMS Device Manager Server icon in the Microsoft Windows system tray and select Stop AMS Device Manager Server from the context menu.

3. License AMS Device Manager (see page 38).

4. Restart your PC.

5. Start AMS Device Manager.

Install AMS Device Manager

Install Server Plus Station software

Notes

• If you are upgrading your software and changing the station type, you must uninstall the

earlier version of AMS Device Manager before upgrading to AMS Device Manager 13.1.1. (See

Table 3-1 on page 31).

• If you are installing an AMS Device Manager distributed system using a domain controller, see

page 46 for other requirements.

1. Exit/close all Windows programs, including any running in the background (including virus scan software).

2. Insert the AMS Device Manager program DVD 1 in the DVD drive of the PC to be used as the Server Plus Station.

3. When the AMS Device Manager setup starts, click Install AMS Device Manager.

Notes

• If the autorun function is disabled on your PC, double-click D:

\AMSDEVICEMANAGER_SETUP.EXE (where D is the DVD drive letter) and click OK.

• Stopping services may take some time to complete.

4. Click Next.

5. Accept the License Agreement and click Next.

6. Read the Release Notes and click Yes.

7. Click Server Plus Station.

8. Follow the prompts.

NOTICE

Do not interrupt the installation process, or the software will not be fully installed and will malfunction. The installation process includes some system restarts. Do not remove the program DVD until the installation is complete.

Note

If you are installing on a PC with User Account Control enabled, the User Account Control dialog displays after rebooting the PC. Select Yes to continue with the AMS Device Manager installation.

If you do not click Yes within 2 minutes, the dialog closes and to complete the installation you must select Start > All Programs > AMS Device Manager > Continue the AMS Device Manager installation.

9. If you are installing on a Windows 8.1, Windows 10, or Windows Server 2016 PC without .NET Framework 3.5 Service Pack 1 installed, do the following when the Install .NET Framework 3.5 dialog appears:

a. Click Yes.

b. Insert the Windows installation DVD in the DVD drive.

Install AMS Device Manager

10. If the Remove old Emerson Instance Name dialog appears, it is recommended to remove

11. License AMS Device Manager (see page 38).

12. If you are installing a distributed system, configure the Server Plus Station to

13. Set up and configure the system interfaces needed on this station (see page 56).

14. Install the latest versions of any licensed SNAP-ON applications, if appropriate (see

15. Open AMS Device Manager, right-click each of the network icons and select Rebuild

16. If you are using the Alert Monitor feature, click the Alert Monitor button on the AMS

c. Browse to the root directory of the Windows installation DVD and click Next.

d. Once .NET Framework 3.5 SP1 installation is complete, replace the Windows

installation DVD with the AMS Device Manager program DVD 1 and click OK.

old versions to prevent performance issues. Select the instance you want to remove and click Remove. Otherwise, click Skip.

recognize each station connected in the system (see page 39). This step is essential for the other stations to access the Server Plus Station.

page 47).

Hierarchy followed by Scan > New Devices.

Device Manager toolbar to open the Alert List. Click the Station Monitoring button in the toolbar and ensure that the station you are monitoring is checked. Only stations with system interfaces configured need to be checked.

During installation, the AMSDeviceManager Windows user group is given access to the AMS folder, subfolders, and files. When an administrator adds specific Windows users in the AMS Device Manager User Manager utility, these users are automatically added to the AMSDeviceManager Windows user group. However, they have no ability to use AMS Device Manager features until permissions are assigned to them in User Manager.

The installation creates a share of the AMS folder. This allows connected Client SC Stations to access the Server Plus Station. It also allows connected Client SC Stations to use the Drawings/Notes feature of AMS Device Manager. If your situation makes this security configuration undesirable, consult your operating system documentation or your system administrator.

Note

The AMS Device Manager installation program turns off Windows Automatic Updates. After AMS Device Manager is installed, check to see that the Windows Automatic Updates function is set as desired.

Install Client SC Station software

1. Verify Client SC Station connectivity.

Use the ping command to verify that the designated Client SC Station PC responds to communications sent to it by the Server Plus Station.

a. At the AMS Device Manager Server Plus Station, enter CMD on the Start screen.

b. At the command prompt, enter PING <Client SC Station Computer Name>.

c. Press ENTER.

Install AMS Device Manager

d. Verify that the Client SC Station PC responds to the ping command.

The ping command should return a reply message. If the ping command fails, verify that you entered the correct PC name in the command line. Also verify that your network is functioning properly. Contact your IT department if you cannot establish connectivity.

2. Exit/close all Windows programs, including any running in the background (including virus scan software).

3. Insert the AMS Device Manager program DVD 1 in the DVD drive of the PC to be used as a Client SC Station.

4. When the AMS Device Manager setup starts, click Install AMS Device Manager.

Notes

• If the autorun function is disabled on your PC, double-click D:

\AMSDEVICEMANAGER_SETUP.EXE (where D is the DVD drive letter) and click OK.

• Stopping services may take some time to complete.

5. Click Next.

6. Accept the License Agreement and click Next.

7. Read the Release Notes and click Yes.

8. Click Client SC Station.

9. Follow the prompts.

NOTICE

Note

If you are installing on a PC with User Account Control enabled, the User Account Control dialog displays after rebooting the PC. Select Yes to continue with the AMS Device Manager installation.

If you do not click Yes within 2 minutes, the dialog closes and to complete the installation you must select Start > All Programs > AMS Device Manager > Continue the AMS Device Manager installation.

10. If you are installing on a Windows 8.1, Windows 10, or Windows Server 2016 PC without .NET Framework 3.5 Service Pack 1 installed, do the following when the Install .NET Framework 3.5 dialog appears:

a. Click Yes.

b. Insert the Windows installation DVD in the DVD drive.

c. Browse to the root directory of the Windows installation DVD and click Next.

d. Once .NET Framework 3.5 SP1 installation is complete, replace the Windows

installation DVD with the AMS Device Manager program DVD 1 and click OK.

Install AMS Device Manager

11. License AMS Device Manager (see page 38).

12. Set up and configure the system interfaces needed on this station (see page 56).

13. Install the latest versions of any licensed SNAP-ON applications, if appropriate (see

14. Open AMS Device Manager, right-click each locally configured network icon and

15. If you are using the Alert Monitor feature, click the Alert Monitor button on the AMS

Notes

• The AMS Device Manager installation program turns off Windows Automatic Updates. After

• You must add the Windows user as a user in AMS Device Manager User Manager (see AMS

page 47).

select Rebuild Hierarchy and then Scan > New Devices.

AMS Device Manager is installed, check to see that the Windows Automatic Updates function is set as desired.

Device Manager Books Online) or the AMS Device Manager Server icon will not display in the Windows system tray.

License AMS Device Manager

All licensing for an AMS Device Manager system is done on the Server Plus Station. After installation, start the Licensing Wizard and follow the prompts to gather registration information.

Note

To gather the registration information, you need to know your Customer Access Code (supplied with your AMS Device Manager software).

After you register your software, the Registration Center returns your license codes and checksums by downloading from the AMS Device Manager registration website at:

http://www.emersonprocess.com/systems/support/ams_register/10.c.survey.login.asp

When you receive your license codes, run the Licensing Wizard on the Server Plus Station to enter your license codes and checksums, which enables your system.

Notes

• During the licensing process, you must have read access to the PC disk drive you installed on

(C: drive by default) so that the Licensing Wizard can verify the hard disk serial number.

• License codes are assigned to the hard disk serial number of the C:\ boot partition.

1. Enter Licensing Wizard on the Start screen and click Licensing Wizard.

2. Follow the instructions in the Licensing Wizard.

Install AMS Device Manager

3. If you are installing new license information on an existing station, start AMS Device Manager to see the changes.

Configure a Distributed System

Before you can use your distributed system, you must configure the Server Plus Station so the Client SC Stations can access the Server Plus Station.

1. On the Server Plus Station, enter Station Configuration on the Start screen and click Station Configuration.

2. In the Station Configuration dialog, click Add.

3. Enter the computer name of the Client SC Station PC (see page 40), and click OK.

Note

The station name is not case-sensitive. Do not include a domain name or any other characters that are not part of the computer name. Use station names of 15 ISO Latin-1 characters or less.

4. Repeat steps 2 and 3 for each licensed Client SC Station, and click Close when done.

5. Restart each Client SC station in order for all stations to recognize each other.

Consolidate databases

If you have multiple Server Plus Stations, you can consolidate their databases for use in a distributed system.

1. Back up the current database on all stations containing a database you want to consolidate (see page 3).

2. Select one of the Server Plus Stations to hold the consolidated database. Import the database information from the other Server Plus Stations one at a time. This may be done using one of the following methods.

Method 1

Use this method when all the stations are connected to the same network and domain and at the same AMS Device Manager revision level.

• Right-click the Plant Database icon on the designated consolidation Server Plus

Station, select Import > From Remote to import the database from the other stations one at a time. Click Help on the Import From Remote System dialog for instructions.

Note

To Import > From Remote, you must have AMS Device Manager System Administration permissions.

Method 2

Install AMS Device Manager

3. When the databases have been consolidated, perform a database backup of the

4. The AMS Device Manager 13.1.1 Server Plus Station can be installed using one of the

Consolidate Service Notes

Use this method when the stations are not connected to a common network.

• From the Plant Database icon on all of the non-consolidation Server Plus Stations,

select Export > To <type> Export File to prepare a database merge file. Click Help on the AMS Device Manager Export dialog for instructions.

consolidated database.

following methods:

• Install AMS Device Manager 13.1.1 as a station upgrade, if upgrading from

version 11.0 or later which automatically migrates the consolidated database (see page 30).

• Uninstall the current 10.x or earlier station software and install AMS Device

Manager 13.1.1 as a new Server Plus Station (see page 35). Restore the consolidated database (see page 3).

The database backup operation also creates a backup file of service notes. If you would like to consolidate the service notes from multiple AMS Device Manager stations, follow the relevant instructions in the readme file for the Drawings and Notes Management Utility. This information is included in the Tech_Support_Utilities\DrawingsAndNotesUtility folder on the AMS Device Manager DVD 2.

Determine computer names

Computer names are needed to identify the Server Plus Station and the connected Client SC Stations during distributed system installation and configuration (see page 39). Due to a Windows networking requirement, station names must be 15 bytes or less. Please note that some languages have characters that use more than 1 byte.

To find and record a computer name (do not use IP addresses):

1. Right-click the Windows desktop My Computer icon and select Properties.

2. Record the name of each computer that will be part of your distributed system (see the Computer name log example below).

Note

Computer names and DNS names must be the same. “Localhost” cannot be used in a distributed system. Do not include “\\” in any computer names.

Install AMS Device Manager

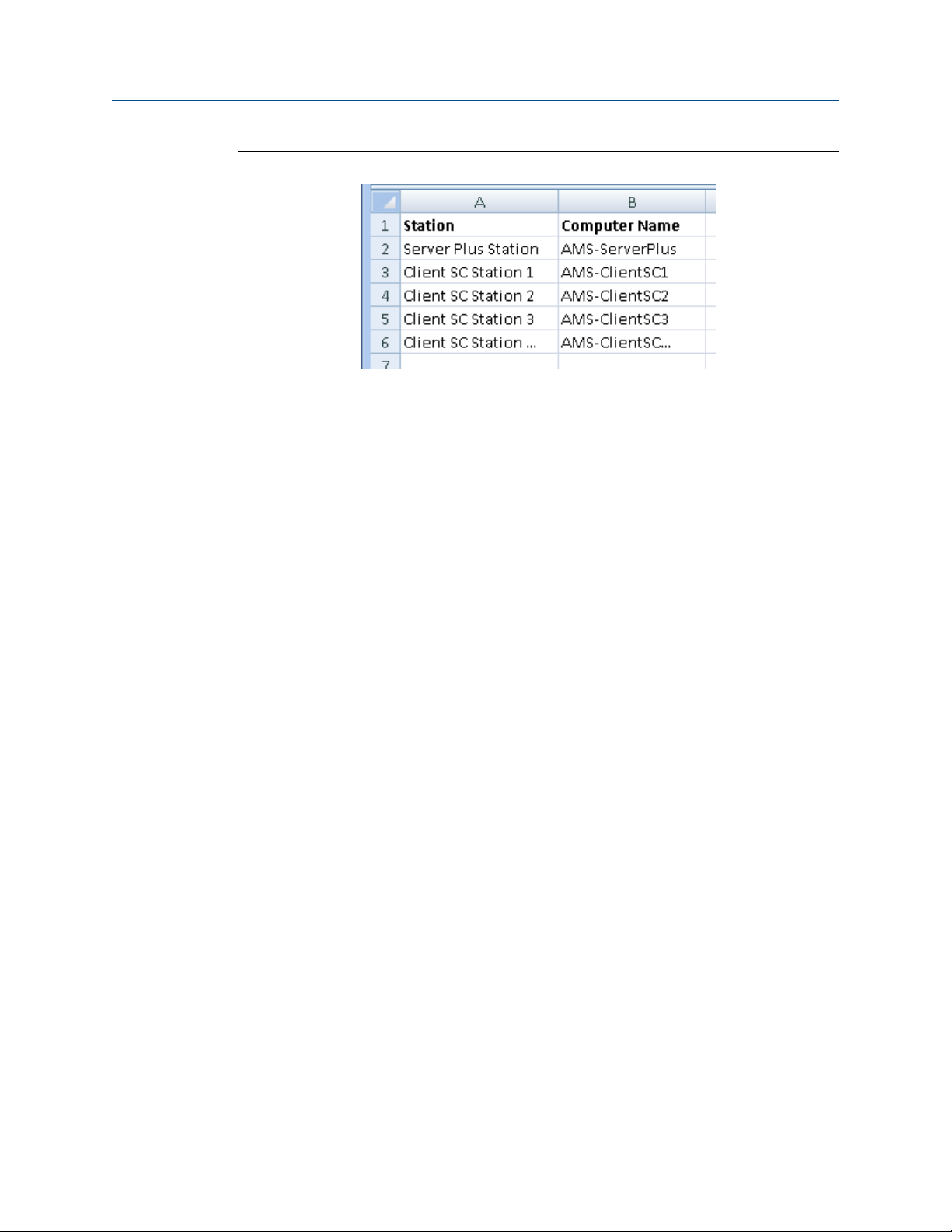

Computer name log exampleFigure 3-1:

Modify a Distributed System

Once your distributed system is installed, any changes to its physical configuration may require special procedures in AMS Device Manager. To change station types in an existing system, see page 41. For other types of changes, see the following:

• Change a Client SC Station to access a different Server Plus Station on page 42.

• Add Client SC Stations on page 42.

• Replace a Server Plus Station PC on page 43.

• Replace a Client SC Station PC on page 43.

• Rename a Server Plus Station PC on page 43.

• Rename a Client SC Station PC on page 44.

• Add a new communication interface on page 45.

• Add more tags than currently licensed on page 45.

Change station types

If you are changing station types, perform the following appropriate procedures. You may also need to reset your users’ permissions ( page 55).

Change a Server Plus Station to a Client SC Station

1. Back up the database (see page 3).

2. Uninstall the previous Server Plus Station software (see page 4).

3. Ensure that a connection can be made to an available Server Plus Station.

4. Install the Client SC Station software (see page 36).

5. Restore or combine the database on another Server Plus Station (see page 3).

Change a Client SC Station to a Server Plus Station

1. Contact your Emerson Process Management Sales/Service Office to get new license codes for AMS Device Manager.

Install AMS Device Manager

2. Uninstall the previous Client SC Station software (see page 4).

3. Install the Server Plus Station software (see page 35).

4. License AMS Device Manager (see page 38).

Change a Client SC Station to access a different Server Plus Station

1. In Network Configuration on the Client SC Station, remove any configured system

2. Enter Server Plus Connect on the Start screen and click the Server Plus Connect.

3. In the Server Plus Connect dialog, select a Server Plus Station PC from the drop-down

4. Click Connect.

Note

For more information about the Server Plus Connect utility, refer to AMS Device Manager Books Online.

interfaces (other than HART Modem).

list or enter the name of the PC where the desired Server Plus Station is installed.

The Server Plus Connect utility cannot be used on Client SC Stations installed on DeltaV or Ovation workstations. In these configurations, use the procedure below.

1. Uninstall AMS Device Manager on the Client SC Station (see page 4).

2. Reinstall AMS Device Manager on the Client SC Station and indicate the new Server Plus Station (see page 36).

Add Client SC Stations

To expand an existing distributed system:

1. Determine the number of stations covered by your current license (select Help > About from the AMS Device Manager toolbar).

• To add stations that will be covered by your current license, continue with step 2.

• To add more stations than currently licensed, contact your Emerson Process

Management Sales/Service office to get new license codes. After you receive your new license codes, run the Licensing Wizard on the Server Plus Station (see

page 38) and then continue with step 2.

2. To install AMS Device Manager on the added Client SC Stations, see page 36.

3. Update the Client SC Station configuration on the Server Plus Station (see page 39).

4. To enable the stations in the distributed system to recognize the added Client SC Station, shut down and restart AMS Device Manager on all the stations.

Install AMS Device Manager

Replace a Server Plus Station PC

1. Contact your Emerson Process Management Sales/Service Office to get new license codes for AMS Device Manager.

2. Back up the database (see page 3).

3. Uninstall AMS Device Manager from the old PC (see page 4). Rename or disconnect the PC from the network.

4. Connect the new PC to the network and give it the same computer name as the old PC.

Note

If the new Server Plus Station PC has a different computer name, all active alerts that were in the Alert Viewer on the old PC will be lost. In addition, you will be required to run the Server Plus Connect utility on all Client SC Stations to connect to the new Server Plus Station (see

page 42).

5. Install Server Plus Station software on the new PC (see page 35).

6. License AMS Device Manager (see page 38).

7. Set up the server configuration to recognize each Client SC Station connected in the system (see Configure a Distributed System on page 39).

8. Restore the database (see page 3).

Replace a Client SC Station PC

1. Uninstall AMS Device Manager from the old PC (see page 4). Disconnect the PC from the network, if appropriate.

2. Connect the new PC to the network.

3. On the Server Plus Station, enter Station Configuration on the Start screen and click

Station Configuration.

4. In the Station Configuration dialog, select the name of the old PC and click Remove.

5. In the Station Configuration dialog, click Add.

6. Enter the computer name of the new Client SC Station PC (see page 40 ), and click OK. The station name is not case-sensitive. Do not include a domain name or any other characters that are not part of the computer name.

7. On the new Client SC Station PC, install the Client SC Station software (see page 36).

Rename a Server Plus Station PC

Note

If you have a system interface configured on the Server Plus Station, the Device Monitor List and Alert Monitor alerts will be lost when the PC is renamed.

1. Back up the database (see page 3).

2. Record all devices contained in the Device Monitor List.

Install AMS Device Manager

3. Uninstall AMS Device Manager on the Server Plus Station (see page 4).

4. Rename the Server Plus Station PC:

5. Install AMS Device Manager on the Server Plus Station (see page 35).

6. Restore the database backed up in step 1 (see page 3).

7. Reinstall the required system interfaces (see page 56) and SNAP-ON applications

8. Open AMS Device Manager, right-click each network icon, and select Rebuild Hierarchy

9. Add the devices recorded in step 2 to the Device Monitor List (refer to AMS Device

a. Right-click the Windows desktop My Computer icon.

b. Select Properties.

c. Click Change Settings (Windows 7 only).

d. On the Computer Name tab, click Change.

e. Enter a new computer name and click OK.

f. Click OK.

(see page 47).

and then Scan > New Devices.

Manager Books Online).

Rename a Client SC Station PC

Note

If you have a system interface configured on the Client SC Station, the Device Monitor List and Alert Monitor alerts will be lost when the PC is renamed.

1. Record all devices contained in the Device Monitor List.

2. Uninstall AMS Device Manager on the Client SC Station PC (see page 4).

3. Rename the Client SC Station PC:

a. Right-click the Windows desktop My Computer icon.

b. Select Properties.

c. Click Change Settings (Windows 7 only).

d. On the Computer Name tab, click Change.

e. Enter a new computer name and click OK.

f. Click OK.

4. On the Server Plus Station, open Station Configuration and remove the old name of the Client SC Station PC and add the new name (see page 39).

5. Install AMS Device Manager on the Client SC Station PC (see page 36).

6. Reinstall the required system interfaces (see page 56) and SNAP-ON applications (see page 47).

7. Open AMS Device Manager, right-click each network icon, and select Rebuild Hierarchy and then Scan > New Devices.

Install AMS Device Manager

8. Add the devices recorded in step 1 to the Device Monitor List on the Client SC Station (refer to AMS Device Manager Books Online).

Add a new communication interface

1. Contact your Emerson Process Management Sales/Service Office to get a new license code for the desired communication interface.

2. Run the Licensing Wizard on the Server Plus Station (see page 38).

3. Configure the new communication interface (see AMS Device Manager Books Online).

Add more tags than currently licensed

1. Contact your Emerson Process Management Sales/Service Office to get new license codes to cover the number of tags needed.

2. Run the Licensing Wizard on the Server Plus Station (see page 38).

3. Start AMS Device Manager.

4. Install and configure the additional devices.

Install AMS Device Manager

Installing AMS Device Manager on domain controllers

AMS Device Manager creates a Windows user account (AmsServiceUser) on each station in a distributed system. When AMS Device Manager is installed on a domain controller, this account is created as a domain user. Communication failures will result if installation is not done correctly as follows:

• If Windows domain controllers are used in a distributed network, the AMS Device

• If AMS Device Manager will be used in a cross-domain configuration, either install an

Manager station on the domain controller must be installed first before any other station on the common network domain. If AMS Device Manager is installed on a domain controller, all other stations that are part of that domain use the domain account, not a local account.

AMS Device Manager station on the domain controller or if AMS Device Manager will not be installed on a domain controller, create the AmsServiceUser account on the domain controller before installing AMS Device Manager on them. Refer to KBA NA-0800-0113.

Notes

• If AMS Device Manager is installed on the domain controller OR if there is an AmsServiceUser

account on the Domain Controller\Active Directory, there can only be one AMS Device Manager system installed on that domain.

• If AMS Device Manager is NOT installed on the domain controller AND if there is NO

AmsServiceUser account on the Domain Controller\Active Directory, multiple systems can be installed on that domain.

• After installing a Client SC Station on a domain controller together with a DeltaV

ProfessionalPLUS workstation, the AMS Device Manager Server system tray icon may not appear. Log out of the domain controller and log back in to make the AMS Device Manager Server system tray icon appear.

• AMS Device Manager is not supported on a Windows Server 2008 read-only domain

controller.

Domain controller security requirements

To launch and run AMS Device Manager, you must be a member of the AMSDeviceManager Windows user group.

Add a user to the AMSDeviceManager group on a domain controller

Note

The following procedure requires network administrator permissions.

1. Select Start > Settings > Control Panel > Administrative Tools > Active Directory Users and Computers.

Install AMS Device Manager

2. Select <Domain Name> > Users.

3. Double-click the AMSDeviceManager group.

4. Click Add.

5. Enter the Windows User ID you want to add to the group and click OK.

6. Click OK.

Install SNAP-ON applications

After you have installed and licensed your AMS Device Manager software, you can install SNAP-ON applications. Each SNAP-ON application is licensed separately and will not run if your station is not licensed for it.

Additional installation requirements may apply to a SNAP-ON application. Before you install a SNAP-ON application, check its documentation to confirm that all installation requirements are satisfied.

1. Insert the AMS Device Manager DVD 1 in the DVD drive of the PC.

2. Browse to D:\SNAP-ONS And Tools\SNAP-ONS\Installs\<Folder Name> (where D is the DVD drive letter and <Folder Name> is the name of the folder for the SNAP-ON application to be installed).

3. Double-click the appropriate setup file.

4. Follow the prompts.

Notes

• Most SNAP-ON applications need to be installed on each station in a distributed system.

Calibration Assistant is enabled through licensing–no separate installation is required.

• For all SNAP-ON applications except AMS ValveLink and AMS Wireless, users must also have

Device Write permission (see AMS Device Manager Books Online).

• AMS ValveLink SNAP-ON application user privileges must be enabled in AMS Device Manager

User Manager.

• If a SNAP-ON application is not installed in the C:\Program Files folder, the

AMSDeviceManager Windows user group must be given access to the location.

Install AMS Device Manager Web Services on a station

1. Review the AMS Device Manager Web Services software requirements (see page 10).

2. Ensure that appropriate Windows Firewall security settings have been selected (see

page 55).

3. Exit/close all Windows programs, including any running in the background (including antivirus software).

4. Insert the AMS Device Manager DVD 1 in the DVD drive of the PC.

Install AMS Device Manager

5. Browse to D:\SNAP-ONS And Tools\AMSWebServices (where D is the DVD drive letter).

6. Double-click SETUP.EXE.

7. Follow the prompts.

Mobile workstation

A mobile workstation is an AMS Device Manager Client SC Station connected wirelessly to a LAN. As long as the PC meets the AMS Device Manager requirements (see page 9), it functions like a station connected to a wired Ethernet LAN. However, do not configure system interfaces on a mobile workstation, as this can cause database issues regarding the path of the connected device. If at any time the mobile workstation wireless network connection is lost, you may have to restart AMS Device Manager to reestablish network connectivity.

Licensing AMS Device Manager 13.1.1 on DeltaV stations

If you have licensed your AMS Device Manager 13.1.1 software, you see a full-function application when you launch the product. Otherwise, you can use a limited AMS Device Manager feature set provided with each DeltaV installation. If this is your situation, refer to the DeltaV Books Online for information.

When you install AMS Device Manager on a DeltaV Simulate Multi-node system, the installation program checks for the presence of a DeltaV Simulate ID key (VX dongle). If the Simulate ID key is found, AMS Device Manager licensing is enabled. Otherwise, the installation program looks for an AMS Device Manager license.dat file. If the license.dat file is found, you are granted the permissions associated with the license. If no license.dat file is found, a subset of AMS Device Manager functionality is available.

There are a number of licensing considerations when you install AMS Device Manager on a DeltaV station. To ensure that your installation functions as you expect, please contact your Emerson Process Management Sales/Service Office. After you have received the appropriate licensing information and AMS Device Manager setup instructions for your situation, install AMS Device Manager as described beginning on page 49.

Install AMS Device Manager

Installing AMS Device Manager 13.1.1 on DeltaV stations

AMS Device Manager 13.1.1 can be co-deployed only on DeltaV 11.3 or later stations. To ensure a proper installation, DeltaV must be installed before AMS Device Manager.

Notes

• Any AMS Device Manager station (either Server Plus Station or Client SC Station) installed on a

DeltaV 11.3 or later ProfessionalPLUS workstation must be licensed to ensure proper licensing functionality, security, user synchronization between DeltaV and AMS Device Manager, and Device Description (DD) installation.

• Installing a new version of AMS Device Manager does not install new AMS Device Manager

DDs on DeltaV.

• If you are installing AMS Device Manager on any domain controller stations, refer to page 46.

• If you are installing a full version of SQL Server 2012 Service Pack 3 on a DeltaV 12.3.1 station,

do NOT update the Event Chronicle and Advanced Process Control instances.

Before you install AMS Device Manager on your DeltaV stations, ensure that you have all the proper AMS Device Manager and DeltaV licensing and installation instructions (see

page 48). In addition, ensure that USB has been enabled in DeltaV Easy Security (see your

DeltaV documentation for more information).

To install Server Plus Station software on a supported DeltaV station, see page 35. To install Client SC Station software on a supported DeltaV station, see page 36.

DeltaV actions

CAUTION!

Do not configure a DeltaV System Interface for the same DeltaV system on more than one AMS Device Manager station.

After installing AMS Device Manager on a DeltaV Station, you must perform a download of the DeltaV workstation (refer to DeltaV Books Online).

Important

Ensure that the AMS Device Manager Server Plus Station is already installed before you download the DeltaV workstation.

Downloading a DeltaV workstation adds DeltaV database account users to the AMS Device Manager database. Creating a new Windows user in DeltaV User Manager also adds that user to the AMSDeviceManager Windows user group.

Install AMS Device Manager

Note

Each time a ProfessionalPLUS Station is downloaded, some DeltaV user permissions overwrite AMS Device Manager user permissions if the User Download checkbox in the DeltaV tab of Tools > Options is selected.

DeltaV Upgrade Wizard

The DeltaV Upgrade Wizard automates the process of upgrading a DeltaV Station from an earlier version and ensures that crucial steps are performed. Do not run the DeltaV Upgrade Wizard before uninstalling AMS Device Manager. If you run the DeltaV Upgrade Wizard first, AMS Device Manager will not function as expected and a PC restart may be needed before AMS Device Manager can be uninstalled.

Uninstall DeltaV software

To uninstall DeltaV on a station that has AMS Device Manager co-deployed, you must uninstall AMS Device Manager first and then DeltaV. You can then reinstall AMS Device Manager. If you uninstall DeltaV first, AMS Device Manager will not function as expected.

If you have co-deployed AMS Device Manager on domain controllers and non-domain controllers, you must remove AMS Device Manager from all non-domain controllers first, then from all backup/secondary domain controllers, and then from the primary domain controller. Uninstall DeltaV only after AMS Device Manager has been uninstalled on all PCs.

Licensing AMS Device Manager 13.1.1 on Ovation stations

When you install AMS Device Manager on an Ovation station, the installation program checks for the presence of an AMS Device Manager license.dat file. If the license.dat file is found, you are granted all the permissions associated with the license. If you do not have a license.dat file, see page 38. After you have received the appropriate licensing information, install AMS Device Manager as described on page 50.

Installing AMS Device Manager 13.1.1 on Ovation stations

AMS Device Manager 13.1.1 can be installed on Ovation 3.4 and later stations as outlined on page 23. AMS Device Manager stations can also be installed on separate PCs and access Ovation information through the Ovation System Interface. To ensure a properly codeployed installation, Ovation must be installed before AMS Device Manager.

In a typical Ovation 3.4 deployment using FOUNDATION fieldbus devices, the AMS Device Manager Server Plus Station software would be installed on the Ovation station that also has the fieldbus engineering software installed. AMS Device Manager Client SC Station

Install AMS Device Manager

software would be installed on other supported Ovation station types in the network. This deployment gives all connected stations access to both AMS Device Manager and Ovation databases.

In a typical Ovation 3.5 deployment using FOUNDATION fieldbus devices, the AMS Device Manager Client SC Station software would be installed on the Ovation Database Server. Other AMS Device Manager Client SC Station and the Server Plus Station software would be installed on Ovation Operator stations in the network. This deployment gives all connected stations access to both AMS Device Manager and Ovation databases.

Before you install AMS Device Manager on your Ovation stations, ensure that you have all the proper AMS Device Manager and Ovation licensing and installation instructions (see

page 50).

To install Server Plus Station software on a supported Ovation station, see page 35. To install Client SC Station software on a supported Ovation station, see page 36.

Configure the Ovation System Interface (see AMS Device Manager Books Online) so that AMS Device Manager can detect and work with devices on the Ovation network.

Configure any other required communication interfaces (see page 56).

Notes

• If you are installing AMS Device Manager on any domain controller stations, see page 46.

• Do not configure an Ovation System Interface for the same Ovation system on more than one

AMS Device Manager station.

• If you install a Client SC Station on an Ovation station running on a Windows Server PC, add

the Client SC Station PC name to the DNS forward lookup zones list. Contact your IT department for assistance.

Uninstalling Ovation software

To uninstall Ovation on a station that has AMS Device Manager co-deployed, you must uninstall AMS Device Manager first and then Ovation. You can then reinstall AMS Device Manager. If you uninstall Ovation first, AMS Device Manager will not function as expected.

If you have co-deployed AMS Device Manager on domain controllers and non-domain controllers, you must remove AMS Device Manager from all non-domain controllers first, then from all backup/secondary domain controllers, and then from the primary domain controller. Uninstall Ovation only after AMS Device Manager has been uninstalled on all PCs.

Install AMS Device Manager

Miscellaneous applications

DTM Launcher

The DTM Launcher application enables users to install and use certain HART, WirelessHART, and FOUNDATION fieldbus Device Type Manager (DTM) drivers with AMS Device Manager. DTMs are an alternative to the traditional Device Descriptions (DDs) supported in AMS Device Manager. DTMs are provided by various device manufacturers and are configured using the DTM Catalog Manager. For more information, refer to AMS Device Manager Books Online.

To install DTM Launcher, run setup.exe from the SNAP-ONS And Tools\DTMLauncher folder of the AMS Device Manager DVD 1.

Note

Do not install other DTM frames as these may cause conflicts with the DTM Launcher application.

AMS Suite Calibration Connector

AMS Suite Calibration Connector is a separately licensed and installed application that integrates with Beamex CMX or AMS Suite APM/Meridium software to provide fullfeatured calibration management capabilities beyond the basic features available in AMS Device Manager calibration management. AMS Suite Calibration Connector provides a solution for users to take advantage of the functionality of other calibration management applications while maintaining the benefits of device configuration and calibration management data synchronization. For more information about AMS Suite Calibration Connector, contact your local Emerson Process Management Sales/Service Office.

AMS Suite Calibration Connector supports:

• AMS Suite APM version 3.5.1 or later

• Beamex CMX version 2.74 and 2.81

AMS Suite Calibration Connector can only be installed on a Server Plus Station. You must have Windows Administrator permissions to install AMS Suite Calibration Connector.

Install AMS Suite Calibration Connector

1. Insert the AMS Suite Calibration Connector DVD in the DVD drive of your PC.

2. Double-click AMSSuiteCalibrationConnector_Setup.exe.

3. Follow the prompts on the installation window.

4. Click Finish when done.

For additional information about using AMS Suite Calibration Connector, refer to AMS

Device Manager Books Online, AMS Suite Calibration Connector and AMS Suite APM Installation and Setup document, and AMS Suite Calibration Connector and Beamex CMX Installation and Setup document. Also, refer to your AMS Suite APM or Beamex CMX documentation for

more information on these products.

Install AMS Device Manager

Note

Refer to the AMS Device Manager Supported Device List to determine if a device supports calibration.

Device Description Update Manager

The Device Description Update Manager automates the installation of device descriptions from Guardian Support into AMS Device Manager, DeltaV, and Ovation through the Add Device Type utility. These device descriptions can be new or updates to previously installed devices. The Device Description Update Manager provides 2 ways to install device descriptions:

• Scheduled/fully automated

• User-initiated/interactive

There are 3 ways that this feature can be installed:

• Server Station

• Client Station

• Server/Client Station

The Server Station can be installed with or without an AMS Device Manager station already installed but it must be installed on the same PC as the Guardian Software Update Delivery Service download folder.

The Client Station must be installed on an AMS Device Manager 13.1.1 Server Plus Station that can access the Server Station to initiate installation of device descriptions. The Client Station will be supported on an AMS Device Manager Server Plus Station co-deployed on either a DeltaV workstation or an Ovation workstation.

In a Server/Client Station installation, both the Server Station and Client Station are installed on the same Server Plus Station.

See KBA NK-1300-0136 Device Description Update Manager Architectures and Information for more information.

Install Device Description Update Manager

1. Insert the AMS Device Manager DVD 2 in the DVD drive of your PC.

2. In the Device Description Update Manager folder, double-click DDUMInstall_Setup.exe.

3. Follow the prompts on the installation window.

4. Click Finish when done.

User Configuration Reports

The User Configuration Reports tool works with the Bulk Transfer Utility on the AMS Device Manager Server Plus Station. It allows you to verify that multiple devices are configured according to a specified user configuration. The User Configuration Reports tool allows

Install AMS Device Manager

you to check the device configurations of multiple devices and quickly identify any incorrect settings. For more information about user configurations and the Bulk Transfer Utility, see AMS Device Manager Books Online.

The User Configuration Reports tool requires Microsoft SQL Server 2012 Service Pack 3, Standard or Enterprise edition. See KBA NK-1500-0168 for required SQL Server installation options.

The User Configuration Reports tool uses AMS Device Manager Generic Export to get device parameter data. If you have a large AMS Device Manager system, a large number of devices, or a large number of device parameters to return, the Generic Export process can take several hours.

Install the User Configuration Reports tool

1. Insert the AMS Device Manager DVD 1 in the DVD drive of your PC.

2. In the SNAP-ONS And Tools\Device Configuration Reports folder, double-click

3. Follow the prompts on the installation window and accept all default options.

4. Configure Internet Explorer:

DEVCONFIGREPORTSINSTALL.EXE.

a. Open Internet Explorer and select Tools > Internet Options.

b. On the Security tab, click Local Intranet, and uncheck Enable Protected Mode.

c. Click the Custom level button.

d. Scroll down the list until you see Scripting and Active Scripting.

e. Select Enable and click OK.

f. Click OK.

After installation, start the User Configuration Reports tool by entering User Configuration Reports on the Start screen and clicking User Configuration Reports.

Attach a Roving Station to a Server Plus Station

A Roving Station is a portable PC (laptop or notebook computer) with AMS Device Manager Server Plus Station software installed. A Roving Station is configured as such in the Options for AMS Device Manager dialog (Tools > Options). A Roving Station can be temporarily connected to a stationary Server Plus Station to enable uploading of AMS Device Manager information from the Roving Station. For more information about Roving Stations, refer to AMS Device Manager Books Online.

Prepare to use AMS Device Manager

4 Prepare to use AMS Device Manager

There are several configuration steps you must take before using AMS Device Manager. If you do not configure your PC as described, AMS Device Manager will not function as expected.

Change Windows Firewall settings

When operating AMS Device Manager on a Windows PC, some changes to Windows Firewall settings may be required. If your PC is adequately protected by a corporate firewall, you may be able to turn off the Windows Firewall protection on your AMS Device Manager PC.

If your AMS Device Manager PC is not protected by a corporate firewall and you have enabled the Windows Firewall, you must change the firewall settings on your PC to allow program and port exceptions that enable AMS Device Manager operation. For more information, refer to KBA NA-0500-0085. For assistance configuring your Windows Firewall, contact your IT department.

Notes

• On a Windows 7 PC, all entered firewall exceptions display as “AMS Suite: Intelligent Device

Manager” in the firewall exceptions list. You must view the properties of each entry to see what was added.

• For deployment scenarios that require AMS Device Manager Client SC Stations to cross

External Firewalls, refer to KBA NA-0400-0046.

• If AMS Device Manager is co-deployed with DeltaV 13.3 or 13.3.1, enable Windows Firewall

and open a specific port using the DeltaV Security Administration Application (refer to DeltaV Books Online for more information).

Usernames and passwords

Note

When AMS Device Manager is co-deployed with DeltaV, your DeltaV username and password also provide AMS Device Manager access.

AMS Device Manager security is based on Windows user authentication. Each user is given an AMS Device Manager username and password associated with a Windows local (workgroup) or domain account.

User permissions are set up and maintained in User Manager. The AMS User Manager administrator determines the plant locations and/or functions allowed on a user account. To launch User Manager, enter User Manager on the Start screen and click User Manager.

See AMS Device Manager Books Online for more information on User Manager functionality.

Prepare to use AMS Device Manager

Configure system interfaces

AMS Device Manager communicates with HART, WirelessHART, FOUNDATION fieldbus, PROFIBUS DPV1 and PROFIBUS PA devices through various system interfaces. If this is a new installation or you are adding interfaces to an existing system, you need to configure the network after you have installed the software.

You need to configure the system interfaces that are relevant to each station. You should only configure a particular physical network on one station within the distributed network to avoid the potential for simultaneous device configuration.

To configure a system interface, check the system requirements (see page 14) and refer to the Network configuration overview topic in AMS Device Manager Books Online. Some system interfaces that require additional configuration are discussed in this section.

DeltaV

A DeltaV control network is an isolated Ethernet local area network (LAN) that provides communication between the controllers and the stations. It uses one or more Ethernet hubs for communication.

Note

Do not configure an AMS Device Manager Wireless System Interface if a DeltaV System Interface will be using the same wireless gateway.

For information about AMS Device Manager compatibility with DeltaV, refer to page 17.

DeltaV can access devices in RS3 and PROVOX I/O systems through the DeltaV Interface for RS3 I/O and DeltaV Interface for PROVOX I/O, respectively. The devices are displayed in the DeltaV network hierarchy in AMS Device Manager. For more information, refer to the DeltaV Books Online.

The AMS ValveLink SNAP-ON application is supported for DeltaV and PROVOX I/O cards, but not for RS3 I/O cards.

Prepare the DeltaV system

To prepare a DeltaV control system to communicate with an AMS Device Manager station, you need to:

• Know the node name of the DeltaV ProfessionalPLUS Station you are connecting to.

If you do not know this name, see your system administrator.

• Know the password associated with the DeltaVAdmin account on the

ProfessionalPLUS Station, if it has been changed from the default password.

• Configure a HART-Enabled Channel so that AMS Device Manager knows where to

look for a HART field device. If an I/O channel is enabled for HART but it does not have an associated DeltaV device signal tag, it will not appear in AMS Device Manager.

Prepare to use AMS Device Manager

• Commission any FOUNDATION fieldbus devices you want to be displayed in AMS

Device Manager.

Set DeltaV alert capability

To receive alerts from devices connected to PROVOX and RS3 Migration Controllers in your DeltaV network hierarchy, you must run a utility to properly set the DeltaV alert capability.

1. Enter C:\AMS\BIN\DELTAVFASTSCANUTILITY.EXE (where C is the drive containing the AMS folder) on the Start screen.

2. Uncheck the box for the appropriate DeltaV network.

3. Click Save Changes.

FF HSE

Your AMS Device Manager distributed system can be configured to access FF HSE linking devices in a dedicated network environment. This configuration is recommended and requires a dedicated network interface card (NIC) for connecting to the FF HSE linking devices. This arrangement provides best performance because the FF HSE linking devices are not required to share the network with other network traffic. In this case, you manually assign the TCP/IP address of the linking device.

The alternative is to configure your AMS Device Manager distributed system to access FF HSE linking devices from an Ethernet network that assigns TCP/IP addresses using DHCP.

Note

If you assign a static TCP/IP address to a linking device, a valid gateway address must also be provided. The gateway address is usually the TCP/IP address of the dedicated NIC. If the gateway address is invalid, you will see a delay in AMS Device Manager when rebuilding the hierarchy. In addition, no links or FOUNDATION fieldbus devices will be displayed after performing the Rebuild Hierarchy operation.

Ovation

The Ovation System Interface lets AMS Device Manager communicate with HART, FOUNDATION fieldbus, PROFIBUS DPV1, and WirelessHART devices through an existing Ovation network.

Prepare the Ovation system

Refer to your Ovation documentation for device connection and network setup instructions.

For Ovation 3.4, the AMS Device Manager Server Plus Station must be co-deployed on an Ovation Station with the Ovation fieldbus engineering software installed for FOUNDATION fieldbus device support. Configure the Ovation System Interface on this station.

Prepare to use AMS Device Manager

For Ovation 3.5, the fieldbus engineering software is located on the Ovation Database Server. Therefore, it is recommended to install AMS Device Manager Client SC Station software on this station type. To install and register this software on an Ovation Operator station type, you must run an Ovation batch file on the Ovation Operator station.

Run the batch file on the Ovation Operator station

1. Enter CMD on the Start screen.

2. At the command prompt, enter CD C:\OVATION\OVATIONBASE.

3. Press ENTER.

4. At the command prompt, enter INSTALLHSESERVER -I.

5. Press ENTER.

PROVOX

Prepare the PROVOX system

To prepare a PROVOX control system to communicate with AMS Device Manager, you need to:

• Know the TCP/IP address and DNS name of your dedicated HDL (Highway Data Link).

If you do not know these, see your system administrator.

• Generate and transfer the PROVOX hierarchy information to AMS Device Manager

(see page 58).

• Verify that the HDL responds (see page 59).

Generate and transfer the HLT file

The PROVOX system uses the HART Instrument Locator Tool (HILT) to create a commadelimited value (CDV) file that defines the addresses of field devices connected to the SRx/ SR90 controller. The file name can be anything that is meaningful, as long as it uses an “hlt” extension (such as Provox1.hlt). After you create the HLT file, transfer it to the AMS folder on the AMS Device Manager PC and identify the HLT file in the Connection tab of Network Configuration Properties (see AMS Device Manager Books Online).

AMS Device Manager reads the HLT file and attempts to communicate with devices at every defined address, which can cause unpredictable results if the file is built using “all devices” as the default setting. The HLT file should hold only the device addresses that are relevant to AMS Device Manager.

Prepare to use AMS Device Manager

Note

For AMS Device Manager to recognize the change when you add or delete a device in PROVOX, you must regenerate the HLT file on the ENVOX PC and transfer it to the AMS folder on the AMS Device Manager PC, replacing the old HLT file.

To provide AMS Device Manager with the PROVOX HLT file information:

1. At the ENVOX PC, generate the HLT file by running the HART Instrument Locator Tool (HILT) utility.

For information about using the HILT utility, see Using the HART Instrument Locator Tool (HILT) Version P3.0 (Readhilt.rtf). This RTF file is located in the HILT folder on the AMS Device Manager DVD 1.

2. Copy the HLT file from the ENVOX PC to the AMS folder on your AMS Device Manager PC, using file transfer protocol (FTP).

Verify HDL response

Use the ping command to verify that the HDL responds to communications sent to it by AMS Device Manager:

1. Enter CMD on the Start screen.

2. At the command prompt, enter PING <HDL DNS Name>.

If your network does not support DNS, replace the DNS name with the IP address of your HDL in the ping command.

3. Press ENTER.

4. Verify that the HDL responds to the ping command.

The ping command should return a reply message. If the ping command fails, verify that you entered the correct address in the command line. Also verify that your network is functioning properly.

Installation is complete only after you receive a valid ping reply.

RS3

Prepare the RS3 system

To prepare an RS3 control system to communicate with AMS Device Manager, you must:

• Know the TCP/IP address and DNS name of your RNI. If you do not know these, see

your system administrator.

Prepare to use AMS Device Manager

• Set up a username and password for the system interface on your RNI (see

page 60).

• Verify that the RNI responds (see page 60).

Set RNI username and password

1. On your RNI, open the RNI user configuration file, \\RNIBOOT\CONFIG\USERFILE.CFG. You can open it with the Notepad utility, or any other text editor.

2. Create a user account for AMS Device Manager, ensuring that FMSPassthrough is enabled and that KeyLevel is set to Console.

Example: The following example shows the system interface user entry in the USERFILE.CFG file. The user entry in bold is an example of an RS3 user entry. You can create the system interface user entry by copying and pasting an existing user entry in USERFILE.CFG and editing the entry for system interface.

Notes

• The username and password are case-sensitive in the USERFILE.CFG file. When entering

them in the AMS Device Manager Network Configuration utility, be sure to match the case.

• AMS ValveLink SNAP-ON application is not supported.

3. Save and close USERFILE.CFG.

Verify communication with RNI

Use the ping command to verify that the RNI is responding:

1. Enter CMD on the Start screen.

Prepare to use AMS Device Manager

2. At the command prompt, enter PING <RNI DNS Name>. (If your network does not support DNS, replace the DNS name with the IP address of your RNI in the ping command.)

3. Press ENTER.

4. Verify that the RNI responds to the ping command.

The ping command should return a reply message. If the ping command fails, verify that you entered the correct address in the command line. Also verify that your network is functioning properly.

Installation is complete only after you receive a valid ping reply.

Add devices to an AMS Device Manager installation

All available information for supported field devices (other than device manuals) is included and installed with the AMS Device Manager application. If it is necessary to install additional devices after the initial installation, refer to Device Type Installation in AMS Device Manager Books Online. Additional device descriptions can be downloaded from the Internet. Copy this URL into your Internet browser:

http://www2.emersonprocess.com/en-US/documentation/deviceinstallkits/Pages/ deviceinstallkitsearch.aspx and enter device search information.

Prepare to use AMS Device Manager

Troubleshoot installation errors

5 Troubleshoot installation errors

If you get error messages during the installation or startup of AMS Device Manager, you may be able to resolve these errors using the troubleshooting procedures in this section.

If you are unable to resolve installation problems after carefully following the installation steps outlined in this guide and using these troubleshooting suggestions, contact your local Emerson Process Management Sales/Service Office. Additional Support Center Contact Information can be found on the Internet at:

http://www.emersonprocess.com/TechnicalSupport

To troubleshoot non-installation issues, refer to KBA NK-1400-0417.

Error messages

Error message / Indication Possible Cause Possible solution

Bluetooth adapter stops working.

The SQL Server installation fails.

If an approved USB Bluetooth adapter is removed or disabled while AMS Device Manager is running, reinsert the adapter and reboot your workstation. After your PC restarts, try to reestablish Bluetooth communications with your Field Communicator.

Manually install SQL Server 2012 Express Service Pack 3 from the AMS Device Manager DVD 1. Do one of the following:

• For 32-bit PCs, run Install_

SQL2012SP3Express32bit.bat from the Install_Files\ SQL2012SP3Exp\32 folder.

• For 64-bit PCs, run Install_

SQL2012SP3Express64bit.bat from the Install_Files\ SQL2012SP3Exp\64 folder.

The SQL Server manual installation process requires user input that you must provide. After you install SQL Server, restart the AMS Device Manager installation process.

Troubleshoot installation errors

Error message / Indication Possible Cause Possible solution

AMS Device Manager Install has encountered an error trying to login to the SQL Server database. Please refer to the Installation Guide for SQL Server database configuration.

Setup will now abort.

AMS Device Manager has detected an incorrect version of the database.

The version detected is x.x, the correct version should be y.y.

Cannot find server or DNS Error.

Unable to connect to live device.

Unable to launch the AMS Device Manager application from the Client SC Station.

“Connecting to OPC Server Failed” when attempting to launch the OPC Client application.

Unable to launch the AMS Device Manager application from the Client SC Station.

This occurs on a domain-based AMS Device Manager system where a different administrator installed SQL Server and another administrator is installing the Server Plus Station.

Database Verify/Repair was not run before upgrading AMS Device Manager to the current release or AMS Device Manager has detected a fault that occurred during the Verify/ Repair operation.

Open SQL Server Management Studio and add the user who is installing the Server Plus Station.

Run the database conversion utility (AmsConvertDb.exe) from the AMS\Bin folder:

1. Open the AMS\Bin folder.

2. Double-click AmsConvertDb.exe.

If the database conversion utility does not complete successfully, contact your local Emerson Process Management Sales/Service Office.

Open port 80 on the Server Plus Station where AMS Device Manager Web Services is configured. See

Change Windows Firewall settings on page 55.

Add AmsFFServer.exe to the exception list. See

Change Windows Firewall settings on page 55.

Open port 135. See

Change Windows Firewall settings on page 55.

Add AMSOPC.exe to the exception list. See

Change Windows Firewall settings on page 55.

Add sqlserver.exe and sqlbrowser.exe to the exception list. See

Change Windows Firewall settings on page 55.

Troubleshoot installation errors

Error message / Indication Possible Cause Possible solution

AMS Device Manager may be slow to start when launched from the Windows Start menu. The following messages are displayed in the Application event log:

Unable to retrieve the current configuration information for server, <PC name>.

Error calling GetServersAsXml.

Add AMSServicesHoster.exe to the exception list. See

Change Windows Firewall settings on page 55.

Troubleshoot installation errors

Index

ABB System Interface 16 AMS Device Manager

add devices 61 Books Online 5 device manuals 6 Release Notes 5 upgrade 30

AMS Device Manager Web Services

AMS Asset Portal 3.2 11 install 47

AMS Suite

Asset Performance Management 11

AMS Suite Calibration Connector

install 52

AMSDeviceManager Windows user group 13

Bluetooth HART modem 14

Client SC Station

access different Server Plus Station 42 change to Server Plus Station 41

communication interfaces

configure 56 computer name 40 consolidate databases 39 consolidate service notes 40

database

backup 3

consolidate 39

operations 3

restore 3 DeltaV 17 DeltaV System Interface

actions 49 Det-Tronics System Interface 19 Device Configuration Reports

install 54 Device Description Update Manager

install 53 device manuals 6

distributed AMS Device Manager system

add Client SC Station 42 add more tags 45 add new communication interface 45 configure 39 modify 41 rename Client SC Station PC 44 rename Server Plus Station PC 43 replace Client SC Station PC 43

replace Server Plus Station PC 43 documenting calibrator 15 domain controller

add user to AMSDeviceManager group 46

install AMS Device Manager 46

security requirements 46 DTM Launcher 52

FF HSE interface 57 Field Communicator 15

hardware requirements

disk space 7

memory 7

PC processing speed 7

serial interfaces 7

USB interfaces 7 HART modem

Bluetooth 14

serial 14

USB 14 HART multiplexer 20 HART Over PROFIBUS System Interface 21

installation

AMS Device Manager Client SC Station 36

AMS Device Manager on Ovation stations 50

AMS Device Manager Server Plus Station 35

distributed system 2, 29

on DeltaV stations 49

standalone system 2 Introduction 1

Index

Kongsberg System Interface 21

license AMS Device Manager 38 licensing

AMS Device Manager on DeltaV station 48 on Ovation stations 50

mobile workstation 48 modems 14

network requirements 8

operating systems 9 Ovation System Interface 57

passwords 55 PROFIBUS System Interface 25 PROVOX System Interface 26, 58

reference publications 4 requirements

8000 BIM System Interface 15 ABB 16 DeltaV 17 Det-Tronics 19 FF HSE 19 HART modem 14 HART multiplexer 20 HART Over PROFIBUS 21 Kongsberg 21 OpenEnterprise 22 Ovation 23 PROFIBUS 25 PROVOX 26 RS3 26 Siemens 27 STAHL 27 system interfaces 14 Wireless Network 28

Roving Station 54 RS3 System Interface 26, 59

serial HART modem 14 serial interfaces 7 Server Plus Station

attach Roving Station 54

change to Client SC Station 41 Siemens System Interface 27 SNAP-ON applications

install 47 software requirements

.NET framework 11

Bulk Transfer 13

database 12

Drawings and Notes 13

operating systems 9

SQL Server 12

support for remote desktop services 10

web browser 10

web services 10 STAHL System Interface 27 system requirements 7

troubleshoot

error messages 63

installation errors 63

uninstall AMS Device Manager 4 upgrade

from AMS Device Configurator 34

from AMS Wireless Configurator 34 USB HART modem 14 USB interfaces 7 User Configuration Reports 53 usernames 55

Windows Firewall

change settings 55 Windows security requirements 13

Index

Emerson Process Management Reliability Solutions

12001 Technology Drive Eden Prairie, MN 55344 USA

+1 952 828 3633 +1 952 828 3006 www.emersonprocess.com/ams

10P5824D003/printed in USA/11-2016

The Emerson logo is a trademark and service mark of Emerson Electric Co. AMS is a mark of one of the Emerson Process Management family of companies. All other marks are the property of their respective owners.

The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are governed by our terms and conditions, which are available on request. We reserve the right to modify or improve the designs or specifications of our products at any time without notice.

AMS AMS Device Manager 13.1.1 Installation Guide Manuals & Guides

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction

Before you begin

Installation overviews

Install a standalone AMS Device Manager system

Install a distributed AMS Device Manager system

Install AMS Device Manager on a DeltaV system

Install AMS Device Manager on an Ovation system

Database operations

Back up a database

Restore a database

Uninstall AMS Device Manager

Reference documents

AMS Device Manager Books Online

What’s This? Help

Electronic documentation

Release Notes

Device manuals

Hardware requirements

PC processing speed, memory, and disk space

System requirements

Serial interfaces

USB interfaces

Network requirements

Software requirements

Operating systems

Support for Remote Desktop Services

Web browser

AMS Device Manager Web Services

AMS Device Manager Web Services and AMS Asset Portal 3.2

AMS Suite: Asset Performance Management

.NET Framework

Database

Microsoft Office

Windows security requirements

AMS Device Manager installation

AMS Device Manager users

AmsServiceUser

Requirements for system interfaces

HART modems

Field Communicators

Documenting calibrators

8000 BIM

DeltaV

Det-Tronics

FF HSE

HART Multiplexer Network

HART Over PROFIBUS

Kongsberg

OpenEnterprise

Ovation

PROFIBUS

PROVOX

Siemens

STAHL

Wireless

Install AMS Device Manager

Upgrade an AMS Device Manager system

Upgrade from AMS Wireless Configurator

Upgrade from AMS Device Configurator

Install Server Plus Station software

Install Client SC Station software

License AMS Device Manager

Configure a Distributed System

Consolidate databases

Consolidate Service Notes

Determine computer names

Modify a Distributed System

Change station types

Change a Server Plus Station to a Client SC Station

Change a Client SC Station to a Server Plus Station

Change a Client SC Station to access a different Server Plus Station

Add Client SC Stations

Replace a Server Plus Station PC

Replace a Client SC Station PC

Rename a Server Plus Station PC
