AMS 1084, 1073 User Manual

AMS
NEVE
1073 & 1084
Channel Amplifier
User Guide
527-341
Issue 3
© 2004 AMS Neve plc own the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission.
As part of our policy of continual product improvement, we reserve the right to alter specifications without notice but with due regard to all current legislation.
HEAD OFFICE
AMS NEVE PLC • BILLINGTON ROAD • BURNLEY
LANCS BB11 5UB • ENGLAND
TELEPHONE: +44 (0) 1282 457011 • FAX: +44 (0) 1282 417282
LONDON OFFICE
TELEPHONE: +44 (0) 20 7916 2828 • FAX: +44 (0) 20 7916 2827
NORTH AMERICAN OFFICES
AMS NEVE INC., NEW YORK
TEL: +1 (212) 965 1400 • FAX: +1 (212) 965 9306
AMS NEVE INC., HOLLYWOOD
TEL: +1 (818) 753 8789 • FAX: +1 (818) 623 4839
e-mail: enquiry@ams-neve.com
http://www.ams-neve.com
1073 & 1084 Chan nel Am pli fiers
Con tents
In tro duc tion 1
High Pass Fil ter (re sis tor mod i fi ca tion) 1
Im por tant Note 1
In stal la tion 2
Di men sions 3
Power Re quire ments 3
Mains Sup ply (rack units) 4
DC Power Sup ply In di ca tors (rack units) 4
Phan tom Power 4
Out put Level Con trol 4
Con nec tor De tails 5
Am pli fier Con trols 6
1073 Mod ule 6
1084 Mod ule 7
Spec i fi ca tions 8
1073 and 1084 Mod ules 8
Re call Sheets 9
1073 - Ver ti cal Mod ule 9
1073 - Hor i zon tal Mod ule 10
1084 - Ver ti cal Mod ule 11
1084 - Hor i zon tal Mod ule 12

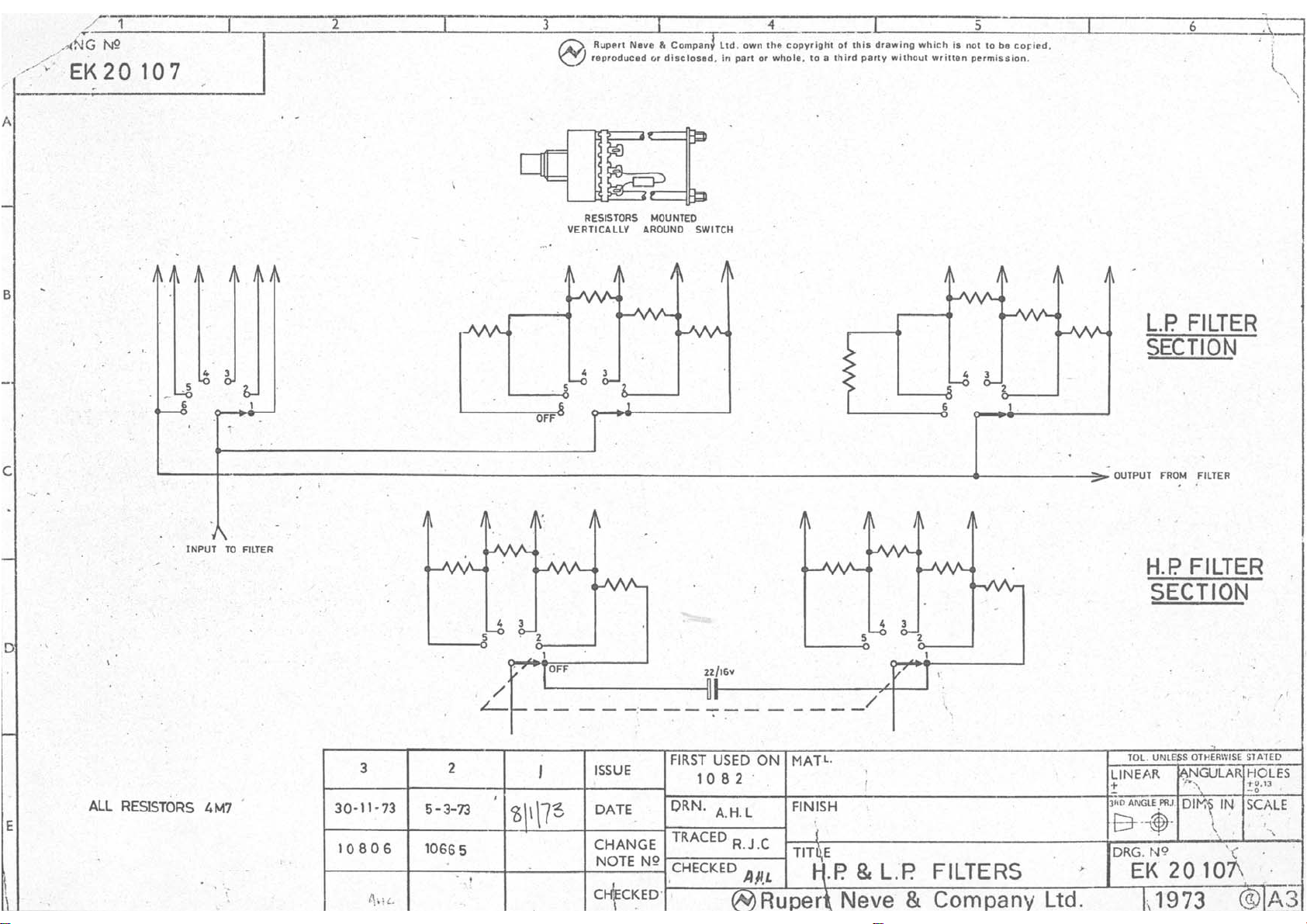

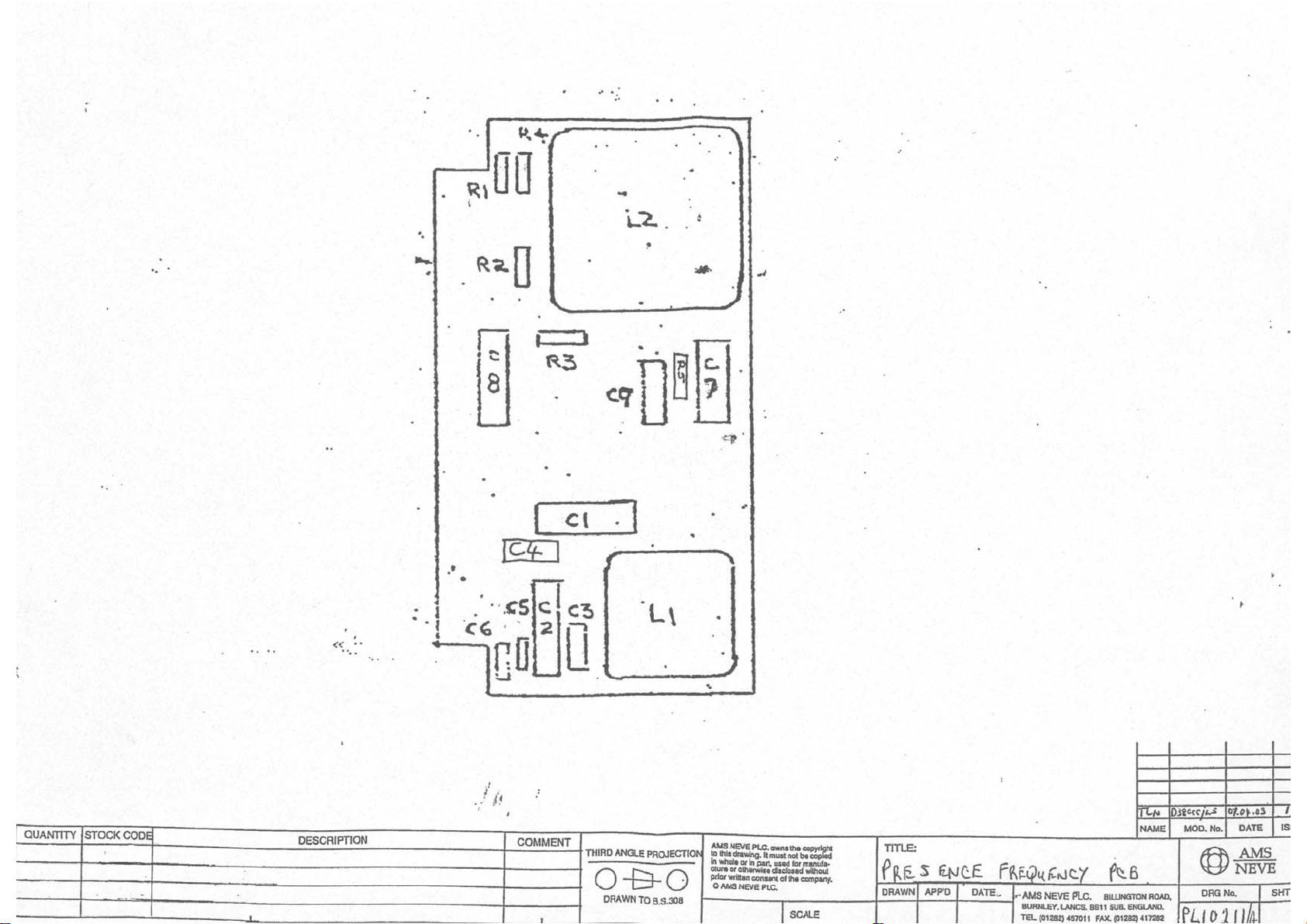

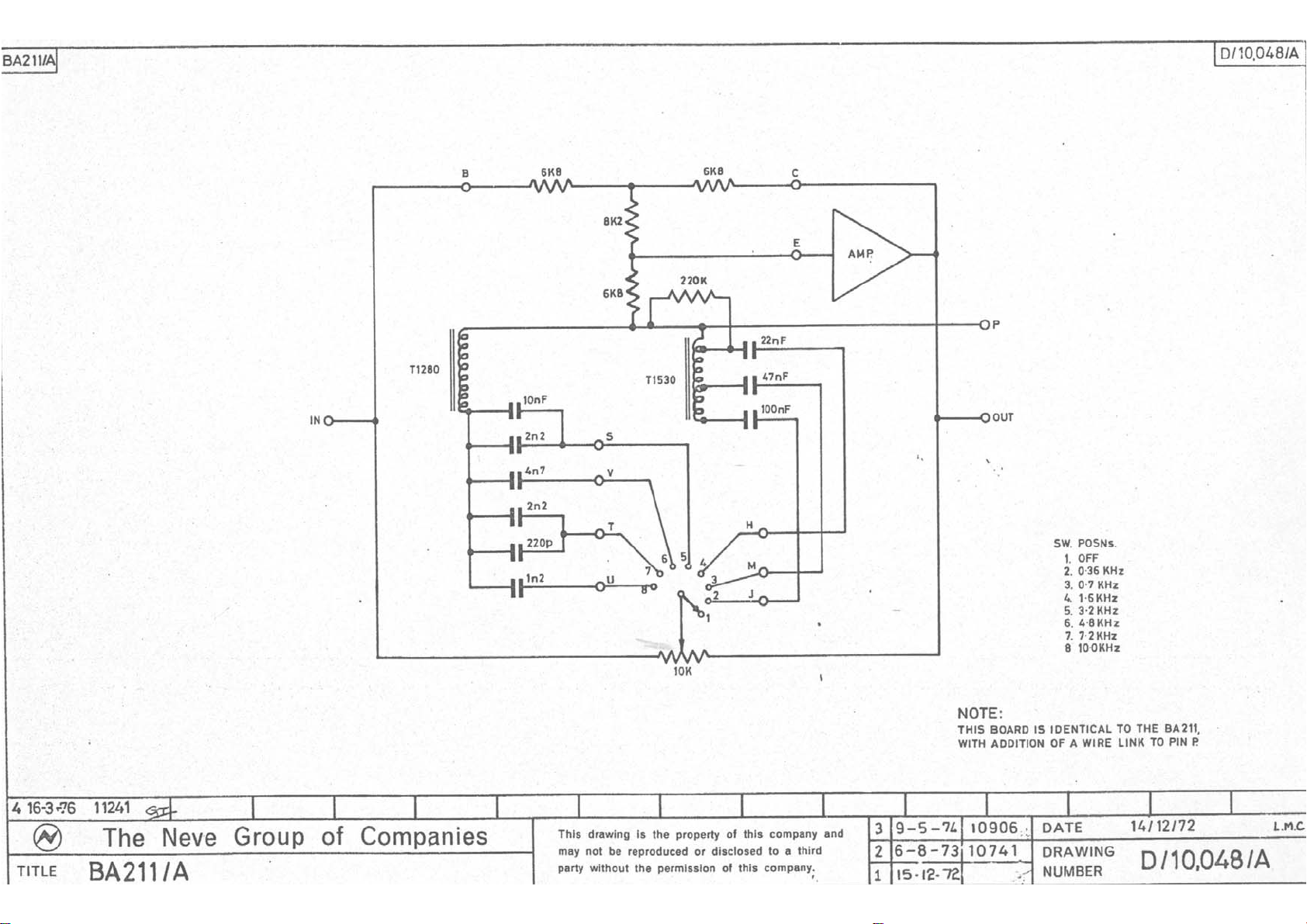

Ser vice In for ma tion 13

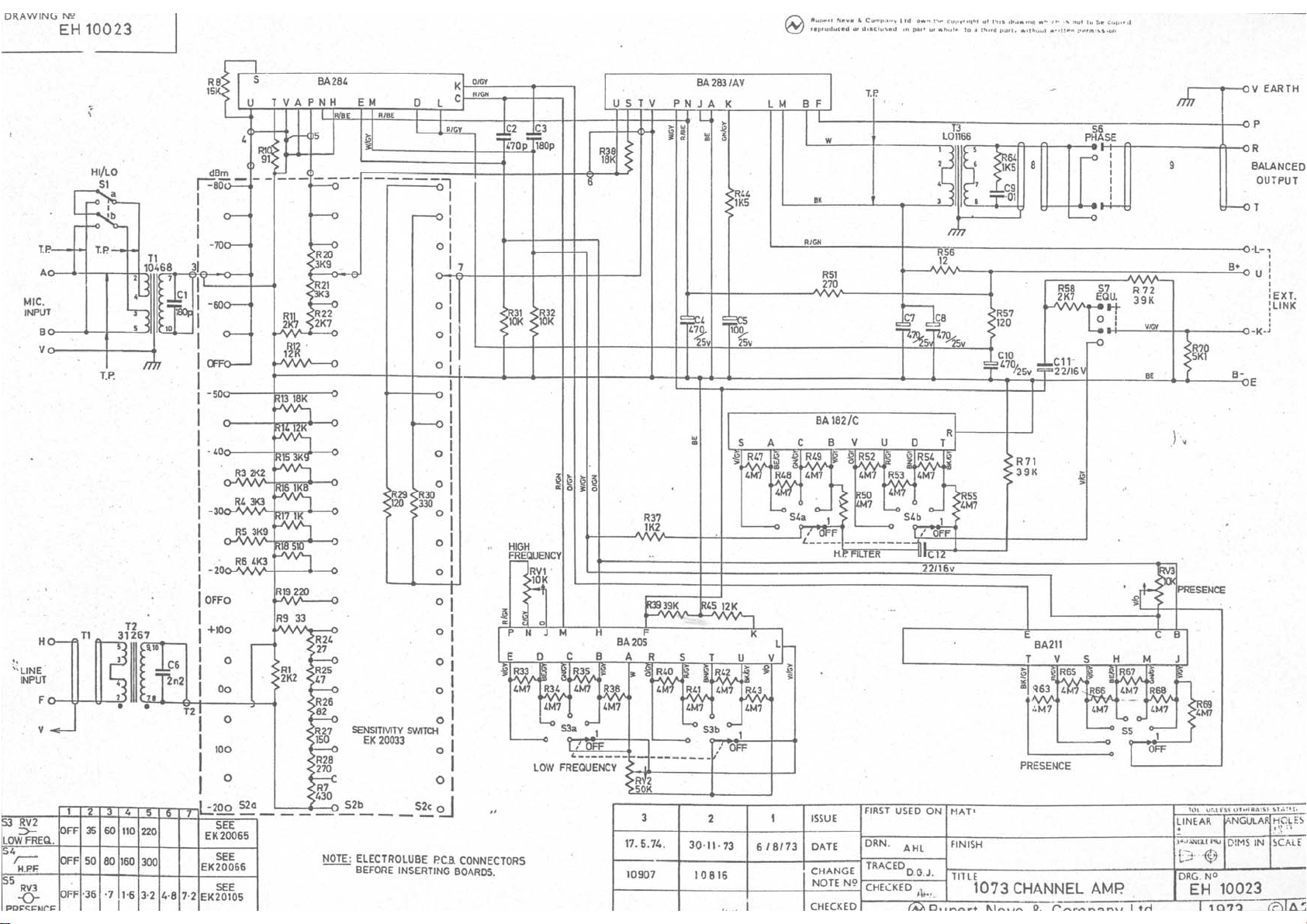

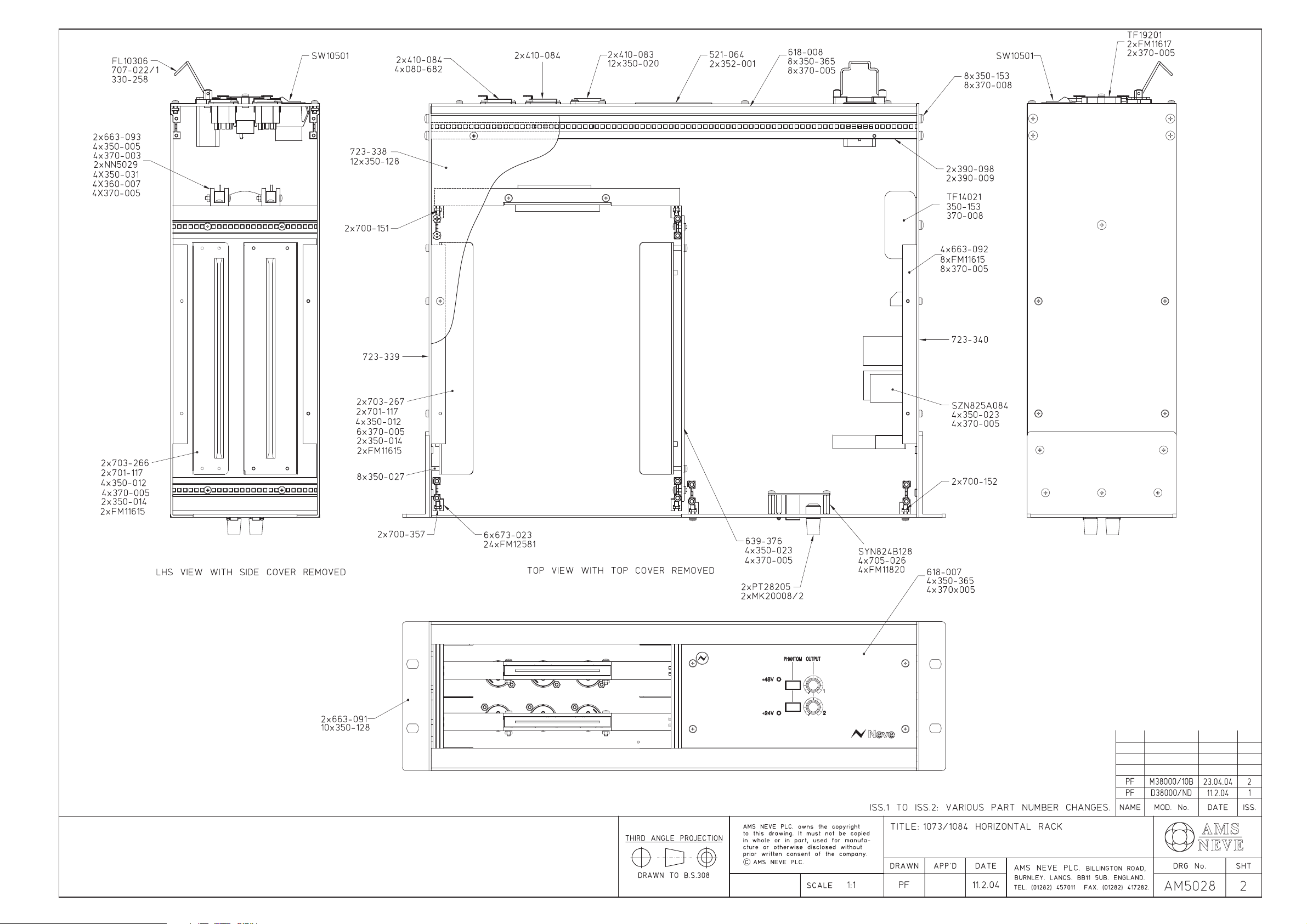

Sche matic Draw ing In dex - 1073/1084 Racks 13

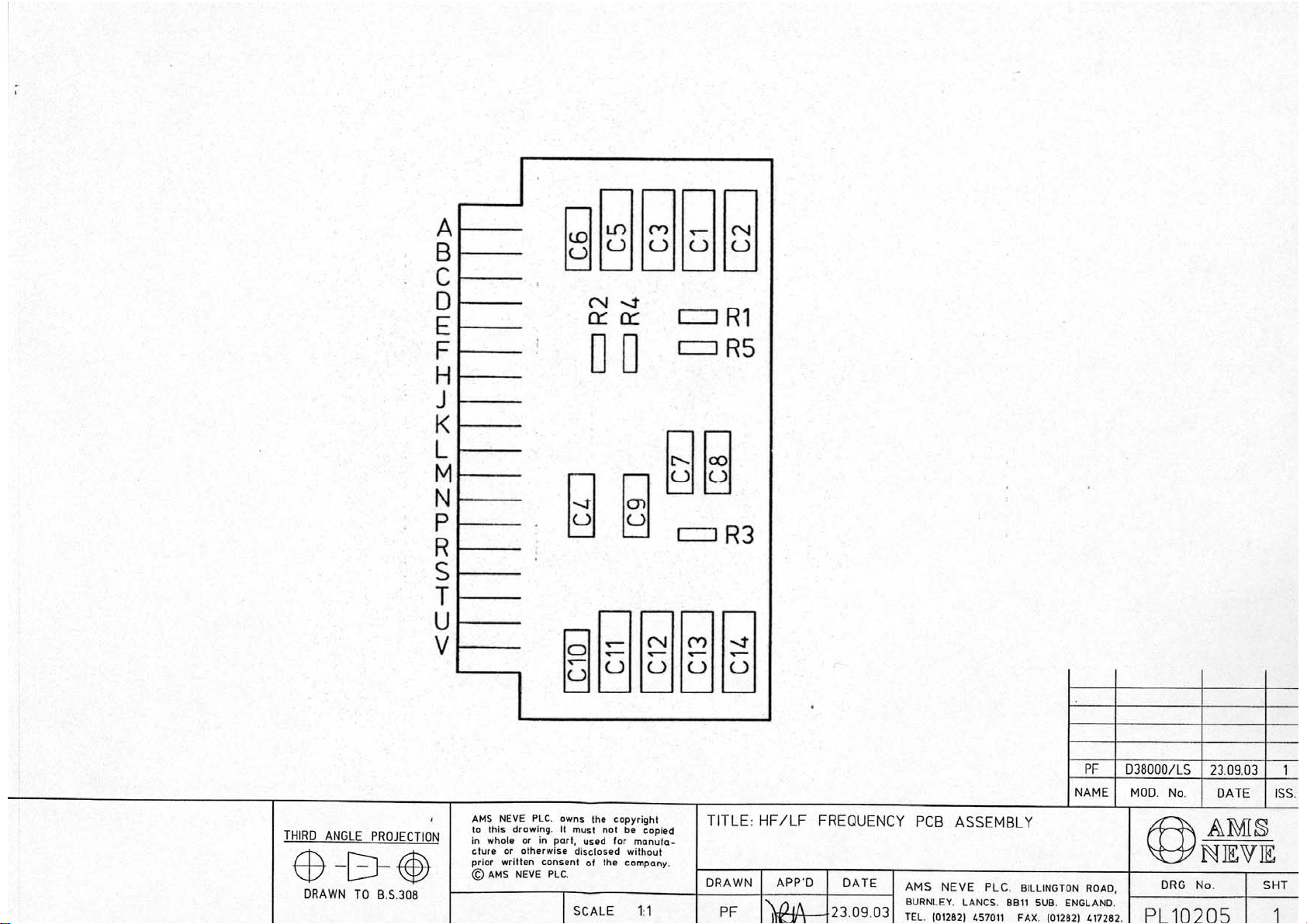

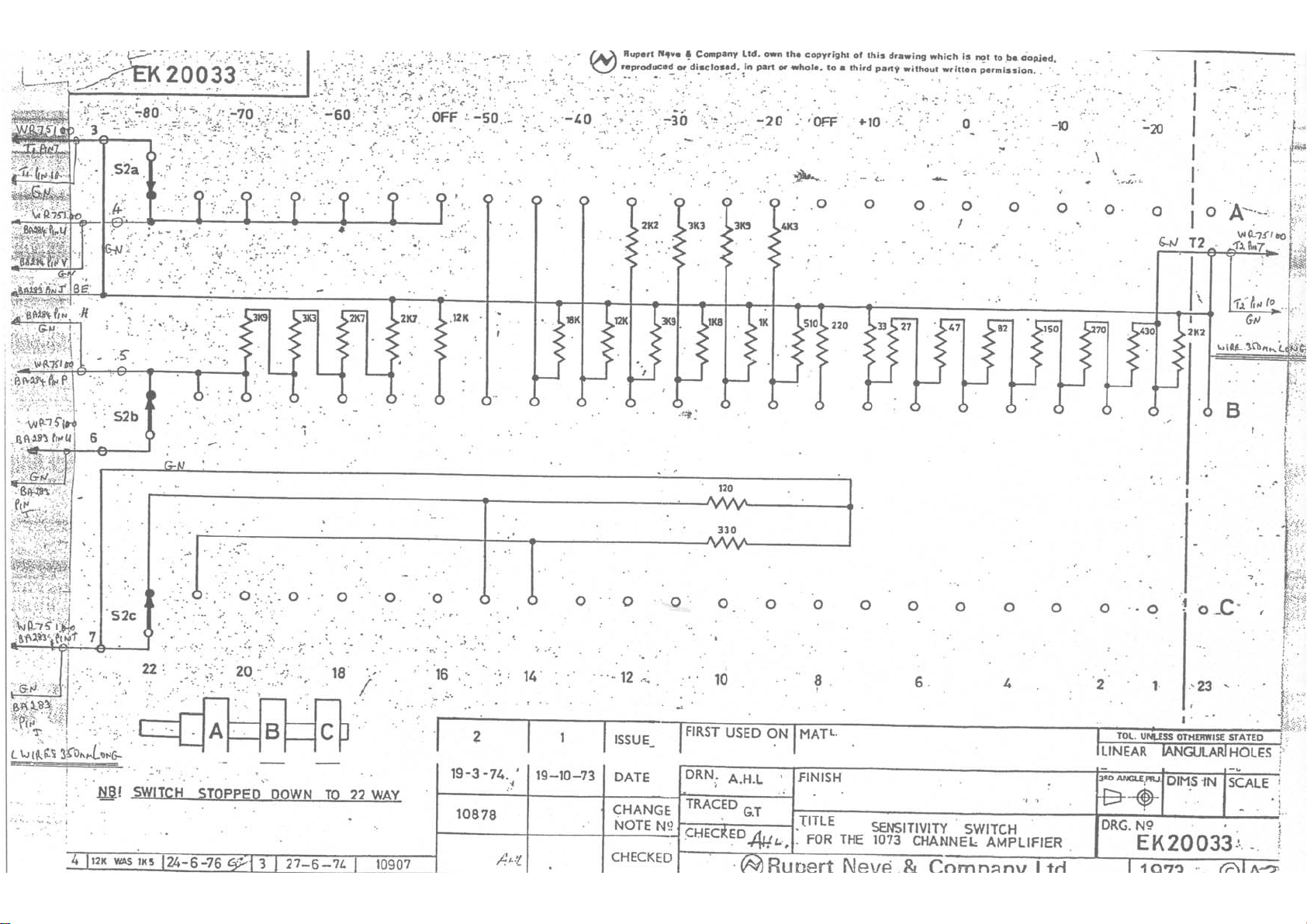

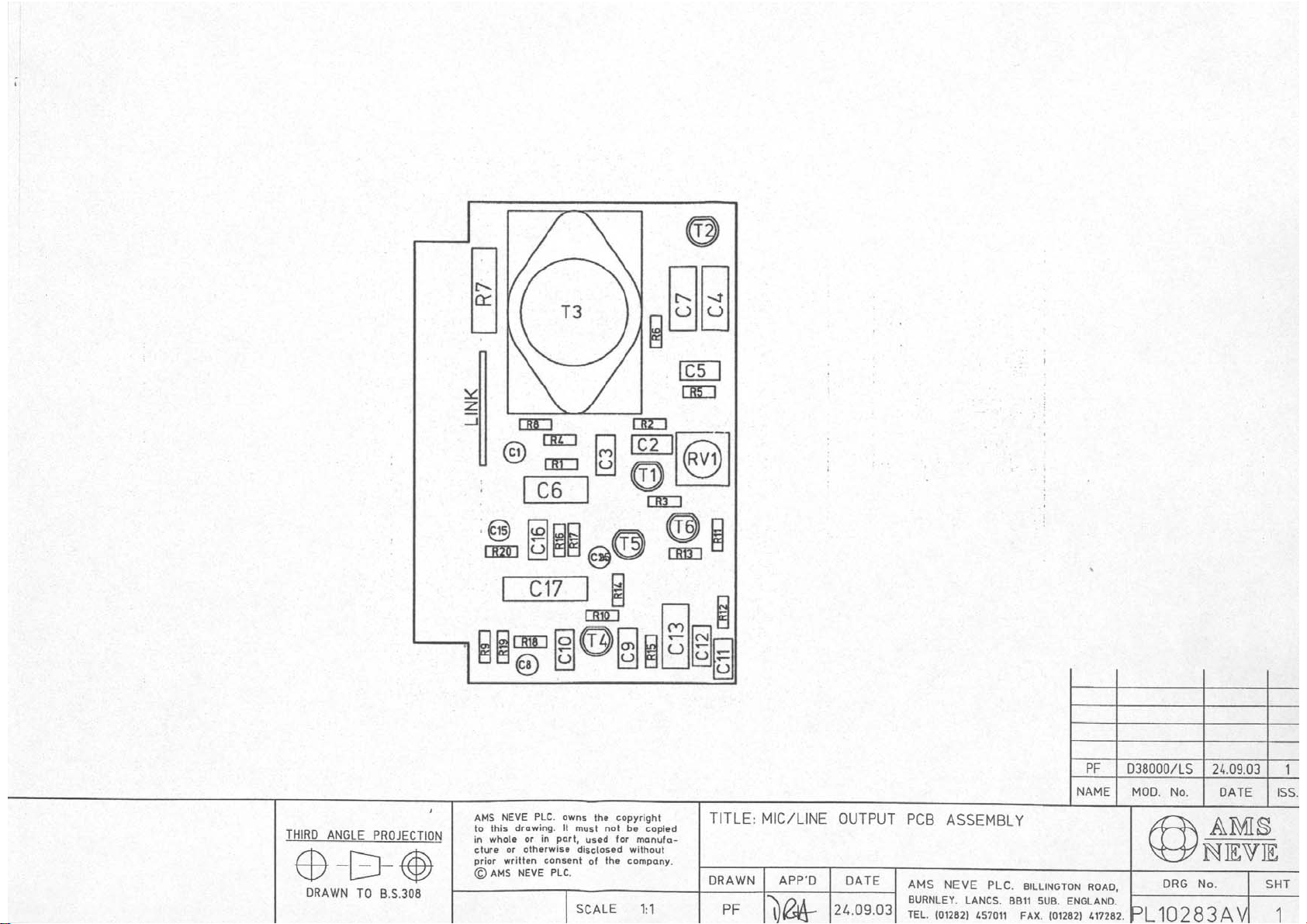

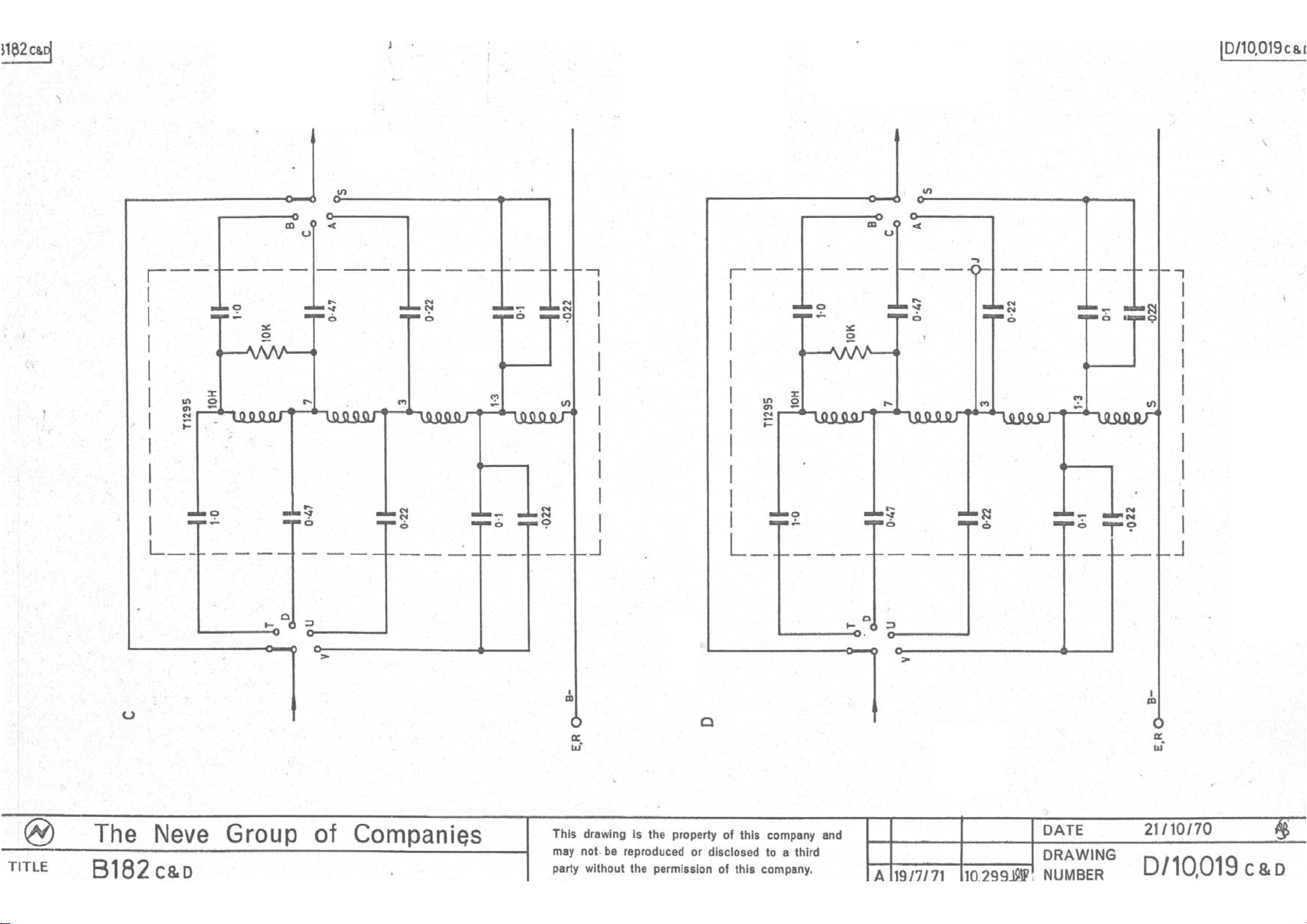

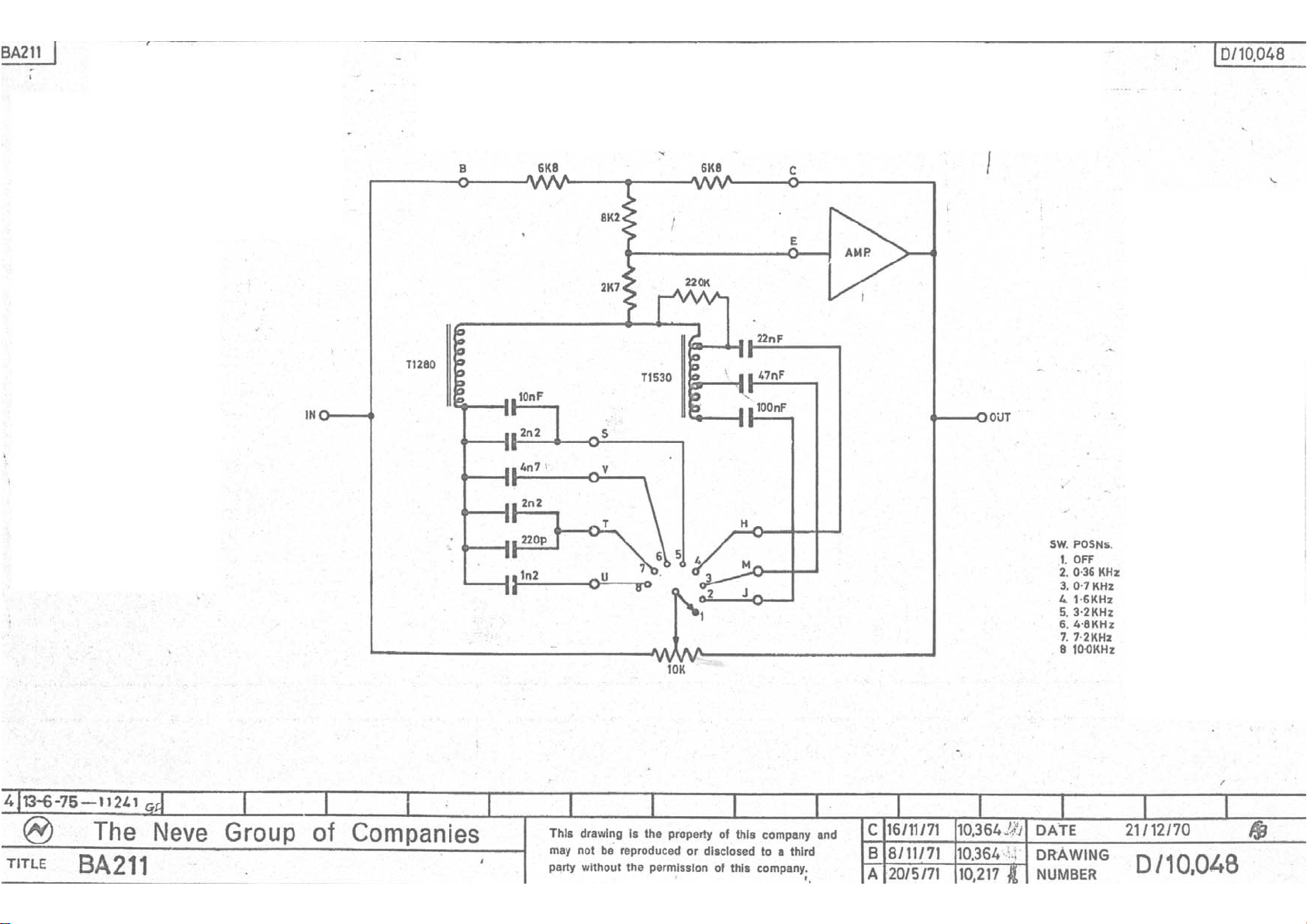

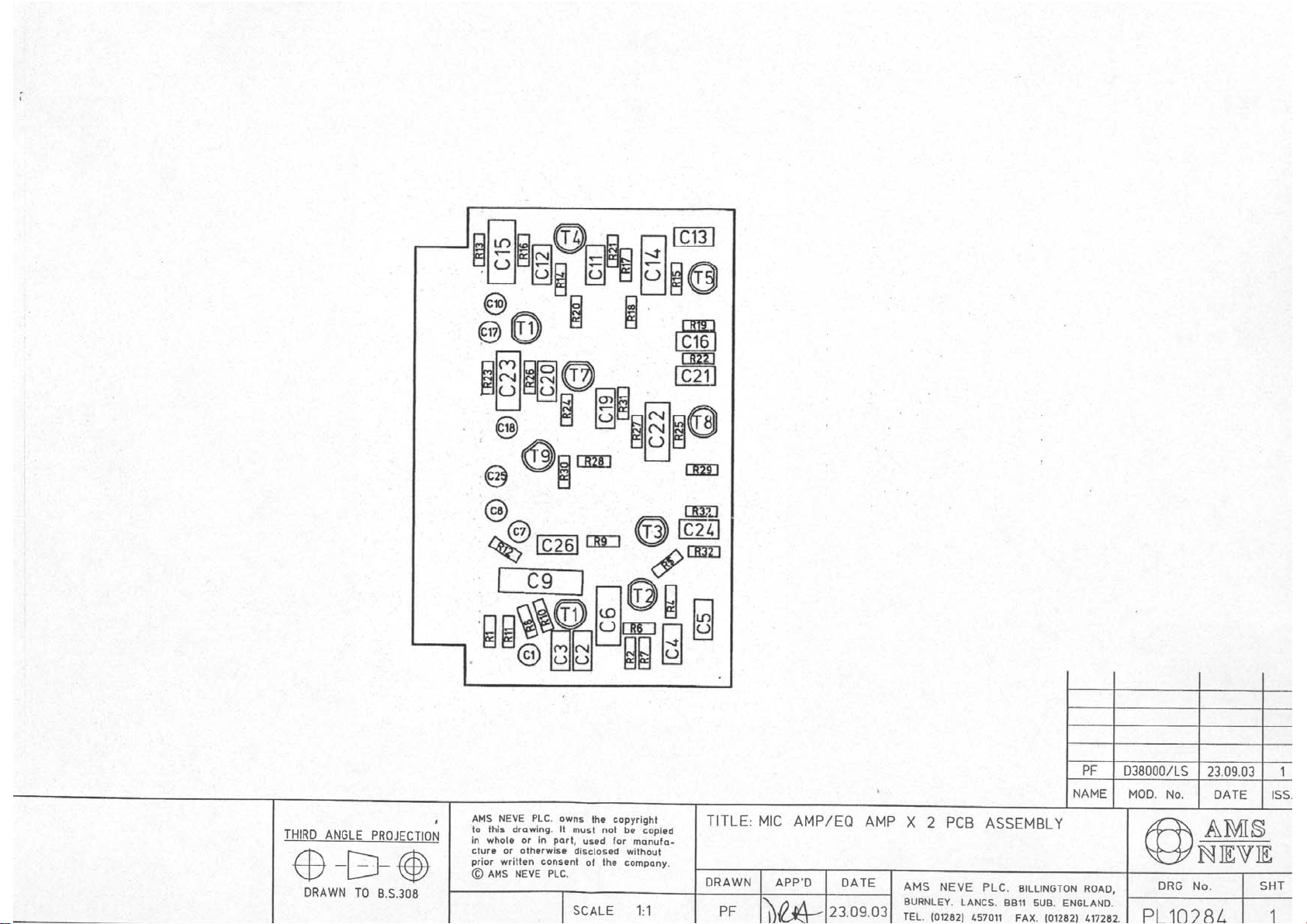

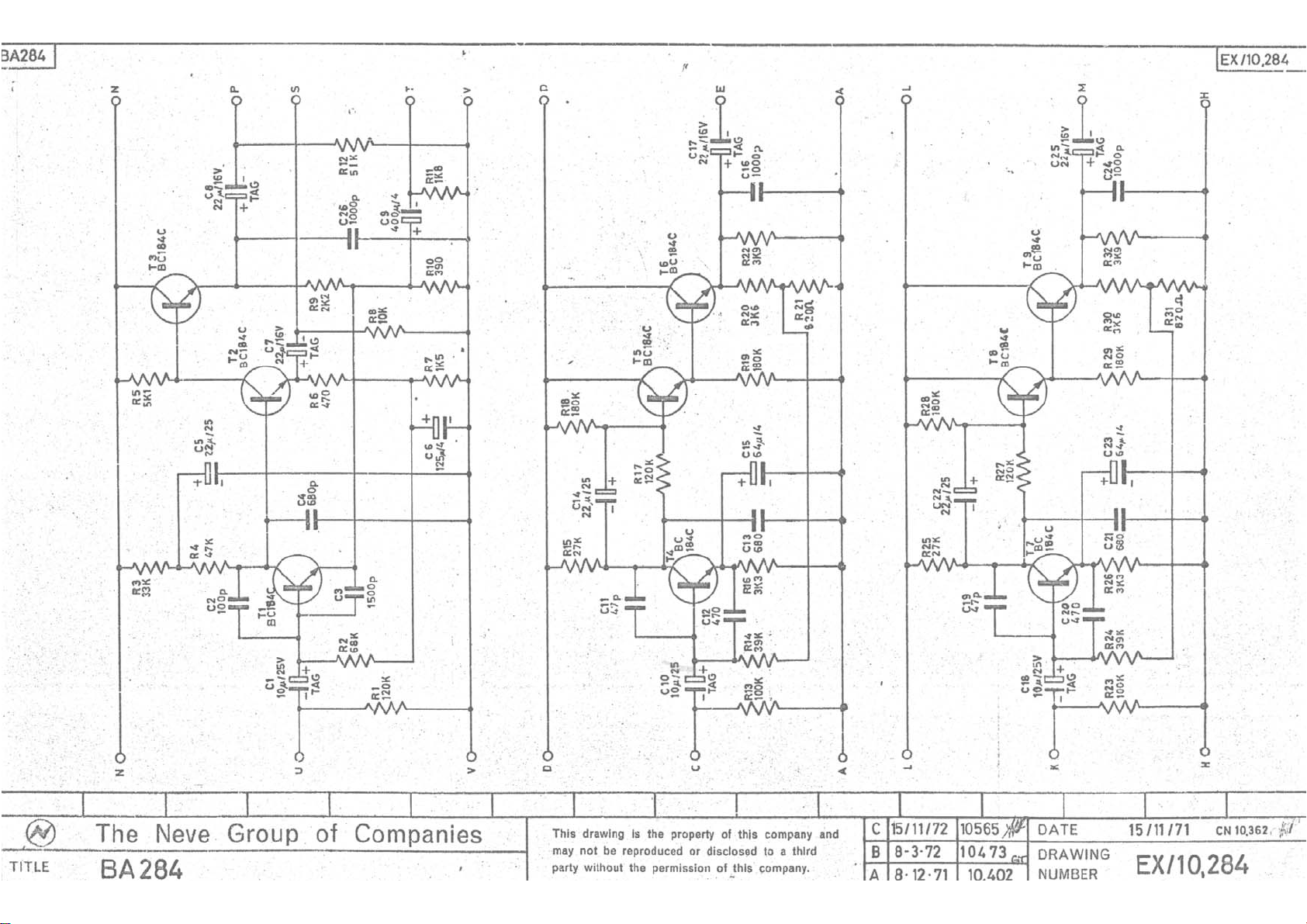

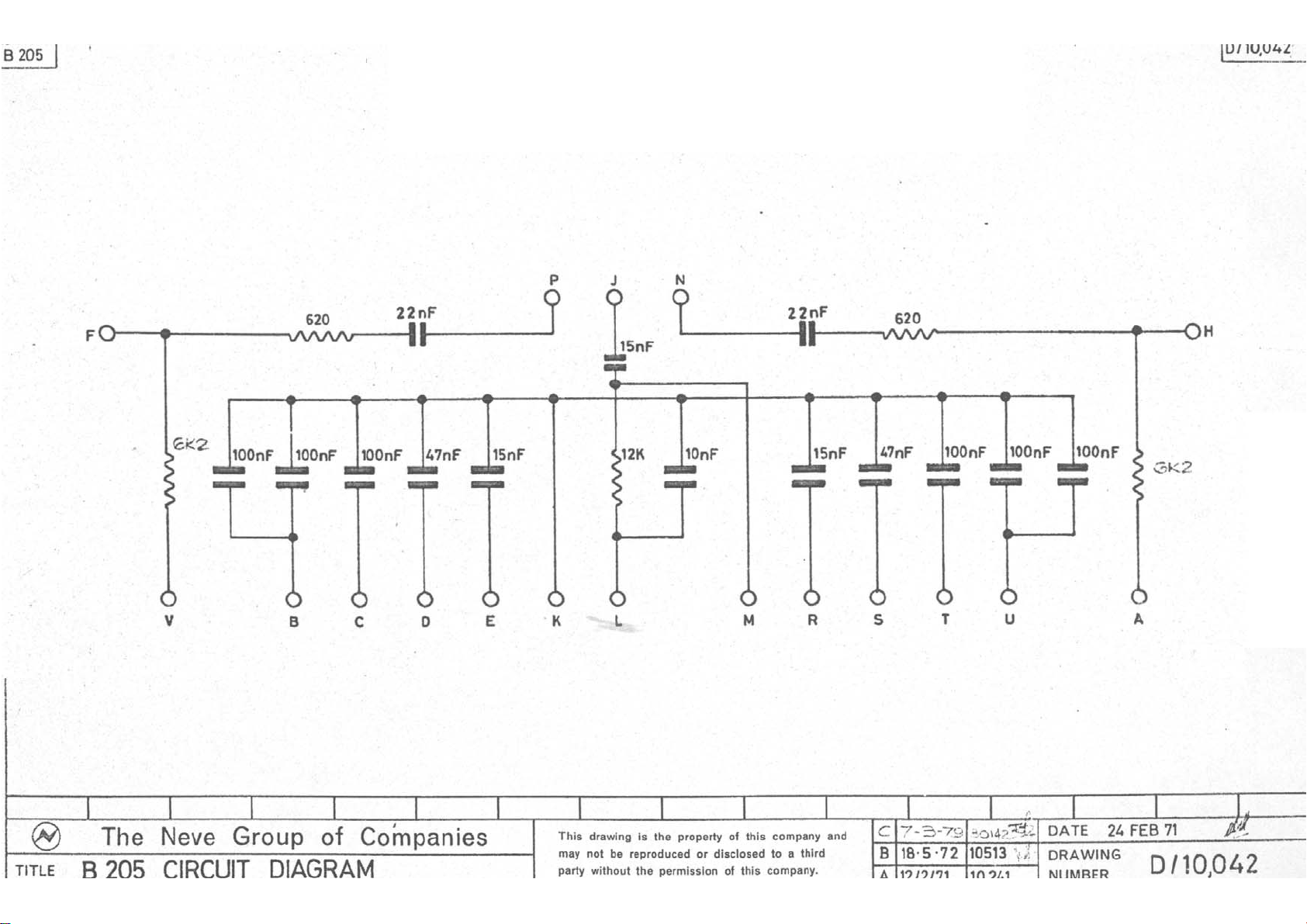

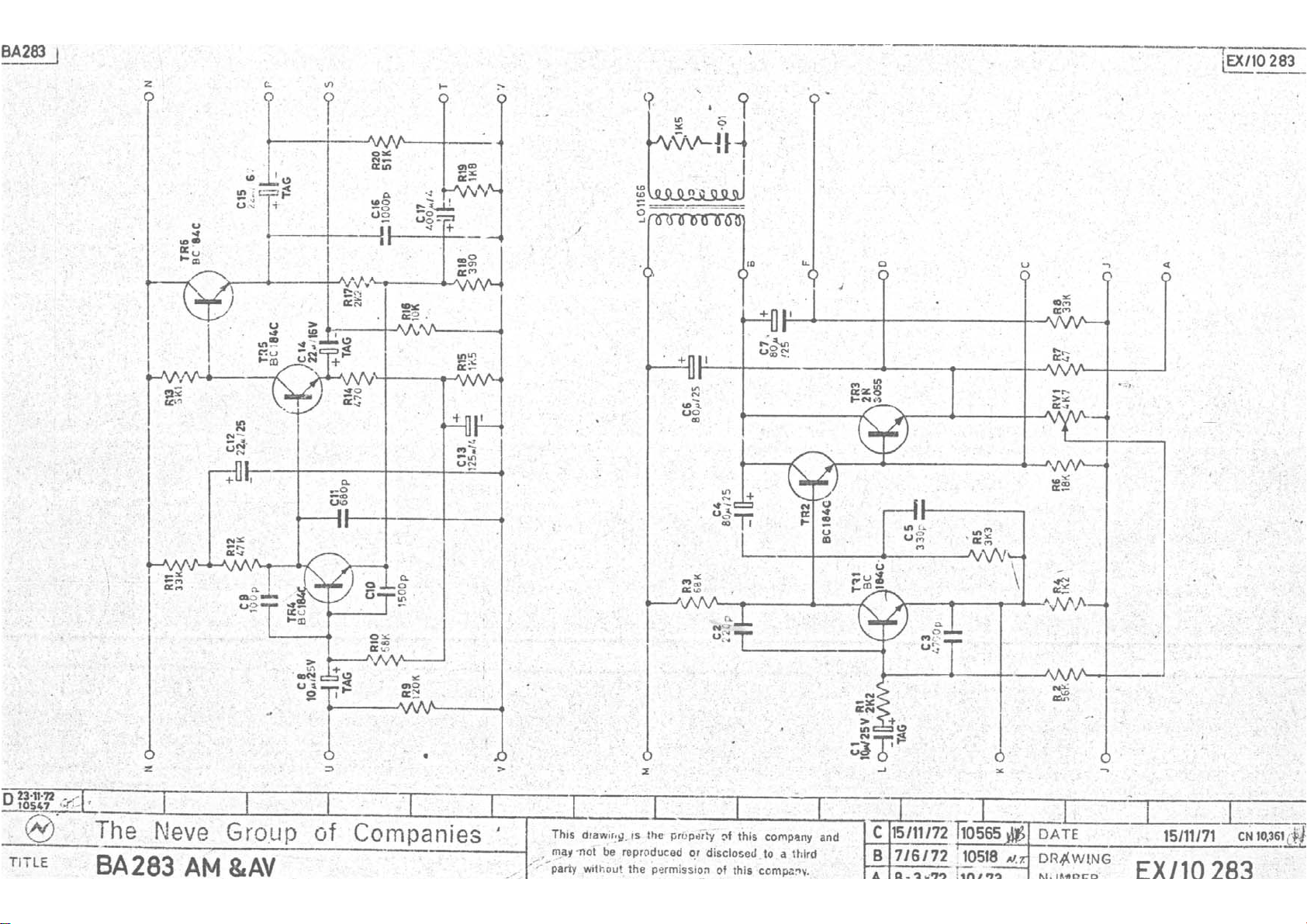

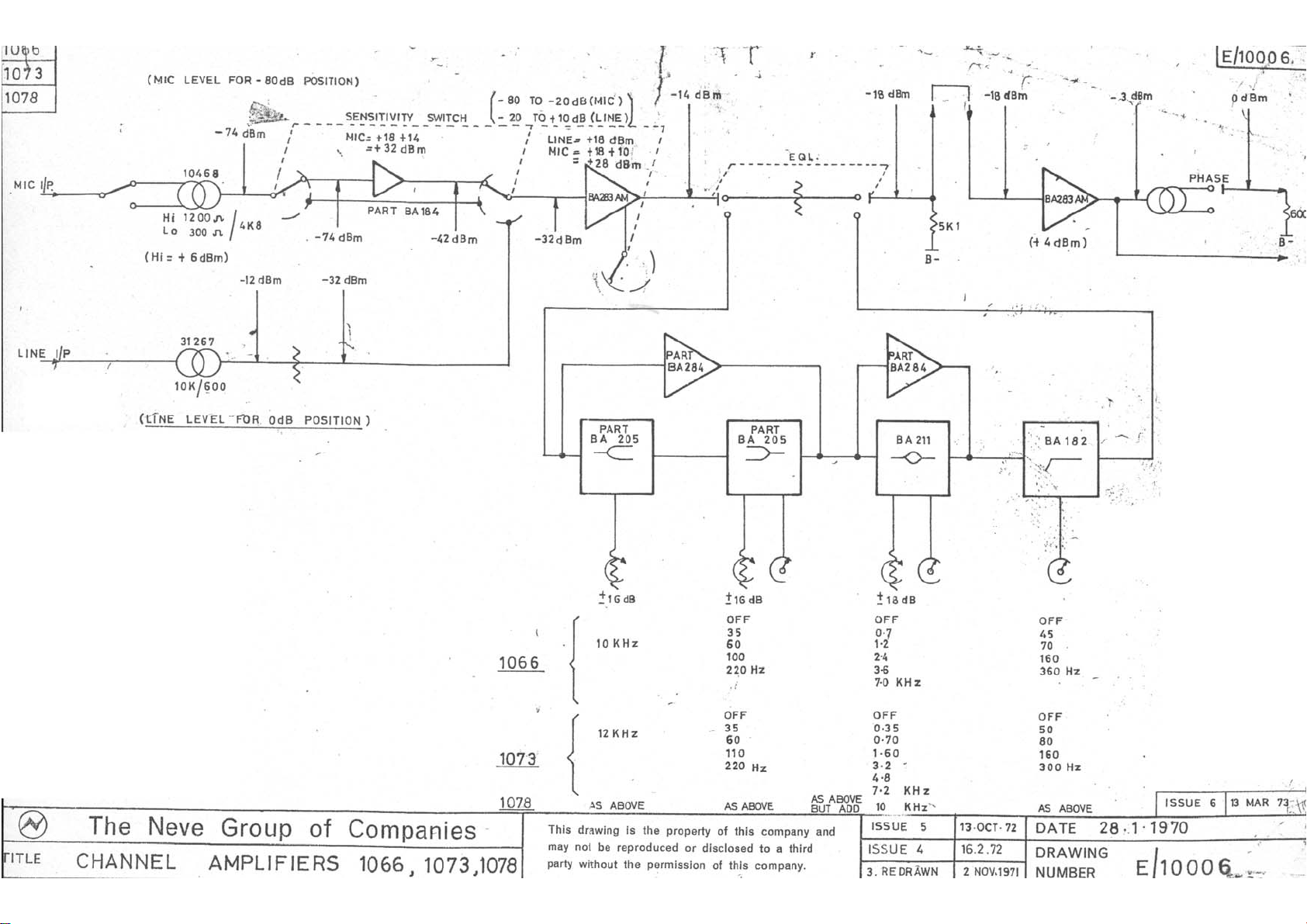

Sche matic Draw ing In dex - 1073 Mod ule 13

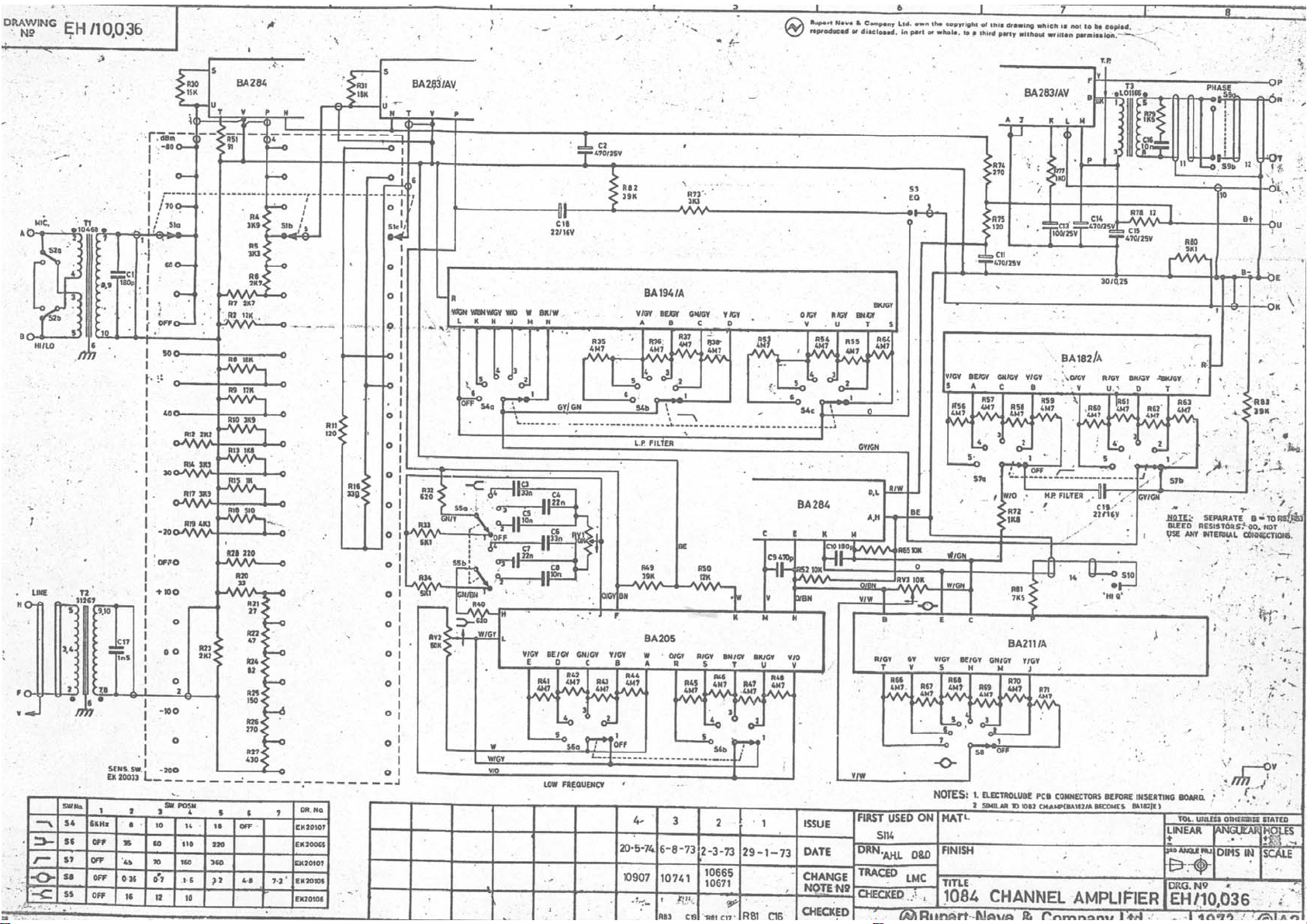

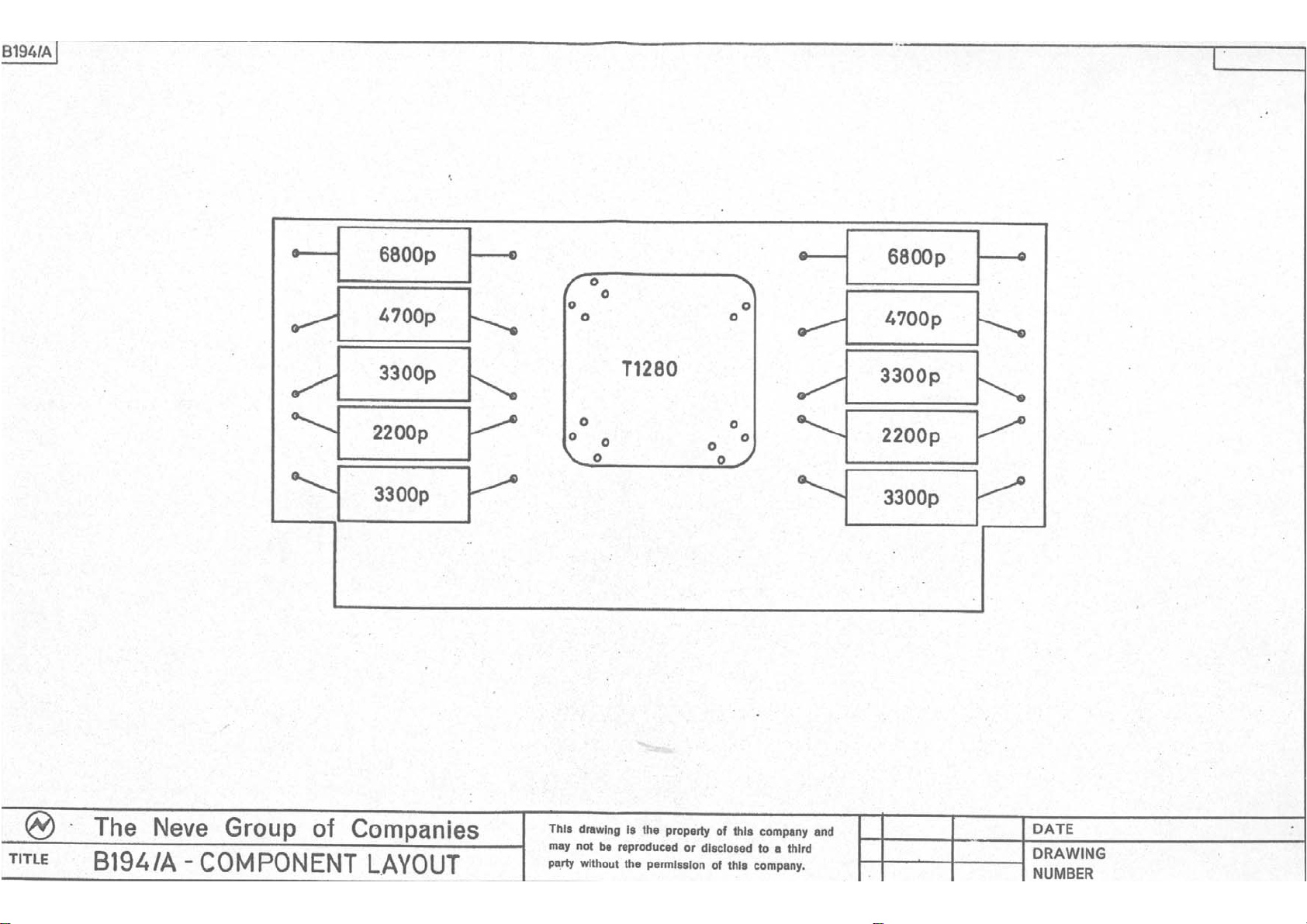

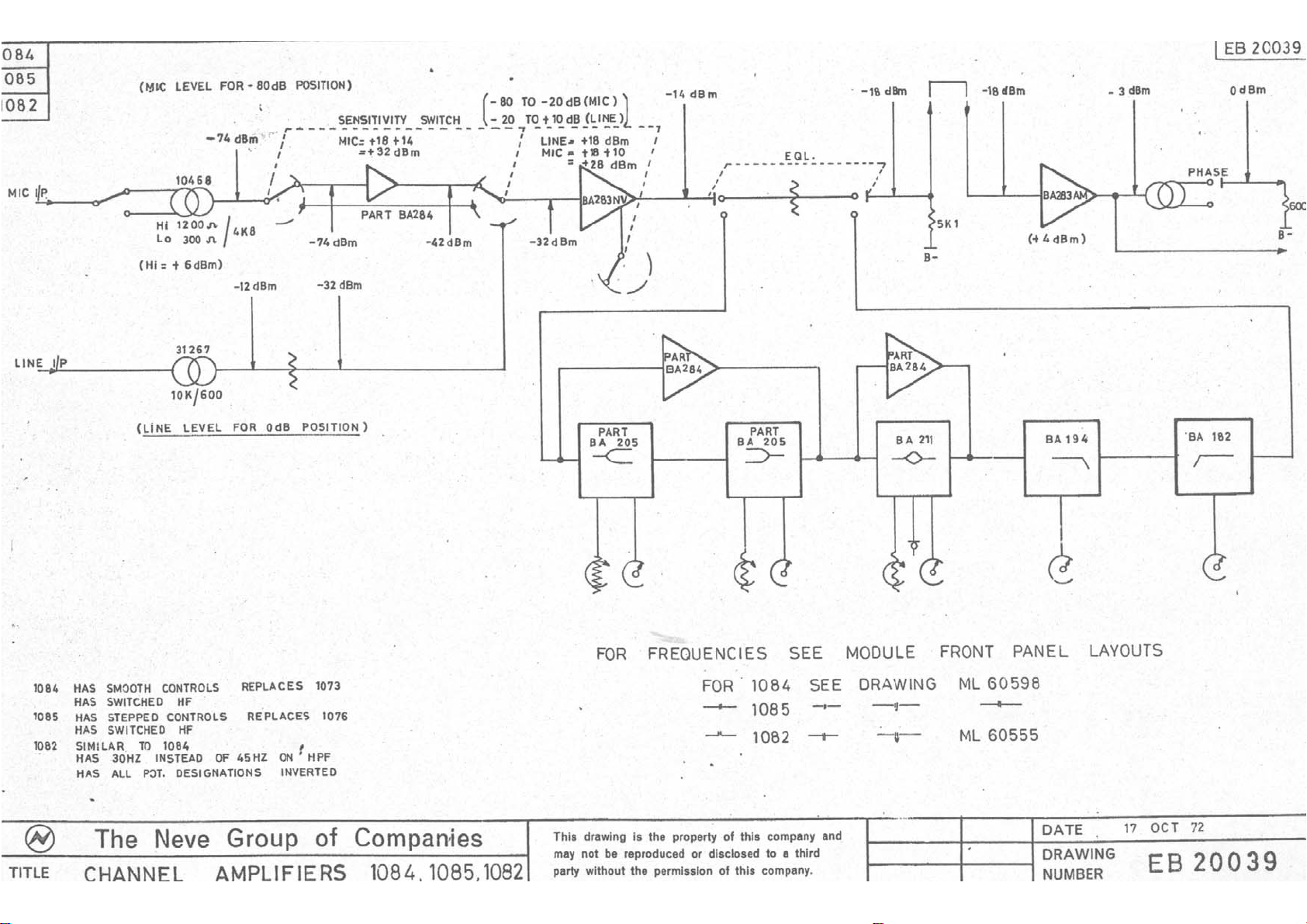

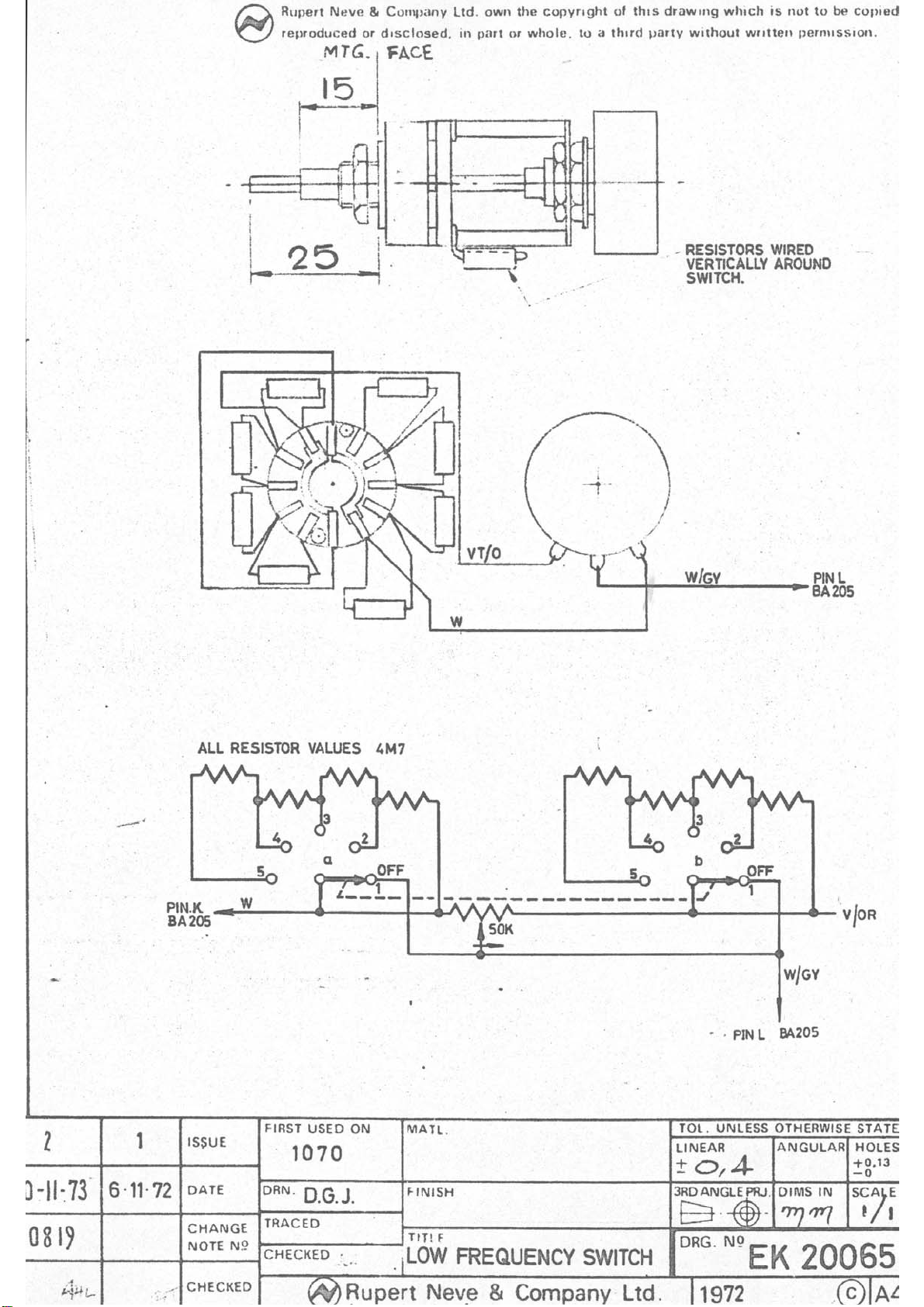

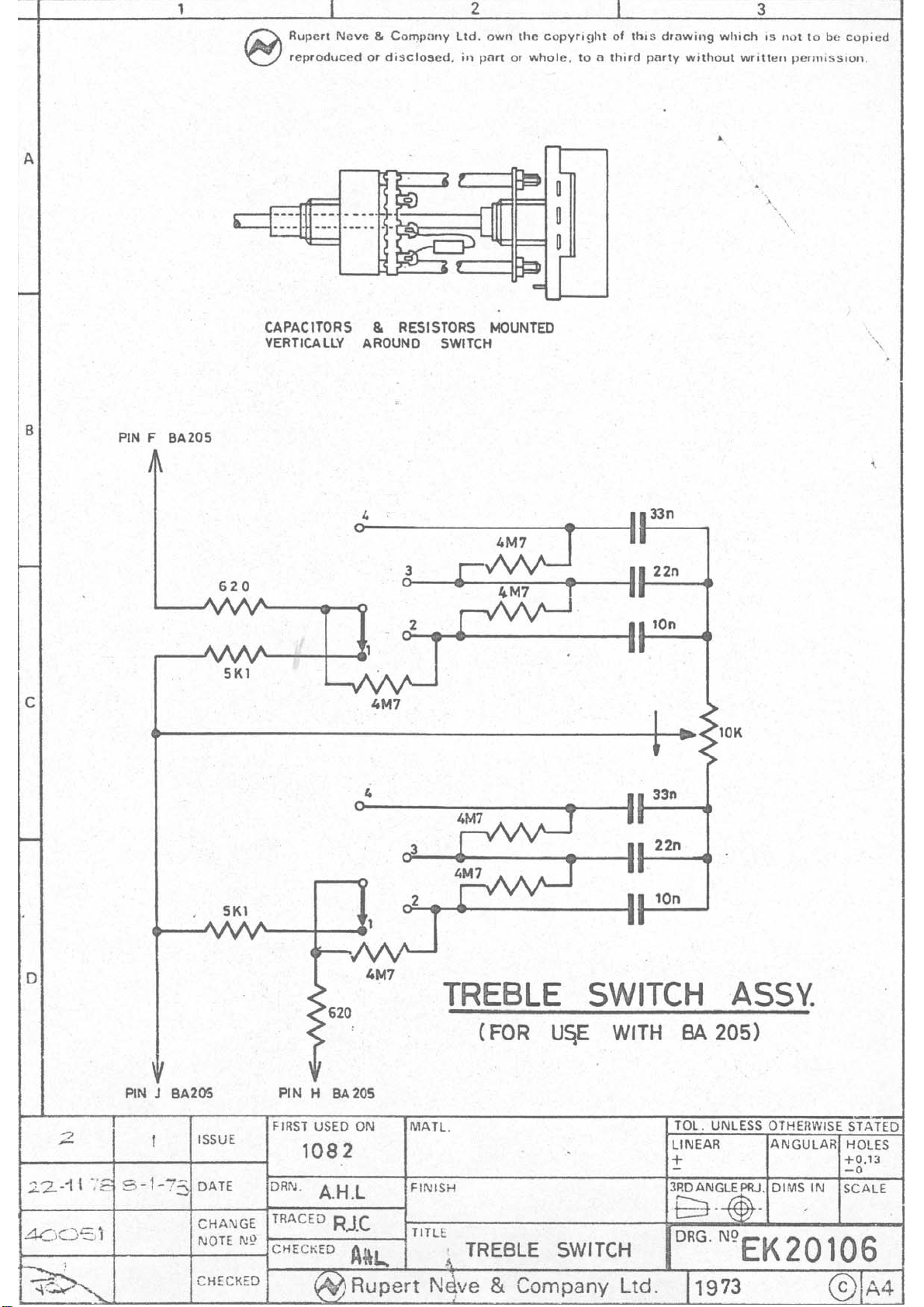

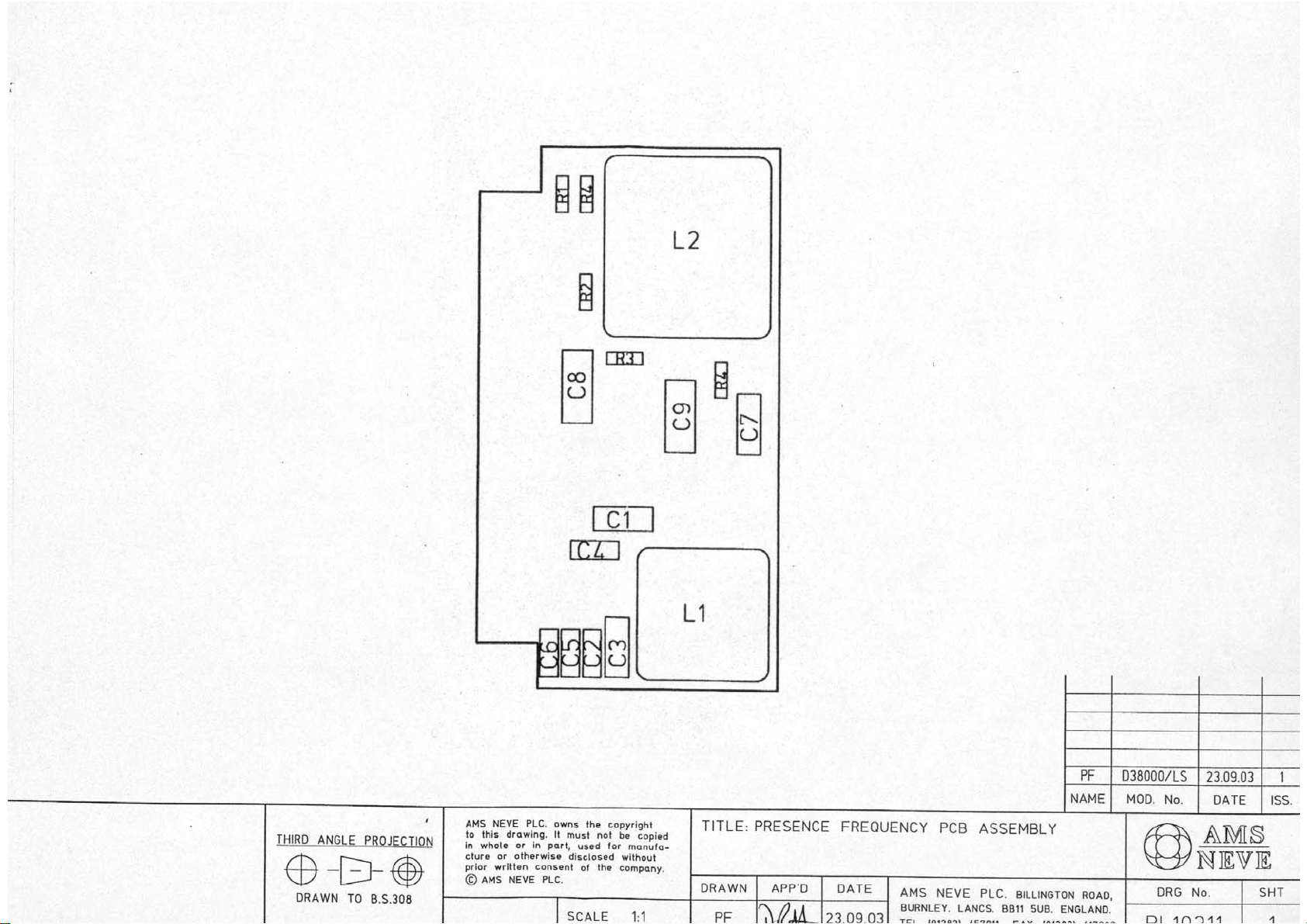

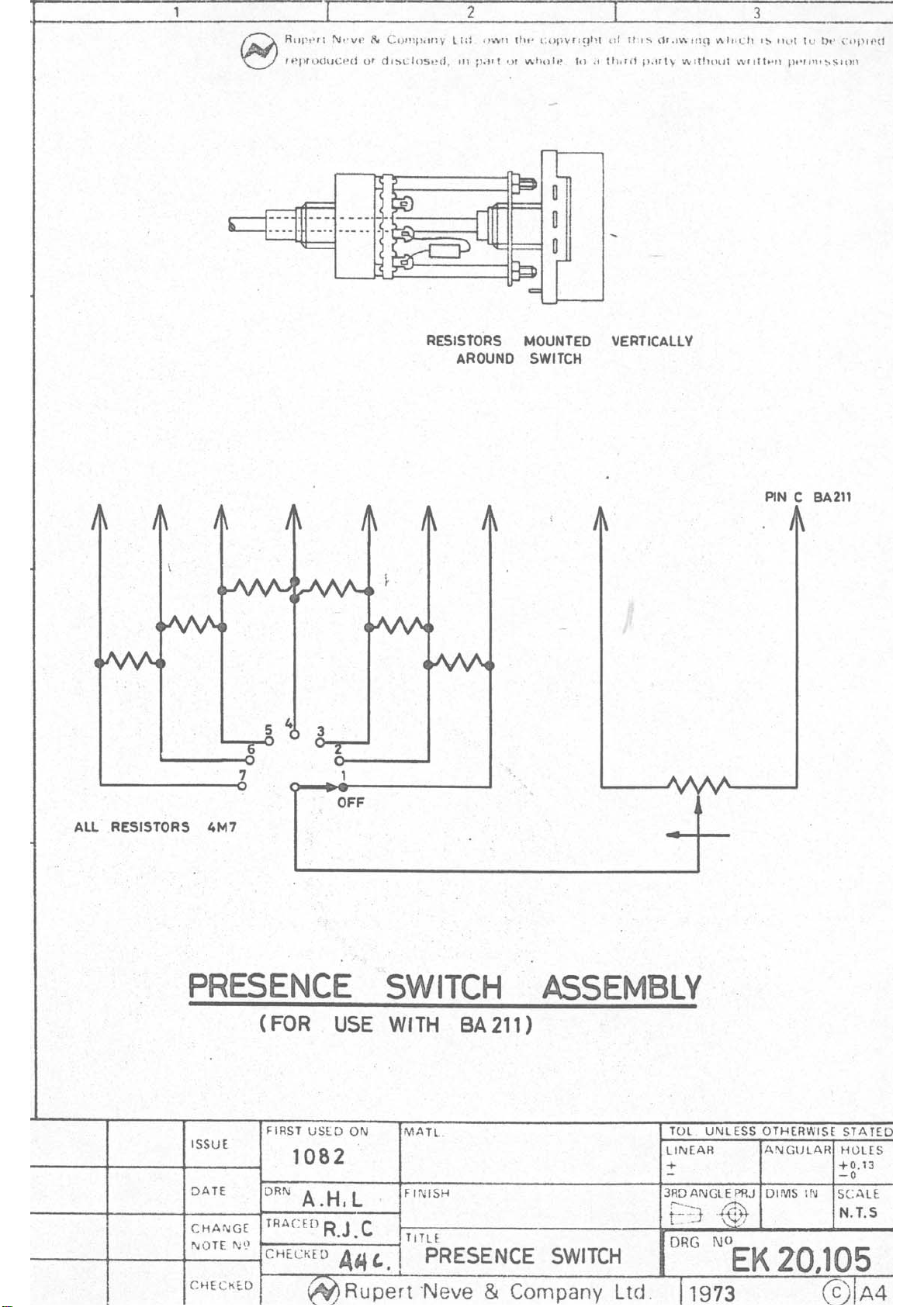

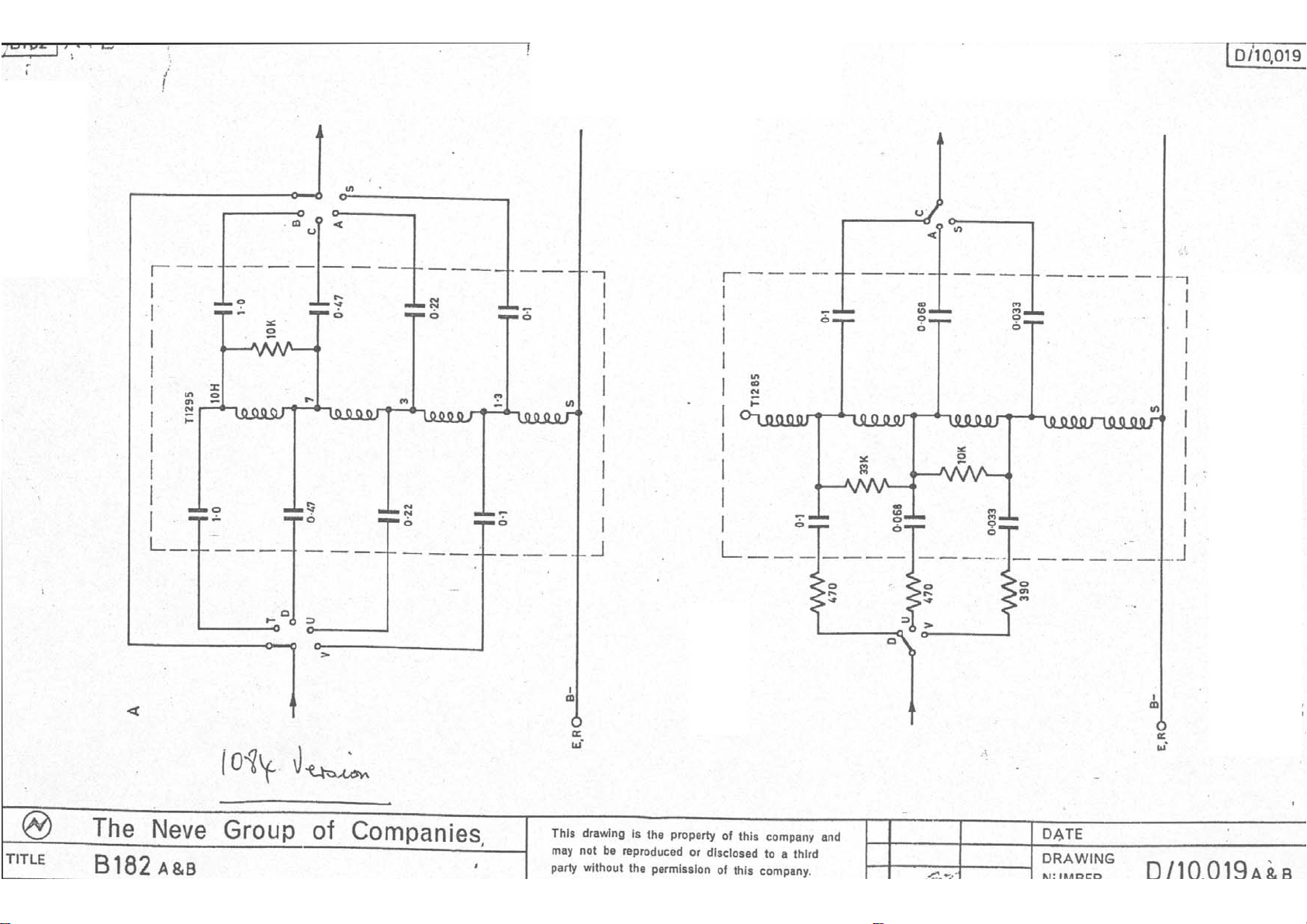

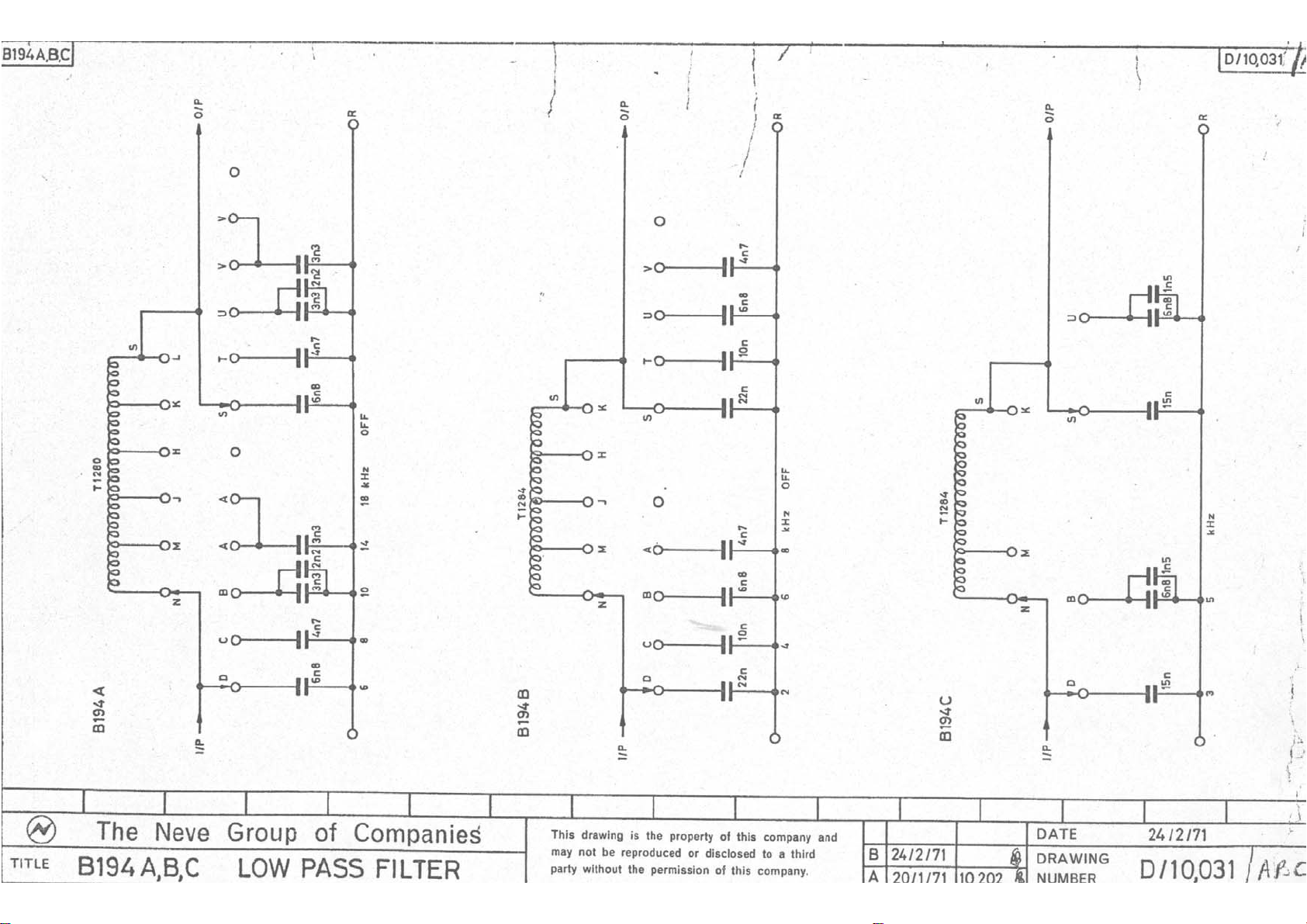

Sche matic Draw ing In dex - 1084 Mod ule 14
User Guide Is sue 3 Page i
1073 & 1084 Chan nel Am pli fiers In tro duc tion
In tro duc tion
These 45 series modules are the same as the original designs, and contain all of the original components.
1073 Chan nel Am pli fiers
These very popular sounding mic pre's are considered by many to capture the very essence of the Neve sound. In manufacture since the early 1970s, the Class A design offers 3 bands of EQ with one fixed high frequency and a high pass filter.
1084 Chan nel Am pli fiers
Based on the same technology as the 1073s, the 1084s again deliver the unique sound and quality of Neve. However, the 1084s offer additional features, including 3 switchable EQ bands with cut and boost, a high Q for presence and low pass/high pass filters.

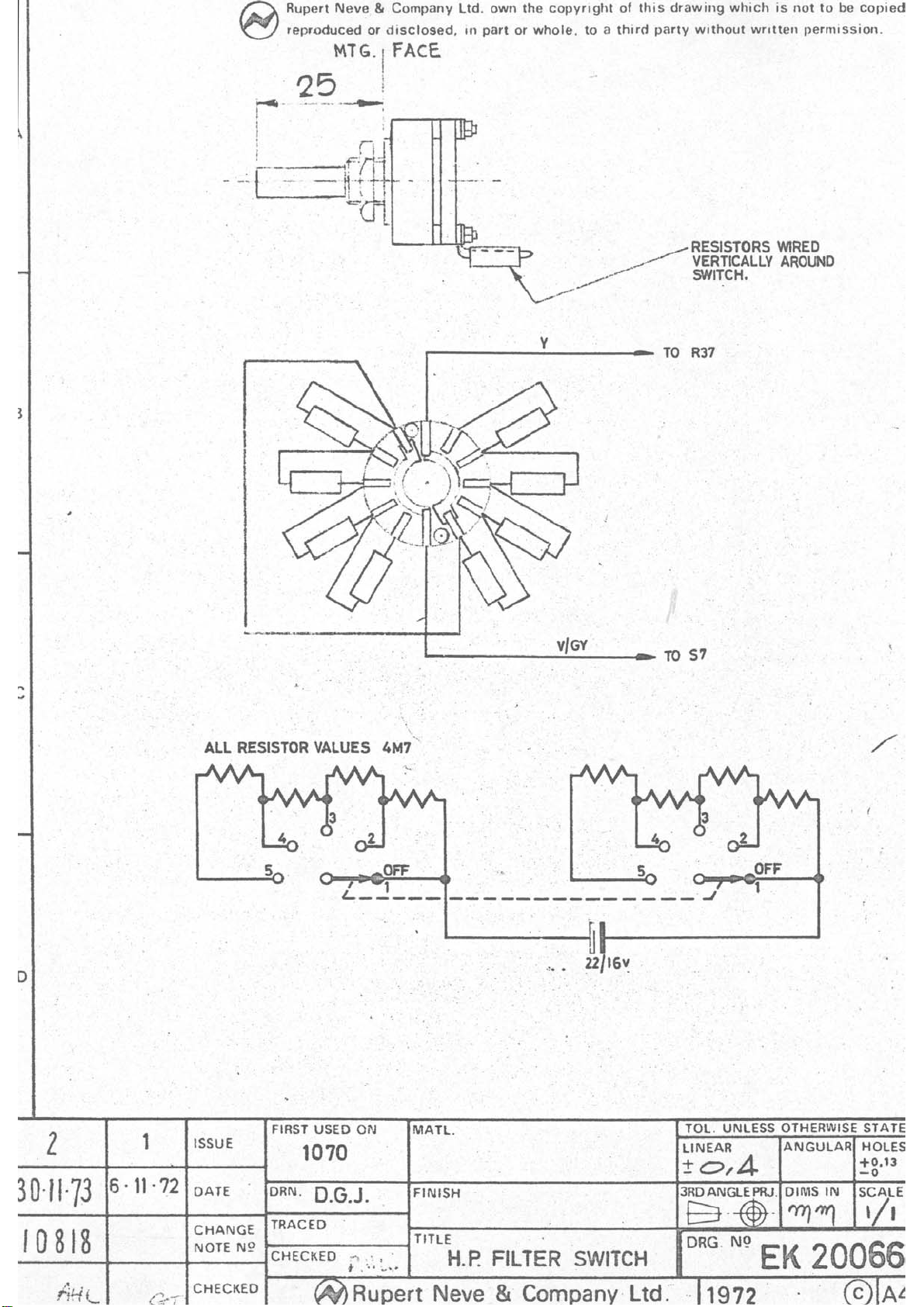

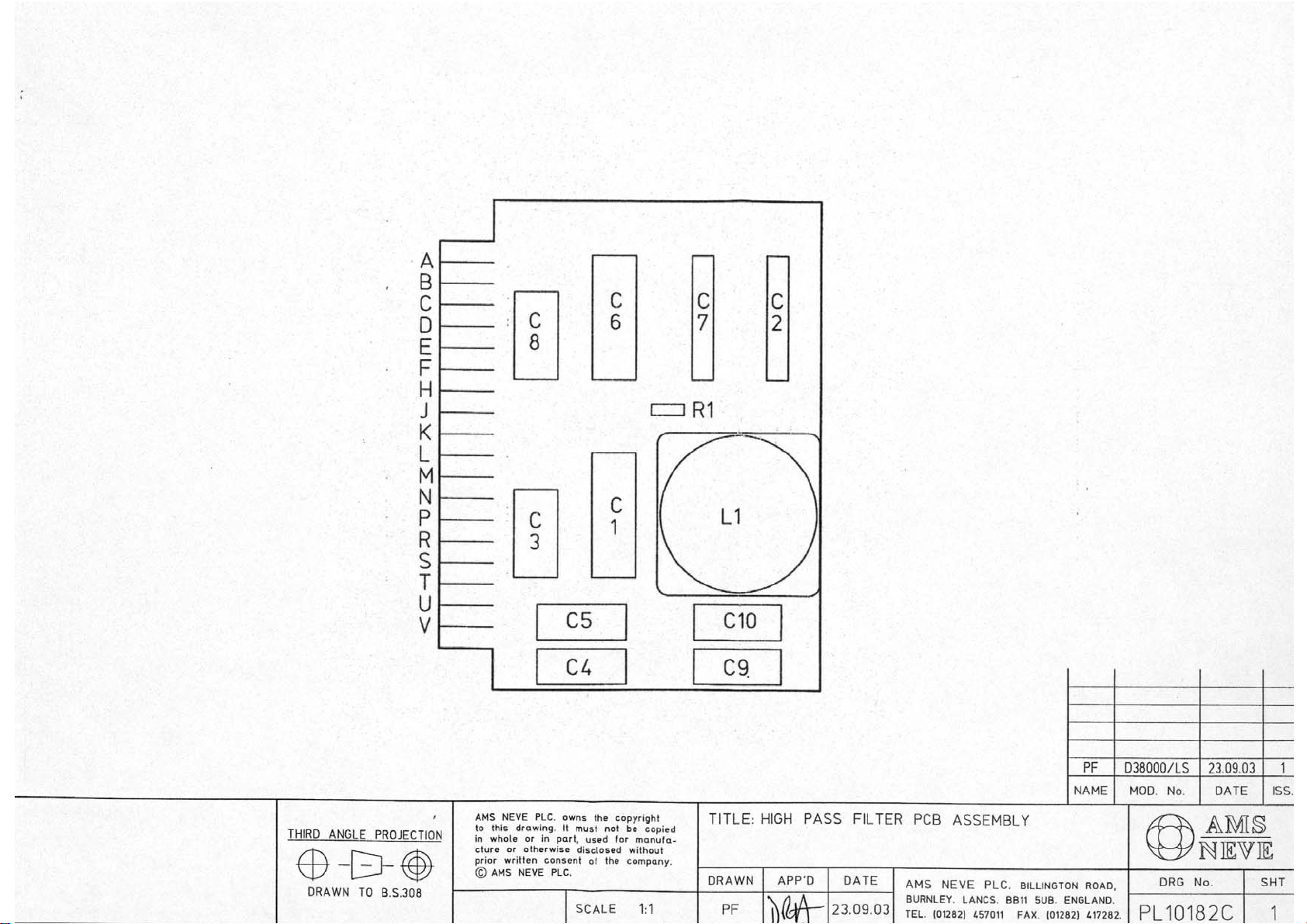

High Pass Fil ter (re sis tor mod i fi ca tion)
Im por tant Note
The high pass filter in both the 1073 & 1084 modules is a passive design and as such must be correctly terminated to achieve a maximally flat response.

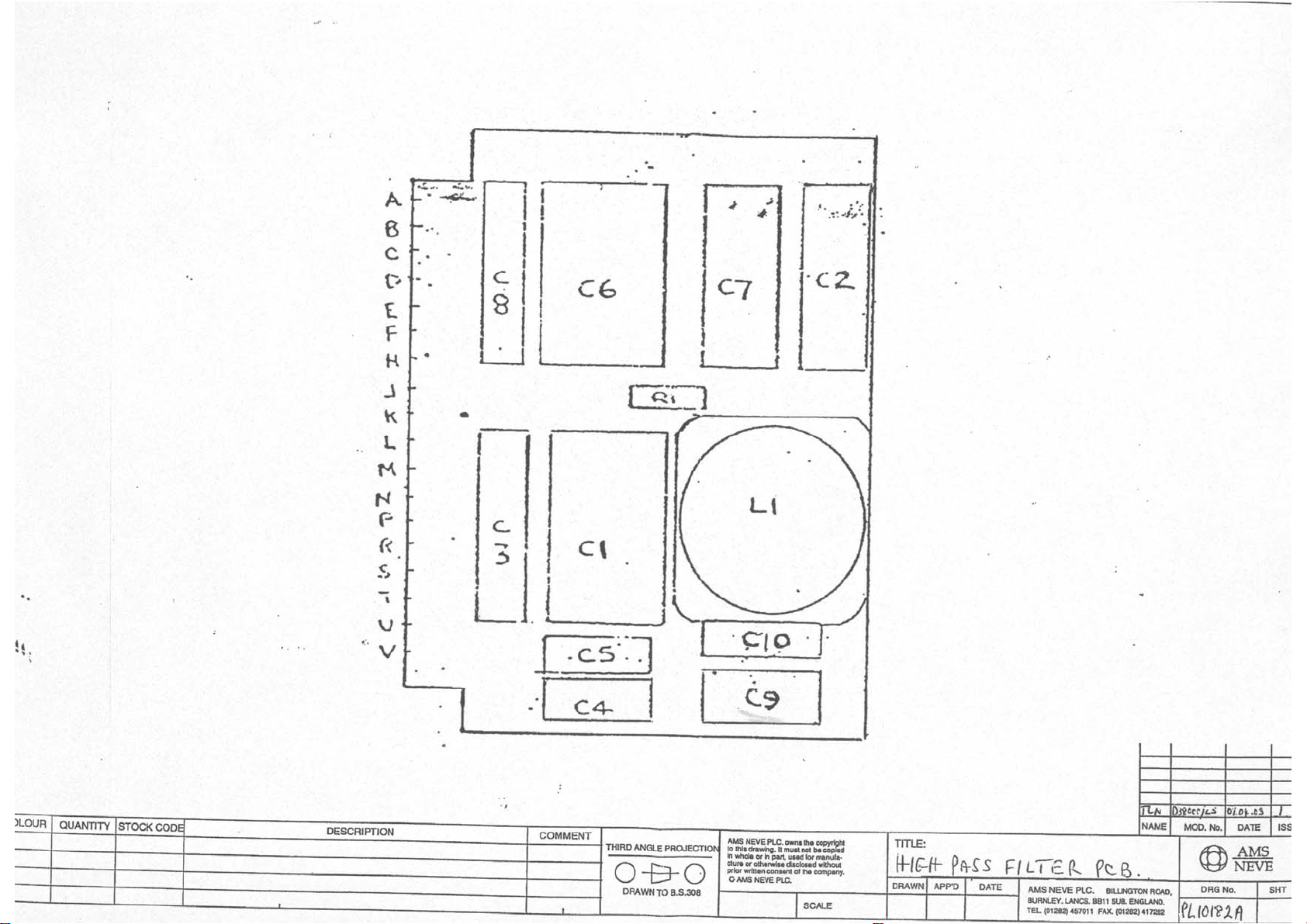

In order to achieve this there is a 5k1 resistor fitted inside the module on the back connector between pin E (0v) and pin K (fader send) see diagram below:
In situations where the fader connection is not used (most Neve 45 series consoles except BCM10's) then the resistor remains in place.
In situations where the fader connection is used (BCM10's and AMS Neve 1073/1084 racks) then the 5k1 resistor should be disconnected and replaced with a fader or potentiometer whose value is 4k7 / 5k ohms.
- All mod ules which leave the fac tory with ei ther a 3U or 5U rack unit will have the 5K1 re sis tor
re moved.
Failure to do so will result in incorrect levels and uneven frequency response.
User Guide Is sue 3 Page 1
1073 & 1084 Chan nel Am pli fiers In stal la tion
In stal la tion
The 1073s and 1084s are available as stand-alone modules, or in a choice of two housings.
The 3U rack houses two modules mounted horizontally in a 19” rack-mounting unit.
The 5U rack houses eight modules mounted vertically in a 19” rack-mounting unit.
Both have rear panels with XLRs for transformer balanced I/O.
The 3U rack rear panel has a fused, voltage selector IEC mains input connector. The 5U rack has a free standing AC supply with a fused, voltage selector IEC mains input connector and connects to the rack via a connector and a 1.5 meter cable.
Modules of any combination can be fitted into a rack unit.
Ex am ple: 5U Rack fit ted with two 1073 mod ules and six 1084 mod ules
User Guide Is sue 3 Page 2
1073 & 1084 Chan nel Am pli fiers Di men sions
Di men sions
Stand-alone Mod ules Width
1073 Module 45 (1.8) 222 (8.75) 254 (10) 2.5 (5.5)
1084 Module 45 (1.8) 222 (8.75) 254 (10) 2.5 (5.5)
19" Rack Mount ing U Depth
2 Mod ule Ver sion 3 405 (16) 133 (5.25) 11 (24.2) *
8 Mod ule Ver sion 5 405 (16) 222 (8.75) 30 (66) *
* Fully populated rack
Power Re quire ments
Rack Units 3U 5U
Rated Volt age 100- 230V AC 100- 230V AC
Rated Fre quency 50- 60 Hz 50- 60Hz
Rated Cur rent 0.5A Max 0.8A Max
mm (inches)
Height
mm (inches)
mm (inches)
Depth
mm (inches)
Height
mm (inches)
Ap prox.
Weight
kg (lbs)
Ap prox. Weight
kg (lbs)
Pri mary Pro tec tion Fuse:
Op er at ing Volt age 100- 230V AC 100- 230V AC
Fuse Rat ing and Type T0.5A H 250V
20mm x 5mm CE RAMIC
Lo ca tion IEC Mains con nec tor IEC Mains con nec tor
Sec on dary Pro tec tion Fuse:
Out put Volt age 24V DC
Fuse Rat ing and Type T 2.0A L 250V
Lo ca tion F1
Out put Volt age 48V DC
Fuse Rat ing and Type T 250mA L 250V
Lo ca tion F2
Modules Power
1073 Mod ule
1084 Mod ule
106mA ±10mA at 24V DC. Neg a tive Earth
106mA ±10mA at 24V DC. Neg a tive Earth
T1A H 250V 20mm x 5mm CE RAMIC
20mm x 5mm GLASS
20mm x 5mm GLASS
User Guide Is sue 3 Page 3
1073 & 1084 Chan nel Am pli fiers Phan tom Power
Mains Sup ply (rack units)
The 3U rack has a fused, voltage selector IEC mains input connector.
The 5U rack has a free standing AC supply with a fused, voltage selector IEC mains input connector and connects to the rack via a connector and a 1.5 meter cable.
The mains switch on the rear panel of the 3U rack unit is non-illuminating.
The CH (chassis) and 0V are linked internally.
DC Power Sup ply In di ca tors (rack units)
The red LED on the front panel of both 3U and 5U rack units indicates +24V power healthy when illuminated.
The green LED on the front panel of both 3U and 5U rack units indicates +48V power healthy when illuminated.
Phan tom Power
Phantom power can be supplied to each module by pressing the phantom power switch on the front panel of the 3U or 5U rack. The LED in the switch will illuminate confirming that phantom power is supplied.
Out put Level Con trol
Each channel has an independent Output Level Control. The control is post-input, post-EQ and pre-output. This control can reduce the level at the output.
When the Output Control is fully clockwise the output gain is unity. The output is 20dB down with the control in the mid-position.
User Guide Is sue 3 Page 4
1073 & 1084 Chan nel Am pli fiers Con nec tor De tails
Standalone 1073 & 1084
Module Wiring to 18 way Free Plug
A
B
C
D
E
F
H
J
K
L
M
N
P
R
S
T
U
V
0V
Hi
Lo
0V
Hi
Lo
Link
Unbalanced O/P
Hi
Lo
BAL O/P
+24V at 106mA
Mic I/P
Line I/P
-20dBu
-3dBu
0dBu
0dBu
Technical
Earth Link
To Pin V
To Pin V
To Pin V
Con nec tor De tails
User Guide Is sue 3 Page 5
1073 & 1084 Chan nel Am pli fiers Am pli fier Con trols
dB
LINE
-20
10
0
+10
OFF
-2030
MIC
40
50
OFF
60
70
-80
+
-
0
+
-
0
OFF
0.36
0.7
1.6
3.2
KHz
Hz
4.8
7.2
+
-
0
OFF
35
60
110
220
Hz
OFF
50
80
160
300
EQL
PHASE
dB
LINE
-20
10
0
+10
OFF
-2030
MIC
40
50
OFF
60
70
-80
+
-
0
+
-
0
OFF
0.36
0.7
1.6
3.2
KHz
4.8
7.2
Hz
+
-
0
OFF
35
60
110
220
OFF
50
80
160
300
Hz
E Q L
P H A S E
Am pli fier Con trols
1073 Mod ule
High Frequency: Smooth +/-16dB fixed frequency shelving at 12kHz.
Low Frequency: Smooth +/-16dB shelving with selectable frequencies of 35Hz,
60Hz, 110Hz & 220Hz.
Mid Frequency: Smooth +/-18dB peaking, fixed 'Q' with, selectable centre
frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz &
7.2kHz.
High Pass Filter: 18dB per octave slope, switchable between 50Hz, 80Hz,
160Hz & 300Hz.
EQL Button: Switches the equaliser in or out of circuit.
Phase Button: Gives 180° Phase change at Balanced Output.
User Guide Is sue 3 Page 6
1073 & 1084 Chan nel Am pli fiers Am pli fier Con trols
dB
LINE
-20
10
0
+10
OFF
-2030
MIC
40
50
OFF
60
70
-80
+
-
OFF
16
12
10
KHz
+
-
OFF
0.35
0.7
1.6
3.2
KHz
4.8
7.2
Hz
+
-
OFF
35
60
110
220
Hz
10
14
18
OFF
45
160
70
8
6
360
KHz
EQL
PHASE
Hi-Q
dB
LINE
-20
10
0
+10
OFF
-2030
MIC
40
50
OFF
60
70
-80
+
-
OFF
16
12
10
KHz
E Q L
P H A S E
+
OFF
0.35
0.7
1.6
3.2
4.8
7.2
Hz
+
-
OFF
35
60
110
220
Hz
10
14
18
OFF
45
1 6 0
70
8
6
360
KHz
Hi Q
KHz
-
1084 Mod ule
High Frequency: Smooth +/-16dB shelving wit selectable frequencies of 10kHz,
12kHz and 16kHz.
Low Frequency: Smooth +/-16dB shelving with selectable frequencies of 35Hz,
60Hz, 110Hz & 220Hz.
Mid Frequency: Smooth +/-12dB or +/-18dB peaking with switchable 'High Q', selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz,
3.2kHz, 4.8kHz & 7.2kHz.
High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz
& 360Hz.
Low Pass Filter: 18dB per octave slope, switchable between 6kHz, 8kHz, 10kHz,
14kHz, & 18kHz.
EQL Button: Switches the equaliser in or out of circuit.
Phase Button: Gives 180° Phase change at Balanced Output.
User Guide Is sue 3 Page 7
1073 & 1084 Chan nel Am pli fiers Spec i fi ca tions
Spec i fi ca tions
1073 and 1084 Mod ules
Microphone Input: Input Impedance 300W or 1200W, gain +80db to +20dB in 5dB steps.
Line Input: Input Impedance 10,000W bridging, gain +20dB to -10dB in 5dB steps.
Both inputs are transformer balanced and earth free.
Output: Maximum output is >+26dBu into 600W. Output impedance is 75W @1kHz.
Output is transfomer balanced and earth free.
Distortion: Not more than 0.07% from 50Hz to 10kHz at +20dBu output (80kHz bandwidth) into 600W.
Frequency Response: +/-0.5dB 20Hz to 20kHz, -3dB at 40kHz Eq Out.
Noise: Not more than -83dBu at all Line gain settings Eq In/Out
(22Hz to 22kHz bandwidth). EIN better than -125dBu @ 60dB gain.
User Guide Is sue 3 Page 8
dB
LINE
-20
10
0
+10
OFF
-2030
MIC
40
50
OFF
60
70
-80
+
-
0
+
-
0
OFF
0.36
0.7
1.6
3.2
KHz
Hz
4.8
7.2
+
-
0
OFF
35
60
110
220
Hz
OFF
50
80
160
300
EQL
PHASE
1073 & 1084 Chan nel Am pli fiers Re call Sheets
Re call Sheets
1073 - Vertical Mod ule
User Guide Is sue 3 Page 9
dB
LINE
-20
10
0
+10
OFF
-2030
MIC
40
50
OFF
60
70
-80
+
-
0
+
-
0
OFF
0.36
0.7
1.6
3.2
KHz
4.8
7.2
Hz
+
-
0
OFF
35
60
110
220
OFF
50
80
160
300
Hz
E
Q
L
PHASE
1073 & 1084 Chan nel Am pli fiers Re call Sheets
1073 - Hor i zon tal Mod ule
User Guide Is sue 3 Page 10
dB
LINE
-20
10
0
+10
OFF
-2030
MIC
40
50
OFF
60
70
-80
+
-
OFF
16
12
10
KHz
+
-
OFF
0.35
0.7
1.6
3.2
KHz
4.8
7.2
Hz
+
-
OFF
35
60
110
220
Hz
10
14
18
OFF
45
160
70
8
6
360
KHz
EQL
PHASE
Hi-Q
1073 & 1084 Chan nel Am pli fiers Re call Sheets
1084 - Ver ti cal Mod ule
User Guide Is sue 3 Page 11
1073 & 1084 Chan nel Am pli fiers Re call Sheets
dB
LINE
-20
10
0
+10
OFF
-2030
MIC
40
50
OFF
60
70
-80
+
-
OFF
16
12
10
KHz
E
Q
L
P
H
A
S
E
+
OFF
0.35
0.7
1.6
3.2
4.8
7.2
Hz
+
-
OFF
35
60
110
220
Hz
10
14
18
OFF
45
160
70
8
6
360
KHz
Hi
Q
KHz
-
1084 - Hor i zon tal Mod ule
User Guide Is sue 3 Page 12
