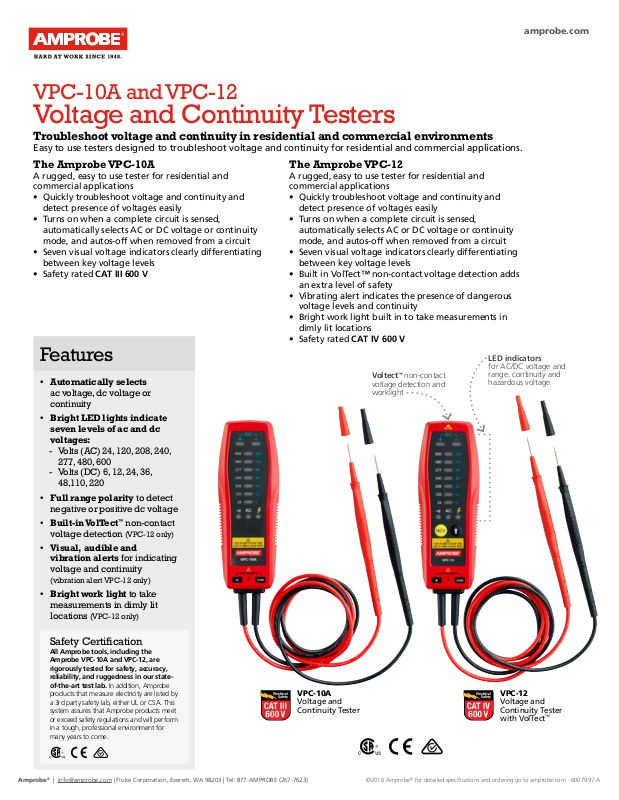

Amprobe VPC-10A Specifications
VPC-10A and VPC-12
Voltage and Continuity Testers
Troubleshoot voltage and continuity in residential and commercial environments
Easy to use testers designed to troubleshoot voltage and continuity for residential and commercial applications.
The Amprobe VPC-10A
A rugged, easy to use tester for residential and
commercial applications
• Quickly troubleshoot voltage and continuity and
detect presence of voltages easily
• Turns on when a complete circuit is sensed,
automatically selects AC or DC voltage or continuity
mode, and autos-off when removed from a circuit
• Seven visual voltage indicators clearly differentiating
between key voltage levels
• Safety rated CAT III 600 V
The Amprobe VPC-12
A rugged, easy to use tester for residential and
commercial applications
• Quickly troubleshoot voltage and continuity and
detect presence of voltages easily
• Turns on when a complete circuit is sensed,
automatically selects AC or DC voltage or continuity
mode, and autos-off when removed from a circuit
• Seven visual voltage indicators clearly differentiating
between key voltage levels
• Built in VolTect™ non-contact voltage detection adds
an extra level of safety
• Vibrating alert indicates the presence of dangerous
voltage levels and continuity
• Bright work light built in to take measurements in
dimly lit locations
• Safety rated CAT IV 600 V
amprobe.com
Features
• Automatically selects
ac voltage, dc voltage or
continuity
• Bright LED lights indicate
seven levels of ac and dc
voltages:
- Volts (AC) 24, 120, 208, 240,
277, 480, 600
- Volts (DC) 6, 12, 24, 36,
48,110, 220
• Full range polarity to detect
negative or positive dc voltage
™
• Built-in VolTect
voltage detection
• Visual, audible and
vibration alerts for indicating
voltage and continuity
(vibration alert VPC-12 only)
• Bright work light to take
measurements in dimly lit
locations
(VPC-12 only)
Safety Certication
All Amprobe tools, including the
Amprobe VPC-10A and VPC-12, are
rigorously tested for safety, accuracy,
reliability, and ruggedness in our stateof-the-art test lab. In addition, Amprobe
products that measure electricity are listed by
a 3rd party safety lab, either UL or CSA. This
system assures that Amprobe products meet
or exceed safety regulations and will perform
in a tough, professional environment for
many years to come.
non-contact
(VPC-12 only)
VPC-10A
Voltage and
Continuity Tester
Voltect™ non-contact
voltage detection and
worklight
LED indicators
for AC/DC voltage and
range, continuity and
hazardous voltage
VPC-12
Voltage and
Continuity Tester
with VolTect
™
©2016 Amprobe® For detailed specications and ordering go to amprobe.com 6007997 AAmprobe® | info@amprobe.com | Fluke Corporation, Everett, WA 98203 | Tel: 877-AMPROBE (267-7623)
Highlights
Applications
You can quickly measure ac and dc voltage in circuitry and its
components—including outlets, light xtures, batteries and
extension cords— as well as test the continuity of fuses, light bulbs
and electrical connections.
To increase accuracy and speed, the VPCs turn on when a complete
circuit is sensed, automatically select AC or DC voltage or continuity
mode, and auto-off when removed from a circuit.
With an operating battery life of 300 hours and operating
temperature ranging from 41 degrees F to 140 degrees F, these
tools are just as rugged and reliable as they are safe.
How safe is it?
As is expected from an Amprobe tool, they bring the highest
standard of safety to professional electricians, appliance technicians
and home owners working in a CAT IV 600 V environment.
Upgrade with the VPC-12
With this model, a vibrating alert indicates the presence of
continuity as well as dangerous voltage levels, in additional to the
visual and audible alerts. This is especially helpful when wearing
thick PPE gloves and working in a noisy environment. plications
Also, the VPC-12 includes VolTect™ Non-contact Voltage Detection,
an added level of safety when working with high voltage levels in
an industrial setting.
Finally, a built-in light makes working in dimly-lit areas possible
with the VPC-12.
What does it come with?
It comes complete and ready so you can use it right away, including
three 1.5 V AAA batteries and a printed user manual.
Specifications
Feature VPC-10A VPC-12
LED Voltage range
LED voltage indicators AC volts: 24 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V, DC volts: 6 V, 12 V, 24 V, 36 V, 48 V, 110 V, 220 V
Frequency range 50 to 60 Hz
Acoustic indication ≥ 24 VAC, ≥ 6 VDC
Built-in vibration alert – ≥ 24 VAC, ≥ 6 VDC
Tolerances LEDs -30 % to 0 % of reading
Voltage detection Automatic
Hazardous voltage indication ≥ 24 VAC; ≥ 48 VDC
Range detection Automatic
Polarity detection Full range
Continuity indication
Continuity range 0 to 45 kΩ
Continuity tolerances 0 % to +50 %
Continuity buzzer 3 kHz
™
VolTect
non-contact voltage –
Work light – •
Input impedance 1 MΩ
Operating time 30 seconds ON maximum and wait for ve minutes before taking another measurement
Operating altitude ≤ 6561 ft (2000 m)
Operating temperature 41 °F to 122 °F (5 °C to 50 °C)
Storage conditions -22 °F to 140 °F (-30 °C to 60 °C)
Humidity (Without Condensation) ≥
Pollution degree 2
Power supply Three 1.5 V battery AAA, LR03, UM4 or equivalent
Battery life 300 hours (alkaline) (typical)
Electrical safety
Overvoltage category
EMC
Certication
Dimensions (H x W x D) 5.90 x 2.13 x 1.34 in (150 x 54 x 34 mm)
Weight Approximately 0.45 lb (205 g) with batteries installed
LED and buzzer ( 0 to 45 kΩ ON; >85 kΩ OFF) LED, buzzer and vibration ( 0 to 45 kΩ ON; >85 kΩ OFF)
80% RH at 41 °F to 104 °F (5 °C to 40 °C); ≥ 50% RH at > 104 °F to 122 °F (> 40 °C to 50 °C)
CAN/CSA-C22.2 No. 61010-1-12, UL Std. No. 61010-1 (3rd Edition),
CAN/CSA-C22.2 No. 61010-031-07, UL 61010-031 (1st Edition - 2007),
CAN/CSA-C22.2 No. 61010-2-030-12, UL 61010-2-030(1st Edition -2012)
In CAT III environments, use the test probes with the probe caps on.
This decreases the exposed probe tip to reduce the possibility of an arc
ash from short circuits. When the probe cap is off, the probe tip is 18
mm and rated to CAT II 1000 V.
CAT III 600 V
24…600 VAC, 6…220 VDC
90 to 600 VAC,
In CAT III or CAT IV environments, use the test probes with the probe
cap on. This decreases the exposed probe tip to reduce the possibility
of arc ash from short circuits. When the probe cap is off, the probe
tip is 18 mm and rated to CAT II 1000 V.
Conforms to IEC 61326-1
©2016 Amprobe® For detailed specications and ordering go to amprobe.com 6007997 AAmprobe® | info@amprobe.com | Fluke Corporation, Everett, WA 98203 | Tel: 877-AMPROBE (267-7623)
Sensitivity: beeps and vibrates ≤ 10 mm (0.39 in)
distance from a wire carrying 100 VAC
CAT IV 600 V
