Amprobe TMD-55W Data Sheet

Data Sheet

TMD-55W

Multilogger Thermometer
with Wireless Download

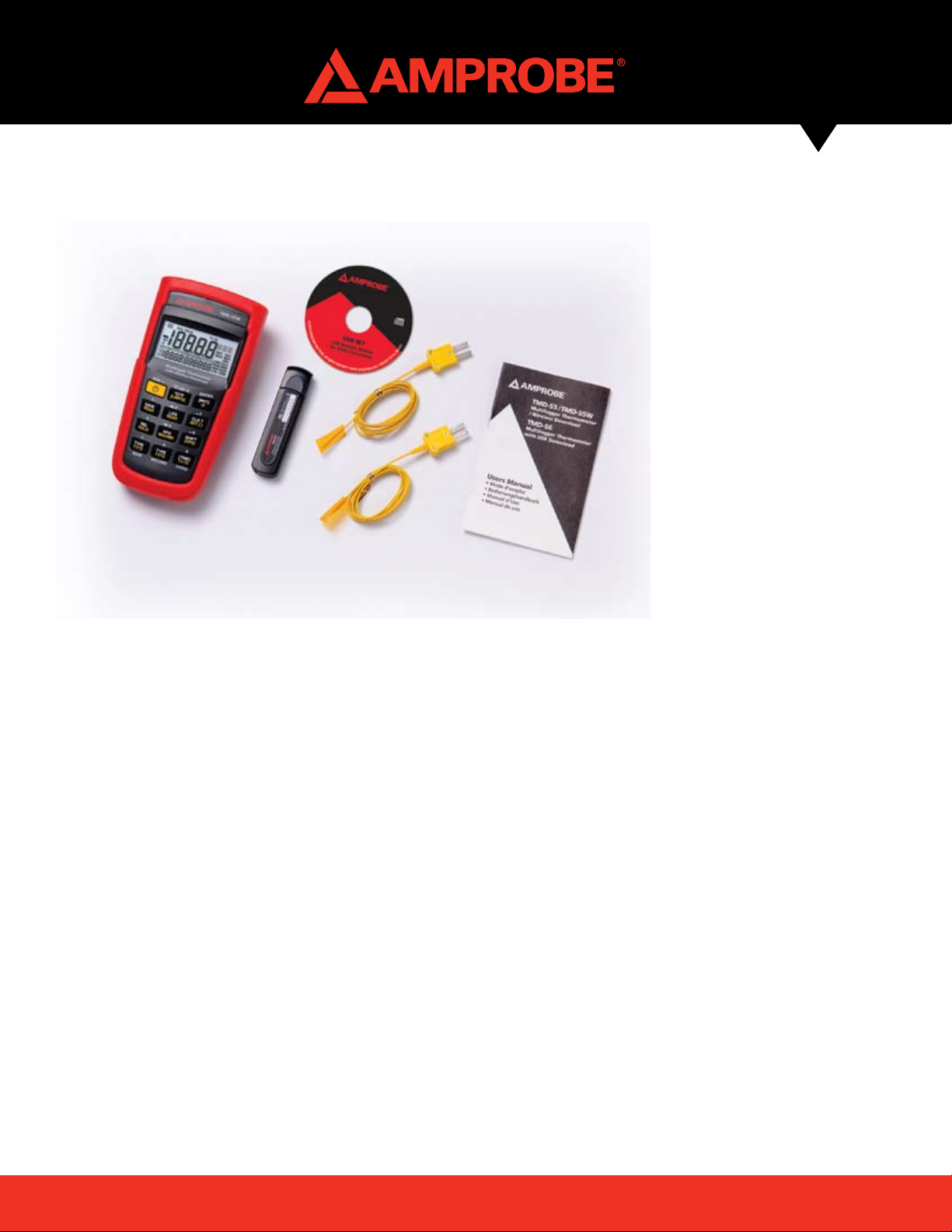

Amprobe TMD-55W thermometer with wireless download
capability is a professional choice for HVAC/R technicians,
electricians, research, industrial process, and quality control.
This model with dual inputs allows easy super-heat and sub-cool
temperature measurement as well as
cut-out and in temperature measurements.

Choose between models with 0.1% and 0.05% basic accuracy,
single and triple displays or memory. Wireless communication
is invaluable for applications requiring remote access to the
instruments data.

Backlit triple-display

No hassle
warranty

No waiting.

No shipping
charges.

Our commitment to
high-quality products
and customer service
is demonstrated by
our industry exclusive
“No Hassle” warranty.
In the unlikely event
that an Amprobe Test
Tool requires warranty
service, any of our
local dealers are
authorized to replace
it, on the spot.

(note: $500 MSLP limit)

Built in memory

16 sets, Maximum 1024 data points



Data-logging:

128 samples with real-time data per channel



Easy Data Recall with up and down key: T1, T2, T1-T2, Time

and Memory Location

Thermocouple Offset Adjustment

REC, MAX, MIN, MAX-MIN, Average, Relative Zero and HOLD

functions

Resolution 0.1°C/1°C, 0.1°F/1°F

Warning beeper with Hi/Lo setting

User selectable recording interval

Real time clock with calendar

Amprobe® Test Tools

TMD-55W Multilogger Thermometer with Wireless Download

General Specifications

Display 4½ digit liquid crystal display (LCD) with a maximum reading of 19999.
Polarity Automatic, positive implied, negative polarity indication.
Low Battery Indication The “
Auto Power Off 30 minutes
Measurement Rate 2.5 times / second.
Operating Environment 0°C to 50°C (32°F to 122°F) <80% R.H.
Storage Environment -20°C to 60°C (-4°F to 140°F) <70% R.H. with battery removed from meter.
Accuracy Stated accuracy at 23°C ±5°C, <75% R.H.
Battery 1.5V x 4pcs AAA size
Battery Life 120 hours
Dimensions L241.3 X W157.98 XH76.2mm (9.5 X 6.22 X3 in)
Weight Approx. 304g (0.67lb) including batteries and packaging box.

WIRELESS Features
Frequency Range 910~920MHz.

Low current consumption less than 1mA.
The transmitting distance can reach 25M without magnetic interference.

” is displayed when the battery voltage drops below the operating level.
