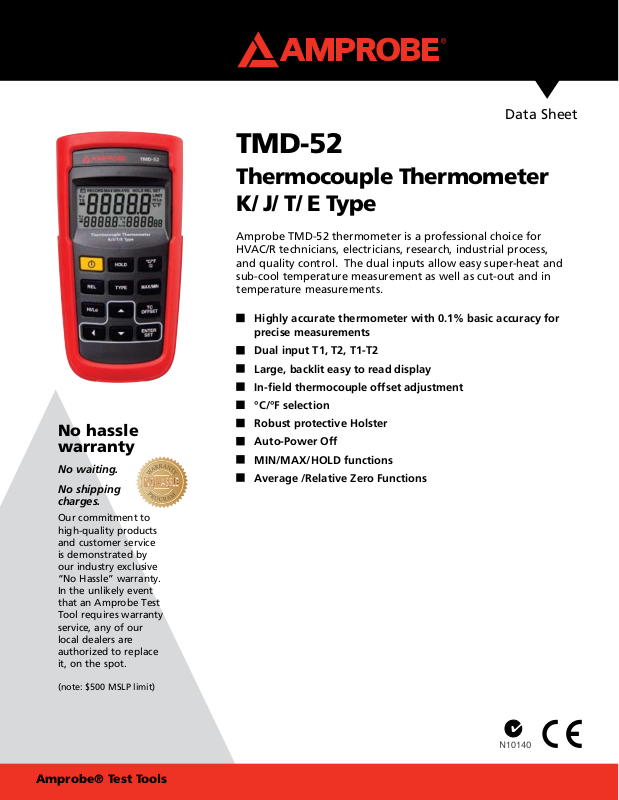

Amprobe TMD-52 Data Sheet

Data Sheet

TMD-52

Thermocouple Thermometer
K/ J/ T/ E Type

Amprobe TMD-52 thermometer is a professional choice for
HVAC/R technicians, electricians, research, industrial process,
and quality control. The dual inputs allow easy super-heat and
sub-cool temperature measurement as well as cut-out and in
temperature measurements.

Highly accurate thermometer with 0.1% basic accuracy for

precise measurements

Dual input T1, T2, T1-T2

Large, backlit easy to read display

In-field thermocouple offset adjustment

°C/°F selection

No hassle
warranty

No waiting.

No shipping
charges.

Our commitment to
high-quality products
and customer service
is demonstrated by
our industry exclusive
“No Hassle” warranty.
In the unlikely event
that an Amprobe Test
Tool requires warranty
service, any of our
local dealers are
authorized to replace
it, on the spot.

(note: $500 MSLP limit)

Robust protective Holster

Auto-Power Off

MIN/MAX/HOLD functions

Average /Relative Zero Functions

Amprobe® Test Tools

TMD-52 Thermocouple Thermometer K/ J/ T/ E Type

General Specifications

Display 5 digit liquid crystal display (LCD) with a maximum reading of 25010.
Polarity Automatic, positive implied, negative polarity indication.
Low Battery Indication The “
Auto Power Off 20 minutes
Measurement Rate 1 time/second.
Operating Environment 0°C to 50°C (32°F to 122°F) <80% R.H.
Storage Environment -20°C to 60°C (-4°F to 140°F) <70% R.H. with battery removed from meter
Accuracy Stated accuracy at 23°C ±5°C, <75% R.H.
Battery 1.5V x 4pcs A AA size
Battery Life 200 hours typical
Dimensions L241.3 X W157.98 XH76.2mm (9.5 X 6.22 X3 in)
Weight Approx. 286g (0.63 lb) including batteries and packaging box.

” is displayed when the battery voltage drops below the operating level.

Electrical Specification

Feature Range
Thermocouple Type K/J/T/E
Temperature K-TYPE (0.1°, 1° for above 2000°F) -200°C to 1372°C, -328°F to 2501°F

J-TYPE (0.1°, 1° for above 2000°F) -210°C to 1200°C, -346°F to 2192°F
T-TYPE(0.1°) -200°C to 400°C, -328°F to 752°F
E-TYPE(0.1°)-210°C to 1000°C, -346°F to 1832°F

Accuracy ±(0.05% rdg + 0.3°C) on -50°C to 1372°C
±(0.05% rdg + 0.7°C) on -50°C to -210°C
±(0.05% rdg + 0.6°F) on -58°F to 2501°F
±(0.05% rdg + 1.4°F) on -58°F to -346°F

Number Of Parameters 3
On The Display

Included Accessories Users manual, Battery(4), K type thermocouple (2)

Data Sheet

Amprobe® Test Tools

©2010 Amprobe Test Tools . All righ ts reserved.

6/2010 TM D-52 _DS Rev A
