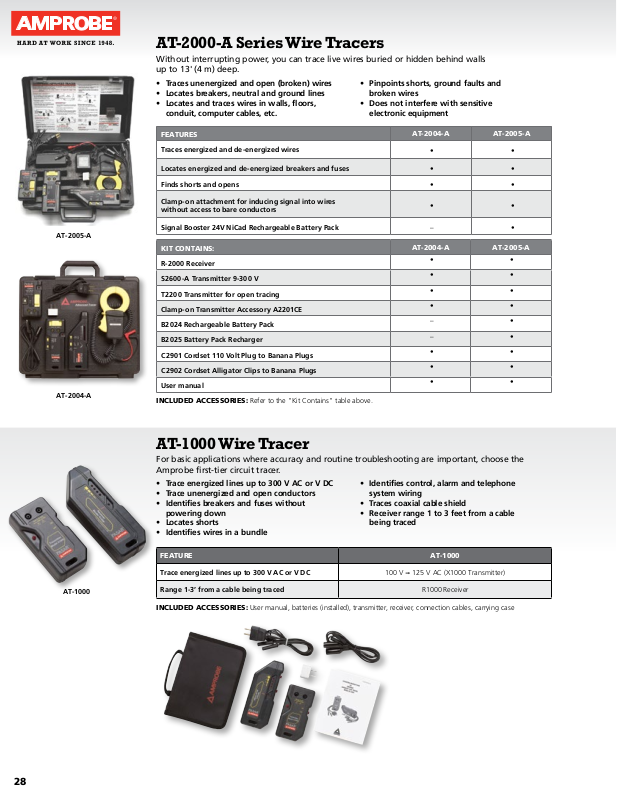

Amprobe AT-1000, AT-2004-A, AT-2005-A Catalog Page

AT-2000-A Series Wire Tracers

Without interrupting power, you can trace live wires buried or hidden behind walls
up to 13' (4 m) deep.

• Traces unenergized and open (broken) wires

• Locates breakers, neutral and ground lines

• Locates and traces wires in walls, floors,
conduit, computer cables, etc.

• Pinpoints shorts, ground faults and
broken wires

• Does not interfere with sensitive
electronic equipment

AT-2005-A

AT-2004-A

FEATURES

Traces energized and de-energized wires

Locates energized and de-energized breakers and fuses • •

Finds shorts and opens • •

Clamp-on at tachment for inducing signal into wires
without access to bare conductors

Signal Booster 24V NiCad Rechargeable Battery Pack – •

KIT CONTAINS:

R-2000 Receiver

S2600-A Transmitter 9-300 V

T220 0 Transmitter for open tracing

Clamp-on Transmitter Accessory A2201CE

B2024 Rechargeable Battery Pack

B2025 Battery Pack Recharger

C2901 Cordset 110 Volt Plug to Banana Plugs

C2902 Cordset Alligator Clips to Banana Plugs

User manual

INCLUDED ACCESSORIES: Refer to the "Kit Contains" table above.

AT-2004-A AT-2005-A

• •

• •

AT-2004-A AT-2005-A

• •

• •

• •

• •

– •

– •

• •

• •

• •

AT-1000

AT-1000 Wire Tracer

For basic applications where accuracy and routine troubleshooting are important, choose the
Amprobe first-tier circuit tracer.

• Trace energized lines up to 300 V AC or V DC

• Trace unenergized and open conductors

• Identifies breakers and fuses without
powering down

• Locates shorts

• Identifies wires in a bundle

FEATURE AT-1000

Trace energized lines up to 300 V AC or V DC 100 V

Range 1-3’ from a cable being traced R1000 Receiver

INCLUDED ACCESSORIES: User manual, batteries (installed), transmitter, receiver, connection cables, carrying case

• Identifies control, alarm and telephone
system wiring

• Traces coaxial cable shield

• Receiver range 1 to 3 feet from a cable
being traced

^ 125 V AC (X1000 Transmitter)

28
