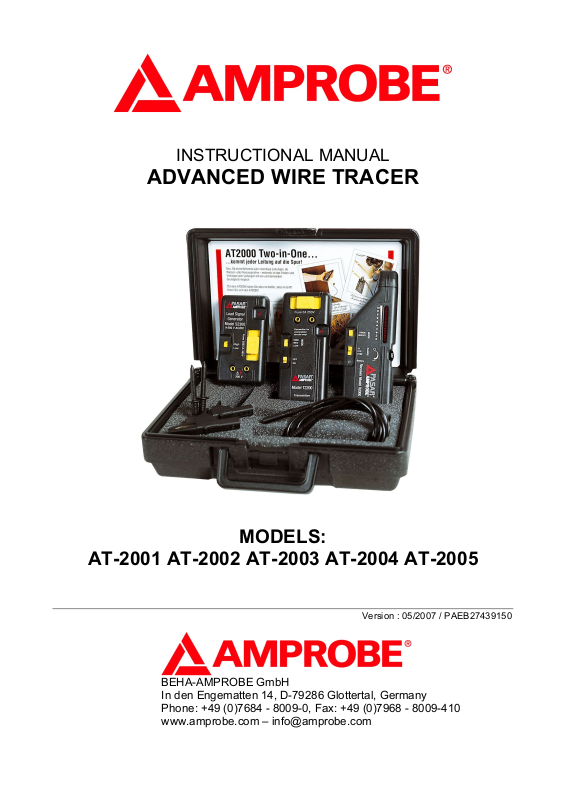

INSTRUCTIONAL MANUAL

ADVANCED WIRE TRACER

MODELS:

AT-2001 AT-2002 AT-2003 AT-2004 AT-2005

Version : 05/2007 / PAEB27439150

BEHA-AMPROBE GmbH
In den Engematten 14, D-79286 Glottertal, Germany
Phone: [phone] - 8009-0, Fax: [phone]
www.amprobe.com – [e-mail]

Amprobe Europe GmbH AT-2000

- 2 -

CONTENTS

INTRODUCTION .......................................................................................3

AT-2000 SERIES PRODUCT DESCRIPTION..........................................4

COMPONENT DESCRIPTION..................................................................6

R2000 Receiver..................................................................................6

Changing Batteries .............................................................................6

Using the R2000 Receiver .................................................................7

S2300 and S2600 Load Signal Generators (LSG's)..........................8

Using the S2300 and S2600 Load Signal Generators (LSG's) .......10

T2200 Transmitter ............................................................................11

Using the T2200 Transmitter............................................................11

A2201 Clamp-On Transmitter Accessory ........................................12

Using the A2201 Clamp-on transmitter Accessory ..........................13

B2024 Battery Pack..........................................................................13

B2025 220V Converter/Recharger...................................................13

EU-200 sensing lines with test prods and alligator clips..................14

APPLICATION NOTES ...........................................................................14

Finding Opens ..................................................................................14

Finding Ground Faults ......................................................................15

Tracing Wires in Conduit..................................................................16

Locating Circuit Breakers or Fuses ..................................................17

Tracing Energized Wires..................................................................17

Tracing Unenergized Lines and Finding Shorts...............................18

Locating Individual Wires in a Bundle ..............................................19

Locating Outlets from the Breaker Panel .........................................20

Locating Buried Conduit or Metal Pipe ............................................21

SPECIFICATIONS...................................................................................22

Amprobe Europe GmbH AT-2000

- 3 -

INTRODUCTION

AMPROBE PASAR is dedicated to designing, manufacturing and
marketing high quality, reliable Instruments for the skilled professional.
The AMPROBE PASAR Current Tracer has a history of providing safe,
reliable operation in tracing energized wires, locating circuit breakers and
locating wires shorted to the ground. The AMPROBE PASAR Open
Tracer has the capability of tracing unenergized wires, locating open
breakers and locating open wires.

PRECAUTIONS

FOR PERSONAL AND INSTRUMENT PROTECTION

IMPORTANT:

1. Before using any electrical instrument, it should be checked to make
certain it is operating properly.

2. In many instances, you will be working with dangerous levels of
voltages and/or current, therefore, it is important that you avoid
direct contact with any uninsulated, current carrying surfaces.
Appropriate insulated gloves, safety glasses and protective clothing
should be worn.

3. Before attaching anything to the conductor, make sure the voltage
present is not beyond the range of the instrument.

4. When not in use, keep the Instrument in its carrying case.

5. When the R2000 or the T2200 will not be used for a period of time,
remove the battery.

Amprobe Europe GmbH AT-2000

- 4 -

The AT-2000 Advanced Tracing System combines both Current Tracing
and Open Tracing into one versatile tool providing the ability to solve
virtually all your tracing problems.

Having confidence in an instrument is an important part of using the
instrument. All applications are different and special. An understanding of
the system's operation could be the difference between several minutes
or several hours on the job.

Invest time learning the operation of the Advanced Tracer to build
confidence in the unit. Please read this manual carefully. Take the time
to learn how the instrument operates. Test it in a variety of situations.
You will soon have the confidence to use it on a daily basis to solve
problems which were previously unsolvable.

AT-2000 SERIES PRODUCT DESCRIPTION

The AT-2000 System consists of different, yet fully compatible com­ponents that are combined into four interchangeable systems:

AT-2001 Commercial Circuit Tracer- includes R2000 Receiver and
S2300 Load Signal Generator (9-300 volts AC or DC).

AT-2002 Industrial Circuit Tracer- includes R2000 Receiver and S2600
Load Signal Generator (9-600 volts AC or DC).

AT-2003 Commercial Open Tracer- includes R2000 and T2200
Transmitter.

AT-2004 Industrial Multipurpose Tracer- includes R2000, S2300, and
T2200 Transmitter.

AT-2005 Industrial Multipurpose Tracer- includes R2000, S2600 and
T2200 Transmitter.

All above tracer are delivered in the carrying case CA-200. Available is
also the lange case CC-2000 for the Clamp-On Accessory A-2201, the
B2024 Battery Booster and B2025 Recharger

Accessory:

• B2024 Battery Booster

• B2025 Recharger

• A-2201 Inductive clamp

• ATGC-1 Ground Coil

• CC-2000 Carrying Case large

Amprobe Europe GmbH AT-2000

- 5 -

LIMITED WARRANTY

Congratulations! Your new instrument has been crafted according
to quality standards and contains quality components and
workmanship. It has been inspected for proper operation of all of
its functions and tested by qualified factory technicians according
to the long-established standards of our company.

Your instrument has a limited warranty against defective materials
and/or workmanship for one year from the date of purchase
provided that, in the opinion of the factory, the instrument has not
been tampered with or taken apart.

Should your instrument fail due to defective materials, and/or
workmanship during this one year period, a no charge repair or
replacement will be made to the original purchaser. Please have
your dated bill of sale, which must identify the instrument model
number and serial number and call the number listed below:

Amprobe Repair Department

Phone: [phone] – 59906-0

Fax: [phone]

Amprobe Europe GmbH AT-2000

- 6 -

COMPONENT DESCRIPTION

R2000 Receiver

Has two built in detector that are tuned to pick up the 32.768khz signals
generated by any of the other devices in the AT-2000 family: S2300,
S2600, T2200, A2201. The R2000 is designed to display the signal's
strength to enable quick locating of the conductor carrying the signal.

Fig.1

Changing Batteries

The battery compartment on the back of
the R2000 and the T2200 is a new
design that allows you to drop the
battery in and out quickly and easily.
Two holes on the bottom of the
compartment accept the round terminals
of a 9 volt battery. The compartment is
designed to accept the battery 180° and
try again.

Mode Adjustment
Switch

'OPEN' mode is used
for open conductors.
'SHORT' mode is used
on conductors that
make up a complete
circuit.

Range Switch
Coarse sensitivity
adjustment

Battery light
Will illuminate when unit
is turned 'on' provided
the battery is in place
and charged

Lanyard Attachment Hole
attach a wrist strap to
prevent accidental dropping

Electromagnetic and
Electrostatic detectors
located In tip

Sensitivity
Adjustment/ON-OFF
thumbwheel

On -Off switch combined
with fine adjustment of
sensitivity

Battery Compartment
Drop-ln-And-Close design
automatically connects
battery with the contacts.
Battery must be oriented
properly to allow it to close

Signal Strength Indicator
10 LED's positioned behind
a red filter lens to allow
readability in direct sunlight

Fig.2

Amprobe Europe GmbH AT-2000

- 7 -

Using the R2000 Receiver

1. Turn the R2000 'ON' by rotating the thumbwheel and leave it around
position '5'.

2. Move the range switch to x1 (this is the least sensitive setting).

3. Place the mode switch into the appropriate position and aim the
R2000 properly (see illustration below).

4. If there is no indication on the display, increase the sensitivity by
moving the range switch to x10 or x100. The thumbwheel is used as a
fine adjustment to maintain a midrange indication (3-9 LED's).

IMPORTANT: Always try to keep the sensitivity low enough to a
maximum of 9 LED'S on the indicator. Otherwise, you could waste a
lot of time determining the proper signal source - a weak signal may
register 10 LED'S in the x 100 range, but so will a strong signal
(typically the one you want to follow).

5. When tracing, move the R2000 back and forth over the path of the
wire and adjust the sensitivity so that you can see the rise and fall of
the signal level. The strongest signal confirms the path of the wire.

NOTE: The R2000 will experience electromagnetic saturation when held
up against wires carrying more than 500Amps. If this occurs, the signal
strength indicator will go black. To remedy this, simply move the R2000 a
few inches away from the wire.

Fig. 3

In the 'SHORT' mode,
orient Receiver so that
is perpendicular to the
wire.

Example:

Horizontal wire-

thumbwheel should face
up;
Vertical wire- thumbweel
should face either left or
right.

Amprobe Europe GmbH AT-2000

- 8 -

S2300 and S2600 Load Signal Generators (LSG's)

When connected to an energized circuit, the LSG's will rapidly turn them­selves on and off. This causes a slight, periodic current fluctuation that
causes the power line to emit its own, trace-able signal, this signal can
be detected all the way back to the main generator. However, the signal
will not interfere with any sensitive electronic equipment and does not
require power interruption.

S2300- For use on 9 to 300 volts AC or DC circuits only.
S2600- For use on 9 to 600 volts AC or DC circuits only.

Fig.4

Both units are intrinsically safe and have a special 'LOW’ - power setting
used when tracing GFCI- protected circuits.
As their name implies, when connected to a circuit as a load, the LSG's
cause the power line to generate a signal. The signal will be present any­where between the LSG and the power source
(line side or 'upstream') - no signal will be present on wiring on the other
side of the LSG (load side or 'downstream'). For example, an LSG
connected to a circuit breaker will produce no signal on that circuit. It will,
however, cause a signal to be generated between that panel and the

transformer.... and beyond.

NOTE: The signal strength after transformer will decrease according to its stepdown ratio.

Power Selection Switch
Use 'Low' power when
unit is connected to a
GFCI-Protected circuit.
Use 'HIGH' power for all
other applications.

Connections for
Banana Plugs

Are not polarized so it
doesn't matter which
lead gets connected to
power and which to
ground.

LED Indicator
light will blink if properly
connected to an energized
circuit.

Intrinsically safe Fuse
Holder

Pulling out the fuse holder
automatically disconnects
the fuse from the circuit
while shielding the user
from live terminals.

No Battery!
Units receive power from
the circuit they are
connected to.
