Page 1
GSD600
Gas Leak Detector
Users Manual
For detailed specifications and ordering info go to www.TestEquipmentDepot.com
Page 2
English
GSD600
Gas Leak Detector
Users Manual
GSD600_Rev001
© 2008 Amprobe Test Tools.
All rights reserved.
Page 3
2
Limited Warranty and Limitation of Liability
Your Amprobe produc t will be free from defects in material and workmanship for 1 year from the
date of purchase. This warranty does not cover fuses, disposable batteries or damage from accident,
neglec t, misuse, alteration, contamination, or abnormal conditions of operation or handling.
Resellers are not authorized to exte nd any other warrant y on Amprobe’s behalf. To obtain service
during the warrant y period, return the product with proof of purchase to an authorized Amprobe
Test Tools Ser vice Center or to an A mprobe dealer or distributor. See Repair Section for details.
THIS WARRANT Y IS YOUR ONLY REMEDY. ALL OTHER WARRANTIES - WHE THER EX PRESS, IMPLIED
OR STAUTORY - INCLUDING IMPLIED WARRA NTIES OF FITNESS FOR A PARTICULAR PURPOSE OR
MERCHANTABILITY, ARE HEREBY DISCL AIMED. MANUFACTURER SHALL NOT BE LIABLE FOR ANY
SPECIAL, INDIRECT, INC IDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY
CAUSE OR T
HEORY. Si
nce some states or countries do not allow the exclu sion or limitation of an
implied warranty or of incidental or consequential damages, this limitation of liability may not apply
to you.
Repair
All test tools returned for warranty or non-warranty repair or for calibration should be accompanied
by the following: your name, company’s name, address, telephone number, and proof of purchase.
Additionally, please includ e a brief de scription of the problem or the service reque sted and include
the test leads with the meter. Non-warranty repair or replacement charges should be remitted in the
form of a check, a money order, cre dit card with expiration date, or a purchase order made payable
to Amprobe® Test Tools .
In-Warranty Repairs and Replacement – All Countries
Please read the warranty st atement and check your battery before requesting repair. During the
warranty period any defective test tool can be returned to your Amprobe® Test Tools distributor for
an exchange for the same or like product.
Page 4
3

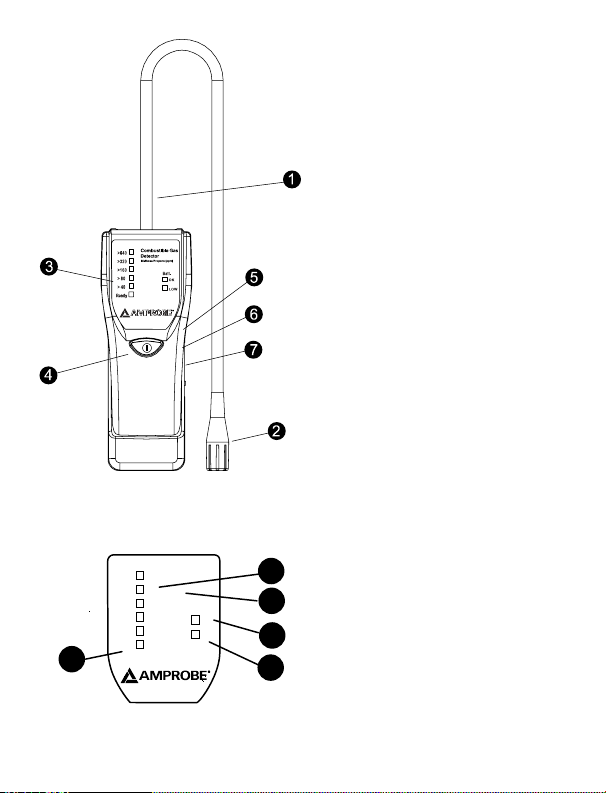

➊
Flexible probe
➋
Sensor cap
➌
Indicator LED
➍
ON/OFF button
➎
Adaptor jack (power adaptor
not supplied with GSD600)
➏
Earphone jack (earphone not
supplied with GSD600)
➐
Mute slide switch.
Make sure to take in consideration any left
over methane number when taking a new
reading.
➊
Methane 5 level LED
➋
Propane 5 level LED
➌
Sensor ready LED
➍
Power on & Bat. OK LED
➎
Bat. Low LED
Indicator
Combustible Gas
Detector
Methane/Propane (ppm)
1
3
5
4
2
>320
>640
>160
>80
>40
Ready
Batt.
OK
LOW
Page 5
4
GSD600
Gas Leak Detector
CONTENTS
Features ...............................................................................................................................................5
Standard Accessories ...........................................................................................................................5
Operation ............................................................................................................................................5
Power ON/OFF pushbutton ...........................................................................................................5
Warm-up Status .............................................................................................................................5
Mute Function ................................................................................................................................5
Leakage Checking ..........................................................................................................................6
Battery Replacement ...........................................................................................................................6
Troubleshooting ..................................................................................................................................6
Maintenance ........................................................................................................................................6
Situations to be avoided ...............................................................................................................6
Situations to be avoided whenever possible ...............................................................................6
Specifications .......................................................................................................................................7
Page 6
5
GWD600 FEATURES
Detects methane and propane gas•
Quick to pinpoint gas leaks•
Automatic calibration when power is on•
Auto power off to save battery life•
60 seconds warm up time•
Response time less than 10 seconds•
5-level LED leak alarm•
440 mm long flexible probe•
Built in earphone jack•
Mute function•
STANDARD ACCESSORIES
1x Instrument GSD600
4x AA Batteries
1x Users Manual
OPERATION
Power ON/OFF pushbutton
Press ON/OFF key for more than two seconds to turn on the meter. While the meter is on, •
the BAT. OK LED will stay on.
To ensure the accuracy, users must perform the warm-up period in clean air.•
The meter automatically turns itself off if no pushbutton is pressed for ten minutes. •
Press ON/OFF key again to turn the meter off.•
Warm-up Status
When the meter is ON and READY LED is off, the sensor enters into a warm-up process. The •
warm-up time is less than 60 seconds.
When Ready LED is ON, the meter is ready to be used.•
During that period of warm-up, a special compensation circuit automatically limits the effect •
of the environmental changes.
Any time you turn the unit off and turn it back on, it will go through the warm-up process
again. Wait for 60 seconds.
Mute Function
The frequency of the beep will increase when the detected gas concentration becomes higher.
While using the meter with the earphone, the meter will automatically be muted, allowing the
user to hear the beeper through the earphone. The earphone is not supplied with the GSD600.
A standard earphone will work with this unit.
Page 7
6
If the earphone is not in use, the user can mute the beeper by switching the mute button to the
ON position. The user then has the LED’s as the indicator and no sound.
Leakage Checking
To check for pipe leakage, proceed as follows:
Approach the pipe slowly with the sensor pointing to the pipe. Repeat the procedure from the
other side of the pipe. When the sensor is near to a leak, the LED will light and the frequency
of the beep will increase.
It takes at least 2-min for the sensor to recover after leak detection.
BATTERY REPLACEMENT
When the low battery LED turns ON, it is recommended to replace the batteries with new ones
to ensure the accuracy of the meter.
Open the battery comportment and replace the batteries with 4 new AA batteries.
TROUBLESHOOTING
Meter does not turn on
Make sure you press the ON/OFF key for about two seconds.1.
Make sure the batteries are O
K2.
Replace the batteries and try again3.
Ready LED does not turn on after 60 seconds warm up
Check the sensor contact.
If LED is still off, please return the meter for replacement or repair.1.
MAIN
TENANCE
Situations to be avoided
If silicone vapor is absorbed onto sensor’s surface, the sensor will become coated. So, avoid 1.
exposure of the meter to silicone adhesive, hair grooming materials, and silicone rubber.
This situation reduces the meter’s effectiveness.
High-density exposure to corrosive materials such as H2S, Sox, CI2, and HCL etc may cause 2.
corrosion or breakage of the lead wires or heater material.
Second drift may occur when the sensor is contaminated by alkaline metals or especially salt 3.
water spray
Sensor drift may occur if soaked or splashed with water.4.
Freezing water on the sensor surface may damage it or alter its characteristics.5.
Do not operate the meter under low oxygen atmosphere. The required operating oxygen is 6.
around 21% under ambient oxygen environment.
Situations to be avoided whenever possible
Light condensation under indoor usage should not be a problem for the sensor.
However, 1.
if water condenses on the sensor’s surface for a time period, the sensor characteristics may
drift.
Page 8
7
Sensor performance may be also affected if exposed to a high density gas for a long time 2.
even when the meter is off.
W
hen the meter is off for a long period of time, the sensor may show a drift in resistance 3.
according to the storage environment. The meter should be stored in sealed bag with clean
air.
Note:
W
hen the unit is not powered on for a long time, the warm-up time becomes longer for
stabilization.
Regardless of the powering state of the meter, if the meter is exposed to extreme condition 4.
such as high humidity, extreme temperature, or high contamination levels for a long time,
the performance of the meter could be affected.
SPECIFICATIONS
Sensor: Semiconductor
Response Time: < 10 seconds
Warm up time: < 60 seconds
Operation Temp. Range: -5°C ~ 45°C / 23°F ~ 113°F
Auto Power Off: 10 minutes after last key pressure.
Power supply : (4) AA batteries; 9V power adaptor (plug specifications: Outer diameter:3.5mm;
Inner diameter: 1.35mm; Center positive, 500mA maximum).
Battery life: 14 hours (Continuous working)
Minimum BAT. voltage: 4.8V
Probe length: 447 mm (17.6 inches)
Size: 175 x 70 x 38 mm (HxWxT)
Indicator: Intermittent beep (Acoustic) / LED (Visual)
Range GSD600 Gas Leak Detector
Methane
Propane
40 to 640 ppm
35 to 580 ppm
Sensitivity 35ppm (Propane)
Advantage Fast response & High Methane sensitivity
