AMP-200 Series TRMS Clamp Meters

The Modern Evolution of the Professional Clamp Meter

Amprobe’s AMP-210 and AMP-220 600 A TRMS Clamp Meters offer a complete range of measuring functions for today’s modern electrical

environments. Both models feature True-RMS sensing, low pass lters

and fast response processors for quick, error-free measurements. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires.

AMP-200 Series Features

• True-RMS

• Low Pass Filter

• Amp-Tip Functions

• Non-Contact Voltage Detection (NCV)

• Audible Continuity and Diode Test

• Data Hold, Relative Zero

• Large LCD Backlit Display

• Safety Rated:

CAT III 600 V

AMP-210

AC Clamp Meter

AMP-220

AC/DC Clamp Meter

Page 2

AMP-200 Series Product Details

True-RMS for accurate

voltage measurements in noisy environments.

Low pass lter

for current and voltage measurements on variable frequency drives.

Amp-Tip function

for precise low current measurement of small diameter wires down to 0.1 Amp to help with electrical system troubleshooting.

Non-contact voltage detection (NCV)

Audible continuity and diode test

Data hold, relative zero, MAX/MIN/AVG mode

Large LCD backlit display

Safety rated

CAT III 600 V

AMP-200 Series Applications

Measurements:

Voltage

Up to 600 V AC/DC

AC current

Up to 600 A

DC Current

Up to 600 A

(AMP-220 only)

Frequency

5.00 to 999.9 Hz

Resistance

Up to 60.00 k

Capacitance

Up to 2500 µF

AMP-210 AC Clamp Meter AMP-220 AC/DC Clamp Meter

• Accurate measurement of current, voltage and frequency on all electrical systems including

distorted, non-sinusoidal signals (True-RMS function)

and variable frequency drives (low-pass lter).

• Capacitance measurement for start and run

motor capacitors.

• Resistance and continuity functions to verify quality of electrical connections and to check if

motor and transformer coils are working properly.

• Low pass lter allows measurement of current and voltage on variable frequency drives (motors

with speed controlled by frequency). Without this

feature, the meter would provide erroneous readings

when measuring voltage and current.

Page 3

AMP-200 and AMP-300

Detailed Specifications

Model AMP-210 AMP-220 AMP-310 AMP-320 AMP-330

Safety Rating

Jaw Opening

AC Voltage (True-RMS)

DC Voltage

AC+DC Voltage

AC Current (True-RMS)

DC Current

AC+DC Current

Precise Low Current AC

Precise Low Current DC

Precise Low Current AC+DC

Frequency

Resistance

Capacitance

Continuity Beeper

Non-Contact Voltage

True-RMS Low Pass Filter Autoranging Relative Zero

MAX/MIN/AVG

Diode Test

Data Hold

Backlight

Auto Power Off

300 Series:

DC Microamps

Temperature*

(Type K thermocouple)

*Error does not include Type-K thermocouple errors

3-Phase and Motor Rotation Indication

Inrush Current

Peak Hold (Crest)

Work Light

AC Clamp Meter

Electrical

CAT III 600 V CAT III 600 V CAT III 600 V CAT III 600 V CAT IV 600 V, CAT III 1000 V

1.18 in (30 mm) 1.37 in (35 mm) 1.18 in (30 mm) 1.37 in (35 mm) 2.0 in (51 mm)

Range: 0 to 600.0 V

Accuracy: ±1.0% + 5LSD (50 to 60 Hz)

Range: 0 to 600.0 V

Accuracy: ±1.0% + 5LSD

–

Range: 0 to 600.0 A

Accuracy: ±1.8% + 5LSD (50 to 100 Hz)

±2.0% + 5LSD (100 to 400 Hz)

–

Range: 0 to 60.00 A

Accuracy: ±1.5% + 5LSD (50 to 60 Hz)

–

Range: 5.00 to 999.9 Hz

Accuracy: ±1.0% + 5LSD (600 V range)

Range: 50.0 to 400.0 Hz

Accuracy: ±1.0% + 5LSD (600 A range)

Range: 0.0 to 60.00 kΩ

Accuracy: ±1.0% + 5LSD

Range: 0.0 to 2500 µF

Accuracy: ±2.0% + 4LSD

10V to 1000V AC, 50/60Hz 10V to 1000V AC, 50/60Hz

• • • • •

– –

AC/DC Clamp Meter

Electrical

Range: 0 to 600.0 V

Accuracy: 1.2% ± 7LSD (DC,

50 to 60 Hz)

Range: 0 to 600.0 A

Accuracy: ±2.0% + 5LSD

Range: 0 to 600.0 A

Accuracy: ±2.2% + 7LSD

(DC, 50 to 100 Hz)

±2.7% + 7LSD (100 to 400 Hz)

Range: 0 to 60.00 A

Accuracy: ±2.0% + 5LSD

Range: 0 to 60.00 A

Accuracy: ±2.0% + 5LSD

(DC, 50 to 60 Hz)

ON ≤ 10 Ω

OFF > 250 Ω

AC Clamp Meter

HVAC

AC/DC Clamp Meter

Electrical Motor

Maintenance

Range: 0 to 600.0 V

Accuracy: ±1.0% + 5LSD (50 to 60 Hz)

Range: 0 to 600.0 V

Accuracy: ±1.0% + 5LSD

Range: 0 to 600.0 V

–

Accuracy: ±1.8% + 5LSD (50 to 100 Hz)

±2.0% + 5LSD (100 to 400 Hz)

–

Accuracy: ±1.5% + 5LSD (50 to 60 Hz)

–

Range: 5.00 to 999.9 Hz

Accuracy: ±1.0% + 5LSD (600 V range)

Range: 50.0 to 400.0 Hz

Accuracy: ±1.0% + 5LSD (600 A range)

Accuracy: 1.2% ± 7LSD (DC, 50

to 60 Hz)

Range: 0 to 600.0 A

Accuracy: ±2.0% + 5LSD

Range: 0 to 600.0 A

Accuracy: ±2.2% + 7LSD

(DC, 50 to 100 Hz)

±2.7% + 7LSD (100 to 400 Hz)

Range: 0 to 60.00 A

Accuracy: ±2.0% + 5LSD

Range: 0 to 60.00 A

Accuracy: ±2.0% + 5LSD

(DC, 50 to 60 Hz)

Range: 0.0 to 60.00 kΩ

Accuracy: ±1.0% + 5LSD

Range: 0.0 to 2500 µF

Accuracy: ±2.0% + 4LSD

ON ≤ 10 Ω

OFF > 250 Ω

Range: 0.0 to 2000 µA

Accuracy: ±1.0% + 5LSD

Accuracy: -40.0 to 14.0°F (±1.0% +3.0°F), >14.0 to 99.9°F (±1.0% +1.5°F)

100 to 752°F (±1.0% +2°F), -40.0 to -10.0°C (±1.0% +1.5°C)

>-10.0 to 99.9°C (±1.0% +0.8°C), 100 to 400°C (±1.0% + 1°C)

Range: -40.0 to 752°F, -40.0 to 400°C

Rotation-R for mains supply

Rotation-M for motors

Accuracy: ±2.2% + 7LSD (DC, 40 to 100 Hz)

±1.5% + 5LSD (0.00 to 20.00 A, 40 to 100 Hz) ±2.0% + 5LSD (0.00 to 20.00 A, 100 to 400 Hz) ±3.0% + 5LSD (20.00 to 60.00 A, 40 to 100 Hz)

±3.0% + 5LSD (20.00 to 60.00 A, 100 to 400 Hz)

Accuracy: ±1.5% + 5LSD (0.00 to 20.00 A)

±2.0% + 7LSD (0.00 to 20.00 A, DC, 40 to 100 Hz)

±2.2% + 7LSD (0.00 to 20.00 A, 100 to 400 Hz)

±3.0% + 7LSD (20.00 to 60.00 A, DC, 40 to 100 Hz)

±3.0% + 7LSD (20.00 to 60.00 A, 100 to 400 Hz)

• • •

– –

AC/DC 1000 A Clamp Meter

Industrial Motor Maintenance

Range: 0 to 1000 V

Accuracy: ±0.8% + 5LSD (50 to 60 Hz)

±1.5% + 5LSD (20 to 200 Hz)

±10% + 5LSD (200 to 400 Hz)

Range: 0 to 1000 V

Accuracy: ±0.8% + 5LSD

Range: 0 to 1000 V

Accuracy:

±1.0% + 7LSD (50 to 60 Hz)

±1.8% + 7LSD (DC, 40 to 200 Hz)

±12% + 7LSD (200 to 400 Hz)

Range: 0 to 1000 A

Accuracy:

±1.8% + 5LSD (40 to 100 Hz)

±2.2% + 5LSD (100 to 400 Hz)

Range: 0 to 1000 A

Accuracy: ±1.8% + 5LSD

Range: 0 to 1000 A

±2.5% + 7LSD (100 to 400 Hz)

Range: 0 to 60.00 A

Accuracy:

Range: 0 to 60.00 A

±3.0% + 5LSD (20.00 to 60.00 A)

Range: 0 to 60.00 A

Accuracy:

Range: 5.00 to 999.9 Hz

Accuracy: ±1.0% + 5LSD (1000 V range)

Range: 40.0 to 400.0 Hz

Accuracy: ±1.0% + 5LSD (1000 A range)

•

Page 4

AMP-200 and AMP-300

General Specifications

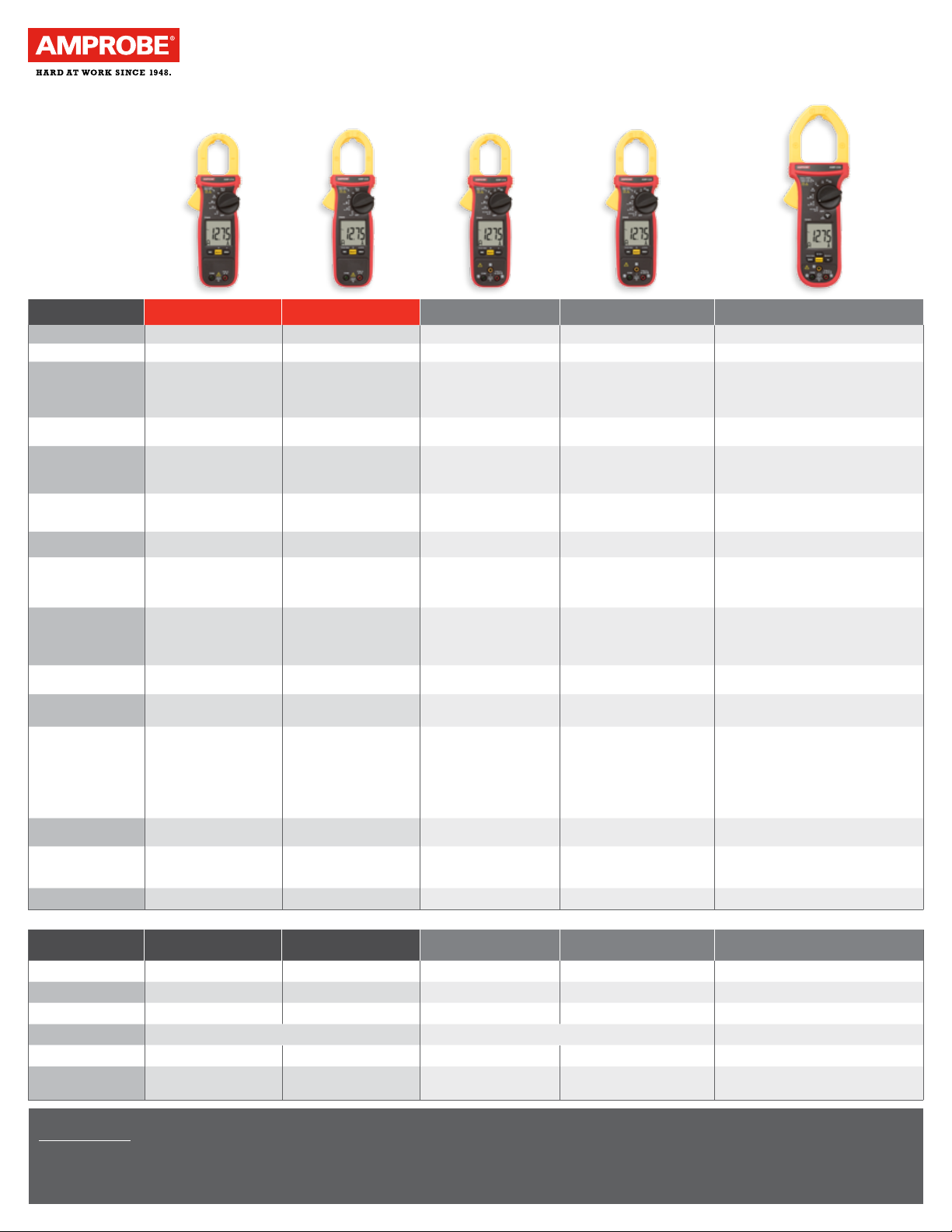

Model AMP-210 AMP-220 AMP-310 AMP-320 AMP-330

Display

Polarity

3-5/6 digits 6000 counts 3-5/6 digits 6000 counts 3-5/6 digits 6000 counts 3-5/6 digits 6000 counts 3-5/6 digits 6000 counts

Automatic Automatic Automatic Automatic Automatic

Update Rate

Operating Temperature

Relative Humidity

Operating Altitude

Pollution Degree

Storage Temperature

Temperature

Coefcient

Battery

EMC

Safety Compliance

Certication

5 per second nominal 5 per second nominal 5 per second nominal 5 per second nominal 5 per second nominal

32 to 104°F (0 to 40°C) 32 to 104°F (0 to 40°C)

80% at 30°C, 50% at 40°C

0 to 2000 m 0 to 2000 m

-4 to 140°F (-20°C to 60°C), < 80% RH

Nominal 0.15 x (specied

accuracy)/ °C @ (0°C to 18°C

or 28°C to 40°C)

Two AAA 1.5 V battery Two AAA 1.5 V battery Two AAA 1.5 V battery Two AAA 1.5 V battery Two AA 1.5 V battery

Meets EN 61326-1:2006 Meets EN 61326-1:2006 Meets EN 61326-1:2006 Meets EN 61326-1:2006 Meets EN 61326-1:2006

UL/IEC/EN 61010-1 ed. 3.0,

IEC/EN 61010-2-033 ed. 1.0,

CAN/CSA C22.2 NO. 61010-1

ed. 3.0, IEC/EN 61010-2-032 ed. 3.0 & IEC/EN 61010-031

ed. 1.1

UL (c/us) and CE UL (c/us) and CE UL (c/us) and CE UL (c/us) and CE UL (c/us) and CE

80% at 30°C, 50% at 40°C

2 2

-4 to 140°F (-20°C to 60°C), < 80% RH

Nominal 0.15 x (specied

accuracy)/ °C @ (0°C to 18°C

or 28°C to 40°C)

UL/IEC/EN 61010-1 ed. 3.0,

IEC/EN 61010-2-033 ed. 1.0,

CAN/CSA C22.2 NO. 61010-1

ed. 3.0, IEC/EN 61010-2-032 ed. 3.0 & IEC/EN 61010-031

ed. 1.1

32 to 104°F (0 to 40°C) 32 to 104°F (0 to 40°C)

80% at 30°C, 50% at 40°C 80% at 30°C, 50% at 40°C

0 to 2000 m

-4 to 140°F (-20°C to 60°C), < 80% RH

Nominal 0.15 x (specied

accuracy)/ °C @ (0°C to 18°C

or 28°C to 40°C)

UL/IEC/EN 61010-1 ed. 3.0,

IEC/EN 61010-2-033 ed. 1.0,

CAN/CSA C22.2 NO. 61010-1

ed. 3.0, IEC/EN 61010-2-032 ed. 3.0 & IEC/EN 61010-031

ed. 1.1

0 to 2000 m 0 to 2000 m

-4 to 140°F (-20°C to 60°C), < 80% RH

Nominal 0.15 x (specied

accuracy)/ °C @ (0°C to 18°C or

28°C to 40°C)

UL/IEC/EN 61010-1 ed. 3.0, IEC/

EN 61010-2-033 ed. 1.0, CAN/CSA

C22.2 NO. 61010-1 ed. 3.0, IEC/

EN 61010-2-032 ed. 3.0 & IEC/EN

61010-031 ed. 1.1

14 to 122°F (-10 to 50°C)

Non condensing at ≤10°C

90% at 10 to30°C 75% at 30 to 40°C 45% at 40 to 50°C

-4 to 140°F (-20°C to 60°C), < 80% RH

Nominal 0.10 x (specied accuracy)/ °C @ (0°C

to 18°C or 28°C to 50°C)

UL/IEC/EN 61010-1 ed. 3.0, IEC/EN 61010-2-033

ed. 1.0, CAN/CSA C22.2 NO. 61010-1 ed. 3.0,

IEC/EN 61010-2-032 ed. 3.0 & IEC/EN 61010-

031 ed. 1.1

Dimensions (L x W x H):

Weight:

8.62 x 3.03 x 1.46 in (219 x 77 x 37 mm)

208 g (0.46 lb) 254 g (0.56 lb) 208 g (0.46 lb) 254 g (0.56 lb) 420 g (0.93 lb)

8.82 x 3.03 x 1.46 in (224 x 77 x 37 mm)

Accessories Included:

User’s Manual

Test Leads

Carrying Case

Batteries

Alligator Clip Set

Banana plug K-type Thermocouple

• • • • •

AAA (2) AAA (2) AA (2)

– –
