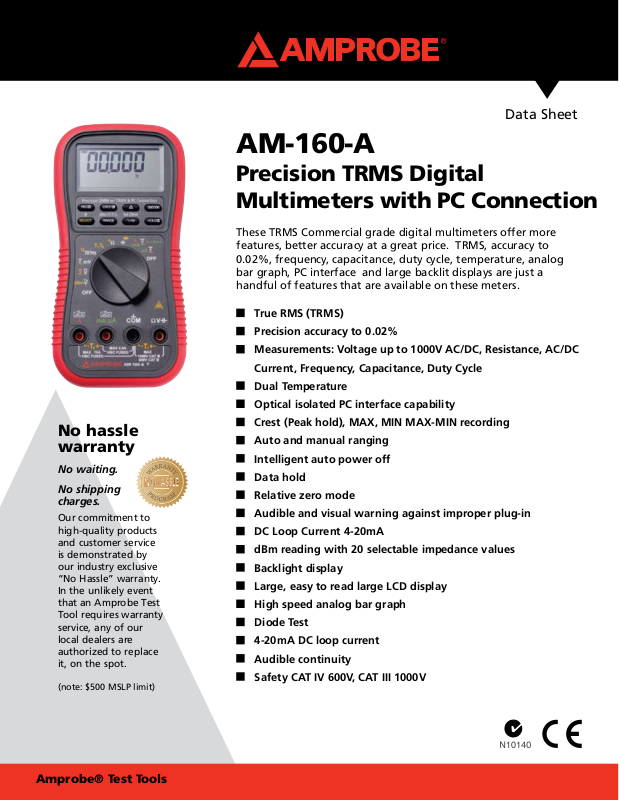

Amprobe AM-160-A Data Sheet

Data Sheet

AM-160-A

Precision TRMS Digital Multimeters with PC Connection

These TRMS Commercial grade digital multimeters offer more features, better accuracy at a great price. TRMS, accuracy to

0.02%, frequency, capacitance, duty cycle, temperature, analog bar graph, PC interface and large backlit displays are just a handful of features that are available on these meters.

True RMS (TRMS)

Precision accuracy to 0.02%

Measurements: Voltage up to 1000V AC/DC, Resistance, AC/DC 

 Current, Frequency, Capacitance, Duty Cycle

Dual Temperature

Optical isolated PC interface capability

No hassle warranty

No waiting.

No shipping charges.

Our commitment to high-quality products and customer service is demonstrated by our industry exclusive “No Hassle” warranty. In the unlikely event that an Amprobe Test Tool requires warranty service, any of our local dealers are authorized to replace it, on the spot.

(note: $500 MSLP limit)

Crest (Peak hold), MAX, MIN MAX-MIN recording

Auto and manual ranging

Intelligent auto power off

Data hold

Relative zero mode

Audible and visual warning against improper plug-in

DC Loop Current 4-20mA

dBm reading with 20 selectable impedance values

Backlight display

Large, easy to read large LCD display

High speed analog bar graph

Diode Test

4-20mA DC loop current

Audible continuity

Safety CAT IV 600V, CAT III 1000V

Amprobe® Test Tools

AM-160-A Precision TRMS Digital Multimeters with PC Connection

Data Sheet

General Speciﬁcations

Display 4-4/5 digits 50,000 counts. Selectable stable mode 5- 4/5 digits 500,000

counts for DC voltage,& 6 digits 999,999 counts for HZ

Polarity Automatic Update Rate 4-4/5 digits fast mode: 5 per second nominal;

5-4/5 digits stable mode: 1.25 Per second nominal;

42 Segments Bar Graph 60 per second max Operating Temperature 0°C to 45°C (32°F to 113°F) Relative Humidity Maximum relative humidity 80% for temperature up to 31°C decreasing

linearly to 50% relative humidity at 45°C

Pollution Degree 2 Storage Temperature -20°C to 60°C (-4°F to 140°F), < 80% R.H.(With battery removed) Altitude Operating below 2000m Temperature Coefﬁcient Nominal 0.1 X (speciﬁed accuracy)/ °C @ (0°C -18°C or 28°C -- 0°C/32°F- 104°F), or otherwise speciﬁed Sensing AC, AC+DC true RMS Safety Double insulation per iec61010-1 2nd ed.,En61010-1 2nd ed., Ul61010-1 2nd ed.

& Can/csa c22.2 No. 61010.1-0.92 To category III 1000v AC & DC and category IV 600V AC & DC

Am-160-a Terminals (to COM) V / A / mAμA: Category III 1000 VAC & VDC and category IV 600 VAC & VDC. Measurement Category

Overload Protections μA & mA: 0.44A /1000V, IR 10kA or better, F fuse

A: 11A/1000V, IR 20kA or better, F fuse V, mV, e, & others: 1050VRMS, 1450VPEAK

Transient Protection 8kV (1.2/50μS SURGE) E.M.C. Meets en61326-1:2006 (EN55022, EN61000 -3-2, EN61000-3-3, EN61000- 4-2, EN61000-4-3,

EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000 -4- 8, EN61000- 4-11)

In an RF ﬁeld of 3V/m Capacitance function is not speciﬁed

Other Function Ranges Total accuracy = speciﬁed accuracy + 100 digits.

Performance above 3V/m is not speciﬁed

Power Supply Single alkaline 9V battery; neda1604a, jis6am6 or Iec6lf22 Power Consumption 6mA typical Low Battery Below approx. 7V Apo Timing Idle for 17 minutes Apo Consumption 5μA typical for am-140-a; 30μA typical for am-160-a Dimension L317.6 x W177.8 x H76.2mm (12.5 x 7 x 3in) with clamshell Weight 635g (1.4lb) with clamshell

Amprobe® Test Tools
