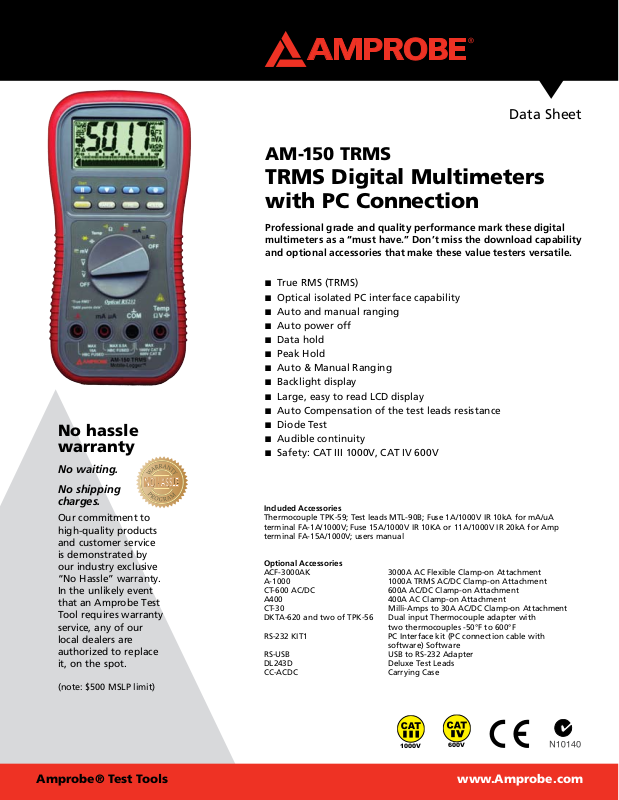

Amprobe AM-150-TRMS Data sheet

No hassle

1000V

600V

warranty

Data Sheet

AM-150 TRMS

TRMS Digital Multimeters
with PC Connection

Professional grade and quality performance mark these digital
multimeters as a “must have.” Don’t miss the download capability
and optional accessories that make these value testers versatile.

True RMS (TRMS)

■

Optical isolated PC interface capability ■
Auto and manual ranging ■
Auto power off ■
Data hold ■
Peak Hold ■
Auto & Manual Ranging ■
Backlight display ■
Large, easy to read LCD display ■
Auto Compensation of the test leads resistance ■
Diode Test ■
Audible continuity ■
Safety: CAT III 1000V, CAT IV 600V ■

No waiting.

No shipping
charges.

Our commitment to
high-quality products
and customer service
is demonstrated by
our industry exclusive
“No Hassle” warranty.
In the unlikely event
that an Amprobe Test
Tool requires warranty
service, any of our
local dealers are
authorized to replace
it, on the spot.

(note: $500 MSLP limit)

Included Accessories

Thermocouple TPK-59; Test leads MTL-90B; Fuse 1A/1000V IR 10kA for mA/uA
terminal FA-1A/1000V; Fuse 15A/1000V IR 10KA or 11A/1000V IR 20kA for Amp
terminal FA-15A/1000V; users manual

Optional Accessories

ACF-3000AK 3000A AC Flexible Clamp-on Attachment
A-1000 1000A TRMS AC/DC Clamp-on Attachment
CT-600 AC/DC 600A AC/DC Clamp-on Attachment
A400 400A AC Clamp-on Attachment
CT-30 Milli-Amps to 30A AC/DC Clamp-on Attachment
DKTA-620 and two of TPK-56 Dual input Thermocouple adapter with
two thermocouples -50°F to 600°F
RS-232 KIT1 PC Interface kit (PC connection cable with
software) Software
RS-USB USB to RS-232 Adapter
DL243D Deluxe Test Leads
CC-ACDC Carrying Case

Amprobe® Test Tools

www.Amprobe.com

AM-150 TRMS Digital Multimeters with PC Connection

Data Sheet

General Specifications

Display: 3-4/5 digits 5000 counts LCD display
Update Rate:

Digital Data 5 per second nominal; 52 Segments Bar-graph 60 per second nominal
AC Sensing: True RMS

Operating Temperature: 0°C to 45°C
Relative Humidity: Maximum relative humidity 80% for temperature up to 31°C decreasing linearly to 50% relative

humidity at 45°C

Storage Temperature: -20°C to 60°C, 80% R.H. (with battery removed)
Pollution degree: 2
Altitude: Operating below 2000m
Temperature Coefficient: nominal 0.15 x (specified accuracy)/ °C @(0°C -- 18°C or 28°C -- 45°C), or otherwise specified

Overload Protections:

μA & mA: 1A/1kV (or 0.44A/1kV), IR 10kA, F fuse
A : 15A/1kV, IR 10kA (or 11A/1kV, IR 20kA), F fuse
V, mV, Ω, & Others : 1050Vrms / 1450Vpeak
Safety: The meter (all versions) is protected, against the users, by double insulation per EN61010-1 and

IEC61010-1 2nd Edition (2001) to CAT III 1000V & CAT IV 600V. The meter (all versions) also meet
CSA C22.2 No. 1010-1-92* to CAT III 1000V.

Terminals (to COM) ratings:

V / A / mAμA: Category III 1000 Volts AC & DC, and Category IV 600 Volts AC & DC.

E.M.C.: Meets EN61326
In an RF field of 3V/m:

Capacitance function is not specified. Other function ranges: Total Accuracy = Specified Accuracy + 30 digits.
Performance above 3V/m is not specified

Power Supply: Single standard 9V battery NEDA1604, JIS006P or IEC6F22 for AM-120 & AM-130, and single
standard 9V alkaline battery NEDA1604A, JIS6AM6 or IEC6LF22 for AM-150

Power Consumption: 2.6 mA typical
Low Battery: Below approx. 7V
APO Timing: Idle for 17 minutes
Dimension: L193mm X W97mm X H46mm
Weight: 370 gm
