Page 1
ADPTR-KIT-1
ADPTR-E14
ADPTR-E27
ADPTR-GU10
ADPTR-B15
ADPTR-B22
ADPTR-SCT
Light-check /
Socket-check adapter / incl. kit
Instruction Manual
ENG FRE
SPA
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
ADPTR-KIT-1
ADPTR-E14
ADPTR-E27
ADPTR-GU10
ADPTR-B15
ADPTR-B22
ADPTR-SCT
Light-check /
Socket-check adapter / incl. kit
Instruction Manual
8/2018, 6010869 B
©2018 Amprobe
All rights reserved. Printed in China
English
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 3
3
Limited Warranty and Limitation of Liability
Your Amprobe product will be free from defects in
material and workmanship for one year from the date
of purchase unless local laws require otherwise. This
warranty does not cover fuses, disposable batteries
or damage from accident, neglect, misuse, alteration,
contamination, or abnormal conditions of operation
or handling. Resellers are not authorized to extend any
other warranty on the behalf of Amprobe. To obtain
service during the warranty period, return the product
with proof of purchase to an authorized Amprobe
Service Center or to an Amprobe dealer or distributor.
See Repair Section for details. THIS WARRANTY IS YOUR
ONLY REMEDY. ALL OTHER WARRANTIES - WHETHER
EXPRESS, IMPLIED OR STATUTORY - INCLUDING IMPLIED
WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE
OR MERCHANTABILITY, ARE HEREBY DISCLAIMED.
MANUFACTURER SHALL NOT BE LIABLE FOR ANY
SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR
THEORY. Since some states or countries do not allow
the exclusion or limitation of an implied warranty or of
incidental or consequential damages, this limitation of
liability may not apply to you.
Repair
All Amprobe returned for warranty or non-warranty
repair or for calibration should be accompanied by
the following: your name, company’s name, address,
telephone number, and proof of purchase. Additionally,
please include a brief description of the problem or the
service requested and include the test leads with the
meter. Non-warranty repair or replacement charges
should be remitted in the form of a check, a money
order, credit card with expiration date, or a purchase
order made payable to Amprobe.
In-warranty Repairs and Replacement – All
Countries
Please read the warranty statement and check your
battery before requesting repair. During the warranty
period, any defective test tool can be returned to your
Amprobe distributor for an exchange for the same or
like product. Please check the “Where to Buy” section
Additionally, in the United States and Canada, inwarranty repair and replacement units can also be sent
to an Amprobe Service Center (see address below).
2
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 4
5
Amprobe Light-Check Adapters
enable ease-of-use with single-handed
operation and ensure low contact
resistance. Maintenance free, they
feature small robust housings with an
additional finger guard safety barrier.
Light-Check Adapters are ideal for use
with installation testers, insulation
testers and wire tracers, as well as for
voltage measurements and monitoring
in power quality studies.
APPLICATIONS
The Adapters can be used in conjunction
with a wide variety of test equipment
that uses test leads terminating in 4 mm
safety connectors. The Adapters enable
a range of tests to be conducted on light
fitting terminals and ensure a good,
reliable and safe contact, eliminating
the need to hold test probes in place.
ADPTR-KIT1 CONTENTS
The Light-Check Adapter Kit consists of
a complete set of 5 Adapters (E27, B22,
E14, B15, GU10) with carrying case.

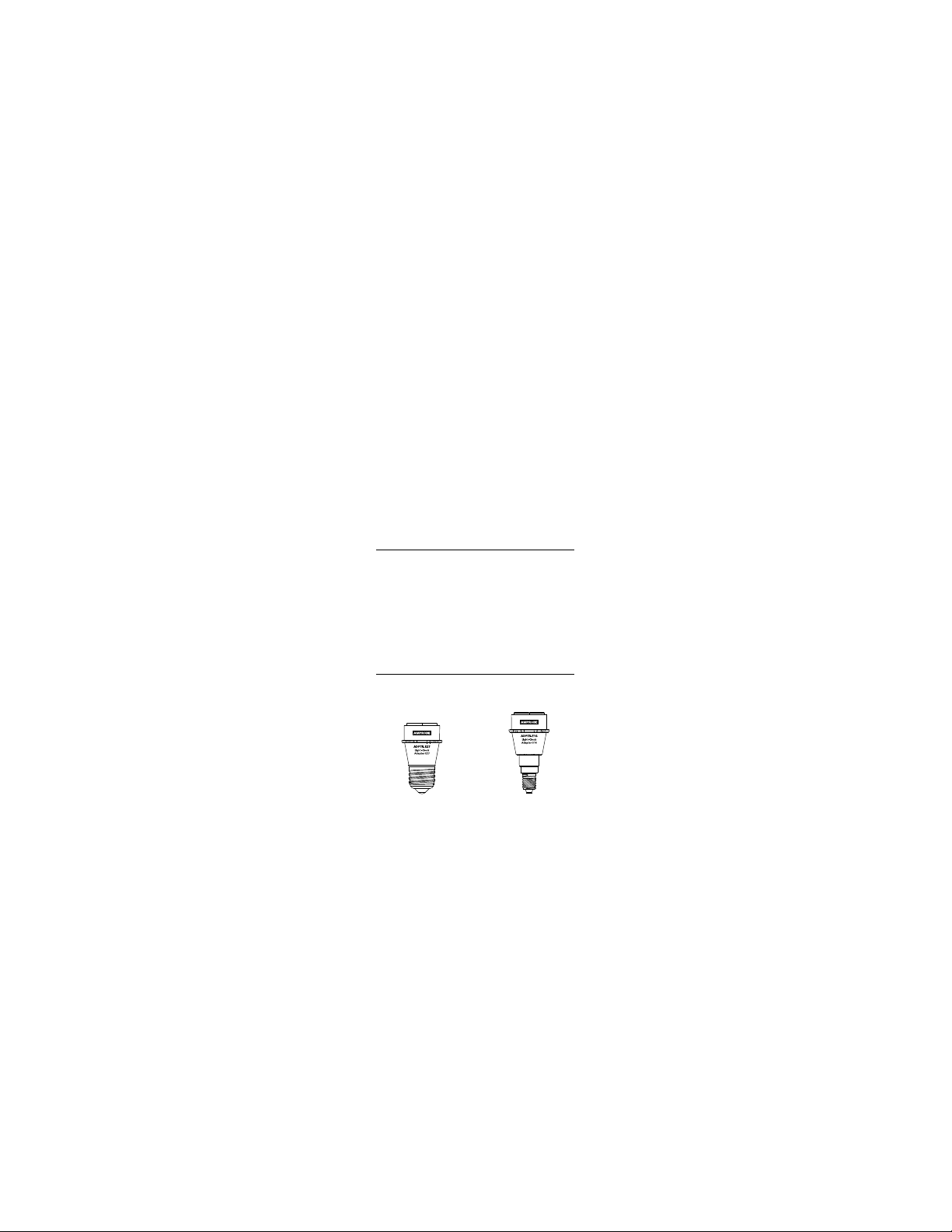

Adapter
4
ADPTR-E14

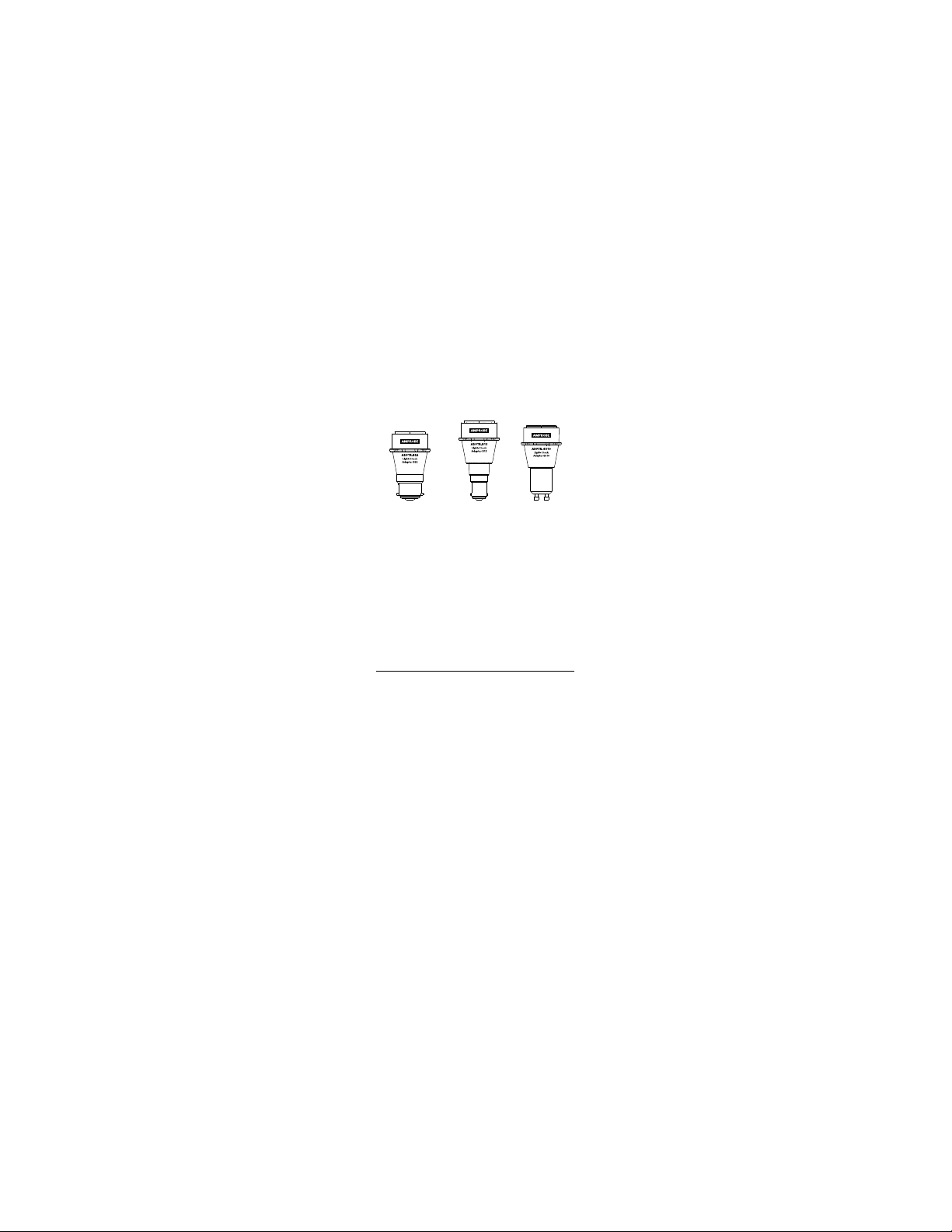

Light-Check
Adapter
ADPTR-E27
Light-Check
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 5
Phase (red) and neutral (black) are
marked on Adapters E27 and E14.
Light-Check
Adapter
ADPTR-B15
Light-Check
Adapter
ADPTR-GU10
Light-Check
Adapter
ADPTR-B22
Phase and neutral are not marked for
Adapters B22, B15 and GU10 due to
the geometry of these sockets. Detect
phase and neutral by using a suitable
tester if necessary.
First connect test leads on the test
device, then to the Adapter. Ensure
correct connection of phase and
neutral if required.

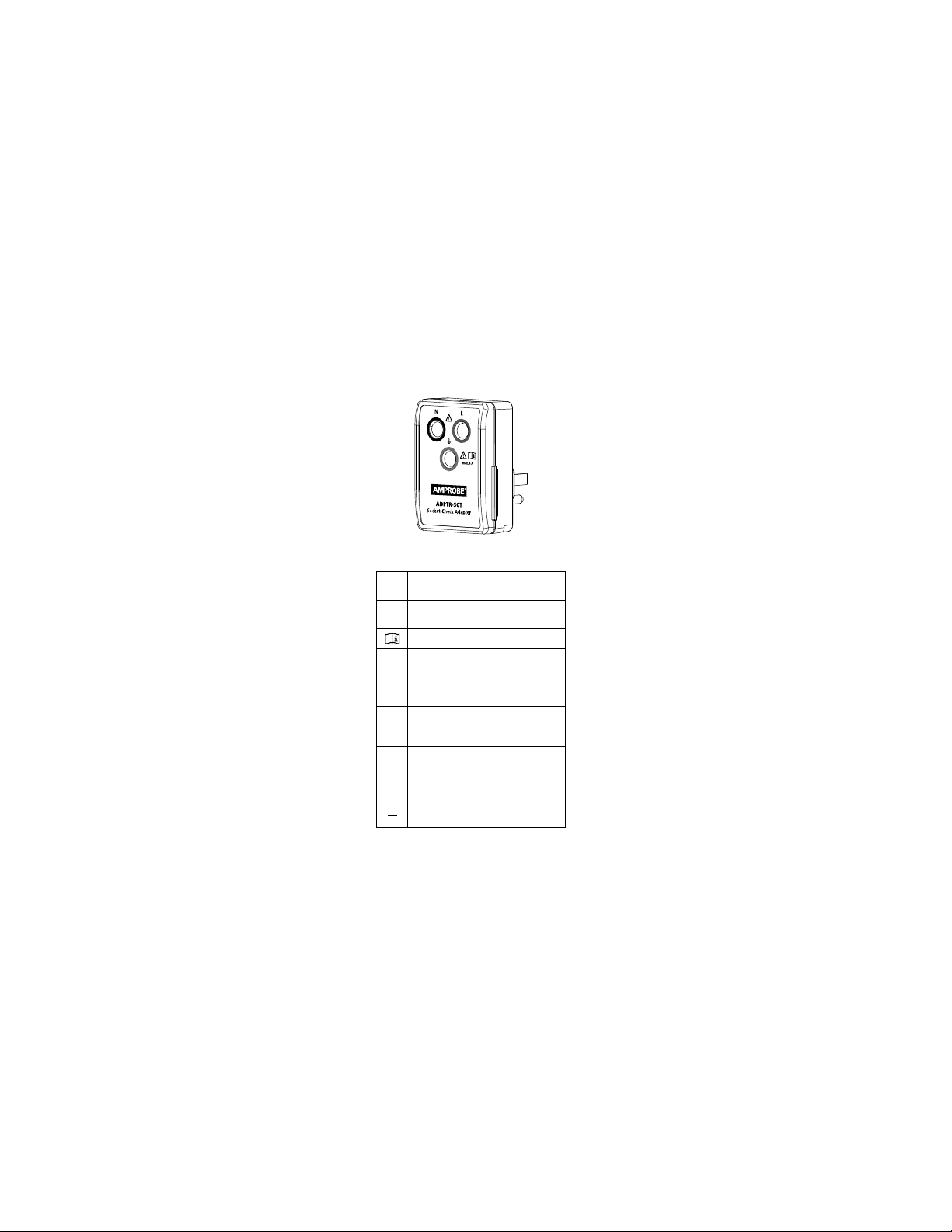

SOCKET-CHECK ADAPTER
1. Plug the adapter into the mains
outlet to be tested.
2. The connections are marked as
follows:
a. Black: Phase.
b. Red: Neutral.
c. Green: Earth.
3. Connect test leads first on the
test device, then to the adapter.
Ensure correct connection of phase,
neutral and earth.
4. Conduct the test.
5
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 6
7
SYMBOLS
Caution! Risk of electric
X
shock
Caution! Refer to the
�
explanation in this manual
Consult user documentation
The equipment is protected
by double insulation or
T
reinforced insulation
Earth ground
J
Overvoltage category II is for
CAT II
equipment to be supplied
from the building wiring
Certified by CSA Group
to North American safety
standards
Do not dispose of this product
as unsorted municipal waste –
=
contact a qualified recycler
6
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 7
SAFETY INFORMATION
The adapters comply with:
IEC/EN 61010-1 3rd Edition, UL61010-
1 3rd Ed. and CAN/CSA C22.2 No.
61010-1-12, pollution degree 2
X�
Warning
To prevent possible electrical shock,
fire, or personal injury:
• Read the operating instructions
before use and follow all safety
instructions.
• Comply with local and national
safety codes. Use personal
protective equipment (approved
rubber gloves, face protection,
and flame resistant clothes) to
prevent shock and arc blast injury
where hazardous live conductors
are exposed.
• Use the adapters only as
specified, or the protection
supplied by the product can be
compromised.
• Do not work alone.
• Do not use the adapters if they
appear damaged. Examine the
adapter for damaged insulation
or exposed metal.
• Test the adapter’s terminal
continuity both before and after
use to ensure the adapter is in
good working condition.
7
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 8
9
• Do not apply more than the rated
voltage and rated current.
• Do not touch voltages >30 V AC
RMS, 42 V AC peak, or 60 V DC.
These voltages pose electrical
shock hazards. Keep fingers
behind the finger guards of the
adapter.
• Do not exceed the Measurement
Category (CAT) rating of
the lowest rated individual
component of a product, probe,
or accessory.
• If the adapter is used in a manner
not specified in the user manual,
the protection provided by the
equipment may be impaired.
• Measurements can be adversely
affected by impedances of
additional operating circuits
connected in parallel or by
transient currents.
• Do not use the adapter with any
of the parts removed.
• Do not use the adapter around
explosive gas, vapor, dust or wet
environments.
8
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 9
SPECIFICATIONS
Light-check adapter:
Voltage
range
Frequency
range
Max.
current
Operating
time
Operating
altitude
Operating
temperature
and
humidity
Storage
conditions
Drop proof 3.28 ft (1 m)
Pollution
degree
Overvoltage
category
Electrical
safety
Agency
approval
0 to 300 V AC
Socket-check adapter:
0 to 120 V AC
50 Hz to 60 Hz
Light-check adapter:
2 A
Socket-check
adapter: 4 A
Continuous
6561 ft (2000 m)
32 °F to 104 °F
(0 °C to 40 °C),
80% RH (without
≤
condensation)
32 °F to 104 °F
(0 °C to 40 °C),
80% RH (without
≤
condensation)
2
Light-check adapters:
CAT II 300 V
Socket-check adapter:
CAT II 120 V
IEC 61010-1, UL61010-1,
CAN/CSA C22.2
No. 61010-1-12
9
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 10
1
ADPTR-E27: Approx.
2.8 x 1.6 x 1.2 in
(70.8 x 40.4 x 31.3 mm)
ADPTR-E14: Approx.
3.2 x 1.6 x 1.2 in
(81.3 x 40.4 x 31.3 mm)
ADPTR-B22: Approx.
2.7x 1.6 x 1.2 in
Size
(H x W x L)
Weight
(68 x 40.4 x 31.3 mm)
ADPTR-B15: Approx.
3.1 x 1.6 x 1.2 in
(78.8 x 40.4 x 31.3 mm)
ADPTR-GU10: Approx.
2.9 x 1.6 x 1.2 in
(74.7 x 40.4 x 31.3 mm)
ADPTR-SCT
2.95 x 1.97 x 2.56 in
(75 x 50 x 65 mm)
ADPTR-E27: Approx.
0.06 lb (27 g)
ADPTR-E14: Approx.
0.05 lb (23.5 g)
ADPTR-B22: Approx.
0.06 lb (29.5 g)
ADPTR-B15: Approx.
0.06 lb (25 g)
ADPTR-GU10: Approx.
0.06 lb (29.5 g)
ADPTR-SCT:
0.125 lb (0.057 kg)
: Approx.
Approx.
CARE
The Adapters can be cleaned with a
mild solution of soapy water. Apply
sparingly with a soft cloth and allow
to dry completely before using. Do not
use aromatic hydrocarbons, gasoline,
or chlorinated solvents for cleaning.
10
