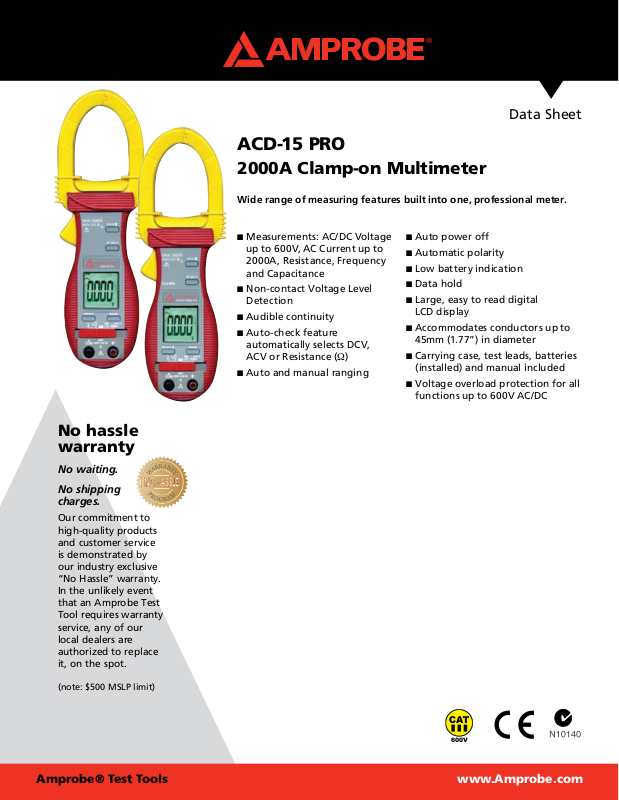

Data Sheet
600V
ACD-15 PRO
2000A Clamp-on Multimeter
Wide range of measuring features built into one, professional meter.
No hassle
warranty
No waiting.
No shipping
charges.
Our commitment to
high-quality products
and customer service
is demonstrated by
our industry exclusive
“No Hassle” warranty.
In the unlikely event
that an Amprobe Test
Tool requires warranty
service, any of our
local dealers are
authorized to replace
it, on the spot.
■
Measurements: AC/DC Voltage
up to 600V, AC Current up to
2000A, Resistance, Frequency
and Capacitance
Non-contact Voltage Level ■
Detection
Audible continuity ■
Auto-check feature ■
automatically selects DCV,
ACV or Resistance (W)
Auto and manual ranging ■
Auto power off ■
Automatic polarity ■
Low battery indication ■
Data hold ■
Large, easy to read digital ■
LCD display
Accommodates conductors up to ■
45mm (1.77”) in diameter
Carrying case, test leads, batteries ■
(installed) and manual included
Voltage overload protection for all ■
functions up to 600V AC/DC
(note: $500 MSLP limit)
Amprobe® Test Tools
www.Amprobe.com
Page 2
ACD-15 PRO 2000A Digital Clamp-on Multimeters
Data Sheet
Electrical Specifications
Accuracy is ±(% reading digits + number of digits) or otherwise specified, at 23 ℃ ±5 ℃ and less than 75% R.H.
Function Range Accuracy
DC Voltage
6.000V 0.5% + 3d
60.00V 1.0% + 5d
600.0V 2.0% + 5d
NMRR : >30dB @ 50/60Hz
CMRR : >100dB @ DC, 50/60Hz, Rs=1kW
Hi-Z DCV Input Impedance: 5MW, 90pF nominal
AutoCheck™ Lo-Z DCV input impedance: Initially 1.6kW, 90pF nominal; Impedance increases significantly as display voltage
increases from 50V (typical). Typical impedances vs display voltages for reference are:
15kW @ 100V; 100kW @ 300V; 210kW @ 600V
AutoCheck™ DCV Threshold: > +1.5VDC or < -1.0VDC nominal
AC Voltage
50Hz / 60Hz 6.000V, 60.00V 1.5% + 5d
600.0V 2.0% + 5d
50Hz ~ 500Hz 6.000V, 60.00V 2.0% + 5d
600.0V 2.5% + 5d
CMRR: >60dB @ DC to 60Hz, Rs=1kW
Hi-Z ACV Input Impedance: 5MW, 90pF nominal
AutoCheck™ Lo-Z ACV input impedance: Initially 1.6kW, 90pF nominal; Impedance increases significantly as display voltage
increases from 50V (typical). Typical impedances vs display voltages for reference are:
5kW @ 100V; 100kW @ 300V; 210kW @ 600V
AutoCheck™ ACV Threshold: > 2VAC (50/60Hz) nominal.
Resistance
2)
6.000kW
60.00kW, 600.0kW 1.0% + 4d
6.000MW 2.0% + 4d
Open Circuit Voltage: 0.4VDC typical
600W with Continuity Beeper
600.0W 2.0%+8d
Continuity Beeper Response: < 100µs
Open Circuit Voltage: 0.4VDC typical
Audible Threshold: between 10W and 300W 1) Add 40d to specified accuracy while reading is below
20% of range
Frequency
Range Sensitivity (Sine RMS) Voltage Range
10Hz ~ 30kHz 4V 6.000V
0Hz ~ 1kHz 30V 1 60.00V
10Hz ~ 1kHz 60V 600.0V
Accuracy: 0.5%+4d
Max display: 9999 counts
1)
Cool down interval 2 minutes after over 50V measurements in Auto-VW position
2)
Beeper on while reading < 0.025kW
3)
Add 40d to specified accuracy while reading is
1.2% + 6d
1) 3)
1)
Amprobe® Test Tools
www.Amprobe.com
Page 3
ACD-15 PRO 2000A Digital Clamp-on Multimeters
Data Sheet
Function Range Accuracy
Diode Tester
Open Circuit Voltage Test Current
< 1.6 VDC 0.4mA (typical)
Audible Threshold: between 0.015V & 0.080V
Capacitance
100.0nF
2)
, 1000nF, 3.5%+5d
1) 3)
10.00µF, 100.0µF, 2000µF
1) Accuracies with film capacitor or better
2) Accuracy below 50nF is not specified
3)
Specified with battery voltage above 2.8V (approxmately half full battery). Accuracy decreases gradually to 12% at low
battery warning voltage of approximately 2.4V
Non-Contact EF-Detection
Typical Voltage Bar Graph Indication
15V TO 85V 40V TO 130V - 60V TO 210V - - 90V TO 300V - - - ABOVE 120V - - - - -
Indication: Bar graph segments & audible beep tones proportional to the field strength
Detection Frequency: 50/60Hz
Detection Antenna: Top side of the stationary jaw
Probe-Contact EF-Detection: For more precise indication of live wires, use the Red (+) probe for direct contact measurements
AC Current (Clamp-on)
50Hz / 60Hz 400.0A, 2000A 1.5% + 5d
1)
Add 8d to specified accuracy while reading is below 10% of range
2)
Induced error from adjacent current-carrying conductor: < 0.06A/A
3)
Specified accuracy is for measurements made at the jaw center. When the conductor is not positioned at the jaw center, position er-
1) 2) 3)
rors introduced are: Add 1% to specified accuracy for measurements made within jaw marking lines (away from jaw opening) Add 4%
to specified accuracy for measurements made beyond jaw marking lines (toward jaws opening)
www.Amprobe.com
Page 4
ACD-15 PRO 2000A Digital Clamp-on Multimeters
Data Sheet
General Specifications
Display: 3-5/6 digits 6000 counts LCD display
Update Rate: 5 per second nominal
Polarity: Automatic
Low Battery: Below approx. 2.4V
Operating Temperature: 0°C to 40°C
Relative Humidity: Maximum relative humidity 80% for temperature up to 31°C decreasing linearly to 50%
relative humidity at 40°C
Altitude: Operating below 2000m
Storage Temperature: -20℃ to 60℃, < 80% R.H. (with battery removed)
Temperature Coefficient: nominal 0.15 x (specified accuracy)/℃ @(0℃ -18℃ or 28℃ -40℃), or otherwise specified
Sensing: Average sensing
Safety: Meets EN61010-1:2001; IEC61010-2-032(1994), EN61010-2-032(1995), UL3111-2-032(1999).
Category III 600 Volts AC & DC
Transient Protection: 6.5kV (1.2/50µs surge) for all models
Pollution Degree: 2
E.M.C.: Meets EN61326-1
In an RF field of 3V/m: Capacitance function is not specified. Total Accuracy = Specified Accuracy + 45 digits
Performance above 3V/m is not specified
Overload Protections: ACA Clamp-on jaws: AC 2000A rms continuous + & COM terminals (all functions):
600VDC/ VAC RMS
Power Supply: standard 1.5V AA A Size (NEDA 24A or IEC LR03) battery X 2
Power Consumption: 2.2mA typical for ACD-15 PRO; 2.8mA typical for ACD-15 TRMS-PRO
APO Timing: Idle for 3 minutes
APO Consumption: 40µA typical on voltage & current functions
Dimension: L224mm X W78mm X H40mm
Weight: 220 gm approx
Jaw opening & Conductor Diameter: 45mm max
Included Accessories
Test leads, carrying case and manual
Optional Accessories
ELS2A Line splitter (Energizer)
ACF-3000AK 3000A AC Flexible Clamp-On Attachment
TMA-K Temperature Adapter
TL36A Industry Test Leads with Threaded Alligator Clips
