PINNACLE LECTERN ST3240/ST3250
1.
2.
1.
2.
neeD Help?
call 800-267-5486
or 847-498-9000
email:
customerservice@
ampli.com
WHats in tHe Box?

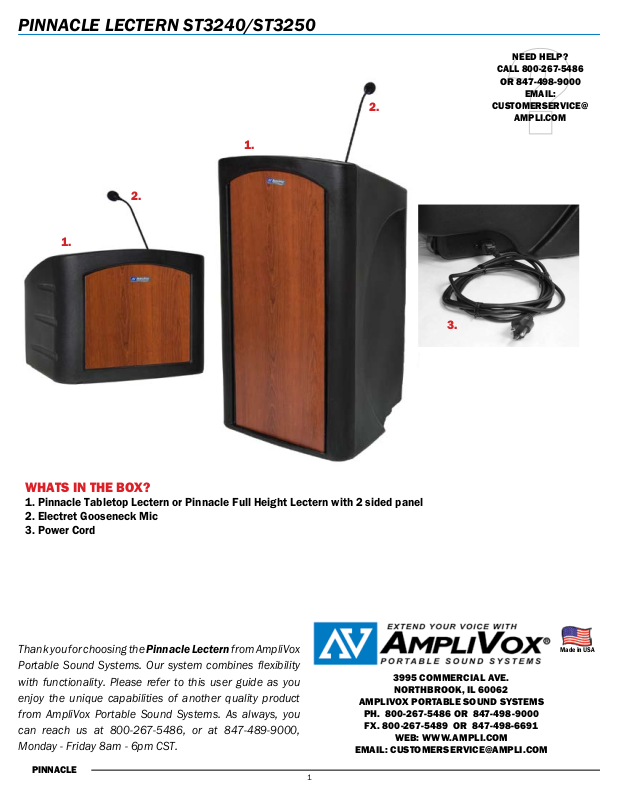

1. Pinnacle Tabletop Lectern or Pinnacle Full Height Lectern with 2 sided panel
2. Electret Gooseneck Mic
3. Power Cord
3.
Thank you for choosing the Pinnacle Lectern from AmpliVox
Portable Sound Systems. Our system combines flexibility
with functionality. Please refer to this user guide as you
enjoy the unique capabilities of another quality product
from AmpliVox Portable Sound Systems. As always, you
can reach us at 800-267-5486, or at 847-489-9000,
Monday - Friday 8am - 6pm CST.
pinnacle
Made in USA
3995 commercial ave.
nortHBrook, il 60062
amplivox portaBle sounD systems
pH. 800-267-5486 or 847-498-9000
fx. 800-267-5489 or 847-498-6691
WeB: WWW.ampli.com
email: [email protected]
1
Page 2
PINNACLE fuLL hEIghT ST3250:
The ST3250 Pinnacle comes with a Gooseneck Mic that installs on the
cable mounted in the shock mount on the reading table. That cable is
prewired to the bottom of the unit where you plug in an XLR cable to
the house PA system (not included).
ELECTRET
GOOSENECK MIC
The LED Lamp is powered by an AC power adapter that is plugged
into an outlet strip mounted inside the unit on the bottom which
has its plug mounted in the bottom side of the unit. You plug in the
supplied power cord from the base of the unit to house AC.
The clock/timer is battery operated (LR44 Watch Batteries, not
included). The batteries can be replaced by pulling the clock out of the
panel. The batteries are in the back of the timer.
poWer corD to House
xlr caBle to House pa
poWer supply
DasHBoarD
WitH clock timer
anD leD lamp
CLOCK/TIMER
LED LAMP
PADDED ARM REST
& PAPER STOP
TILT-N-ROLL WHEELS
PINNACLE TAbLEToP ST3240:
MIC
CLOCK/TIMER
LED LAMP
PLUG
XLR PLUG CONNECT
TO HOUSE PA
POWER PLUG
TO HOUSE AC
NON-SKID FEET
The ST3240 Pinnacle comes with a Gooseneck
Mic that installs on the cable mounted in the
shock mount on the reading table. That cable
is prewired to the bottom of the unit where you
plug in an XLR cable to the house PA system
(not included).
The LED Lamp is powered by an AC power
adapter that is plugged into an outlet strip
mounted inside the unit on the bottom which
has its plug mounted in the bottom side of the
unit. You plug in the supplied power cord from
the base of the unit to house AC.
The clock/timer is battery operated (LR44
Watch Batteries, not included). The batteries
can be replaced by pulling the clock out of
the panel. The batteries are in the back of the
timer.
