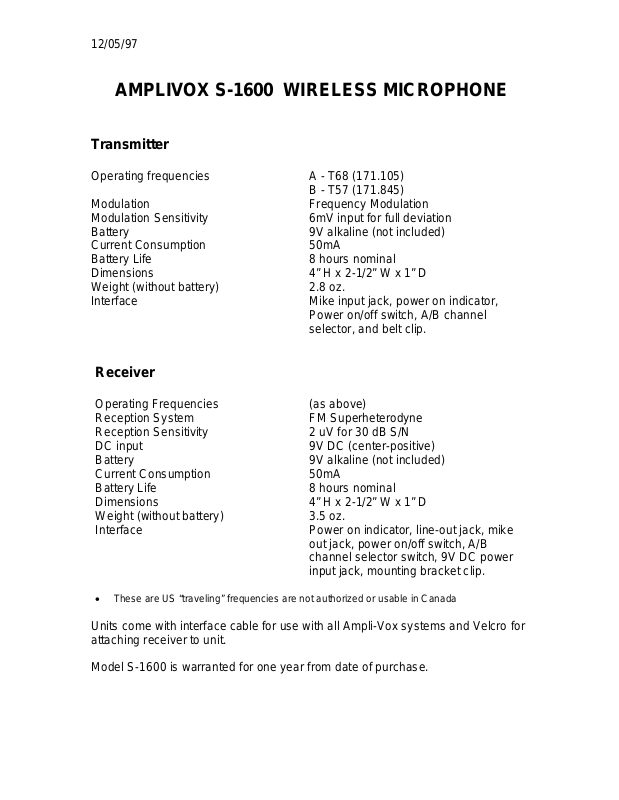

AMPLIVOX S-1600 WIRELESS MICROPHONE
Transmitter
Operating frequencies A - T68 (171.105)
B - T57 (171.845)
Modulation Frequency Modulation
Modulation Sensitivity 6mV input for full deviation
Battery 9V alkaline (not included)
Current Consumption 50mA
Battery Life 8 hours nominal
Dimensions 4” H x 2-1/2” W x 1” D
Weight (without battery) 2.8 oz.
Interface Mike input jack, power on indicator,
Power on/off switch, A/B channel
selector, and belt clip.
Receiver
Operating Frequencies (as above)
Reception System FM Superheterodyne
Reception Sensitivity 2 uV for 30 dB S/N
DC input 9V DC (center-positive)
Battery 9V alkaline (not included)
Current Consumption 50mA
Battery Life 8 hours nominal
Dimensions 4” H x 2-1/2” W x 1” D
Weight (without battery) 3.5 oz.
Interface Power on indicator, line-out jack, mike
out jack, power on/off switch, A/B
channel selector switch, 9V DC power
input jack, mounting bracket clip.
• These are US “traveling” frequencies are not authorized or usable in Canada
Units come with interface cable for use with all Ampli-Vox systems and Velcro for
attaching receiver to unit.
Model S-1600 is warranted for one year from date of purchase.
Page 2
12/05/97
AMPLIVOX S-1600
ENGINEERING
WIRELESS MICROPHONE DATA SHEET
Model Number: S-1600
Serial Number: Stock Pigtail
Open Circuit Sensitivity: 7.3 mV / Pa
-42.8 dBV @ 1Pa
Output Impedance: %1263.6 Ohms
Self Noise 27 . 1 dB SPL A-Weighted
-109.7 dBV
26 . 9 dB SPL Adjusted *
-109.9 dBV *
Signal to Noise Ratio 67 . 1 dBA @ 1Pa *
Phantom Current DC 000.0 mA
