AmpliFi AFi-R QUICK START GUIDE

QUICK START GUIDE

TM

HOME WI-FI MESH TECHNOLOGY

™

MODEL: AFi-R

Introduction

Thank you for purchasing the AmpliFi™ Router. This Quick
Start Guide is designed to guide you through installation
and also includes warranty terms.

Package Contents

Router

Ethernet Cable Quick Start Guide

Power Adapter

1

Hardware Overview

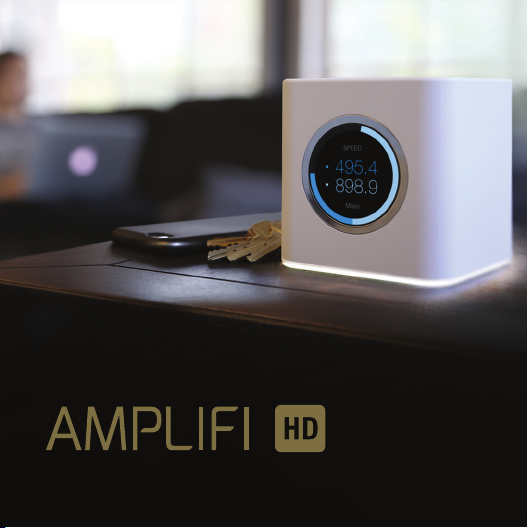

Router Front

The front of the AmpliFi Router features an
adjustable, full‑color touchscreen display.

The bottom of the AmpliFi Router features an
adjustable LED that is fully lit by default when
the Router is congured and ready for use.

The brightness settings of the touchscreen and
LED are congurable using the AmpliFi app.

2

Router Back

Four Gigabit Ethernet ports available to

1-4

connect 10/100/1000Mbps wired network
devices to the Internet.

Connects to the broadband modem provided
by your ISP (Internet Service Provider).

Reserved for future use.

The Power Adapter connects to this port.

1 2

3 4

3

Installation

The AmpliFi Router can be installed using one of the
following methods:

• AmpliFi app for iPhone®

• AmpliFi app for Android

• Connecting to the default AmpliFi wireless network
(SSID) from a computer or tablet.

App Users

Download and install the AmpliFi app from the App Store
or Google Play™ Store.

4

™

If you are not using the app to install the AmpliFi Router,
please skip step 1 and proceed to the following page.

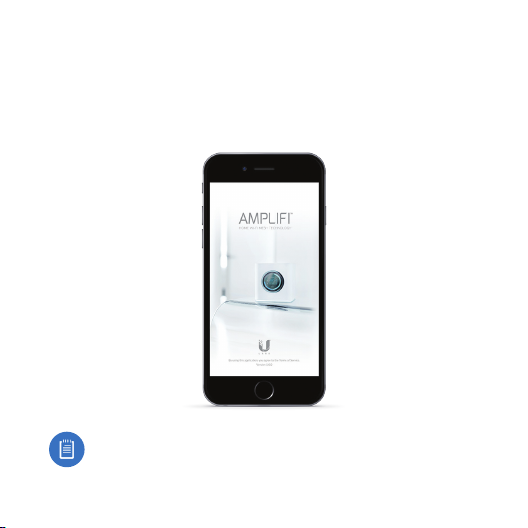

1 Launch the AmpliFi app.

iPhone Users: Ensure that Bluetooth is enabled.
Android Users: Ensure that Wi‑Fi is enabled.

5

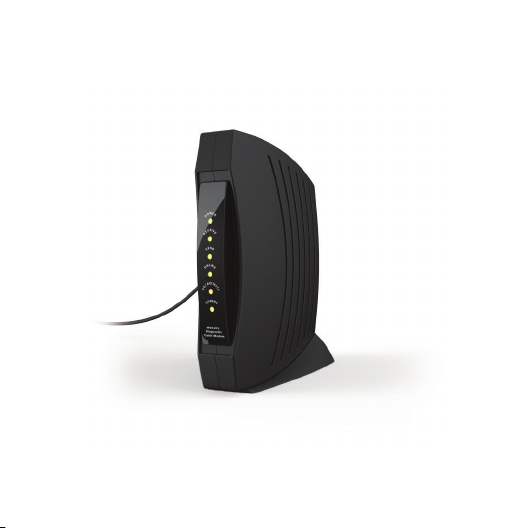

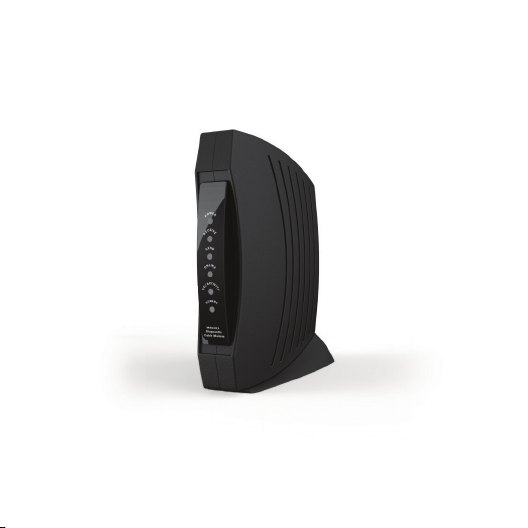

2 Power o your broadband modem.

6

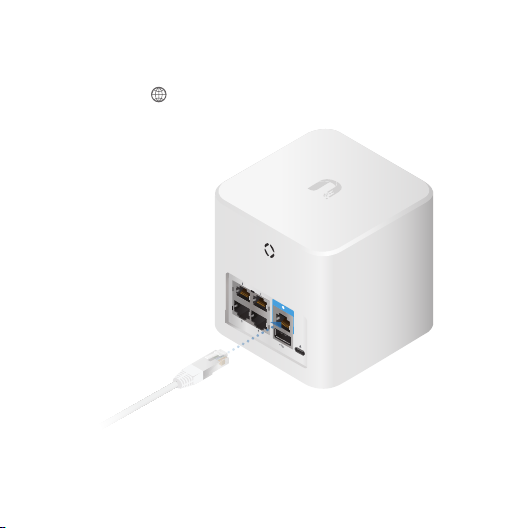

3 Connect one end of the Ethernet Cable to your

broadband modem and the other end to the
Internet port on the AmpliFi Router.

7

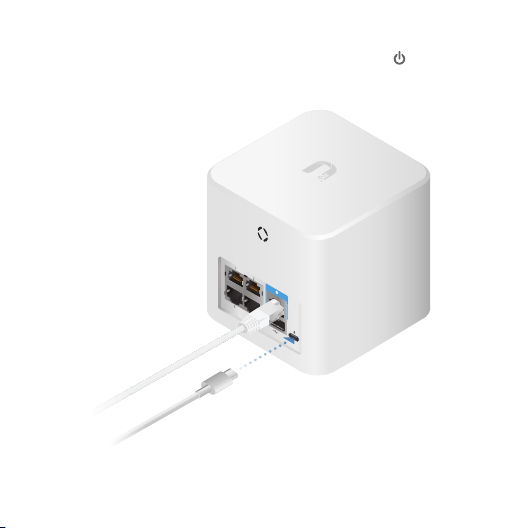

4 Connect the Power Adapter to the power port on

the AmpliFi Router.

8

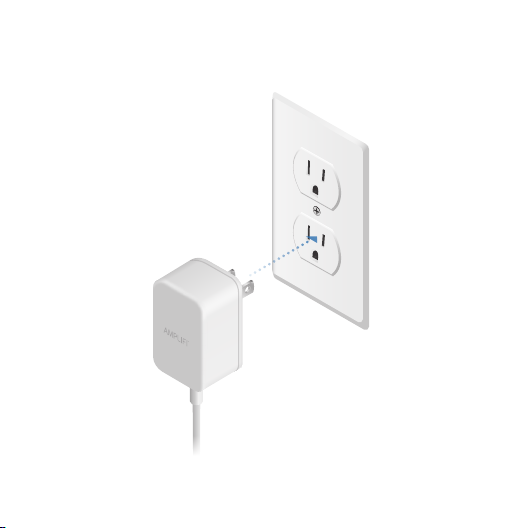

5 Connect the Power Adapter to a power outlet.

9

6 Power on your broadband modem.

10

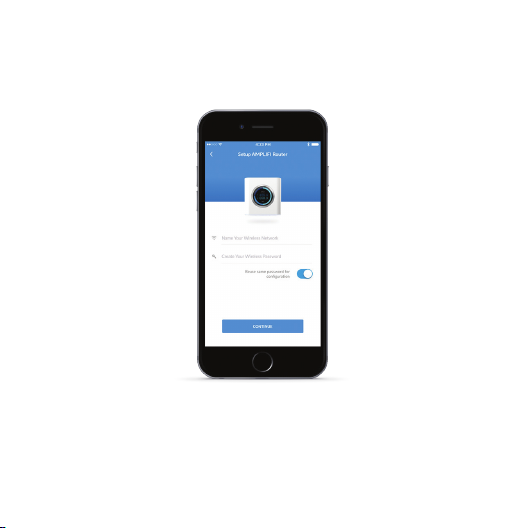

7 App Users Follow the on‑screen instructions to

congure your AmpliFi Router.

11

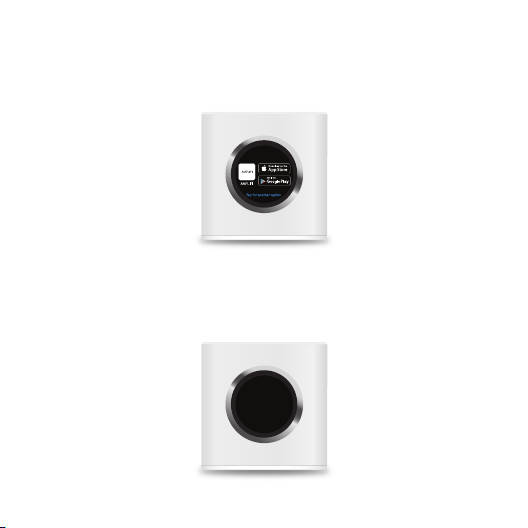

Non-App Users Perform the following steps:

• Tap the touchscreen on the AmpliFi Router.

• Use a computer or tablet to connect to the unique
wireless network (SSID) displayed on the screen of your
AmpliFi Router.

Please connect to this

Wi-Fi Network

AFI-R-HD-1234567890XX

Setup

12

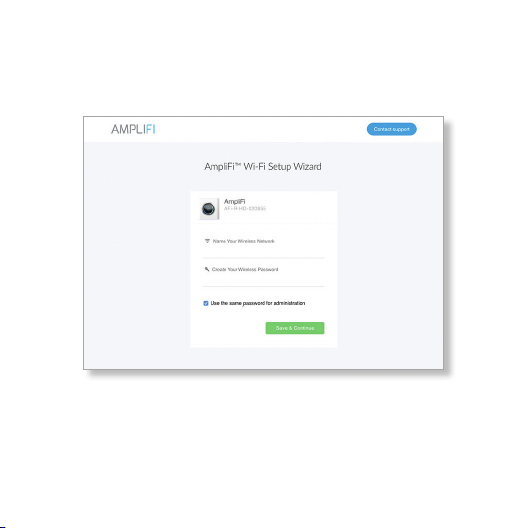

• Launch a web browser and a portal will appear. Enter
a new name for your wireless network and create a
wireless password. Click Save & Continue.

• Connect to the new wireless network that you’ve
created from your computer or tablet.

13

App Features

Overview

Performance

14

The system dashboard is displayed in
the Overview window. It provides an
overview of the AmpliFi Wi‑Fi system
including network status, number of
connected clients, and active
download/upload speeds. Tap devices
to display/edit settings.

Tap Start Test on the Performance
screen to run a speed test that will
provide your download speed, upload
speed, and connection ping time. Swipe
left on the throughput section to view
additional data. A history of recent tests
is displayed at the bottom.

Guest

To provide guest access, determine
the number of guests, select a time
limit for their access, and tap Start.
Guests simply connect to your wireless
network named with the -guest label. No
password is required. As guests connect,
the number of users connected will be
displayed in the app. Tap Stop at any
time to turn o the guest network.

The Family Proles feature allows you
to create proles for family members,
groups, or areas of your home. Assign
devices to the prole, schedule quiet
time (when Internet is not accessible),
and pause the Internet at any time.

The Diagnose option will check
your WAN link, IP settings, Internet
connection, and MeshPoint status.

15

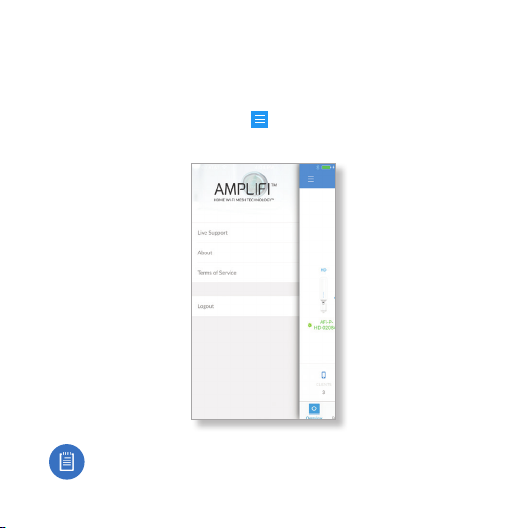

24/7 Live Chat Support

Live chat support is available within the app, 24 hours a
day, 7 days a week. Tap the icon in the upper left of the
app and then tap Live Support.

Live chat is also available at help.ampli.com by
selecting Chat with us in the bottom right.

16

Resetting to Factory Defaults

If the AmpliFi Router administration password is lost,
factory default settings can be restored. Use an object
such as a straightened paper clip or pin to press the
Reset located on the bottom of the AmpliFi Router for
approximately 10 seconds until the LED turns o.

FCC ID: SWX-AFR

M/N: AFi-R

IC: 6545A-AFR

9V 1.7A

This device complies wi th Part 15 of FCC rule s.

Operation is subject to the follo wing 2 conditions:

1) this device may not cause harmful in terference and,

2) this device must accept any interf erence received,
including interference that may cause undesired operation.

RESET

MAC ID

Router Reset

17

Router Specications

Dimensions 99.5 x 97.8 x 99.6 mm (3.91 x 3.85 x 3.92")

Weight 410 g (14.46 oz)

Max. TX Power 26 dBm

Radios 2

MIMO Chains 6

Speed 1750 Mbps

ESD/EMP Protection

Buttons Reset

Antennas (1) Dual‑Band Antenna, Tri‑Polarity
Display 1.6" (40.6 mm) Diagonal, 240 x 240, 212 ppi,

Wi‑Fi Standard 802.11ac

Power Save Supported

Wireless Security WPA2‑PSK AES/TKIP

OperatingTemperature 14 to 131° F (‑10 to 55° C)

Operating Humidity 5 to 95% Noncondensing

Certications FCC / CE / IC

Supported Data Rates

802.11ac 13 Mbps to 1300 Mbps (MCS0 ‑ MCS9, VHT 20/40/80)

802.11n 6.5 Mbps to 450 Mbps (MCS0 ‑ MCS23, HT 20/40)

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

18

± 24kV Air/Contact

G+F Touch, Full Color

Limited Warranty

UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the product(s) furnished hereunder (the
“Product(s)”) shall be free from defects in material and workmanship for a period of one (1) year from the
date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole
and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS,
at its discretion, to repair or replace any Product that fails to conform to the above warranty during
the above warranty period. The expense of removal and reinstallation of any Product is not included
in this warranty. The warranty period of any repaired or replaced Product shall not extend beyond its
original term.

Warranty Conditions

The above warranty does not apply if the Product:
(I) has been modied and/or altered, or an addition made thereto, except by Ubiquiti Networks, or

Ubiquiti Networks’ authorized representatives, or as approved by Ubiquiti Networks in writing;
(II) has been painted, rebranded or physically modied in any way;
(III) has been damaged due to errors or defects in cabling;
(IV) has been subjected to misuse, abuse, negligence, abnormal physical, electromagnetic or

electrical stress, including lightning strikes, or accident;
(V) has been damaged or impaired as a result of using third party rmware;
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.

In addition, the above warranty shall apply only if: the product has been properly installed and used at all
times in accordance, and in all material respects, with the applicable Product documentation; all Ethernet
cabling runs use CAT5 (or above), and for outdoor installations, shielded Ethernet cabling is used, and for
indoor installations, indoor cabling requirements are followed.

Returns

No Products will be accepted for replacement or repair without obtaining a Return Materials
Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products
being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of
UBIQUITI NETWORKS. Products returned without an RMA number will not be processed and will be
returned freight collect or subject to disposal. Information on the RMA process and obtaining an RMA
number can be found at: www.ampli.com/support/warranty.

19

Disclaimer

EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI NETWORKS, ITS AFFILIATES,
AND ITS AND THEIR THIRD PARTY DATA, SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY
DISCLAIM AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR
STATUTORY, INCLUDING, BUT NOT LIMITED TO, REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF
MERCHANTABILITY, ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY, SATISFACTORY QUALITY,
LACK OF VIRUSES, QUIET ENJOYMENT, FITNESS FOR A PARTICULAR PURPOSE AND NON‑INFRINGEMENT
AND ANY WARRANTIES ARISING FROM ANY COURSE OF DEALING, USAGE OR TRADE PRACTICE IN
CONNECTION WITH SUCH PRODUCTS AND SERVICES. BUYER ACKNOWLEDGES THAT NEITHER UBIQUITI
NETWORKS NOR ITS THIRD PARTY PROVIDERS CONTROL BUYER’S EQUIPMENT OR THE TRANSFER OF
DATA OVER COMMUNICATIONS FACILITIES, INCLUDING THE INTERNET, AND THAT THE PRODUCTS AND
SERVICES MAY BE SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER
PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES
AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS,
CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER
DAMAGE RESULTING FROM ANY OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant
that the operation of the Products will be error‑free or that operation will be uninterrupted. In no event
shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating
to system performance, including coverage, buyer’s selection of products (including the Products) for
buyer’s application and/or failure of products (including the Products) to meet government or regulatory
requirements.

Limitation of Liability

EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES,
AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER
DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING OUT OF THE
USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE PRODUCT, WHETHER BASED IN WARRANTY,
CONTRACT, TORT OR OTHER LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.

20

Note

Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so
the above exclusion may not apply to you. You may have other rights that vary from country to country,
state to state, or province to province. Some countries, states and provinces do not allow the exclusion
or limitation of liability for incidental or consequential damages, so the above limitation may not apply
to you. EXCEPT TO THE EXTENT ALLOWED BY LOCAL LAW, THESE WARRANTY TERMS DO NOT EXCLUDE,
RESTRICT OR MODIFY, AND ARE IN ADDITION TO, THE MANDATORY STATUTORY RIGHTS APPLICABLE TO
THE LICENSE OF ANY SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The United Nations Convention
on Contracts for the International Sale of Goods shall not apply to any transactions regarding the sale
of the Products.

Compliance

FCC

Changes or modications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions.
1 This device may not cause harmful interference, and

2 This device must accept any interference received, including interference that may cause undesired

operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

21

Operations of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.

The AmpliFi Router has been approved by the FCC under FCC ID: SWX‑AFR

CAN ICES‑3(B)/NMB‑3(B)

This Class B digital apparatus complies with Canadian CAN ICES‑003.

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen
that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful
communication.

This device complies with Industry Canada licence‑exempt RSS standard(s). Operation is subject to the
following two conditions:

1 This device may not cause interference, and

2 This device must accept any interference, including interference that may cause undesired operation

of the device.

The AmpliFi Router has been approved by Industry Canada under IC: 6545A‑AFR. The device for the
band 5150‑5250 MHz is only for indoor usage to reduce potential for harmful interference to co‑channel
mobile satellite systems.

CAN ICES‑3(B)/NMB‑3(B)

Cet appareil numérique de la classe B est conforme à la norme NMB‑003 du Canada.

Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne et son gain doivent être
choisies de façon que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est
nécessaire pour une communication réussie.

Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence norme(s). Son
fonctionnement est soumis aux deux conditions suivantes:

1 Cet appareil ne peut pas provoquer d’interférences et

2 Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un

mauvais fonctionnement du dispositif.

22

Le AMPLIFI Router ont été approuvés par Industrie Canada en vertu IC : 6545A‑AFR. Les dispositifs
fonctionnant dans la bande 5150‑5250 MHz sont réservés uniquement pour une utilisation à l’intérieur
an de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les
mêmes canaux.

RF Exposure Warning

The antennas used for this transmitter must be installed to provide a separation distance of at least
20cm from all persons and must not be located or operating in conjunction with any other antenna
or transmitter.

Les antennes utilisées pour ce transmetteur doivent être installé en considérant une distance de
séparation de toute personnes d’au moins 20 cm et ne doivent pas être localisé ou utilisé en conit avec
tout autre antenne ou transmetteur.

CE Marking

CE marking on this product represents the product is in compliance with all directives that are applicable
to it.

Alert Sign (!) Follows CE Marking

Alert sign must be indicated if a restriction on use applied to the product and it must follow the CE
marking.

23

RoHS/WEEE Compliance Statement

English

European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/
or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste streams. It is your responsibility
to dispose of this and other electric and electronic equipment via designated collection facilities
appointed by the government or local authorities. Correct disposal and recycling will help prevent
potential negative consequences to the environment and human health. For more detailed information
about the disposal of your old equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.

Deutsch

Die Europäische Richtlinie 2012/19/EU verlangt, dass technische Ausrüstung, die direkt am Gerät
und/oder an der Verpackung mit diesem Symbol versehen ist, nicht zusammen mit unsortiertem
Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt von regulärem
Haushaltmüll getrennt entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses Gerät und andere
elektrische und elektronische Geräte über die dafür zuständigen und von der Regierung oder örtlichen
Behörden dazu bestimmten Sammelstellen zu entsorgen. Ordnungsgemäßes Entsorgen und Recyceln
trägt dazu bei, potentielle negative Folgen für Umwelt und die menschliche Gesundheit zu vermeiden.
Wenn Sie weitere Informationen zur Entsorgung Ihrer Altgeräte benötigen, wenden Sie sich bitte an die
örtlichen Behörden oder städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das Produkt
erworben haben.

24

Español

La Directiva 2012/19/EU exige que los equipos que lleven este símbolo en el propio aparato y/o en su
embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica
que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su
eliminación. Es responsabilidad suya desechar este y cualesquiera otros aparatos eléctricos y electrónicos
a través de los puntos de recogida que ponen a su disposición el gobierno y las autoridades locales. Al
desechar y reciclar correctamente estos aparatos estará contribuyendo a evitar posibles consecuencias
negativas para el medio ambiente y la salud de las personas. Si desea obtener información más detallada
sobre la eliminación segura de su aparato usado, consulte a las autoridades locales, al servicio de
recogida y eliminación de residuos de su zona o pregunte en la tienda donde adquirió el producto.

Français

La directive européenne 2012/19/EU exige que l’équipement sur lequel est apposé ce symbole sur le
produit et/ou son emballage ne soit pas jeté avec les autres ordures ménagères. Ce symbole indique
que le produit doit être éliminé dans un circuit distinct de celui pour les déchets des ménages. Il est de
votre responsabilité de jeter ce matériel ainsi que tout autre matériel électrique ou électronique par les
moyens de collecte indiqués par le gouvernement et les pouvoirs publics des collectivités territoriales.
L’élimination et le recyclage en bonne et due forme ont pour but de lutter contre l’impact néfaste
potentiel de ce type de produits sur l’environnement et la santé publique. Pour plus d’informations sur
le mode d’élimination de votre ancien équipement, veuillez prendre contact avec les pouvoirs publics
locaux, le service de traitement des déchets, ou l’endroit où vous avez acheté le produit.

Italiano

La direttiva europea 2012/19/EU richiede che le apparecchiature contrassegnate con questo simbolo sul
prodotto e/o sull’imballaggio non siano smaltite insieme ai riuti urbani non dierenziati. Il simbolo indica
che questo prodotto non deve essere smaltito insieme ai normali riuti domestici. È responsabilità del
proprietario smaltire sia questi prodotti sia le altre apparecchiature elettriche ed elettroniche mediante
le speciche strutture di raccolta indicate dal governo o dagli enti pubblici locali. Il corretto smaltimento
ed il riciclaggio aiuteranno a prevenire conseguenze potenzialmente negative per l’ambiente e per la
salute dell’essere umano. Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti pubblici di competenza, il servizio di
smaltimento riuti o il negozio nel quale avete acquistato il prodotto.

25

Declaration of Conformity

Česky
[Czech]

Dansk
[Danish]

Nederlands
[Dutch]

English

Eesti
[Estonian]

Suomi
[Finnish]

Français
[French]

Deutsch
[German]

Ελληνική
[Greek]

Magyar
[Hungarian]

Íslenska
[Icelandic]

Italiano
[Italian]

26

UBIQUITI NETWORKS tímto prohlašuje, že toto UBIQUITI NETWORKS zařízení, je ve shod se
základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.

Hermed, UBIQUITI NETWORKS, erklærer at denne UBIQUITI NETWORKS enhed, er i
overensstemmelse med de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.

Hierbij verklaart UBIQUITI NETWORKS, dat deze UBIQUITI NET WORKS apparaat, in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn
1999/5/EG.

Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI NETWORKS device, is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Käesolevaga UBIQUITI NETWORKS kinnitab, et antud UBIQUITI NETWORKS seade, on vastavus
olulistele nõuetele ja teistele asjakohastele sätetele direktiivi 1999/5/EÜ.

Täten UBIQUITI NETWORKS vakuuttaa, että tämä UBIQUITI NETWORKS laite, on yhdenmukainen
olennaisten vaatimusten ja muiden sitä koskevien direktiivin 1999/5/EY.

Par la présente UBIQUITI NETWORKS déclare que l’appareil UBIQUITI NETWORKS, est conforme
aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.

Hiermit erklärt UBIQUITI NETWORKS, dass sich dieses UBIQUITI NET WORKS Gerät, in
Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten
Vorschriften der Richtlinie 1999/5/EG bendet.

Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS,
είναι σε συμμόρφωση με τις βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας
1995/5/ΕΚ.

Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI NETWORKS készülék megfelel az
alapvető követelményeknek és más vonatkozó 1999/5/EK irányelv rendelkezéseit.

Hér, UBIQUITI NETWORKS, því yr að þetta UBIQUITI NETWORKS tæki er í samræmi við
grunnkröfur og önnur viðeigandi ákvæði tilskipun 1999/5/EB.

Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo UBIQUITI NETWORKS, è
conforme ai requisiti essenziali ed alle altre disposizioni pertinenti della direttiva 1999/5/CE.

Latviski
[Latvian]

Lietuviškai
[Lithuanian]

Malti
[Maltese]

Norsk
[Norwegian]

Polski
[Polish]

Português
[Portuguese]

Română
[Romanian]

Slovensky
[Slovak]

Español
[Spanish]

Svenska
[Swedish]

Ar šo, UBIQUITI NETWORKS, deklarē, ka UBIQUITI NETWORKS ierīce, ir saskaņā ar būtiskajām
prasībām un citiem attiecīgiem noteikumiem Direktīvā 1999/5/EK.

UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS įrenginys atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

Hawnhekk, UBIQUITI NETWORKS, tiddikjara li dan il‑mezz UBIQUITI NETWORKS huwa konformi
mar‑rekwiżiti essenzjali u dispożizzjonijiet rilevanti oħrajn ta ‘Direttiva 1999/5/KE.

Herved UBIQUITI NETWORKS, erklærer at denne UBIQUITI NETWORKS enheten, er i samsvar med
de grunnleggende kravene og andre relevante bestemmelser i direktiv

Niniejszym, Ubiquiti Networks, oświadcza, że urządzenie UBIQUITI NETWORKS, jest zgodny
z zasadniczymi wymaganiami oraz pozostałymi stosownymi postanowieniami Dyrektywy
1999/5/WE.

UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE.

Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv UBIQUITI NETWORKS este în
conformitate cu cerințele esențiale și alte prevederi relevante ale Directivei 1999/5/CE.

Týmto

UBIQUITI NETWORKS

základnými požiadavkami a ďalšími relevantnými ustanoveniami smernice 1999/5/ES.

Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI
NETWORKS, cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o
exigibles de la Directiva 1999/5/CE.

Härmed UBIQUITI NETWORKS, intygar att denna UBIQUITI NETWORKS enhet är i
överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som
framgår av direktiv 1999/5/EG.

, prehlasuje, že toto

UBIQUITI NETWORKS

1999/5/EF.

zariadenie, je v súlade so

27

Support

Online

help.ampli.com

Email

help@ampli.com

©2017 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo,
ULabs, the ULabs logo, AmpliFi, and Home Wi‑Fi Mesh Technology are trademarks or registered
trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. Apple, the Apple logo,
and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service
mark of Apple Inc. Android, Google, Google Play, the Google Play logo and other marks are trademarks
of Google Inc. All other trademarks are the property of their respective owners.

640‑00249‑05 • RRJL021617

28
