Amplifi Afi-hd User Manual

QUICK START GUIDE

MODEL: AFi-P-HD

Getting Started

Thank you for purchasing the AmpliFi™
MeshPoint. To get started, download and
install the AmpliFi app from the App Store®
or Google Play™ store.

Package Contents

QUICK START GUIDE

MODEL: AFi-P-HD

MeshPoint Quick Start Guide

1

MeshPoint Overview

Adjustable Antenna

Signal LEDs

Magnetic Connector

MeshPoint Base

2

LED States

Ready to Add

The three middle LEDs will continually
ash on and o indicating a
MeshPoint is ready for conguration.

Booting Up

Once congured, the LEDs will
indicate the device is booting up with
a looping motion of the LEDs lighting
up from bottom to top.

Searching for Network

The LEDs will indicate the MeshPoint
is searching for the network by
lighting up from the middle outwards.

Connected

Once the MeshPoint is connected,
the LEDs will represent the signal
strength.

3

Installing the MeshPoints

For best performance, the MeshPoints
should be placed in dierent directions
between the Router and the areas
farthest from the Router. Mesh multi-hop
should only be used when necessary as
performance will degrade with each hop.

Best Performance

Mesh Multi-Hop

4

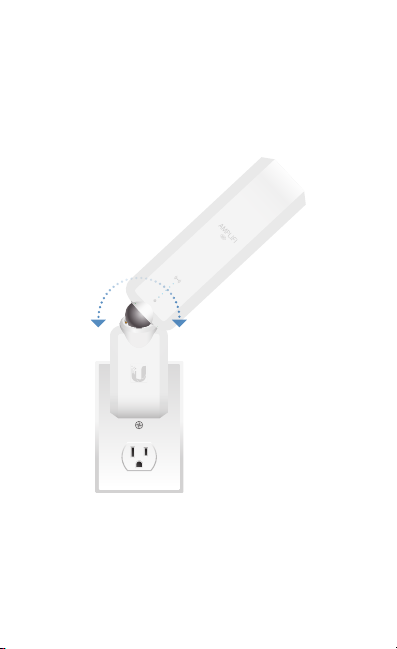

1 Plug the MeshPoint into a power

outlet.

2 The MeshPoint will be in the Ready to

Add state with the three middle LEDs

ashing on and o.

5

3 Launch the app and follow the

instructions for the router you are
connecting to.

• AmpliFi Router - Page 7

• Third-Party Router - Page 10

Ensure that Bluetooth is enabled
on your smartphone.

6

Connect to an AmpliFi Router

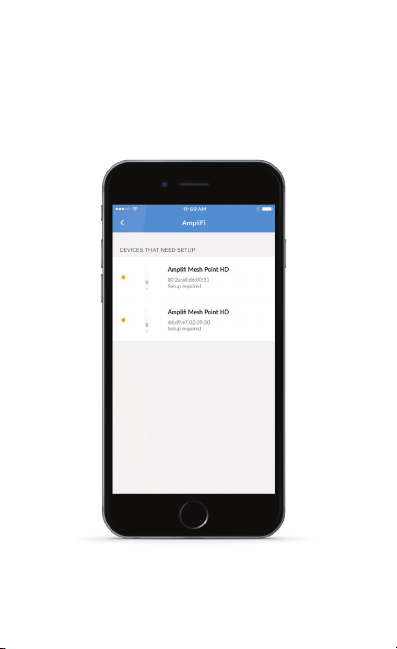

1 If your AmpliFi Router is already up

and running, once you launch the
app the new MeshPoint should be
displayed. Tap Add to Network.

7
