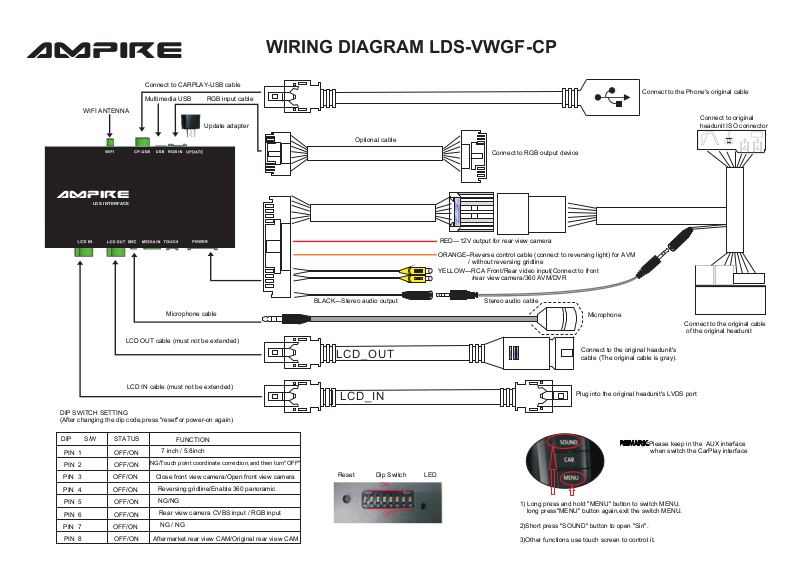

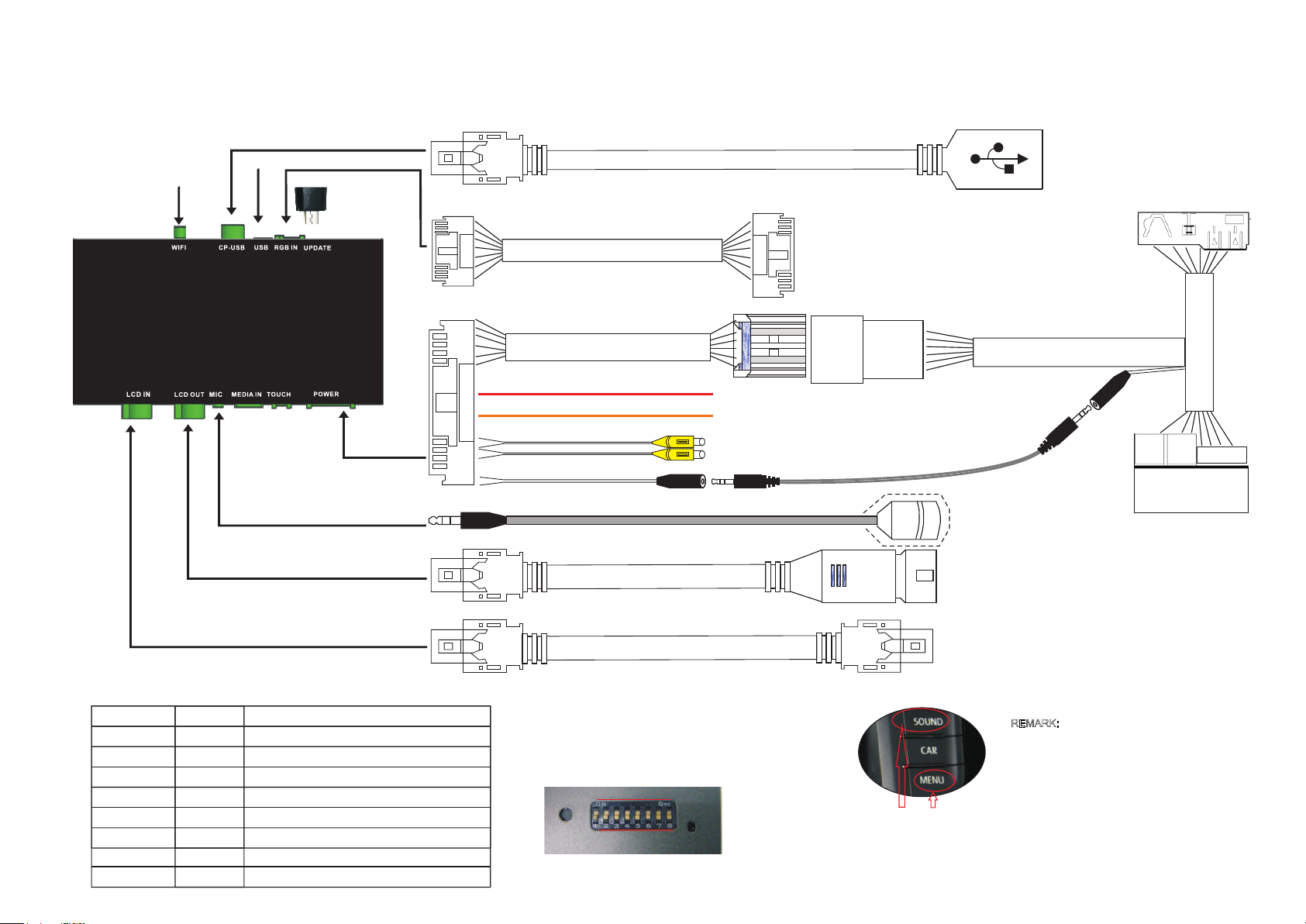

WIRING DIAGRAM LDS-VWGF-CP
WIFI ANTENNA
ampire
ampire
LDS IN TERFACE
LDS INTERFAC E
Connect to CARPLAY-USB cable
Multimedia USB RGB input cable
Update adapter
Microphone cable
LCD OUT cable (must not be extended)
Optional cable
BLACK---Stereo audio output
LCD_OUT
Connect to RGB output device
RED---12V output for rear view camera
ORANGE--Reverse control cable (connect to reversing light) for AVM
/ without reversing gridline
YELLOW---RCA Front/Rear video input(Connect to front
/rear view camera/360 AVM/DVR
Stereo audio cable
Microphone
Connect to the original headunit's
cable
(The original cable is gray).
Connect to the Phone's original cable
Connect to original
headunit ISO connector
Connect to the original cable
of the original headunit
LCD IN cable (must not be extended)
DIP SWITCH SETTING
(After changing the dip code,press "reset"or power-on again)
DIP S/W STATUS
PIN 1 OFF/ON
PIN 2 OFF/ON
PIN 3 OFF/ON
PIN 4 OFF/ON
PIN 5 OFF/ON
PIN 6 OFF/ON
PIN 7 OFF/ON
PIN 8 OFF/ON
FUNCTION
7 inch / 5.8inch
NG/Touch point coordinate correction,and then turn"OFF"
Close front view camera/Open front view camera
Reversing gridline/Enable 360 panoramic
NG/NG
Rear view camera CVBS input / RGB input
NG / NG
Aftermarket rear view CAM/Original rear view CAM
LCD_IN
Reset Dip Switch LED
ON
OFF
Plug into the original headunit's LVDS port
R
EMARK:Please keep in the AUX interface
when switch the CarPlay interface
1) Long press and hold "MENU" button to switch MENU,
long press"MENU" button again,exit the switch MENU.
2)Short press "SOUND" button to open "Siri".
3)Other functions use touch screen to control it.
