ampire
Connect to CARPLAY-USB cable
Multimedia USB
WIFI ANTENNA
ampire
ampire
LDS IN TERFACE
LDS IN TERFACE
Microphone cable
LCD OUT cable (must not be extended)
RGB input cable
Update adapter
Power cable

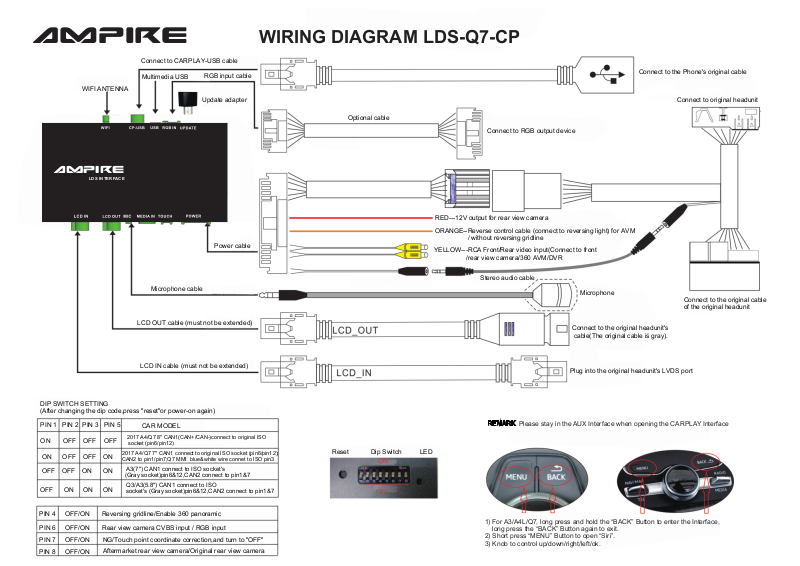

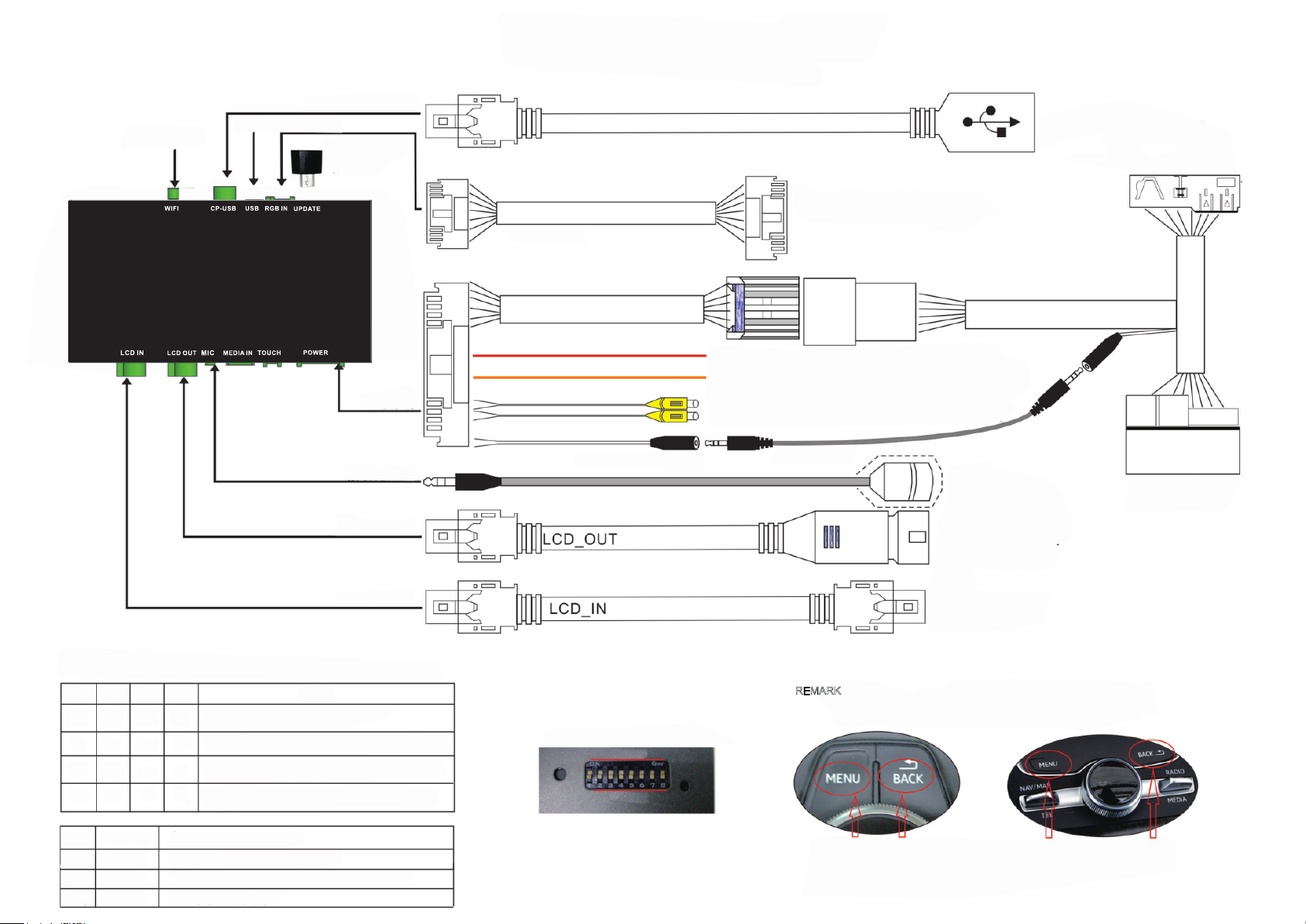

WIRING DIAGRAM LDS-Q7-CP
Optional cable
Connect to RGB output device
RED---12V output for rear view camera
ORANGE--Reverse control cable (connect to reversing light) for AVM
YELLOW---RCA Front/Rear video input(Connect to front
/ without reversing gridline
/rear view camera/360 AVM/DVR
Stereo audio cable
Connect to the Phone's original cable
Microphone
Connect to the original headunit's
cable(The original cable is gray).
Connect to original headunit
Connect to the original cable
of the original headunit
LCD IN cable (must not be extended)
DIP SWITCH SETTING
(After changing the dip code,press "reset"or power-on again)
PIN 1 PIN 2 PIN 3 PIN 5
ON OFF OFF OFF
ON OFF OFF ON
OFF OFF ON ON
OFF ON ON ON
PIN 4 OFF/ON
PIN 6 OFF/ON
PIN 7 OFF/ON
PIN 8 OFF/ON
Reversing gridline/Enable 360 panoramic
Rear view camera CVBS input / RGB input
NG/Touch point coordinate correction,and turn to "OFF"
Aftermarket rear view camera/Original rear view camera
CAR MODEL
2017 A4/Q7 8" CAN1(CAN+/CAN-)connect to original ISO
socket (pin6/pin12)
2017 A4/Q7 7" CAN1 connect to original ISO socket (pin6/pin12);
CAN2 to pin1/pin7;Q7 MMI blue&white wire connet to ISO pin3
A3(7") CAN1 connect to ISO socket's
(Gray socket)pin6&12,CAN2 connect to pin1&7
Q3/A3(5.8") CAN1 connect to ISO
socket's (Gray socket)pin6&12,CAN2 connect to pin1&7
Reset Dip Switch LED
ON
OFF
Plug into the original headunit's LVDS port
R
EMARK
Please stay in the AUX Interface when opening the CARPLAY Interface
1) For A3/A4L/Q7, long press and hold the “BACK” Button to enter the Interface,
long press the “BACK” Button again to exit.
2) Short press “MENU” Button to open “Siri”.
3) Knob to control up/down/right/left/ok.
