ampire

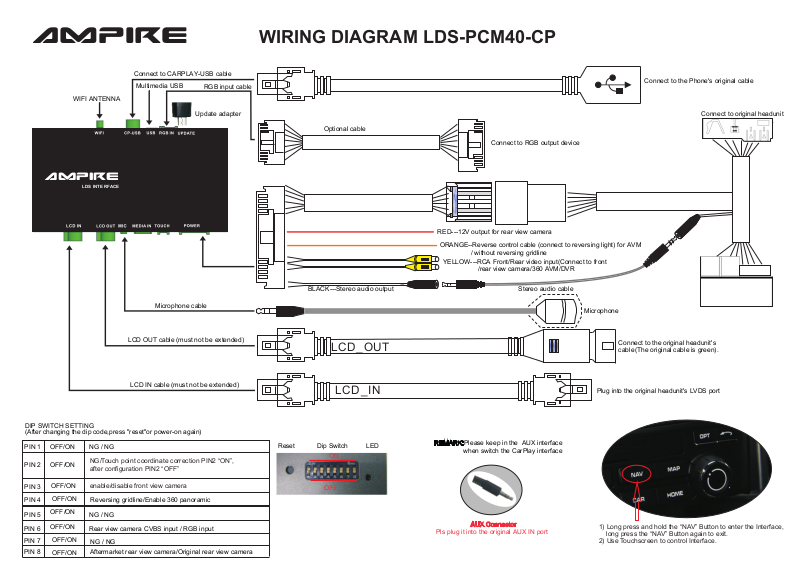

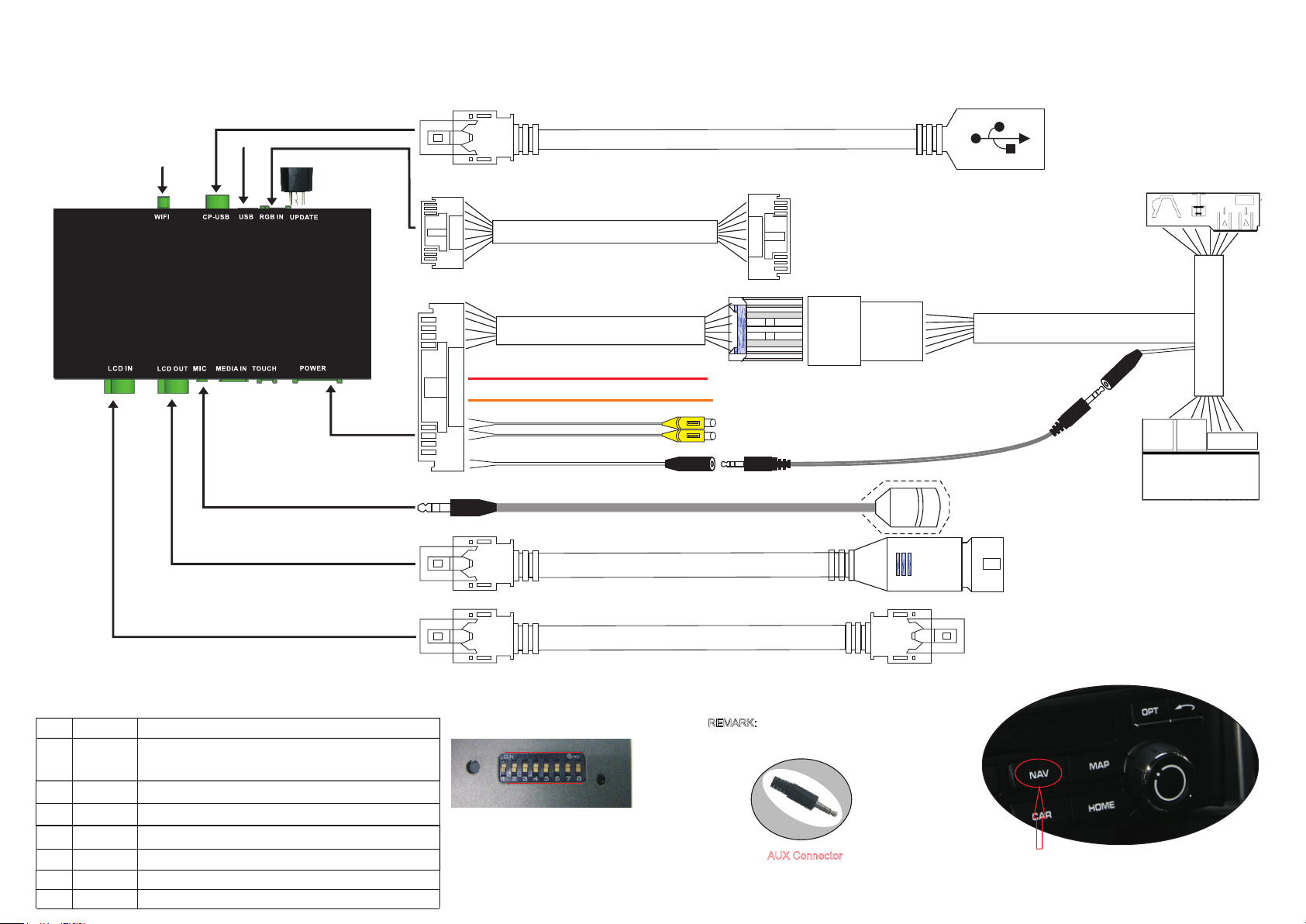

WIRING DIAGRAM LDS-PCM40-CP
WIFI ANTENNA
ampire
LDS INTERFACE
Connect to CARPLAY-USB cable
Multimedia USB
Microphone cable
LCD OUT cable (must not be extended)
RGB input cable
Update adapter
Optional cable
BLACK---Stereo audio output
LCD_OUT
Connect to RGB output device
RED---12V output for rear view camera
ORANGE--Reverse control cable (connect to reversing light) for AVM
/ without reversing gridline
YELLOW---RCA Front/Rear video input(Connect to front
/rear view camera/360 AVM/DVR
Stereo audio cable
Microphone
Connect to the original headunit's
cable
Connect to the Phone's original cable
Connect to original headunit
(The original cable is green).
LCD IN cable (must not be extended)
DIP SWITCH SETTING
(After changing the dip code,press "reset"or power-on again)
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
PIN 7
PIN 8
OFF/ON
OFF/ON
OFF/ON
OFF/ON
OFF/ON
OFF/ON
OFF/ON
OFF/ON
NG / NG
NG/Touch point coordinate correction PIN2 “ON”,
after configuration PIN2 “OFF”
enable/disable front view camera
Reversing gridline/Enable 360 panoramic
NG / NG
Rear view camera CVBS input / RGB input
NG / NG
Aftermarket rear view camera/Original rear view camera
LCD_IN
Reset Dip Switch LED
ON
OFF
EMARK:Please keep in the AUX interface
R
when switch the CarPlay interface
A
Pls plug it into the original AUX IN port
UX Connector
Plug into the original headunit's LVDS port
1) Long press and hold the “NAV” Button to enter the Interface,
long press the “NAV” Button again to exit.
2) Use Touchscreen to control Interface.
