Connect to CARPLAY-USB cable
Multimedia USB
ampire

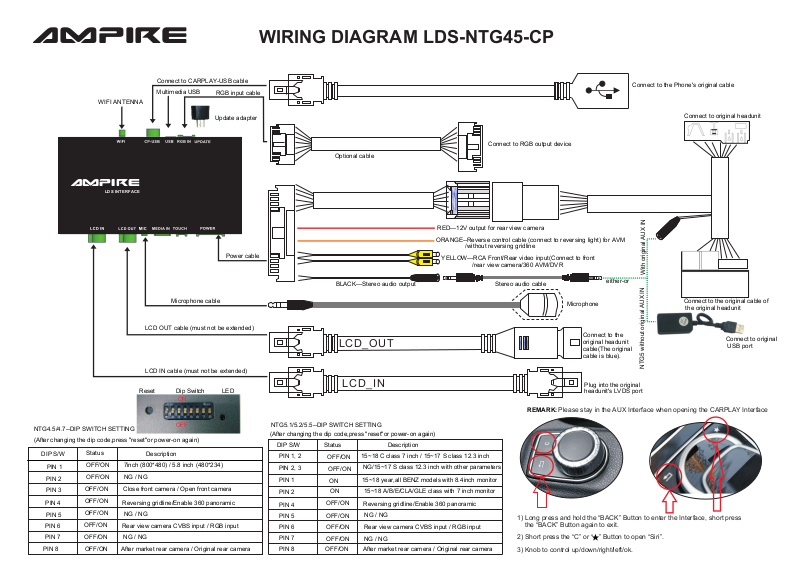

WIRING DIAGRAM LDS-NTG45-CP
ampire
NTG4.5/4.7--DIP SWITCH SETTING
(After changing the dip code,press "reset"or power-on again)
DIP S/W
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
PIN 7
PIN 8
OFF/ON
OFF/ON
WIFI ANTENNA
LDS INTERFACE
Status
OFF/ON
OFF/ON
OFF/ON
OFF/ON
OFF/ON
OFF/ON
RGB input cable
Update adapter
Power cable
Microphone cable
LCD OUT cable (must not be extended)
LCD IN cable (must not be extended)
Reset Dip Switch LED
Description
7inch (800*480) / 5.8 inch (480*234)
NG / NG
Close front camera / Open front camera
Reversing gridline/Enable 360 panoramic
NG / NG
Rear view camera CVBS input / RGB input
NG / NG
After market rear camera / Original rear camera
ON
OFF
Optional cable
BLACK---Stereo audio output
LCD_OUT
LCD_IN
NTG5.1/5.2/5.5--DIP SWITCH SETTING
(After changing the dip code,press "reset"or power-on again)
DIP S/W
PIN 1, 2
PIN 2, 3
PIN 1
PIN 2
PIN 4
PIN 5
PIN 6
PIN 7
PIN 8
Status
OFF/ON
OFF/ON
ON
ON
OFF/ON
OFF/ON
OFF/ON
OFF/ON
OFF/ON
Description
15~18 C class 7 inch / 15~17 S class 12.3 inch
NG/15~17 S class 12.3 inch with other parameters
15~18 year,all BENZ models with 8.4inch monitor
15~18 A/B/E/CLA/GLE class with 7 inch monitor
Reversing gridline/Enable 360 panoramic
NG / NG
Rear view camera CVBS input / RGB input
NG / NG
After market rear camera / Original rear camera
Connect to RGB output device
RED---12V output for rear view camera
ORANGE--Reverse control cable (connect to reversing light) for AVM
/without reversing gridline
YELLOW---RCA Front/Rear video input(Connect to front
/rear view camera/360 AVM/DVR
Stereo audio cable
Microphone
REMARK:
1) Long press and hold the “BACK” Button to enter the Interface, short press
the “BACK” Button again to exit.
Please stay in the AUX Interface when opening the CARPLAY Interface
either-or
Connect to the
original headunit
cable(The original
cable is blue).
Plug into the original
headunit's LVDS port
2) Short press the “C” or “ ” Button to open “Siri”.
3) Knob to control up/down/right/left/ok.
Connect to the Phone's original cable
Connect to original headunit
NI XUA lanigiro htiW
NI XUA lanigiro tuohtiw 5GTN
Connect to the original cable of
the original headunit
Connect to original
USB port
