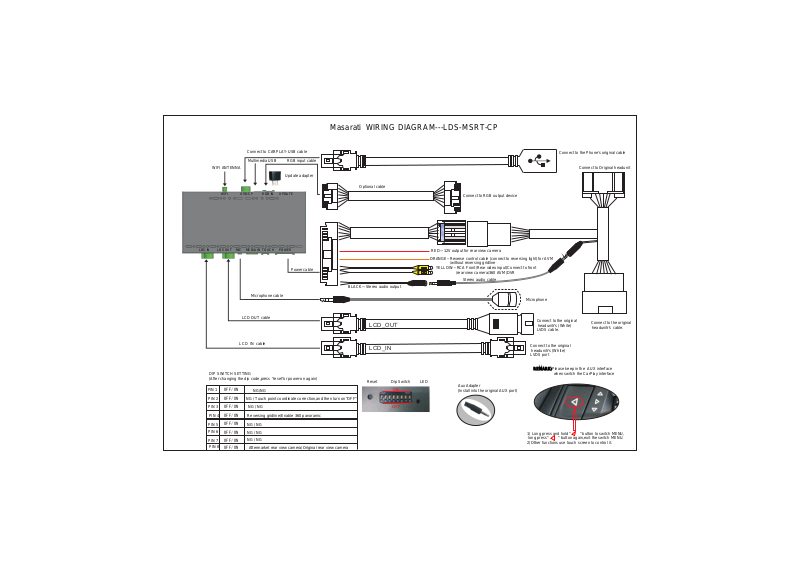

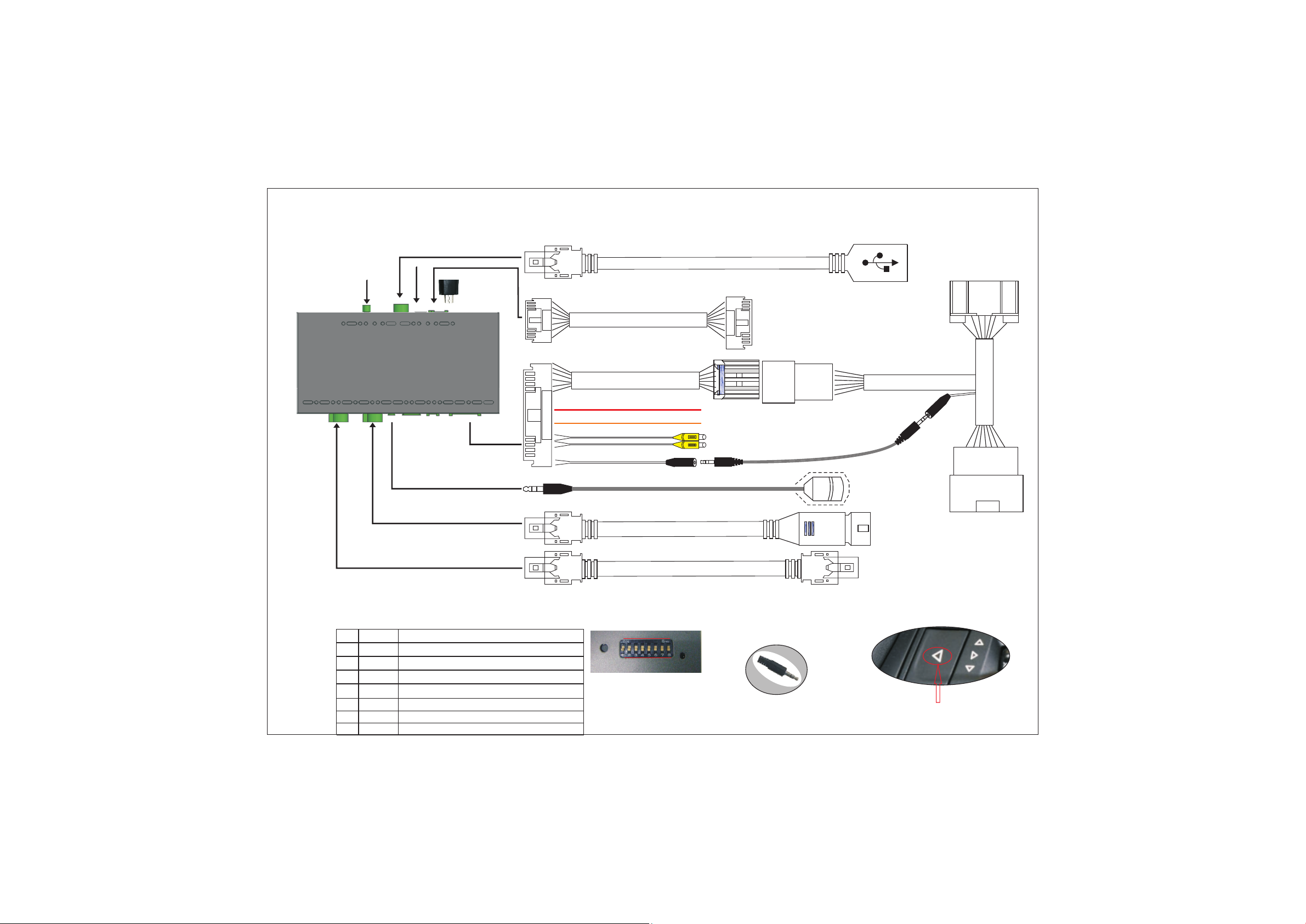

Masarati WIRING DIAGRAM---LDS-MSRT-CP
Connect to CARPLAY-USB cable
WIFI ANTENNA
WIFI
LDS IN LDS OUT MIC MEDIA IN TOUCH POWER
Multimedia USB
USB-CP
Microphone cable
LCD OUT cable
LCD IN cable
RGB IN
Update adapter
UPDATE
RGB input cable
Power cable
Optional cable
BLACK---Stereo audio output
LCD_OUT
LCD_IN
Connect to RGB output device
RED---12V output for rear view camera
ORANGE--Reverse control cable (connect to reversing light) for AVM
/without reversing gridline
YELLOW---RCA Front/Rear video input(Connect to front
/rear view camera/360 AVM/DVR
Stereo audio cable
Microphone
Connect to the original
headunitr's (White)
LVDS cable.
Connect to the original
headunitr's (White)
LVDS port
Connect to the Phone's original cable
Connect to Original headunit
Connect to the original
headunitr's cable.
DIP SWITCH SETTING
(After changing the dip code,press "reset"or power-on again)
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
PIN 7
PIN 8
OFF / O N
OFF / O N
OFF / O N
OFF / O N
OFF / O N
OFF / O N
OFF / O N
OFF / O N
NG/NG
NG / Touch point coordinate correction,and then turn on"OFF"
NG / NG
Reversing gridline/Enable 360 panoramic
NG / NG
NG / NG
NG / NG
Aftermarket rear view camera/Original rear view camera
Reset Dip Switch LED
ON
OFF
Aux Adapter
(Install into the original AUX port)
REMARK:Please keep in the AUX interface
when switch the CarPlay interface
1) Long press and hold " " button to switch MENU,
long press" " button again,exit the switch MENU.
2)Other functions use touch screen to control it.
