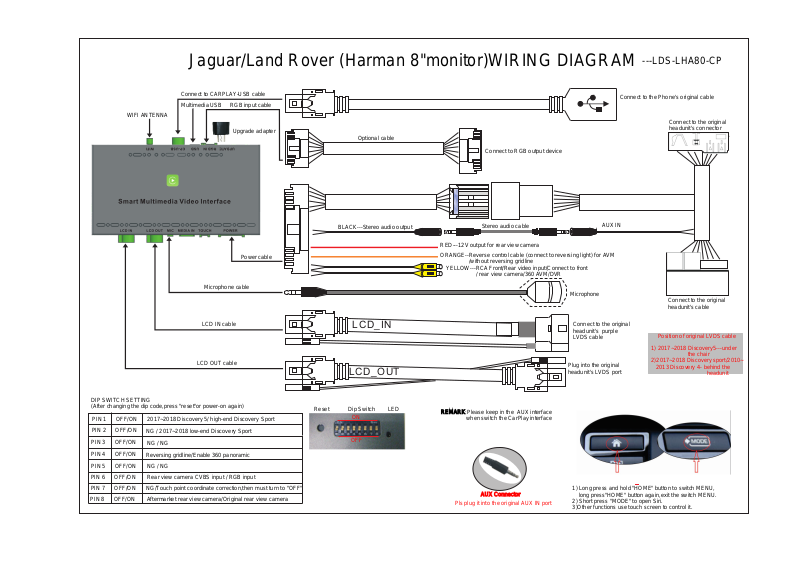

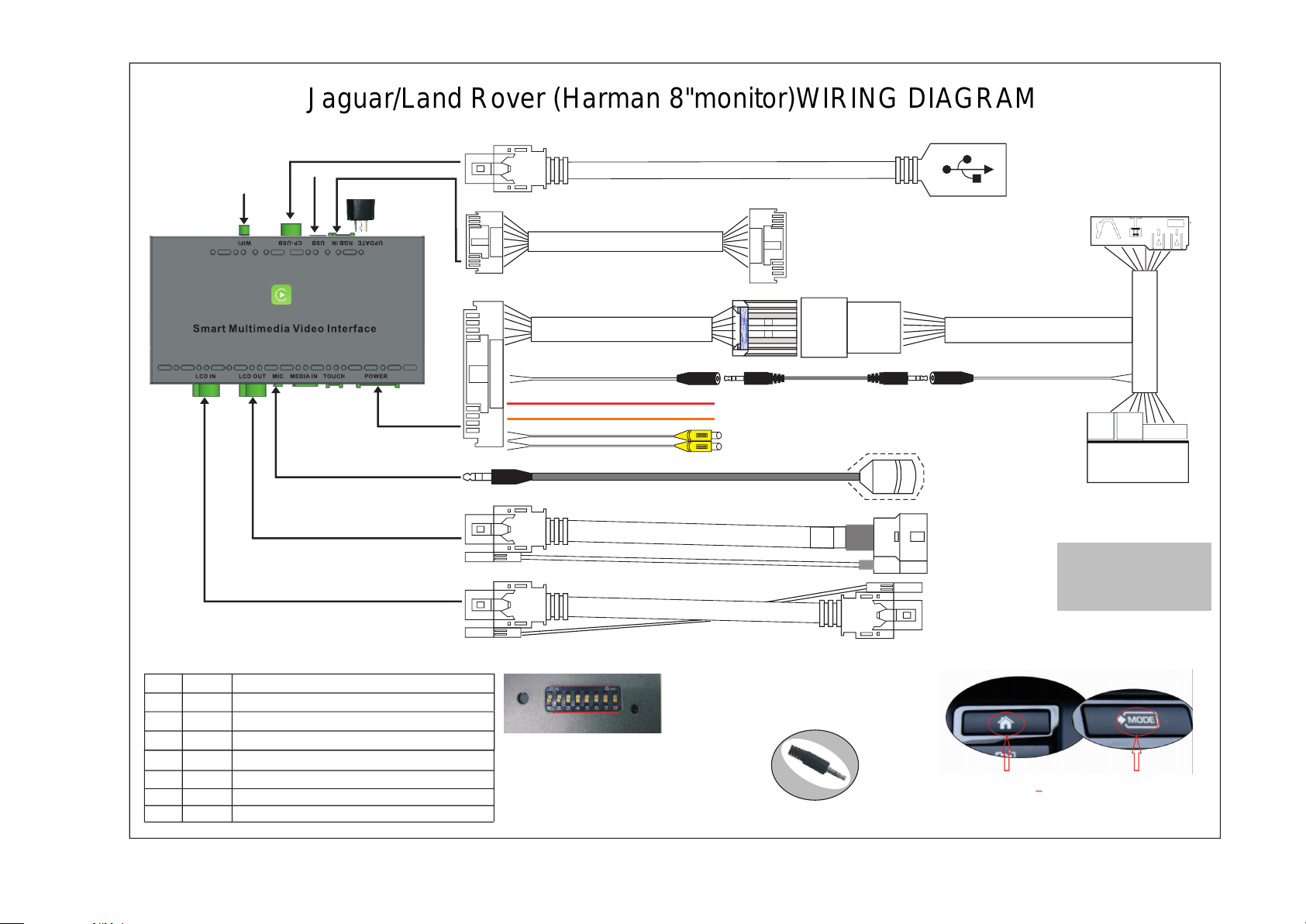

Jaguar/Land Rover (Harman 8"monitor)WIRING DIAGRAM
---LDS-LHA80-CP
WIFI ANTENNA
Connect to CARPLAY-USB cable
Multimedia USB
LCD OUT cable
RGB input cable
Upgrade adapter
Power cable
Microphone cable
LCD IN cable
Optional cable
BLACK---Stereo audio output
LCD_IN
LCD_OUT
Connect to RGB output device
Stereo audio cable
RED---12V output for rear view camera
ORANGE--Reverse control cable (connect to reversing light) for AVM
/without reversing gridline
YELLOW---RCA Front/Rear video input(Connect to front
/ rear view camera/360 AVM/DVR
Microphone
Connect to the original
headunit's purple
LVDS cable
Plug into the original
headunit's LVDS port
AUX IN
Connect to the Phone's original cable
Connect to the original
headunit's connector
Connect to the original
headunit's cable
Position of original LVDS cable
1) 2017~2018 Discovery5---under
the chair
2)2017~2018 Discovery spor
2013 Discovery 4- behind t
headunit
t/2010~
he
DIP SWITCH SETTING
(After changing the dip code,press "reset"or power-on again)
2017~201
PIN 1 OFF/ON
PIN 2 OFF/ON
PIN 3 OFF/ON
PIN 4 OFF/ON
PIN 5 OFF/ON
PIN 6 OFF/ON
PIN 7 OFF/ON
PIN 8 OFF/ON
8 Discovery 5/ high
NG / 2017~201
NG / NG
Reversing gridline/Enable 360 panoramic
NG / NG
Rear view camera CVBS input / RGB input
NG/Touch point coordinate correction,then must turn to "OFF"
Aftermarket rear view camera/Original rear view camera
8 low-e
-end Discovery Sport
nd Discov
ery Spor
Reset Dip Switch LED
t
ON
OFF
REMARK:Please keep in the AUX interface
when switch the CarPlay interface
AUX Connector
Pls plug it into the original AUX IN port
1) Long press and hold "HOME" button to switch MENU,
long press"HOME" button again,exit the switch MENU.
2) Short press "MODE" to open Siri.
3)Other functions use touch screen to control it.
