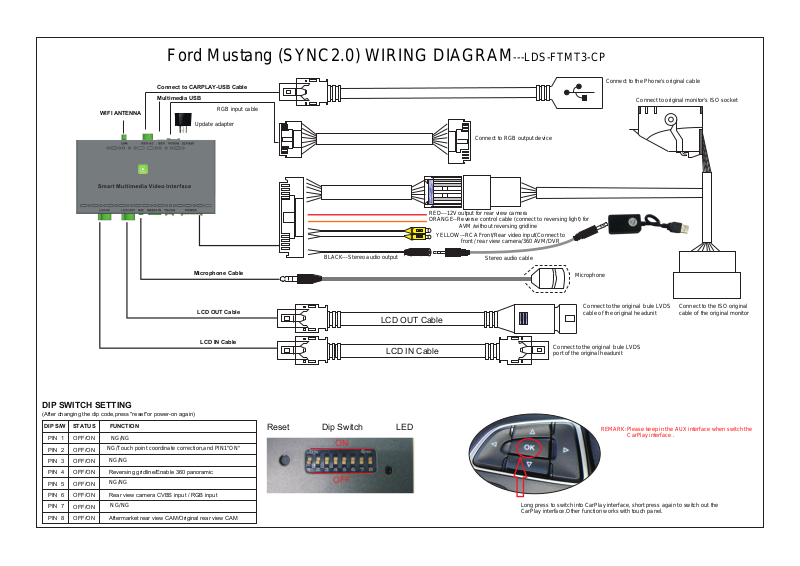

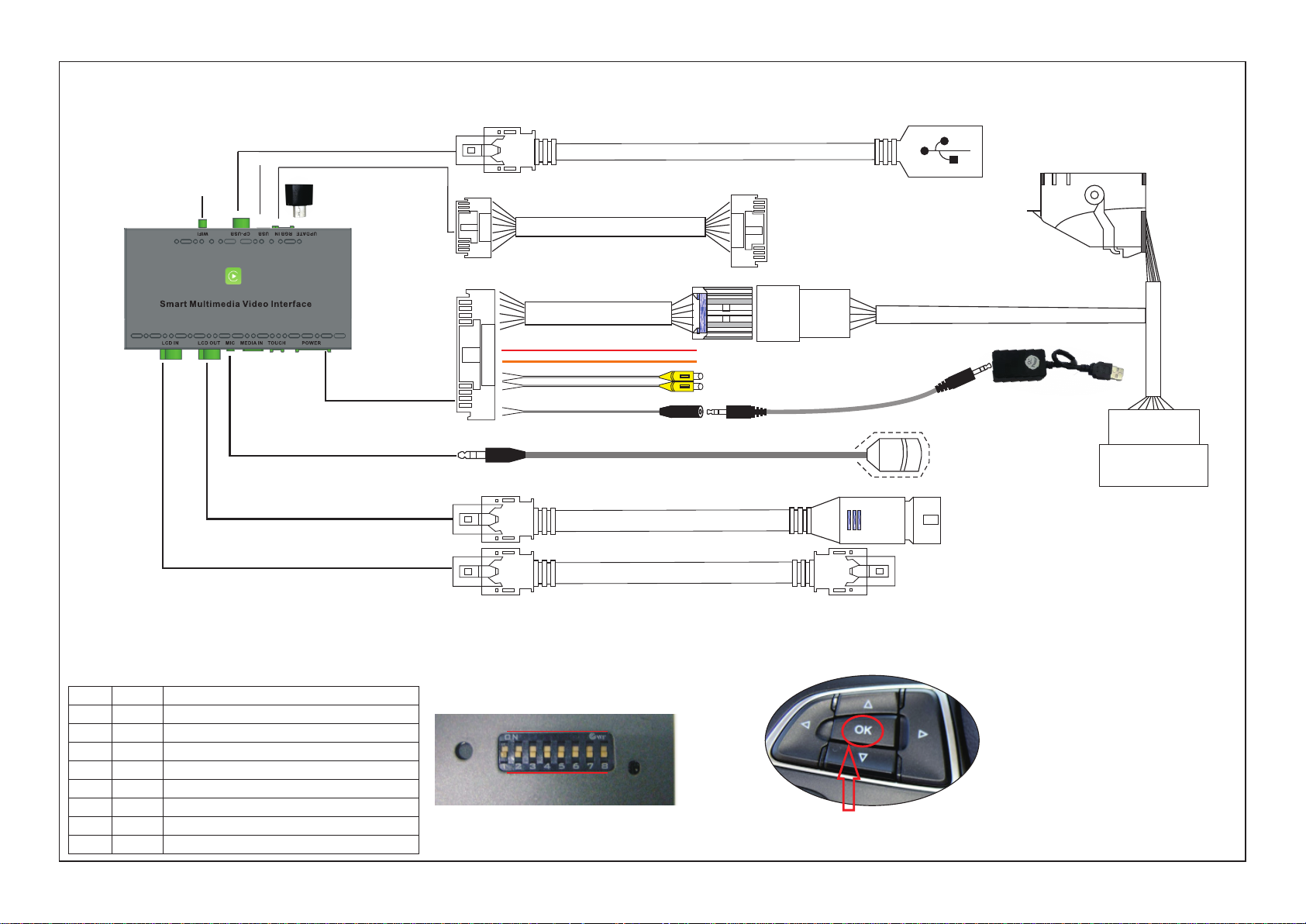

Ford Mustang (SYNC2.0) WIRING DIAGRAM---LDS-FTMT3-CP
WIFI ANTENNA
Connect to CARPLAY-USB Cable
Multimedia USB
RGB input cable
Update adapter
Microphone Cable
LCD OUT Cable
LCD IN Cable
BLACK---Stereo audio output
LCD OUT Cable
LCD IN Cable
Connect to RGB output device
RED---12V output for rear view camera
ORANGE--Reverse control cable (connect to reversing light) for
AVM /without reversing gridline
YELLOW---RCA Front/Rear video input(Connect to
front / rear view camera/360 AVM/DVR
Stereo audio cable
Microphone
Connect to the original bule LVDS
cable of the original headunit
Connect to the original bule LVDS
port of the original headunit
Connect to the Phone's original cable
Connect to original monitor's ISO socket
Connect to the ISO original
cable of the original monitor
DIP SWITCH SETTING
(After changing the dip code,press "reset"or power-on again)
DIP S/W STATUS FUNCTION
PIN 1 OFF/ON
PIN 2
OFF/ON
PIN 3
OFF/ON
PIN 4
OFF/ON
PIN 5
OFF/ON
PIN 6
OFF/ON
PIN 7
OFF/ON
PIN 8
OFF/ON
NG/NG
NG/Touch point coordinate correction,and PIN1"ON"
NG/NG
Reversing gridline/Enable 360 panoramic
NG/NG
Rear view camera CVBS input / RGB input
NG/NG
Aftermarket rear view CAM/Original rear view CAM
Reset Dip Switch LED
ON
OFF
REMARK:Please keep in the AUX interface when switch the
CarPlay interface .
Long press to switch into CarPlay interface, short press again to switch out the
CarPlay interface.Other function works with touch panel.
