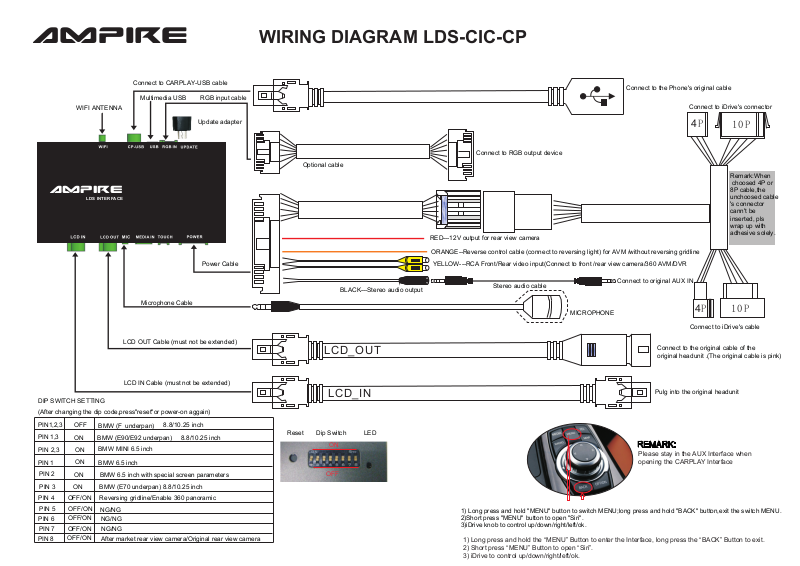

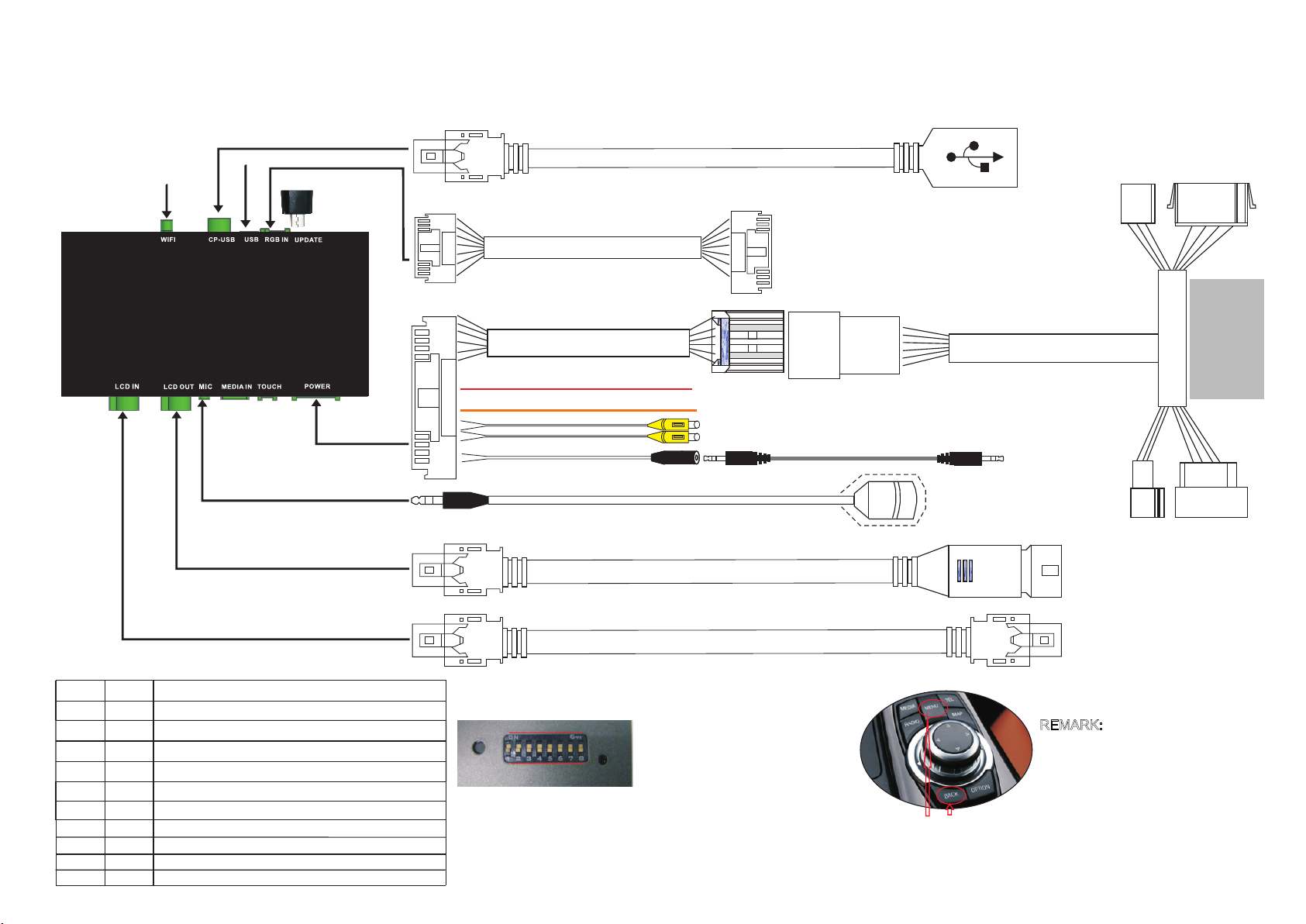

WIRING DIAGRAM LDS-CIC-CP
WIFI ANTENNA
ampire
LDS INTER FACE
Connect to CARPLAY-USB cable
Multimedia USB RGB input cable
Update adapter
Power Cable
Microphone Cable
LCD OUT Cable (must not be extended)
Optional cable
LCD_OUT
BLACK---Stereo audio output
Connect to the Phone's original cable
Connect to iDrive's connector
Connect to RGB output device
RED---12V output for rear view camera
ORANGE--Reverse control cable (connect to reversing light) for AVM /without reversing gridline
YELLOW---RCA Front/Rear video input(Connect to front /rear view camera/360 AVM/DVR
Stereo audio cable
MICROPHONE
Connect to original AUX IN
Connect to the original cable of the
original headunit .(The original cable is pink)
4P
4P
Connect to iDrive's cable
1 0 P
Remark:When
choosed 4P or
8P cable,the
unchoosed cable
's connector
cann't be
inserted, pls
wrap up with
adhesive solely.
1 0 P
LCD IN Cable (must not be extended)
DIP SWITCH SETTING
(After changing the dip code,press"reset"or power-on aggain)
8.8/10.25 inchPIN1,2,3
PIN 1,3
PIN 2,3
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
PIN 7
PIN 8
OFF
ON
ON
ON
ON
ON
OFF/ON
OFF/ON
OFF/ON
OFF/ON
OFF/ON
BMW (F underpan)
BMW (E90/E92 underpan) 8.8/10.25 inch
BMW MINI 6.5 inch
BMW 6.5 inch
BMW 6.5 inch with special screen parameters
BMW (E70 underpan) 8.8/10.25 inch
Reversing gridline/Enable 360 panoramic
NG/NG
NG/NG
NG/NG
After market rear view camera/Original rear view camera
LCD_IN
Reset Dip Switch LED
ON
OFF
Pulg into the original headunit
REMARK:
Please stay in the AUX Interface when
opening the CARPLAY Interface
1) Long press and hold "MENU" button to switch MENU;long press and hold "BACK" button,exit the switch MENU.
2)Short press "MENU" button to open "Siri".
3)iDrive knob to control up/down/right/left/ok.
1) Long press and hold the “MENU” Button to enter the Interface, long press the “BACK” Button to exit.
2) Short press “MENU” Button to open “Siri”.
3) iDrive to control up/down/right/left/ok.
