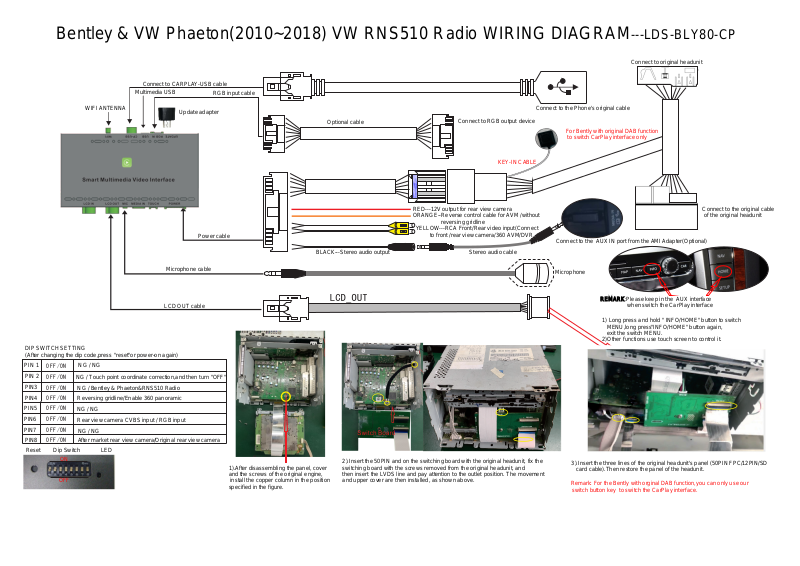

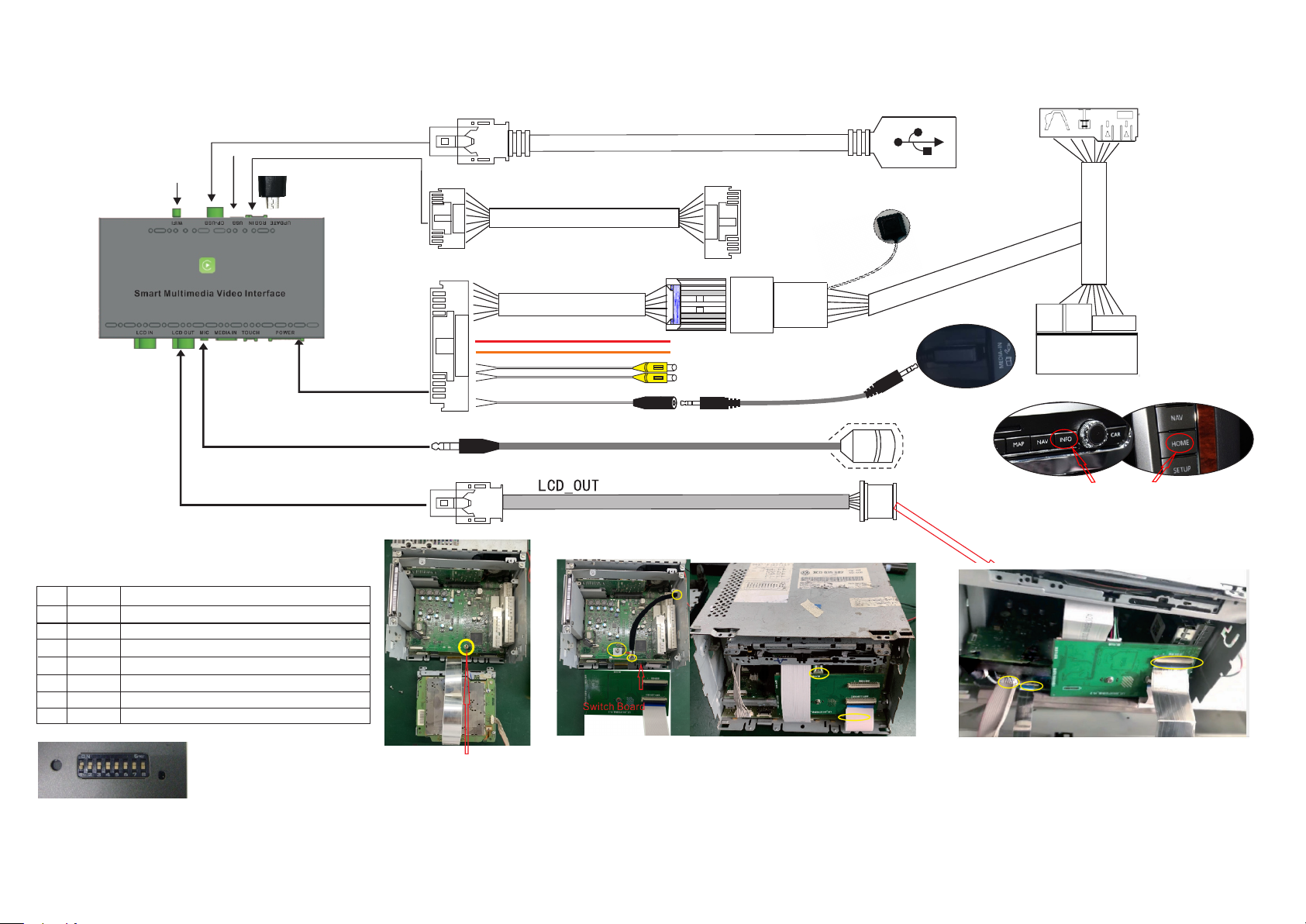

Bentley & VW Phaeton(2010~2018) VW RNS510 Radio WIRING DIAGRAM---LDS-BLY80-CP
Connect to original headunit
Connect to CARPLAY-USB cable
WIFI ANTENNA
Multimedia USB
Update adapter
RGB input cable
Optional cable
Connect to RGB output device
KEY-IN CABLE
Connect to the Phone's original cable
For Bently with original DAB function
to switch CarPlay interface only
Microphone cable
LCD OUT cable
DIP SWITCH SETTING
(After changing the dip code,press "reset"or power-on again)
PIN 1
O F F / O N
PIN 2
O F F / O N
PIN3
O F F / O N
PIN4
O F F / O N
PIN5
O F F / O N
O F F / O N
PIN6
O F F / O N
PIN7
O F F / O N
PIN8
Reset Dip Switch LED
NG / NG
NG / Touch point coordinate correction,and then turn "OFF"
NG / Bentley & Phaeton&RNS510 Radio
Reversing gridline/Enable 360 panoramic
NG / NG
Rear view camera CVBS input / RGB input
NG / NG
After market rear view camera/Original rear view camera
ON
OFF
Power cable
BLACK---Stereo audio output
1).After disassembling the panel, cover
and the screws of the original engine,
install the copper column in the position
specified in the figure.
RED---12V output for rear view camera
ORANGE--Reverse control cable for AVM /without
reversing gridline
YELLOW---RCA Front/Rear video input(Connect
to front /rear view camera/360 AVM/DVR
Stereo audio cable
Switchboard
2).Insert the 50PIN and on the switching board with the original headunit, fix the
switching board with the screws removed from the original headunit, and
then insert the LVDS line and pay attention to the outlet position. The movement
and upper cover are then installed, as shown above.
Connect to the original cable
of the original headunit
Connect to the AUX IN port from the AMI Adapter(Optional)
Microphone
REMARK:Please keep in the AUX interface
when switch the CarPlay interface
1) Long press and hold " INFO/HOME" button to switch
MENU,long press"INFO/HOME" button again,
exit the switch MENU.
2)Other functions use touch screen to control it.
3).Insert the three lines of the original headunit's panel (50PIN FPC/12PIN/SD
card cable).Then restore the panel of the headunit.
Remark: For the Bently with orginal DAB function,you can only use our
switch button key to switch the CarPlay interface.
