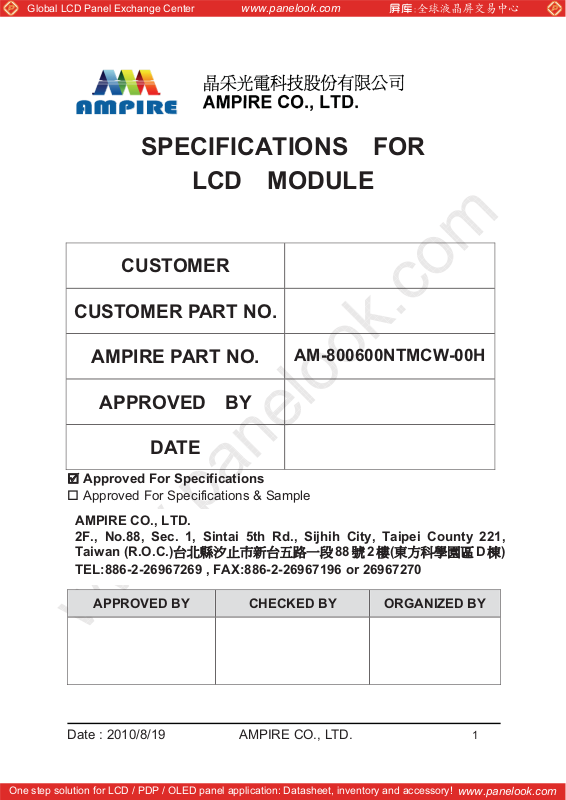

Page 1
Global LCD Panel Exchange Center
;
קᗼۄַؑᄅնሁԫ88ᇆ2ᑔ(ֱࣟઝᖂႼDར
SPECIFICATIONS FOR
CUSTOMER
www.panelook.com
LCD MODULE
CUSTOMER PART NO.
AMPIRE PART NO.
AM-800600NTMCW-00H
APPROVED BY
DATE
Approved For Specifications
Approved For Specifications & Sample
AMPIRE CO., LTD.
2F., No.88, Sec. 1, Sintai 5th Rd., Sijhih City, Taipei County 221,
Taiwan (R.O.C.)
TEL:886-2-26967269 , FAX:886-2-26967196 or 26967270
)
APPROVED BY CHECKED BY ORGANIZED BY
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1
www.panelook.com
Page 2
Global LCD Panel Exchange Center
Revision Date Page Contents Editor
2010/8/19 - New Release Kevin
www.panelook.com
RECORD OF REVISION
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2
www.panelook.com
Page 3
Global LCD Panel Exchange Center
1. FEATURES
AM-800600N model is a 12.1” TFT-LCD module with a 2-CCFL Backlight Unit and
a 20-pin 1ch-LVDS interface. This module supports 800 x 600 SVGA mode and
displays 262,144 colors. The inverter module for the Backlight Unit is not bulilt in.
- Wide Viewing angle
- High contrast ratio
- Fast response time
- High color saturation
- SVGA (800 x 600 pixels) resolution
- Wide operating temperature
- DE (Data Enable) mode
www.panelook.com
- LVDS (Low Voltage Differential Signaling) interface
- RoHS Compliance
- Reversible – Scan Function
APPLICATIONS
- TFT LCD Monitor
- TFT LCD TV
- Factory Application
- Amusement
- Vehicle
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3
www.panelook.com
Page 4
Global LCD Panel Exchange Center

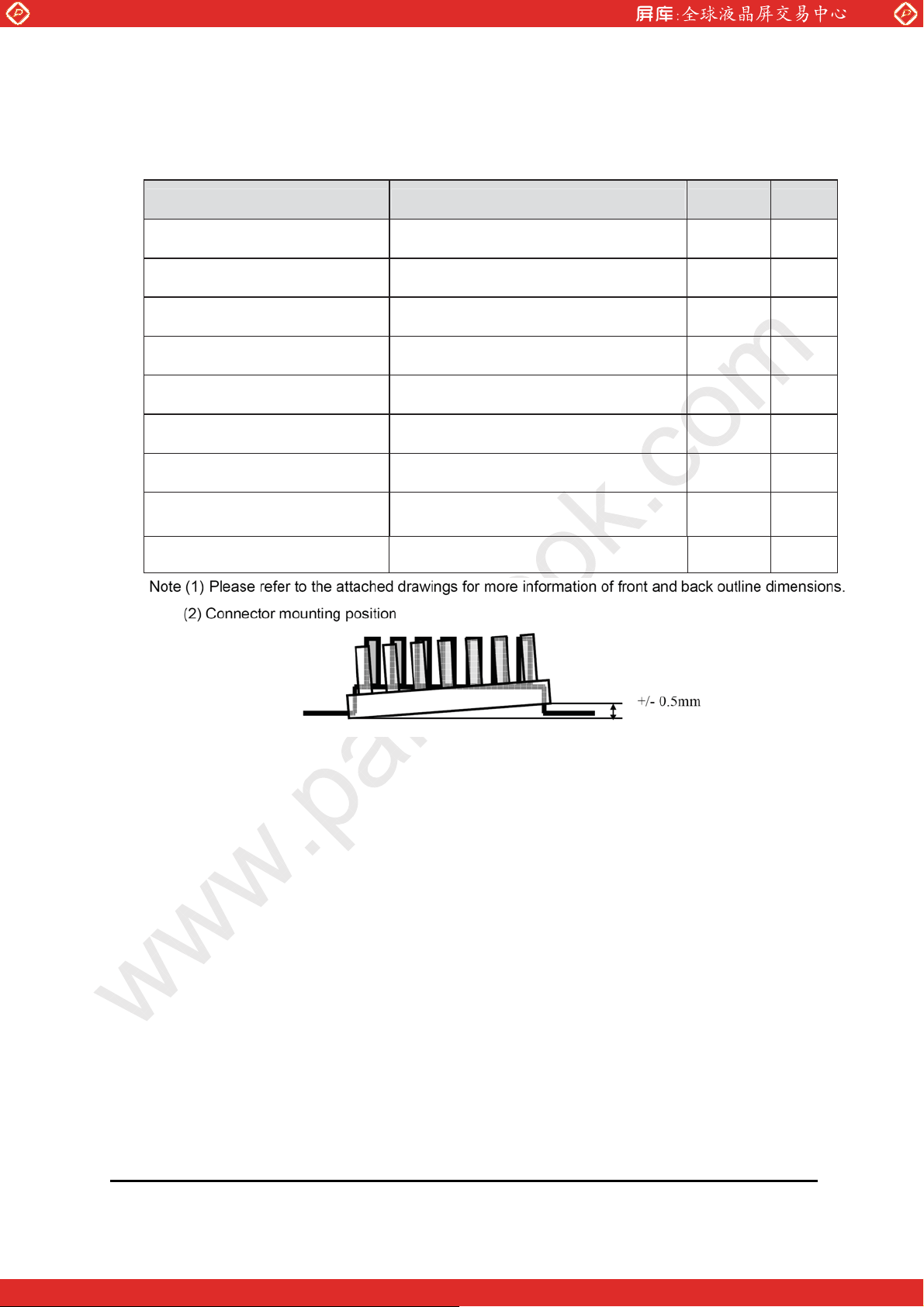

2. PHYSICAL SPECIFICATIONS
Item Specifications Unit Note
www.panelook.com
Active area
Driver Element
Pixel Number 800 x R.G.B x 600 pixel -
Pixel Pitch 0.3075(H) x 0.3075(V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 262,144 color -
Transmissive Mode Normally black - -
Surface Treatment
Weight 660(Max.) g -
246.00 (H) ×184.50 (V) mm (1)
a-si TFT active matrix - -
Hard coating (3H), Anti-Glare
(Haze 25%)
- -
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4
www.panelook.com
Page 5
Global LCD Panel Exchange Center
3. ABSOLUTE MAX. RATINGS
3.1 Absolute Max Rating
The followings are maximum values which, if exceed, may cause faulty operation
or damage to the unit.
Item Symbol
www.panelook.com
Values
UNIT Note
Min. Max.
Operating Ambient
Temperature
TOP -30 +70
Storage Temperature TST -40 +80
к
к
(0)(1)(2)
(0)(1)
Power Supply Voltage VCC -0.3 6.0 V (1)
Logic Input Voltage VIN -0.3 2.7 V (1)
Lamp Voltage VL - 2.5K Vrms (1)(2),IL=8mA
Lamp Current IL 2.0 8.5 mA
RMS
(1)(2)
Lamp Frequency FL 45 80 KHz (1)(2)
Ϡ All the notes are in subject 3.2 (Absolute Ratings of Environment)
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5
www.panelook.com
Page 6
Global LCD Panel Exchange Center

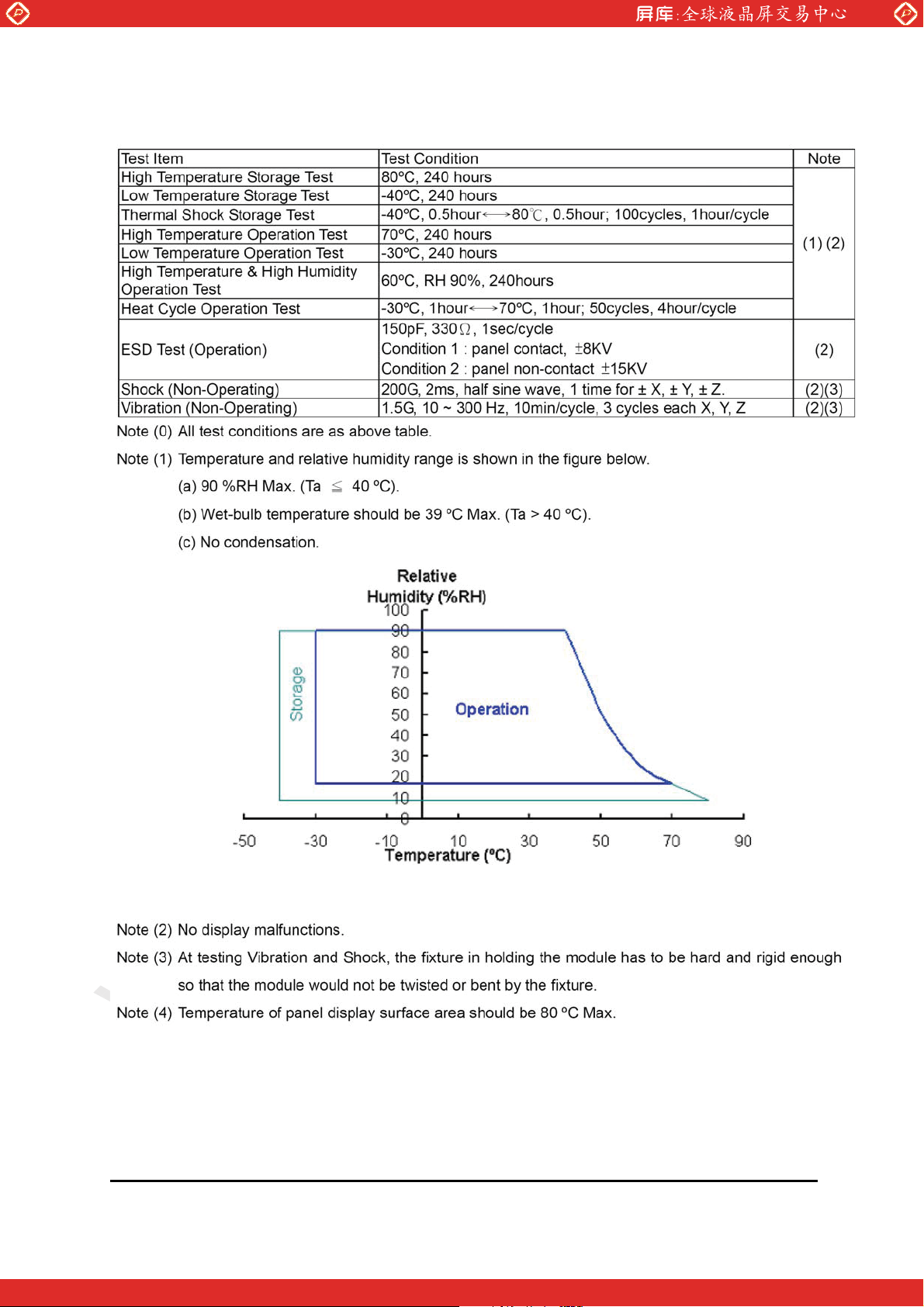

3.2 Absolute Ratings of Environment
www.panelook.com
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6
www.panelook.com
Page 7
Global LCD Panel Exchange Center

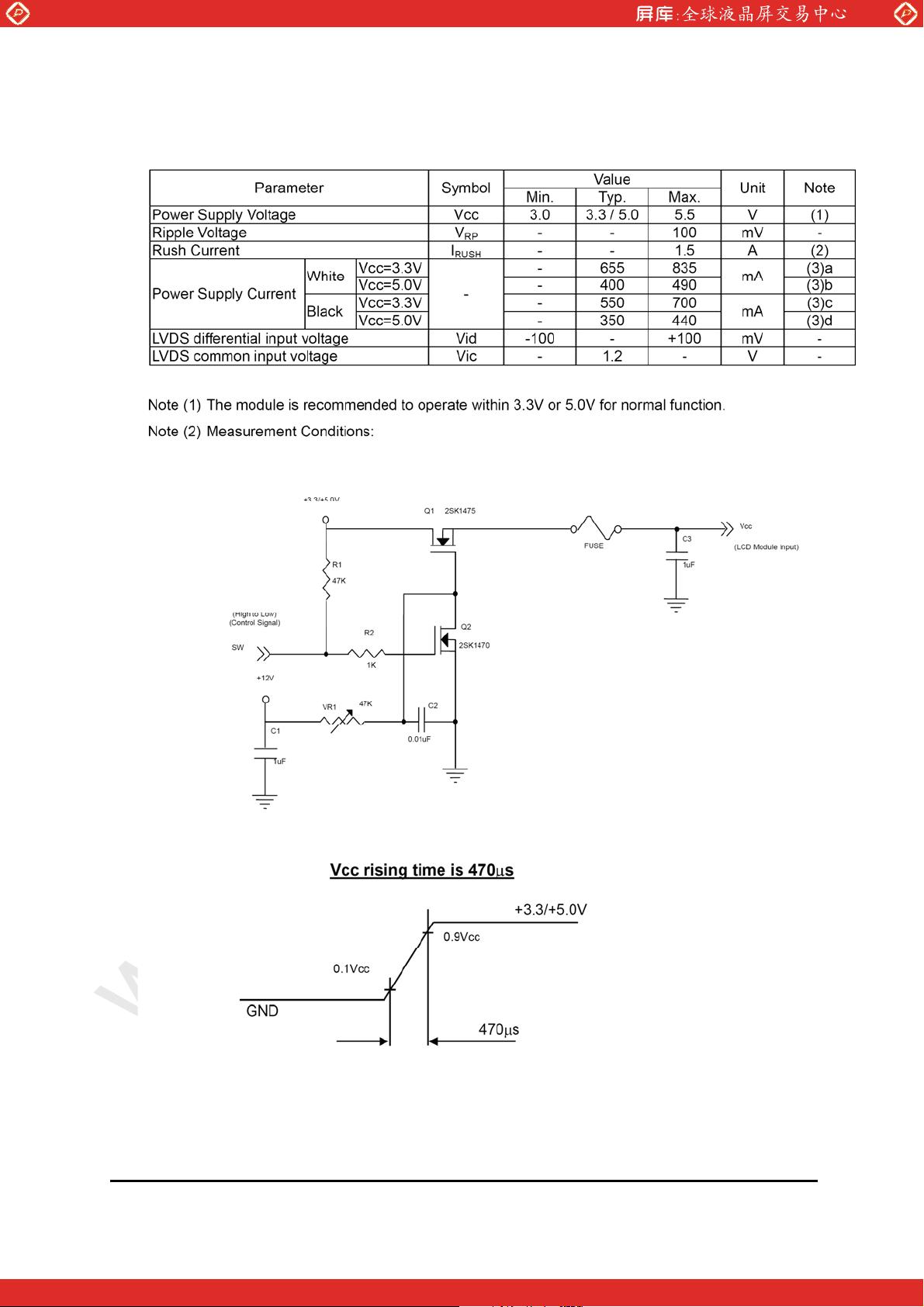

4. ELECTRICAL CHARACTERISTICS

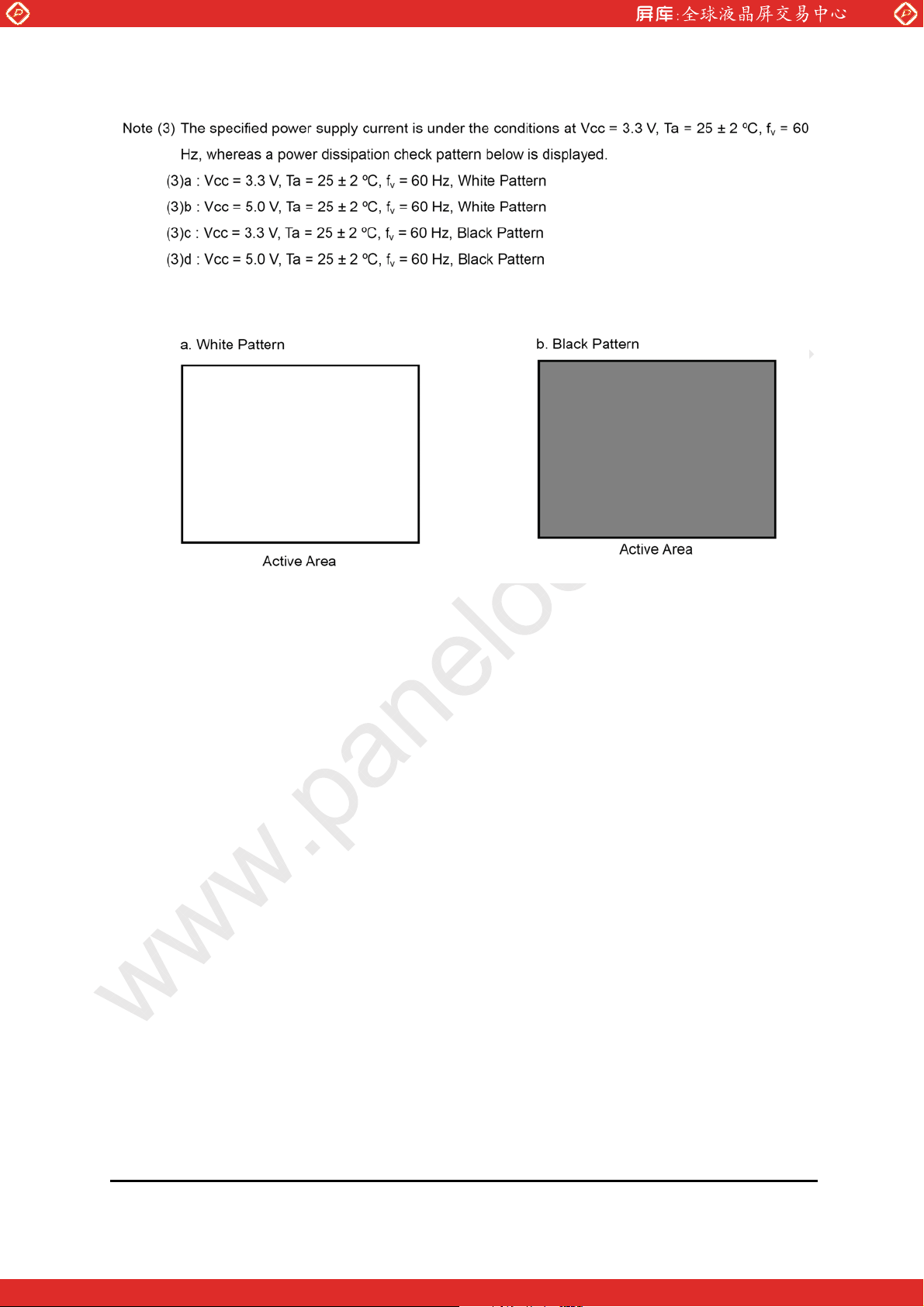

4.1 TFT LCD Module
www.panelook.com
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8
www.panelook.com
Page 9
Global LCD Panel Exchange Center

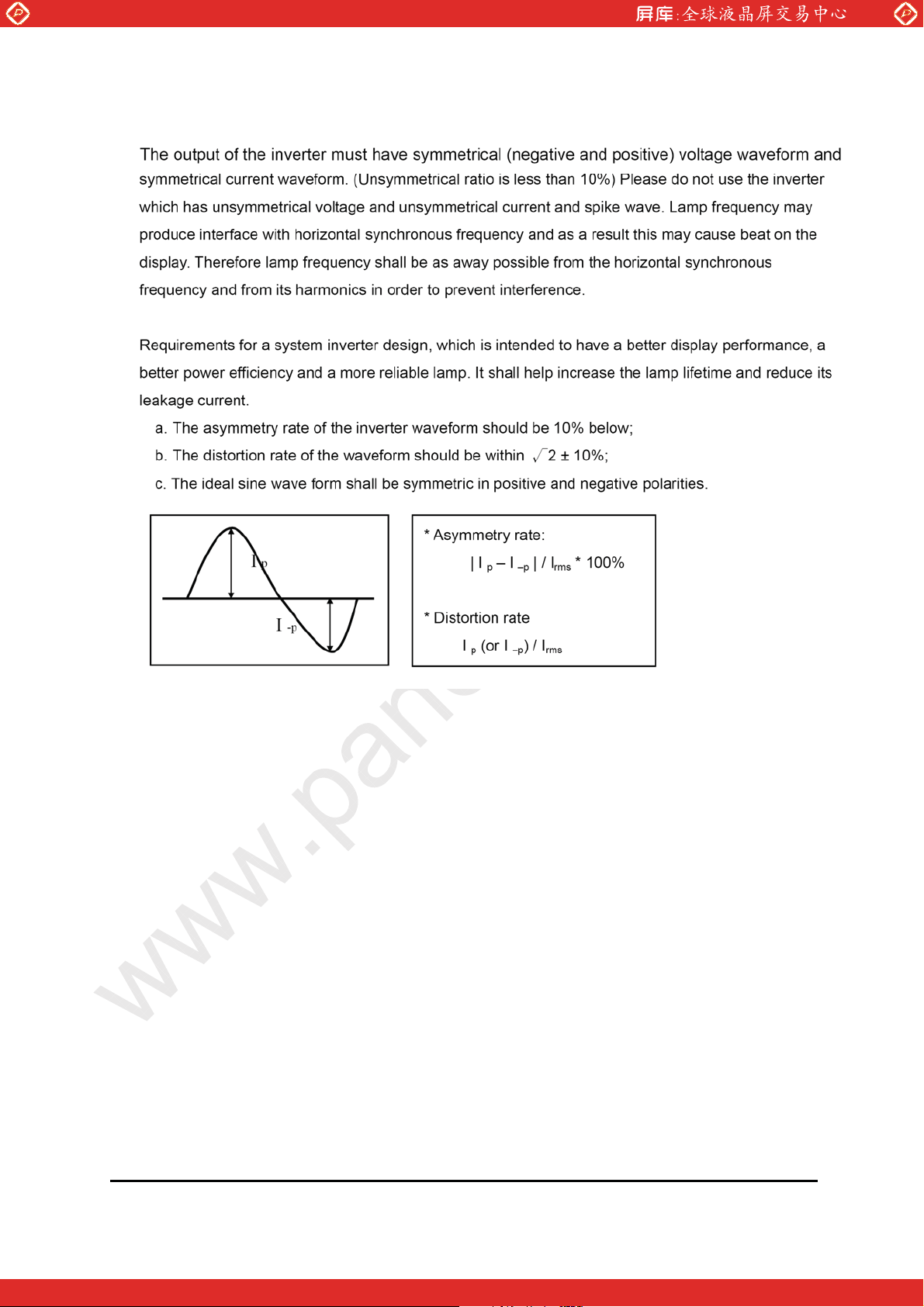

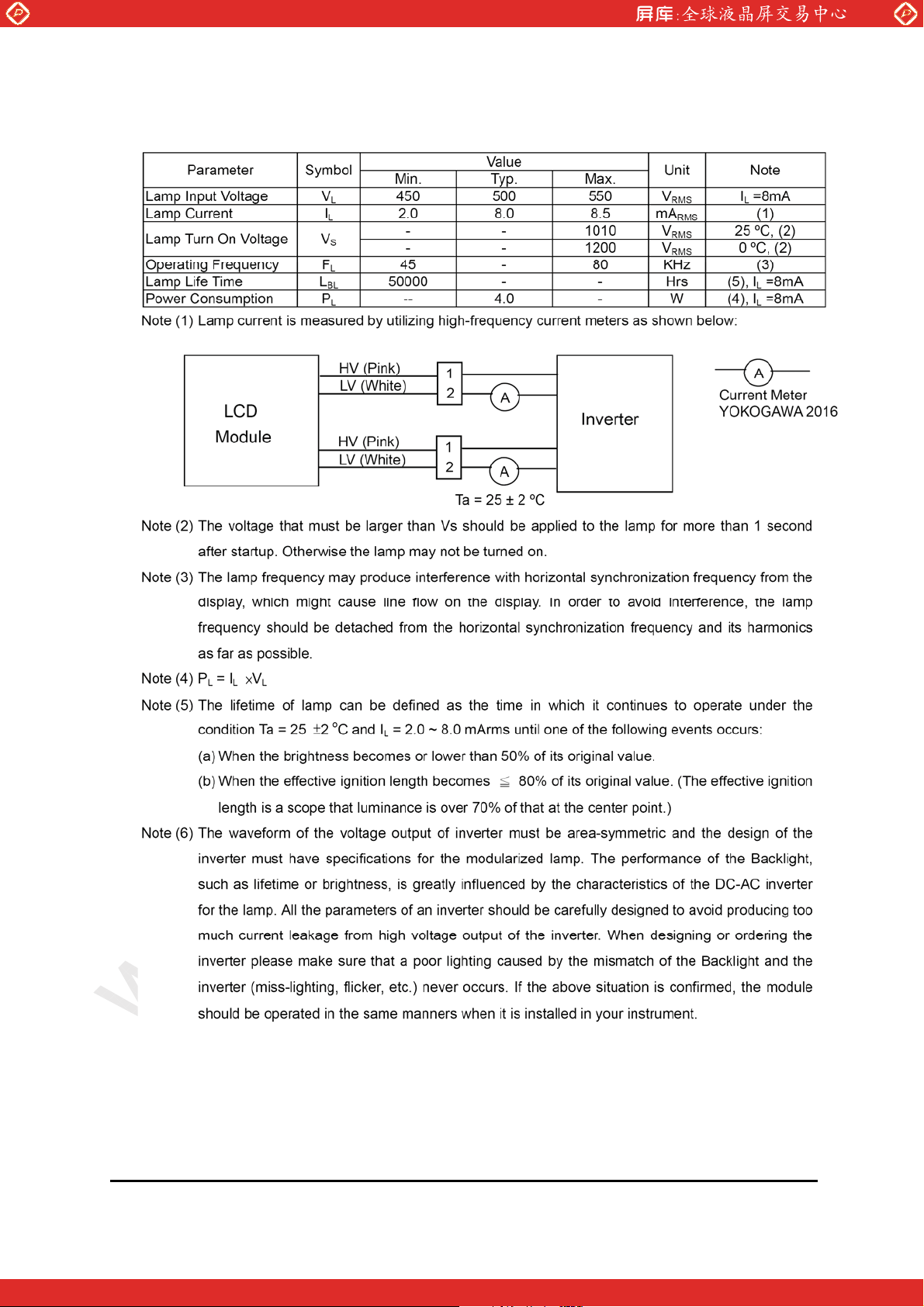

4.2 Backlight Unit
www.panelook.com
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10
www.panelook.com
Page 11
Global LCD Panel Exchange Center

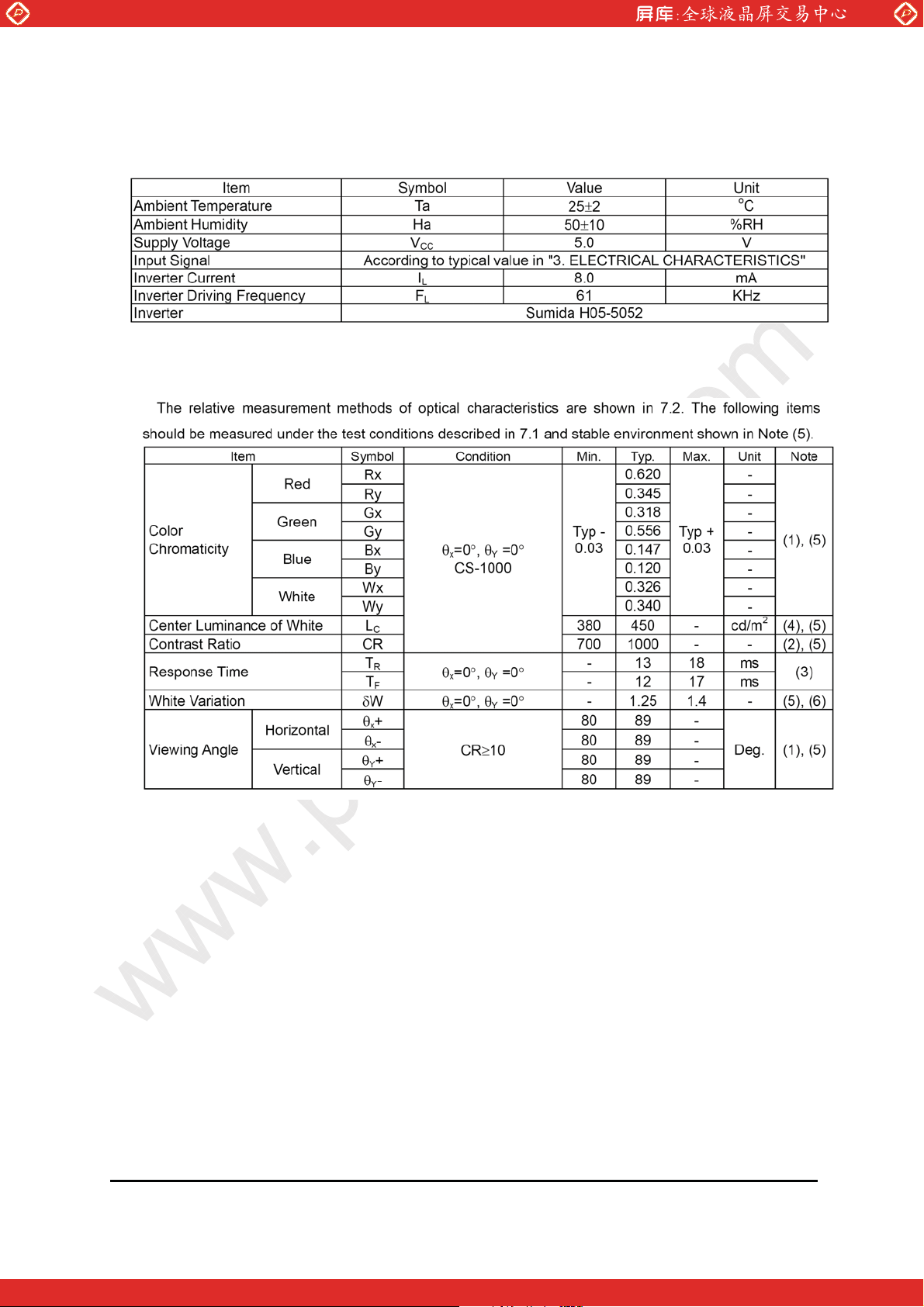

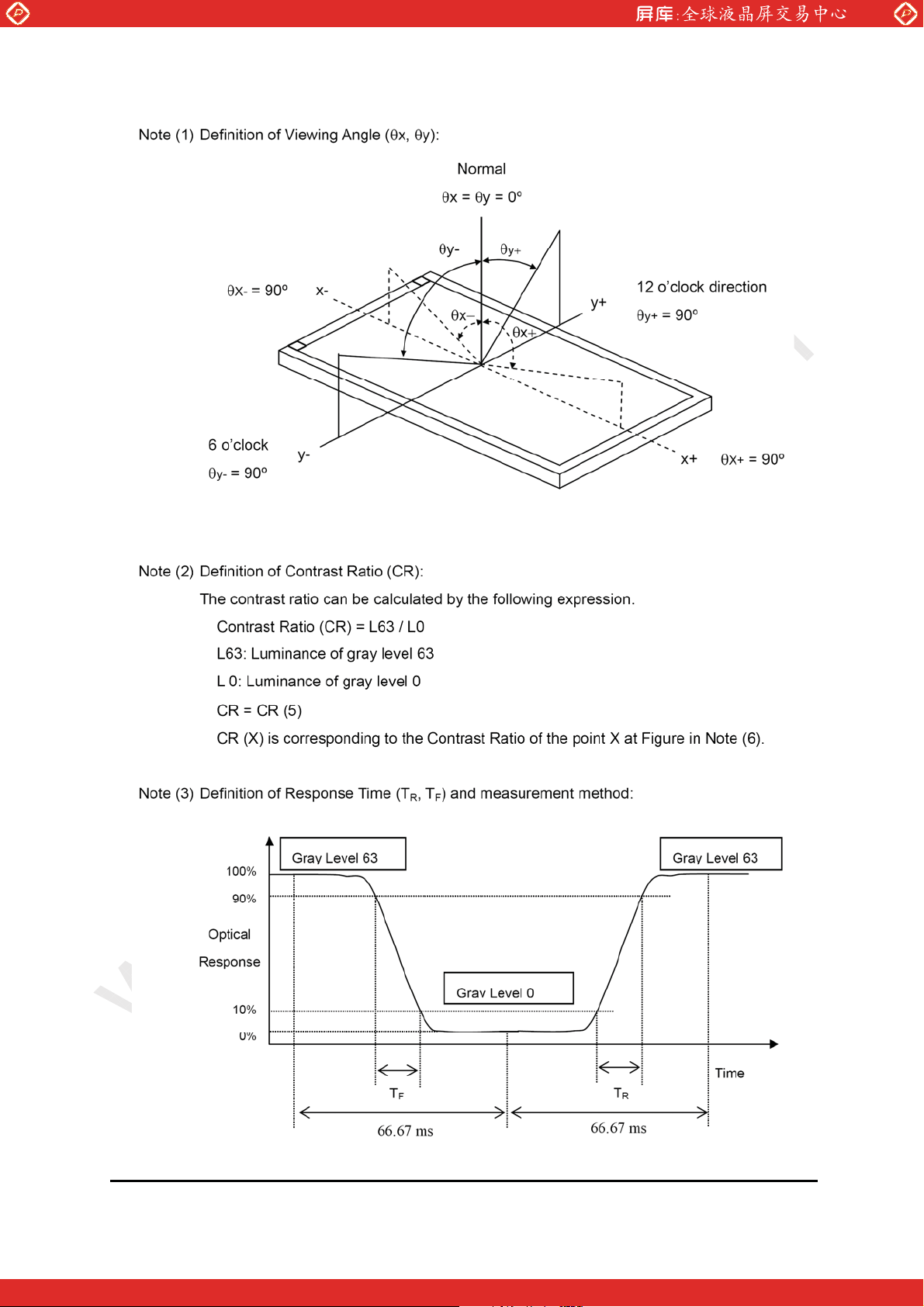

5. OPTICAL SPECIFICATION

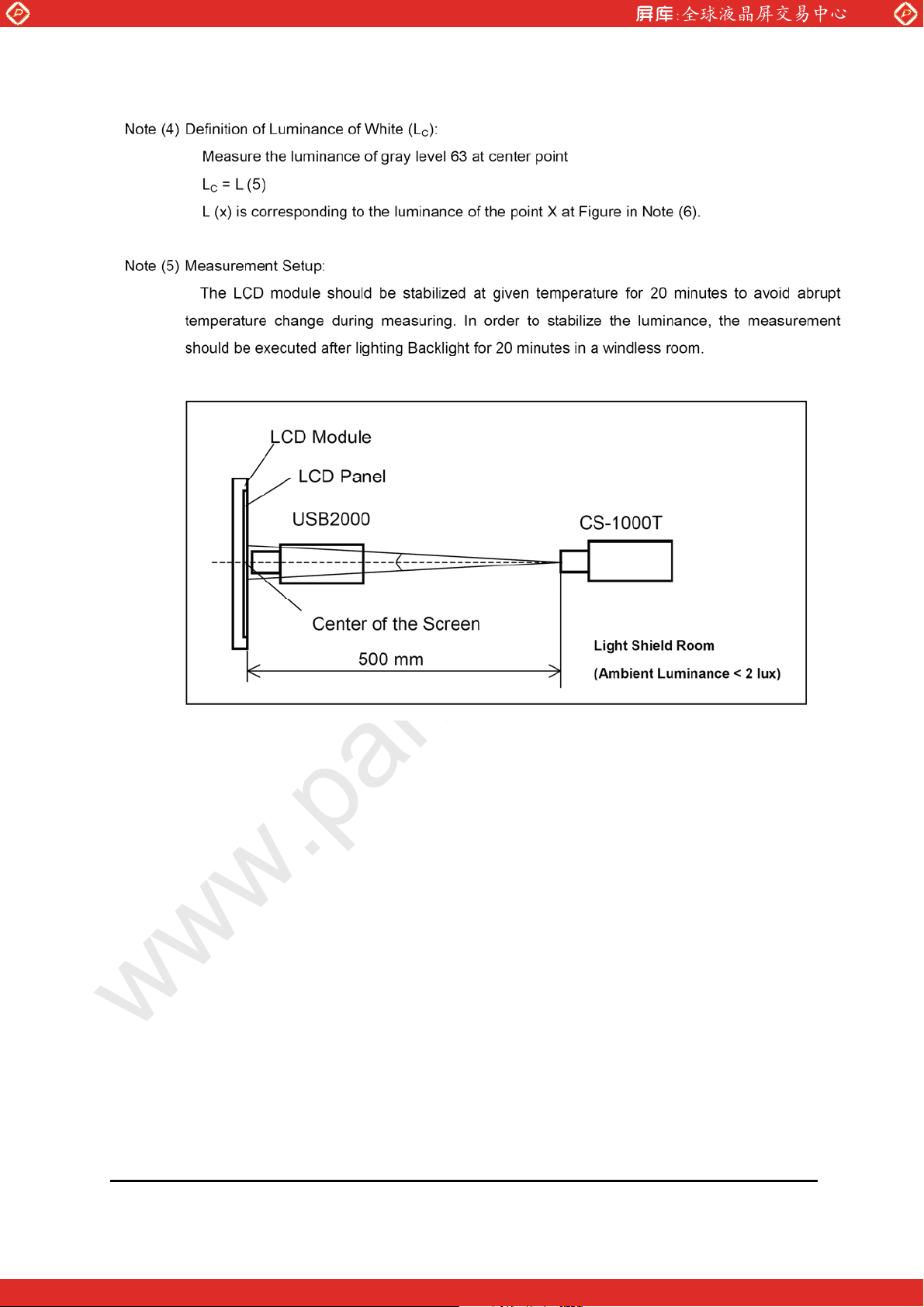

5.1 Test Conditions

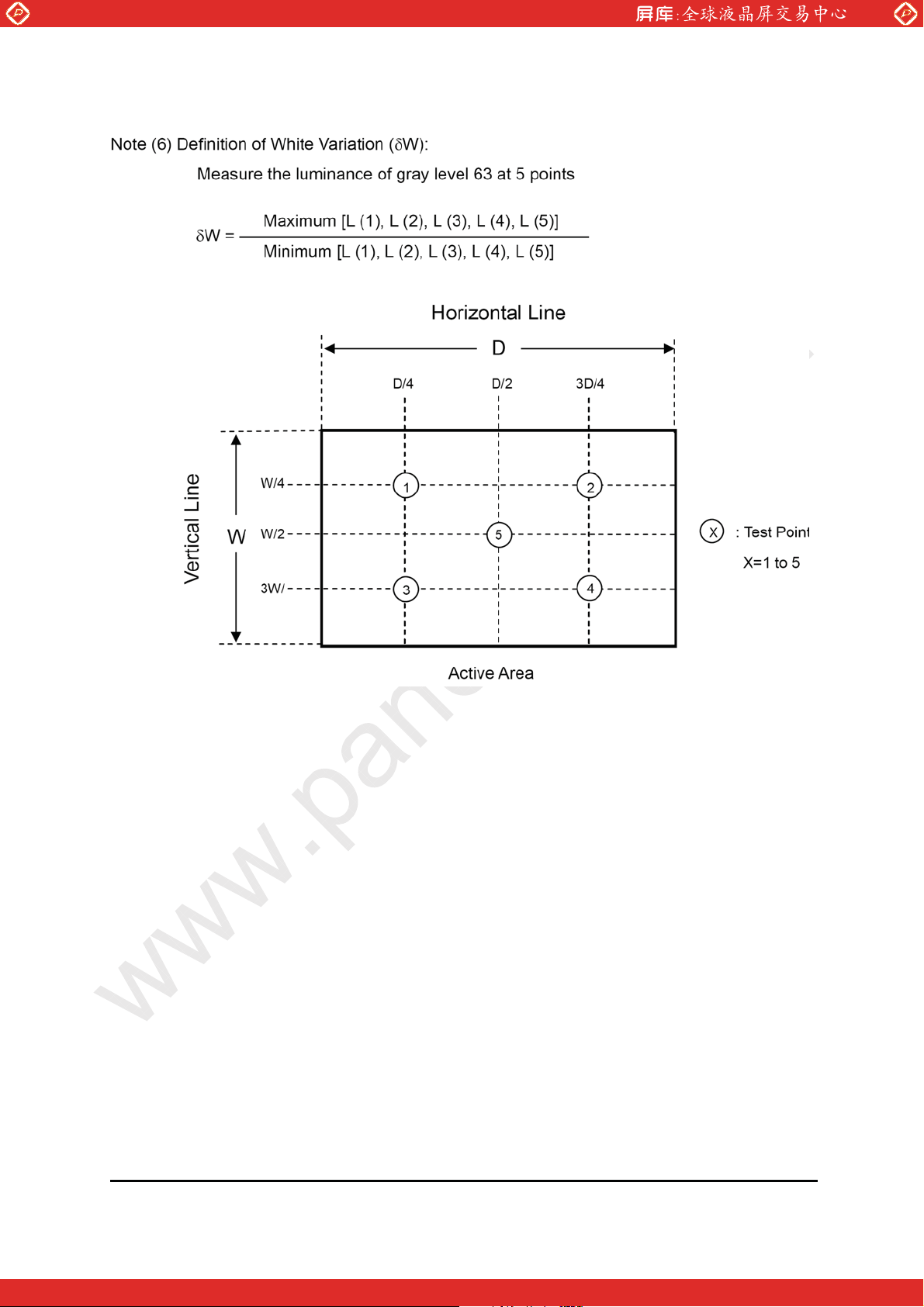

5.2 Optical Specifications
www.panelook.com
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14
www.panelook.com
Page 15
Global LCD Panel Exchange Center
6. INTERFACE

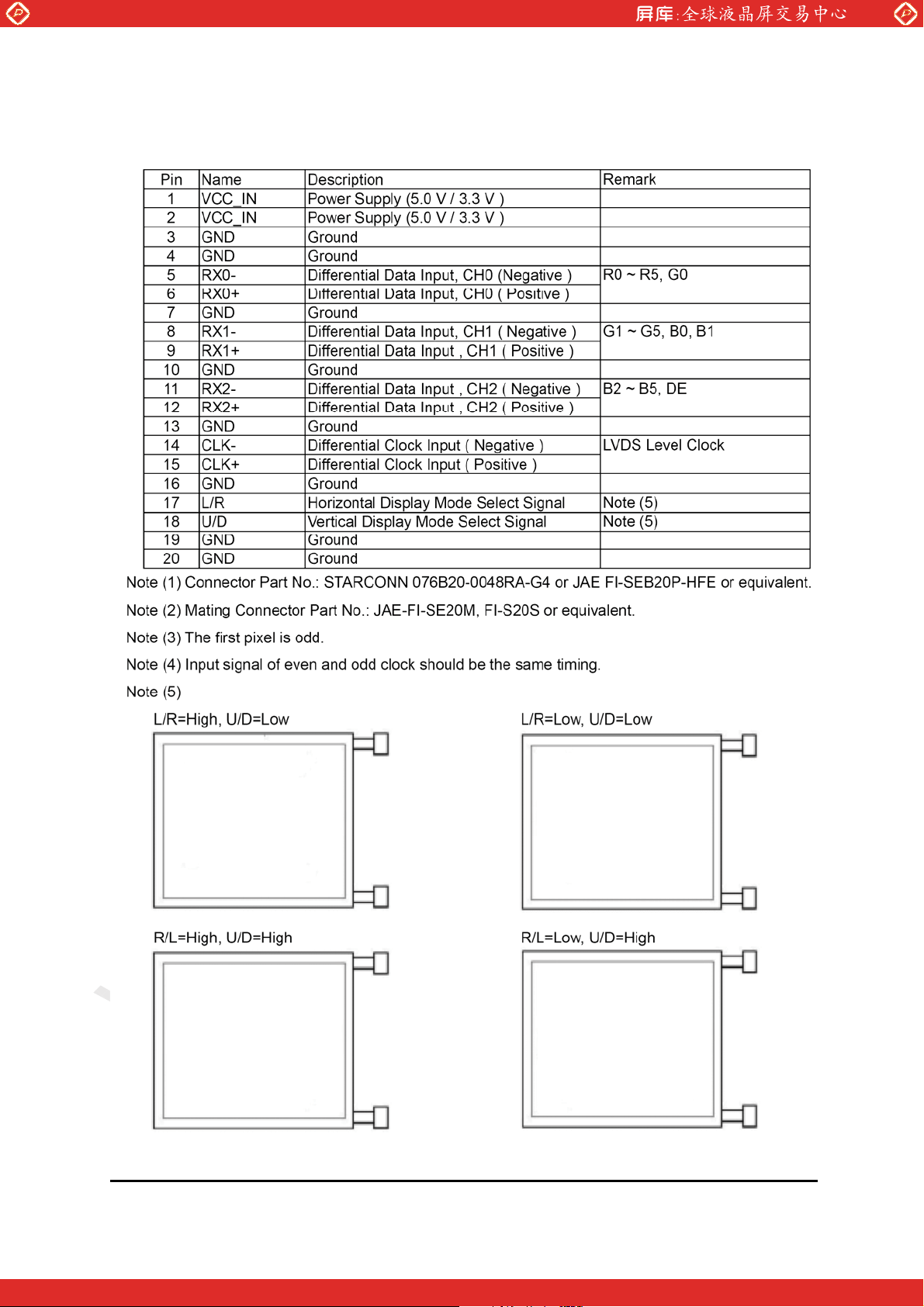

6.1 TFT LCD Module
www.panelook.com
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15
www.panelook.com
Page 16
Global LCD Panel Exchange Center

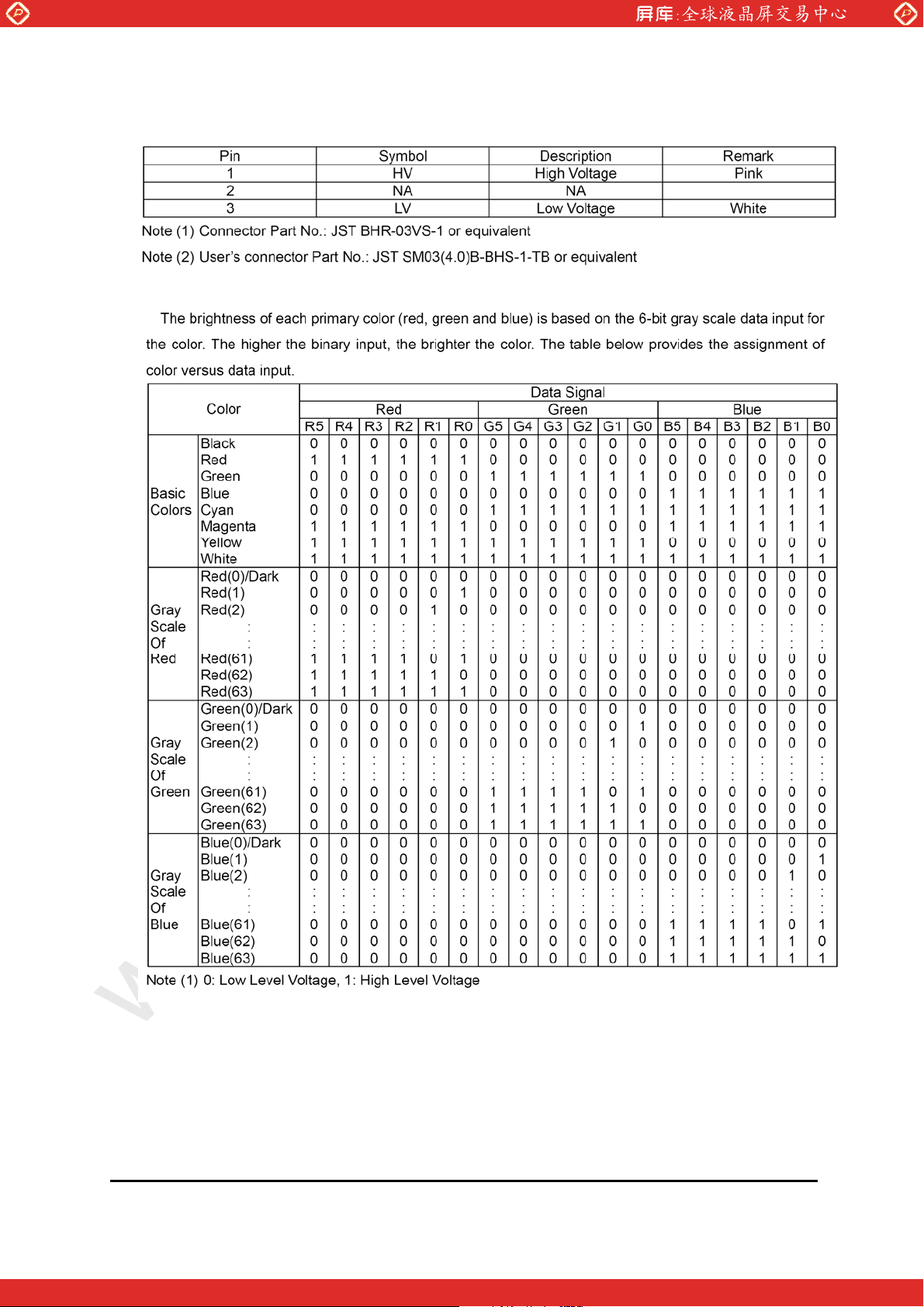

6.2 Backlight Unit
6.3 Color Data Input Assignment
www.panelook.com
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16
www.panelook.com
Page 17
Global LCD Panel Exchange Center

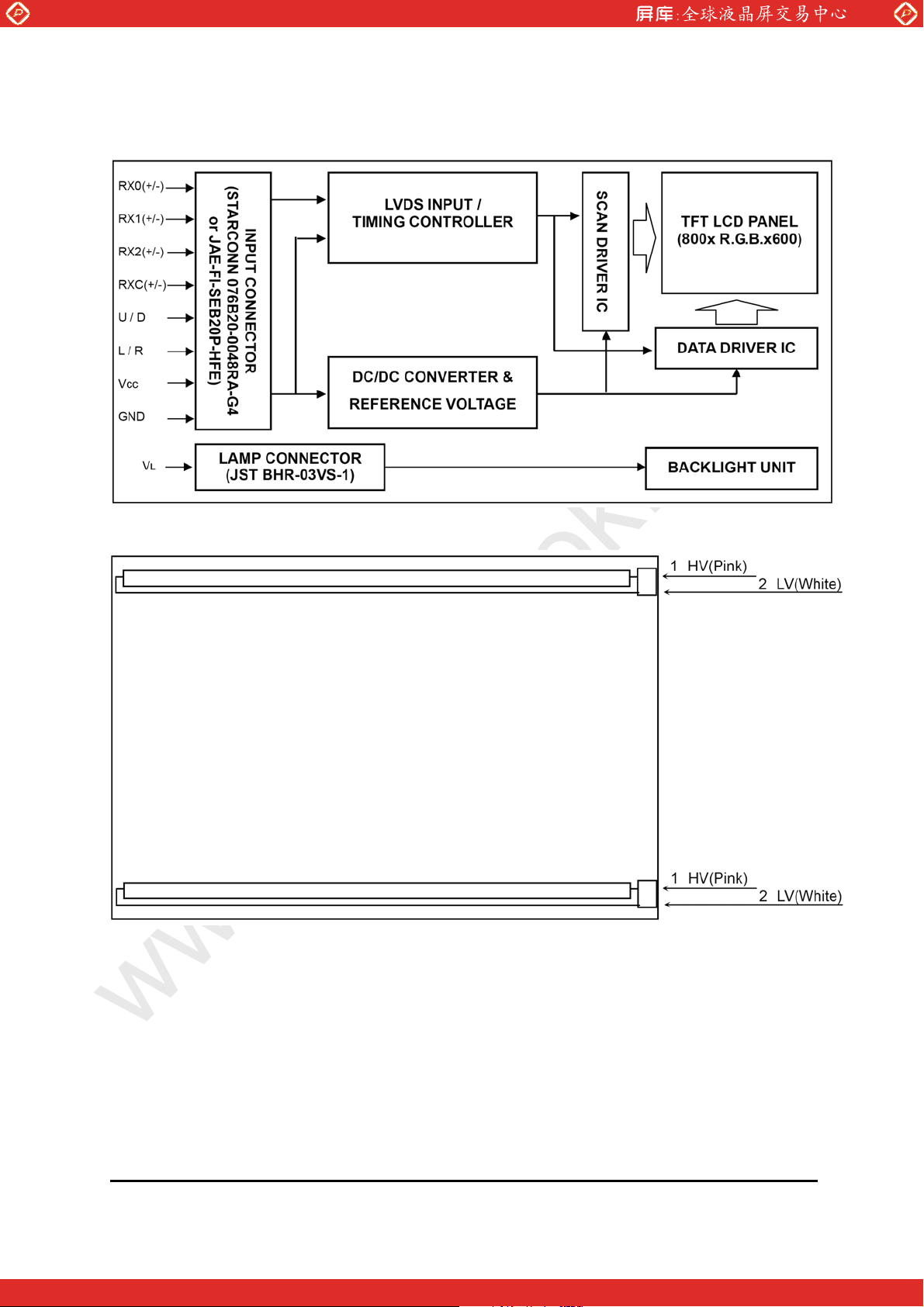

7. BLOCK DIAGRAM
7.1 TFTLCD Module
www.panelook.com
7.2 Backlight Unit
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17
www.panelook.com
Page 18
Global LCD Panel Exchange Center

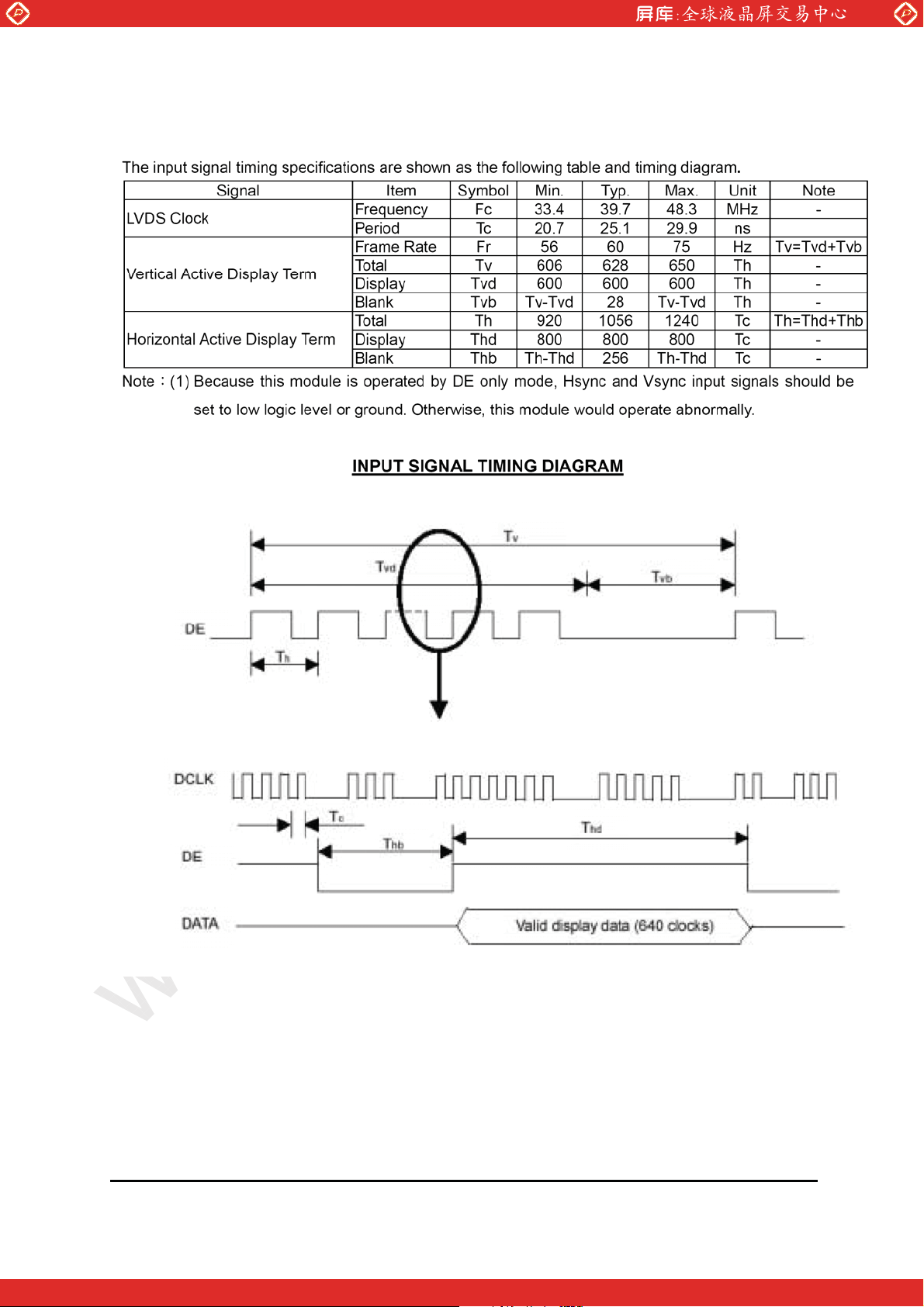

8.INTERFACE TIMING
8.1 Input signal timing specifications
www.panelook.com
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18
www.panelook.com
Page 19
Global LCD Panel Exchange Center

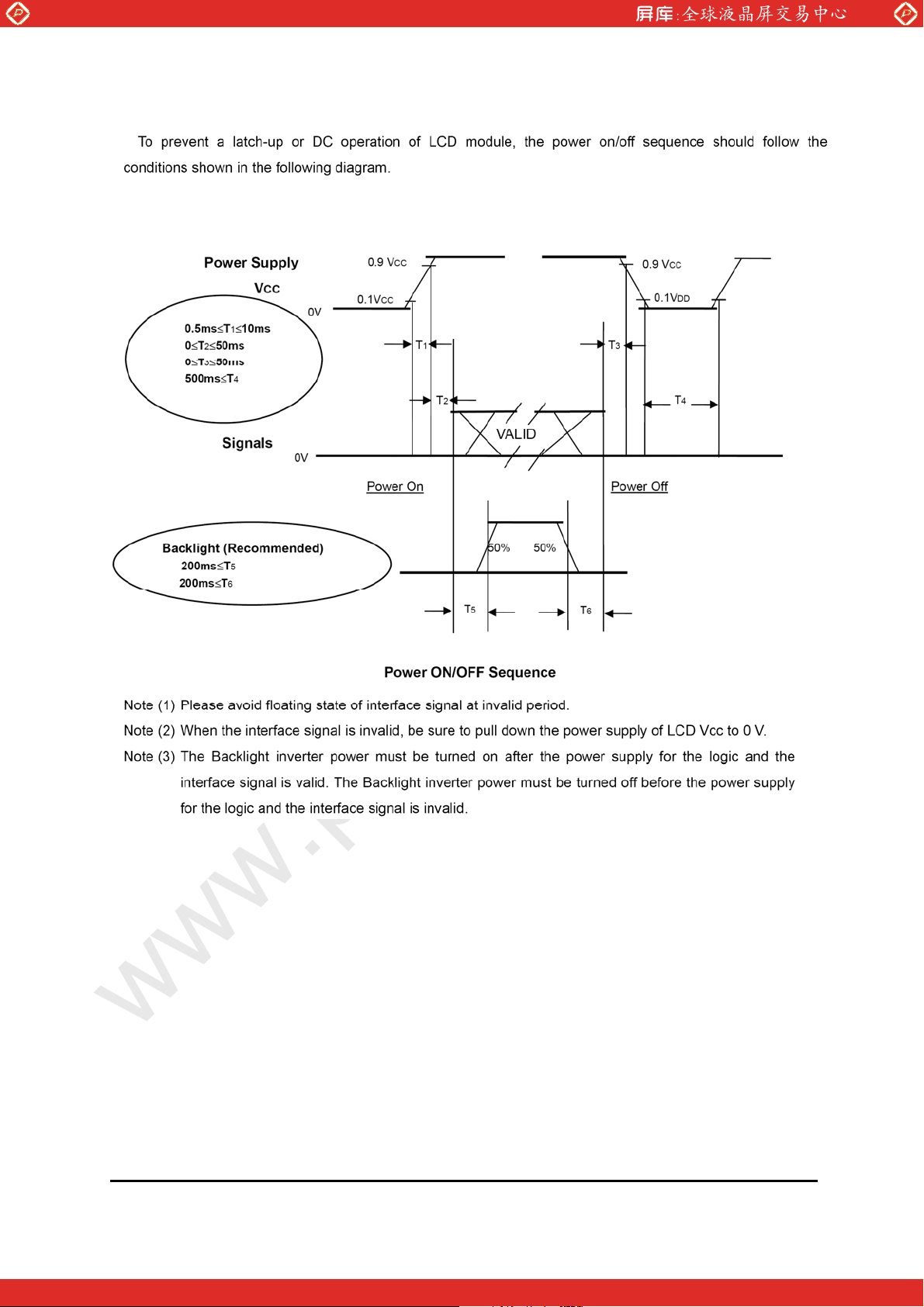

8.2 Power ON/OFF Sequence
www.panelook.com
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19
www.panelook.com
Page 20
Global LCD Panel Exchange Center
9. HANDLING & CAUTIONS
9.1 Cautions when taking out the module
Pick the pouch only, when taking out module from a shipping package.
9.2 Cautions for handling the module
9.2.1 As the electrostatic discharges may break the LCD module, handle the
LCD module with care. Peel a protection sheet off from the LCD panel
surface as slowly as possible.
9.2.2 As the LCD panel and backlight element are made from fragile glass
material, impulse and pressure to the LCD module should be avoided.
9.2.3 As the surface of the polarizer is very soft and easily scratched, use a soft
dry cloth without chemicals for cleaning.
9.2.4 Do not pull the interface connector in or out while the LCD module is
www.panelook.com
operating.
9.2.5 Put the module display side down on a flat horizontal plane.
9.2.6 Handle connectors and cables with care.
9.3 Cautions for the operation
9.3.1 When the module is operating, do not lose MCLK, DE signals. If any one of
these signals were lost, the LCD panel would be damaged.
9.3.2 Obey the supply voltage sequence. If wrong sequence were applied, the
module would be damaged.
9.4 Cautions for the atmosphere
9.4.1 Dewdrop atmosphere should be avoided.
9.4.2 Do not store and/or operate the LCD module in a high temperature and/or
humidity atmosphere. Storage in an electro-conductive polymer-packing
pouch and under relatively low temperature atmosphere is recommended.
9.5 Cautions for the module characteristics
9.5.1 Do not apply fixed pattern data signal to the LCD module at product aging.
9.5.2 Applying fixed pattern for a long time may cause image sticking.
9.6 Other cautions
9.6.1 Do not disassemble and/or re-assemble LCD module.
9.6.2 Do not re-adjust variable resistor or switch etc.
9.6.3 When returning the module for repair or etc, please pack the module not to
be broken. We recommend using the original shipping packages.
9.6.4 AMIPRE will provide one year warrantee for all products and three months
warrantee for all repairing products.
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20
www.panelook.com
Page 21
Global LCD Panel Exchange Center

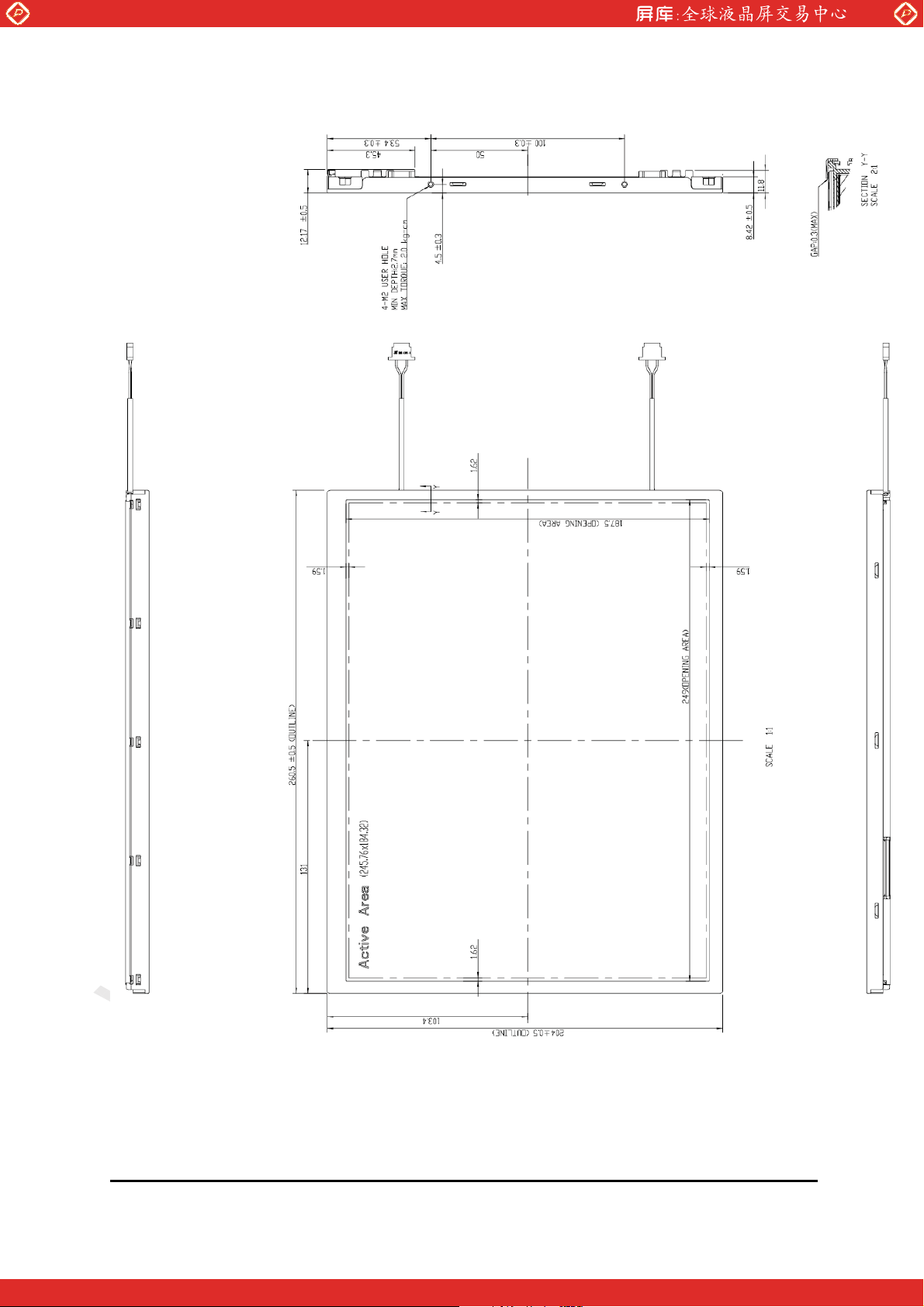

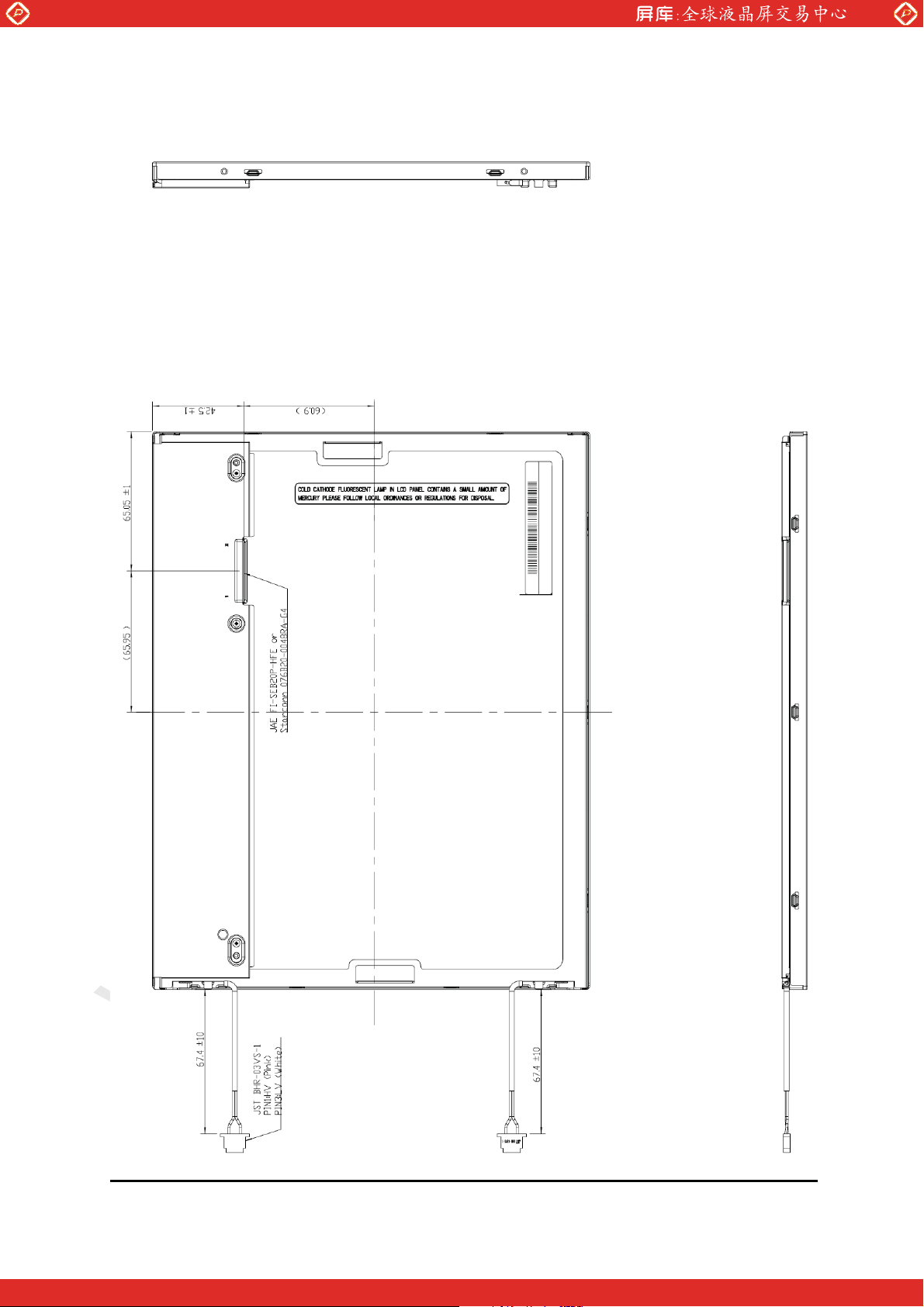

10. OUTLINE DIMENSION
www.panelook.com
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Date : 2010/8/19 AMPIRE CO., LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22
