Amphenol Corporation Tel: 800-627-7100 www.amphenolrf.com
Assembly
CLAMP CONNECTORS
Step 1
Step 2
Step 3
Step 4
Step 5
▲
For angle plugs only: (except 31-204) Solder center
conductor to preassembled contact. Assemble cap and
lightly punch center of cap for retention in body, or solder in
place.
Step 1 Place nut, washer (when supplied) and gasket over cable
and strip jacket to dimensionashown in table above.
Step 2 Comb out braid and fold out. Trim insulation off center
conductor to dimension cshown in table above. [For RG-62,
71 and 210/U cable, trim an additional .032"(0.8mm) of
insulation off center conductor and add bushing.] Tin
center conductor.
Step 3 Pull braid wires forward and taper toward center conductor.
Place clamp over braid and push back against cable
jacket.
Step 4 Fold back braid wires as shown, trim to proper length
[approximately .125" (3.2mm) long] and form over clamp
as shown. Braid wire should not extend beyond step of
braid clamp. Solder contact to center conductor, sliding
bushing first (when supplied) over center conductor.
▲
Step 5 Insert cable and parts into connector body. Make sure
sharp edge of clamp seats properly in gasket. Tighten nut
to approximately 15 inch pounds.

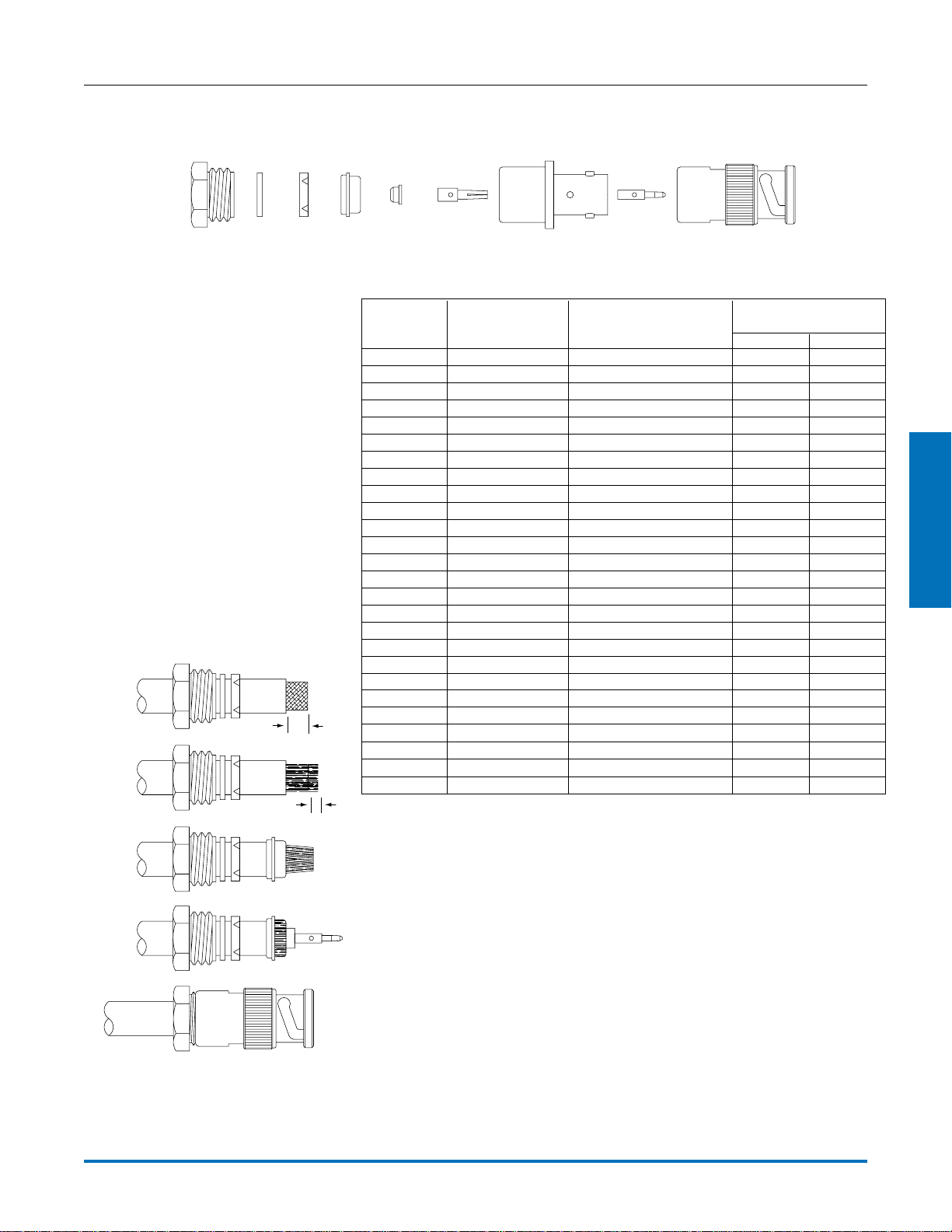

nut washer* gasket clamp bushing‡ female contact jack body male contact plug body
* Not supplied on all items ‡ For use on RG-62, 71, 122, 178, 180, 196, 210
Amphenol
Connector Cable
Stripping Dims,
Number Type RG-/U
Inches (Millimeters)
ac
6775 BNC Plug 8, 9, 11, 213, 214 .490(12.4) .200(5.1)
6775-75 75Ω BNC Plug 11 .490(12.4) .200(5.1)
8525 BNC Angle Plug 58, 141, 142, 400 .343(8.7) .187(4.7)
8575 BNC Angle Plug 59, 62, 140, 210 .297(7.5) .094(2.4)
9350 BNC Plug 6 .405(10.3) .094(2.4)
15875 BNC Plug 178, 196 .156(3.96) .078(1.98)
16300 BNC Plug 180 .250(6.4) .094(2.4)
33275 BNC Angle Plug 174, 179, 187, 188, 316 .540(13.7) .156(3.96)
69475 BNC Plug 174, 179, 187, 188, 316 .281(7.1) .172(4.4)
84975 BNC Plug 122 .281(7.1) .172(4.4)
86350 BNC Bulkh. Jack 174, 179, 187, 188, 316 .265(6.73) .156(3.96)
86425 BNC Panel Jack 174, 179, 187, 188, 316 .313(7.95) .203(5.15)
86850 BNC Bulkh. Jack 178, 196 .266(6.75) .109(2.76)
31-2 BNC Plug 58, 141, 142, 400 .312(7.9) .094(2.4)
31-2-RFX BNC Plug 58, 141, 142A .315(8.0) .118(3.0)
31-15 BNC Jack 59, 62, 71, 140, 210 .297(7.54) .109(2.75)
31-202 BNC Plug 55, 58, 141, 142, 223, 400 .274(6.95) .094(2.4)
31-204 BNC Angle Plug 55, 58, 141, 142, 223, 400 .297(7.54) .109(2.8)
31-206 BNC Bulkhead Jack 58, 141, 142, 400 .297(7.5) .109(2.8)
31-207 BNC Bulkhead Jack 59, 62, 71, 140, 210 .297(7.54) .109(2.75)
31-212 BNC Plug 59, 62, 71, 140, 210, 302 .250(6.4) .094(2.4)
31-212-1005 BNC Plug 59 (20GA CC) .250(6.4) .094(2.4)
31-850 BNC Angle Plug 59, 62, 71, 140, 210 .375(9.52) .125(3.17)
31-3202 BNC Plug 55, 58, 141, 142, 223, 400 .250(6.4) .094(2.4)
31-3301 BNC Plug 58, 141, 142, 223 .250(6.4) .094(2.4)
31-3302 BNC Plug 59, 62, 71, 140, 210 .250(6.4) .094(2.4)
a
c

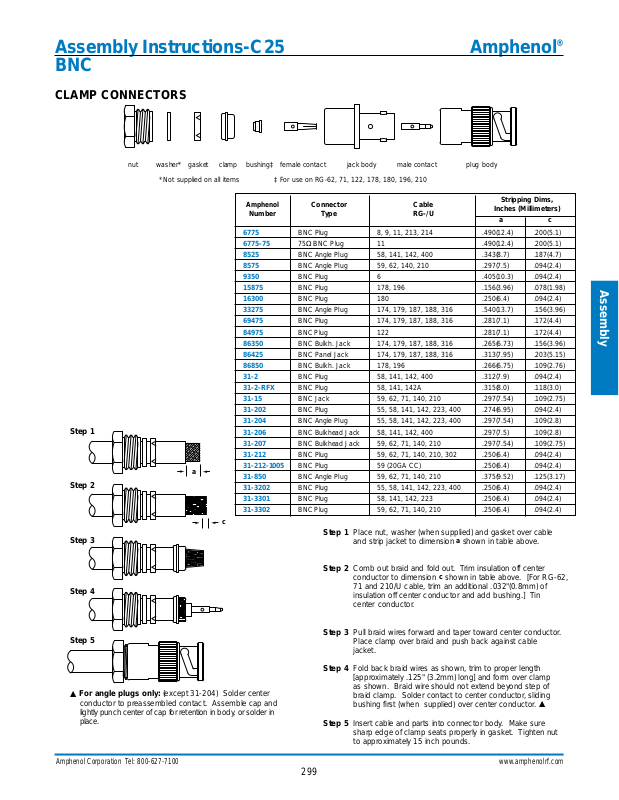

Assembly Instructions-C25 Amphenol
®
BNC
