SWDC Series
… CMOS Digital Circuitry
Delay-OnMakeTimers
Timing Mode:
Delay on operate timing cycle begins upon application of input power. The relay contacts
transfer at the end of the delay period and will remain transferred until input voltage is
removed. Reset occurs when input voltage is removed
Timing Diagram:
… Timing adjustment with 10 position Dip
Switch, 1023:1 span
… Adjustment resolution 1 part in 1023
… DPDT 10 ampere relay contacts
… UL File #E96739(M)
… CSA File # LR62586
Contact Information:
Arrangement: 2 form C (DPDT) - Diagram C
Contact Material: Silver - Cadmium Oxide
Rating (Resistive):
10A @ 240V AC Resistive
15A @ 30V DC Resistive
15A @ 120V AC Resistive
1/3 HP @ 120V AC
1/2 HP @ 250V AC
Expected Life @ 25°C:
10 Million operations, Mechanical
100,000 operations minimum at rated loads.
Environmental Information:
Temperature Range:
Storage: -60°C to +105°C (-76°F to +221°F)
Operating: -40°C to +65°C (-49°F to +149°F)
Mechanical Information:
Termination: 8 pin Octal Style Plug or 11 pin spade terminals (Dia. C&D)
Enclosure: White plastic case. "L" version has a black case.
Weight: 4 oz (114g) approx.

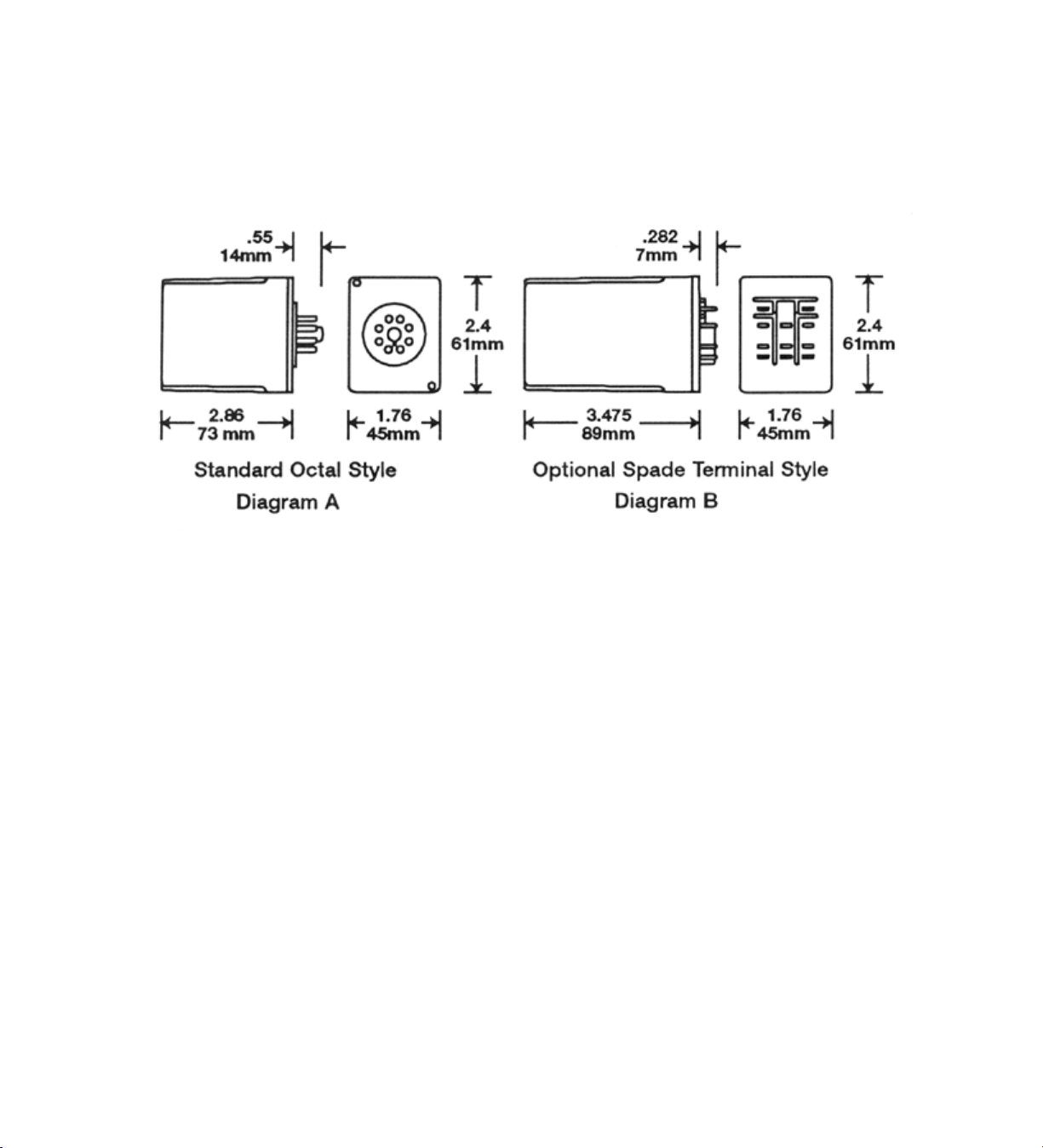

Outline Dimensions:
Timing Specifications:
Timing: Three timing ranges, each covering a 1023:1 span, are standard. These are:
A: 0.1 second to 102 seconds
B: 1 second to 1023 seconds (17 minutes)
C: 10 second to 10230 seconds (2.84 hours)
Custom timing ranges are available.
Timing Adjustment:
User operated 10 position DIP switch encoded in binary format.
Adjustment Resolution: Equal to minimum time delay.
Timing Tolerance: +/- 2%
Timing Repeatability: +/-1%
Timing Cycle Interrupt Transfer: None
Reset: Upon interruption of input power
Initial Dielectric Strength:
Between open contacts: 1000V RMS, Between adjacent contacts: 1500V RMS,
Between contacts & coil: 1500V RMS.
Input Information:
Voltage: AC units -12V, 24V and 120V
DC units - 12V, 24V, 48V and 110V
Other voltages are available
Power Requirement:
AC units: 3 VA or less
DC units: 3 Watts or less
Transient Protection: 1 JOULE MOV
Polarity Protection: On DC units - Yes
Input Voltages & Limits:
Nominal Minimum
12V AC 10V 14V
Maximum
24V AC 20V 28V
120V AC 105V 130V
12V DC 11V 14V
24V DC 20V 32V
48V DC 41V 55V
110V DC 95V 125V
Wiring Diagrams:
Ordering Information:
Definition of a part number for the Amperite SWDC Series Time Delay Relay:
Example:
A: Denotes nominal input voltage. Standard voltages are 12V, 24V and 120V AC; 12V,
24V, 48V and 110V DC. Custom Voltages are available.
B: Denotes type of input current required for operation:
A = AC - Alternate Current
D = DC - Direct Current
C&D: Denotes timing range of adjustability in seconds, minutes, or hours.
E: Denotes unit of time delay: S = seconds; M = minutes; H = hours.
F: Denotes form of termination: Leave blank for standard octal plug-in; Enter "L" if
optional spade terminals are required (Diagrams B & D).
G: Denotes use of solid state digital circuitry of SWDC Series.
