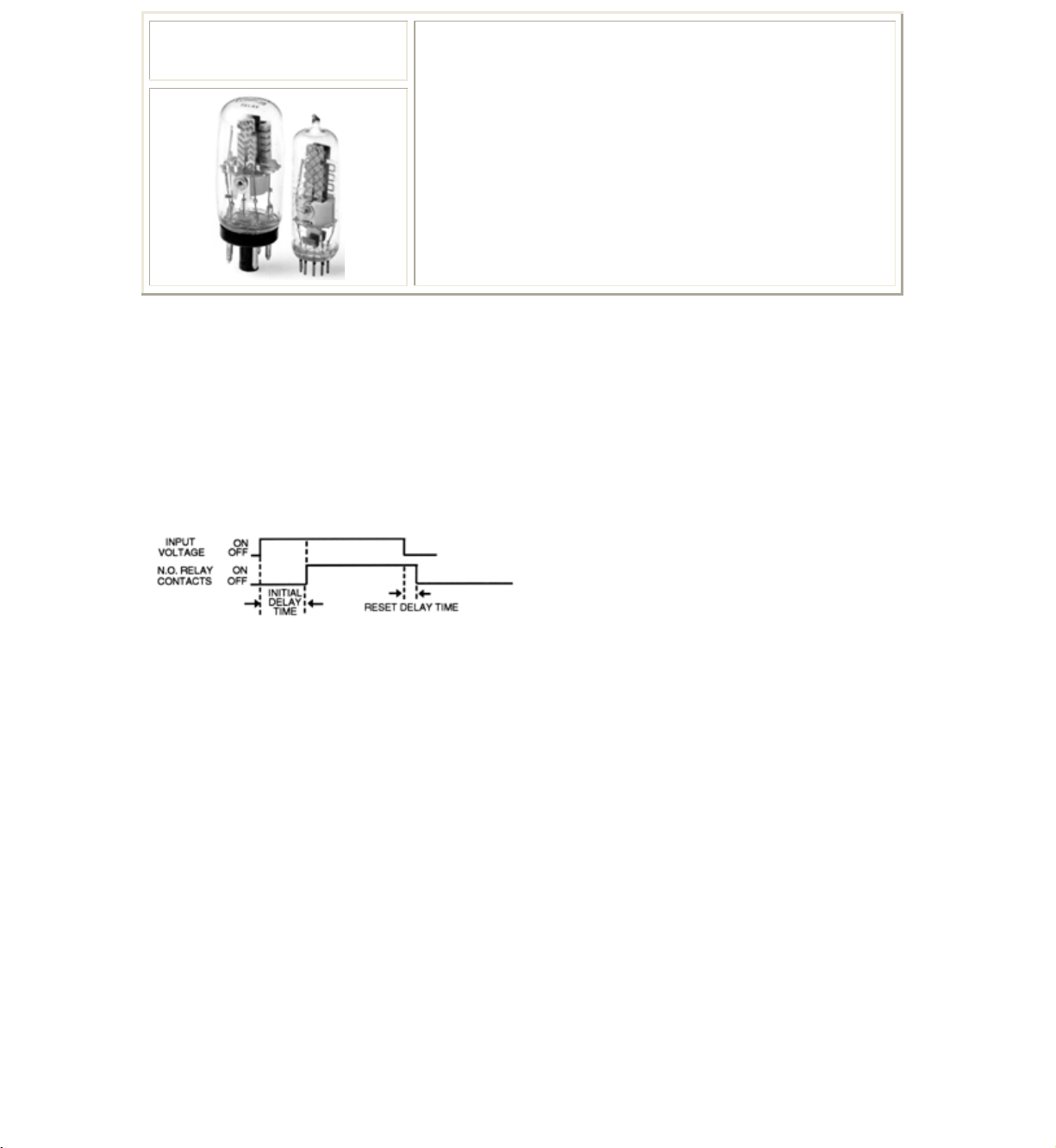

G Series TDR
… Hermetically sealed
… Delay on Make or Delay on Break timing modes
… Thermal device
… 3 AMP rating
… 1 - 115V input voltage range - works on AC or DC
… Isolated output contacts
… Fixed delay times only
… Initial and reset (release) delay device
… Long life
… UL File #E96739 (M)
Timing Mode:
Timing cycle begins upon application of power to the heater terminals. At the end of the
initial delay time the relay contacts transfer and remain in a transferred state until input
power is removed. When the heater input power is removed, the contacts transfer back to
their original state at the end of a reset (release) delay period.
Timing Diagram:
Contact Information:
Arrangement: 1 form A (SPST - Normally open) - Delay on Make
1 form B (SPST - Normally closed) - Delay on Break
Contact Material: Silver - Cadmium Oxide
Rating (Resistive): 3A @ 115V AC
Expected Life @ 25°C: 500,000 operations minimum at rated loads
Environmental Information:
Temperature Range: Operating & storage: -55°C to +80°C, (-67°F to +176°F)
Mechanical Information:
Termination & Enclosure: Octal style, or 9-pin miniature style glass envelope. See
Diagram A & B.
Weight: 1 oz. (28g)
Outline Dimensions:
Timing Specifications:
Timing - Fixed: 1 through 300 secs. - (octal style) or 1 - 120 secs. (9-pin miniature style)
Timing Tolerance: ±20% - Tighter tolerances are available.
Repeatability: ±5%
Release Time: Contact factory
Timing Cycle Interrupt Transfer: none
Initial Dielectric Strength:
1-10 Second Type: Between open contacts: 250V RMS; Between contacts & coil: 500V
RMS
15 - 300 Second Type: Between open contacts: 800V RMS; Between contacts & coil:
500V RMS
Input Information:
Voltage: AC or DC - 6V, 12V, 26V, 50V and 115V. Other voltages are available.
Power Requirement: 2.0 Watts approx.
Transient Protection: impervious to transients
Polarity Protection: None required
Input Voltages & Limits:
Nominal Minimum Maximum
6V AC/DC 4V 8V
12V AC/DC 10V 14V
26V AC/DC 22V 30V
50V AC/DC 42 58V
115V AC/DC
Wiring Diagrams:
Ordering Information:
Definition of a part number for the Amperite G Series Time Delay Relay.
Example:
90V 130V
A: Denotes nominal Input voltage. Voltages Available: 6, 12, 26, 50 & 115V AC/DC.
Custom Voltages are available.
B: Denotes contact form:
NO = normally open (Delay on Make) -1 form A - SPST
C = normally closed (Delay on Break) -1 form B - SPST
C: Denotes timing value: Factory preset time delays from 1 - 300 secs. are available
(octal style) and 1 - 120 secs. (9-pin miniature style)
D: Denotes type of glass envelope: Blank = octal style. T = 9-pin miniature style.
