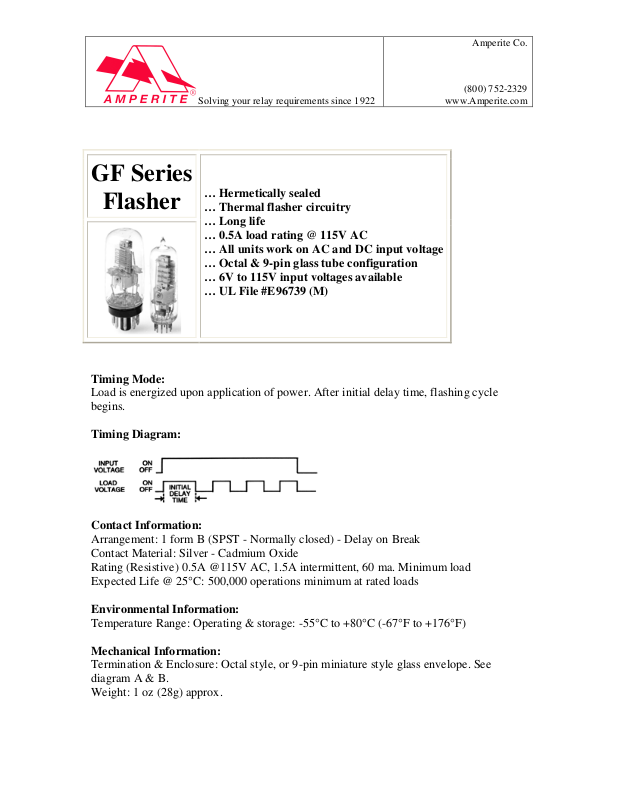

GF Series
… Hermetically sealed
Flasher
Timing Mode:
Load is energized upon application of power. After initial delay time, flashing cycle
begins.
Timing Diagram:
… Thermal flasher circuitry
… Long life
… 0.5A load rating @ 115V AC
… All units work on AC and DC input voltage
… Octal & 9-pin glass tube configuration
… 6V to 115V input voltages available
… UL File #E96739 (M)
Contact Information:
Arrangement: 1 form B (SPST - Normally closed) - Delay on Break
Contact Material: Silver - Cadmium Oxide
Rating (Resistive) 0.5A @115V AC, 1.5A intermittent, 60 ma. Minimum load
Expected Life @ 25°C: 500,000 operations minimum at rated loads
Environmental Information:
Temperature Range: Operating & storage: -55°C to +80°C (-67°F to +176°F)
Mechanical Information:
Termination & Enclosure: Octal style, or 9-pin miniature style glass envelope. See
diagram A & B.
Weight: 1 oz (28g) approx.
Outline Dimensions:
Timing Specifications:
Flash Rate - Fixed: Standard flash rates from 10 - 90 FPM are available. Custom rates
are also available.
Initial Dielectric Strength:
Between open contacts: 250V RMS
Input Information:
Voltage: AC or DC - 6V, 12V, 26V, 50 and 115V. Other voltages are available.
Power Requirement: 1.0 Watt approximate.
Transient Protection: impervious to transients.
Polarity Protection: None required
Input Voltages & Limits:
Nominal Minimum
Maximum
6V AC/DC 4V 8V
12V AC/DC 10V 14V
26V AC/DC 22V 30V
50V AC/DC 42V 56V
115V AC/DC
90V 130V
Wiring Diagrams:
Ordering Information:
Definition of a part number for the Amperite GF Series Flasher.
Example:
A: Denotes nominal input voltage. Voltages available: 6, 12, 26, 50 & 115V AC/DC.
Custom Voltages are available.
B: Denotes flasher configuration.
C: Denotes flash rate. Standard flash rates from 10 - 90 FPM are available. Custom rates
are available.
D: Denotes type of glass envelope. Blank = Octal style. T = 9-pin miniature style.
Solving Your Relay Requirements Since 1922
