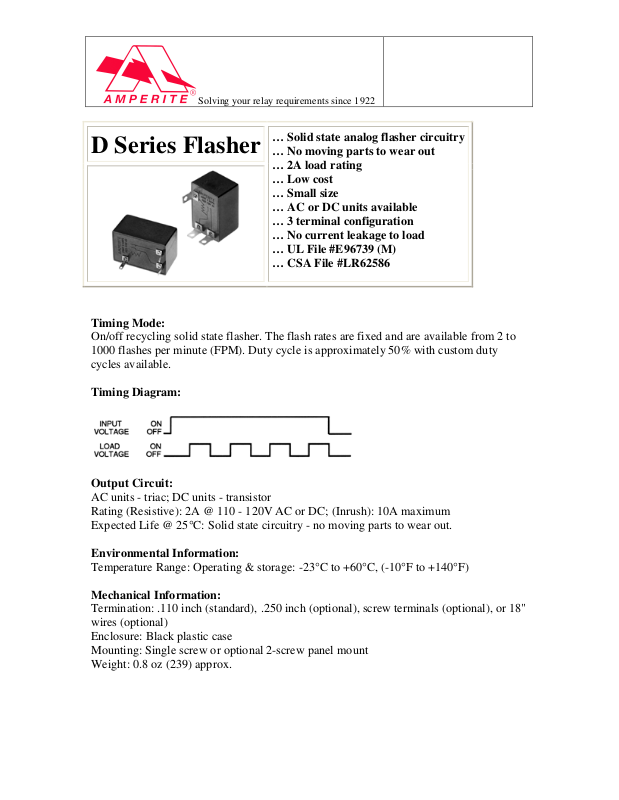

… Solid state analog flasher circuitry
… No moving parts to wear out
… 2A load rating
… Low cost
… Small size
… AC or DC units available
… 3 terminal configuration
… No current leakage to load
… UL File #E96739 (M)
… CSA File #LR62586
Timing Mode:
On/off recycling solid state flasher. The flash rates are fixed and are available from 2 to
1000 flashes per minute (FPM). Duty cycle is approximately 50% with custom duty
cycles available.
Timing Diagram:
Output Circuit:
AC units - triac; DC units - transistor
Rating (Resistive): 2A @ 110 - 120V AC or DC; (Inrush): 10A maximum
Expected Life @ 25°C: Solid state circuitry - no moving parts to wear out.
Environmental Information:
Temperature Range: Operating & storage: -23°C to +60°C, (-10°F to +140°F)
Mechanical Information:
Termination: .110 inch (standard), .250 inch (optional), screw terminals (optional), or 18"
wires (optional)
Enclosure: Black plastic case
Mounting: Single screw or optional 2-screw panel mount
Weight: 0.8 oz (239) approx.

Timing Specifications:
Flash Rate - Fixed: Standard - 30, 45, 60, 75, 90 & 120 FPM. Custom rates available
from 2 to 1000 FPM.
Flash Rate Tolerance: ± 10%
Input Information:
Voltage: AC units - 6V, 12V, 24V, 48V and 115V; DC units - 6V, 12V, 24V, 48V and
110V. Other voltages are available.
Power Requirement: AC units: 3 VA or less; DC units: 3 Watts or less
Input Voltages & Limits:
Nominal Minimum
6V AC 5.4V 6.6V
12V AC 10V 14V
Maximum
24V AC 20V 28V
48V AC 41V 55V
115V AC
105V 130V
6V DC 5.4V 6.6V
12V DC 11V 14V
24V DC 20V 28V
48V DC 41V 55V
110V DC
95V 125V

Wiring Diagram:
Ordering Information:
Definition of a part number for the Amperite D Series Flasher.
Example:
A: Denotes nominal input voltage. Voltages available: 6, 12, 24, 48 & 115V AC; 6, 12,
24, 48 & 110V DC. Custom voltages are available.
B: Denotes type of input current required for operation: A = AC - Alternating Current; D
= DC - Direct Current
C: Denotes flasher configuration.
D: Denotes flash rate. Standard rates are 30, 45, 60, 75, 90 & 120 FPM. Custom rates are
available from 2 to 1000 FPM.
E: Denotes current options - Blank = Standard, H = Higher Operating Current.
F: Denotes form of termination - Blank = .110 male electro-plate solder terminals
(standard), X = .250 male quick connect terminals (optional), S = screw terminals
(optional), W = three 18” wires (optional).
G: Denotes use of solid state analog circuitry of D Series.
Solving Your Relay Requirements Since 1922
