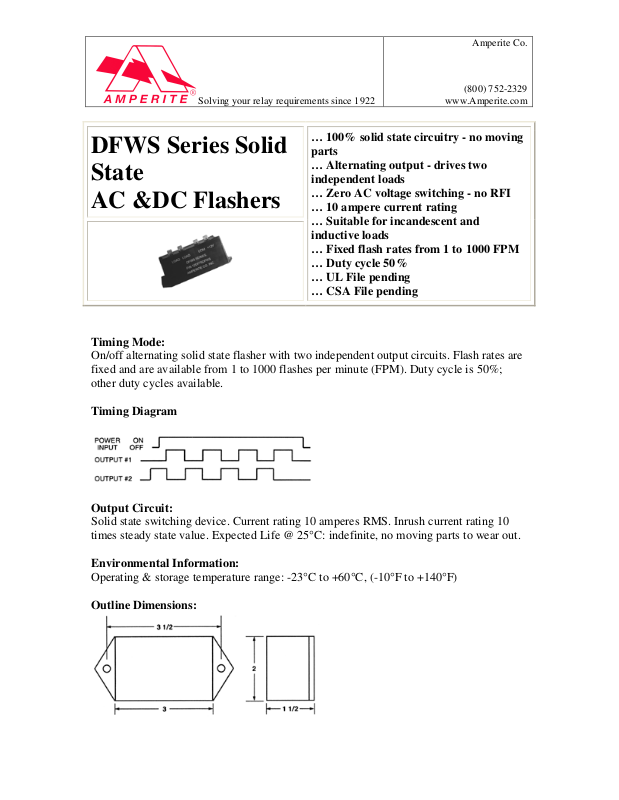

… 100% solid state circuitry - no moving
DFWS Series Solid
State
AC &DC Flashers
Timing Mode:
On/off alternating solid state flasher with two independent output circuits. Flash rates are
fixed and are available from 1 to 1000 flashes per minute (FPM). Duty cycle is 50%;
other duty cycles available.

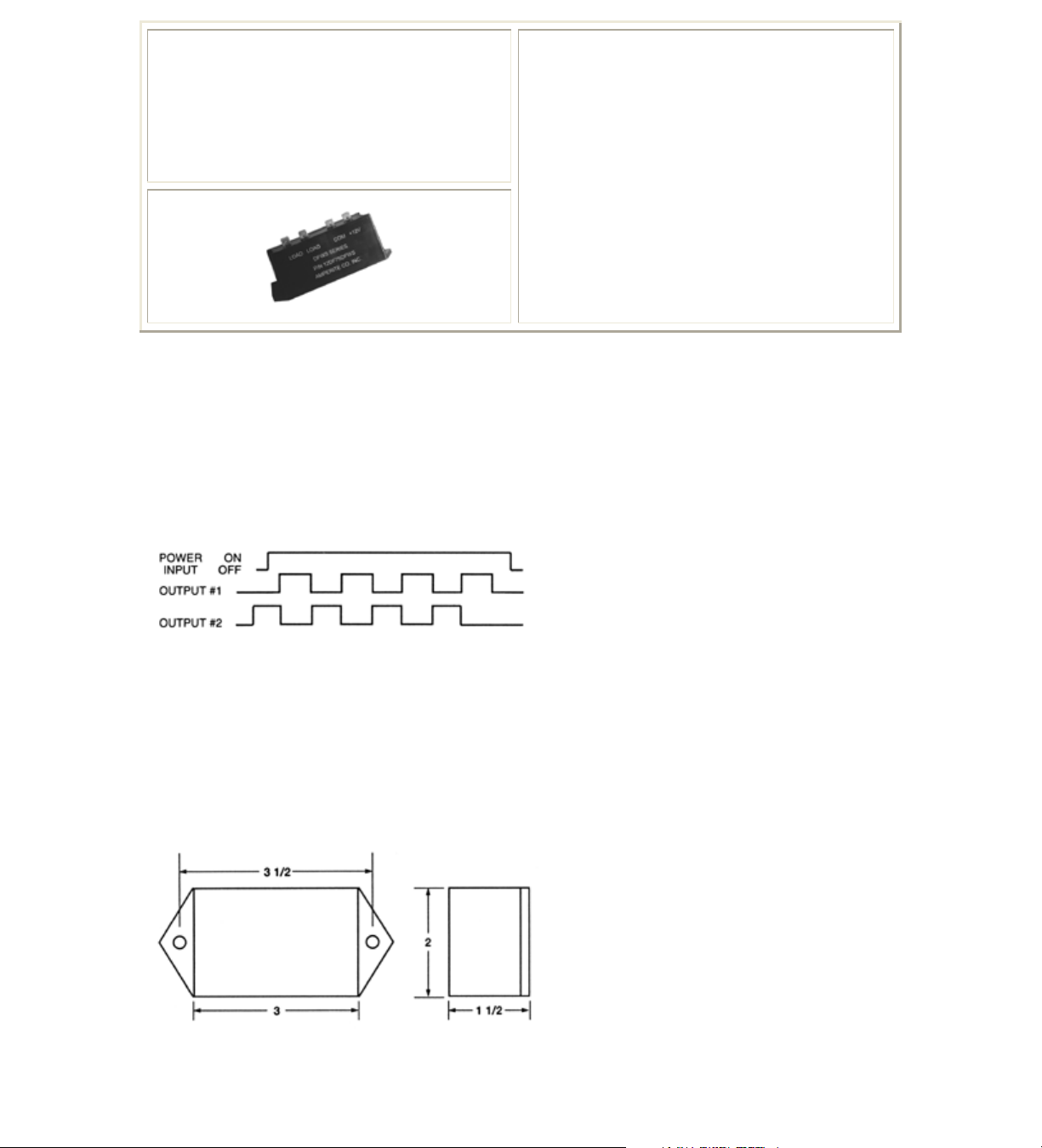

Timing Diagram
parts
… Alternating output - drives two
independent loads
… Zero AC voltage switching - no RFI
… 10 ampere current rating
… Suitable for incandescent and
inductive loads
… Fixed flash rates from 1 to 1000 FPM
… Duty cycle 50%
… UL File pending
… CSA File pending
Output Circuit:
Solid state switching device. Current rating 10 amperes RMS. Inrush current rating 10
times steady state value. Expected Life @ 25°C: indefinite, no moving parts to wear out.
Environmental Information:
Operating & storage temperature range: -23°C to +60°C, (-10°F to +140°F)
Outline Dimensions:
Mechanical Information:
Termination: .250 quick connect male terminals. Enclosure: 2 x 3 x 1-1/2 inch black
plastic case, epoxy sealed. Two hole mounting. For full load operation the unit must be
mounted to a suitable heat sink for proper heat dissipation.
Timing Specifications:
Standard flash rates: 30, 45, 60, 75, 90 and 120 FPM. Custom rates are available.
Input Voltages:
12, 24, 48,120, and 240 volts AC; 12, 24, 36, 48, and 110 volts DC. Custom voltages are
available.
Input Voltage Limits:
+/- 10% of nominal.

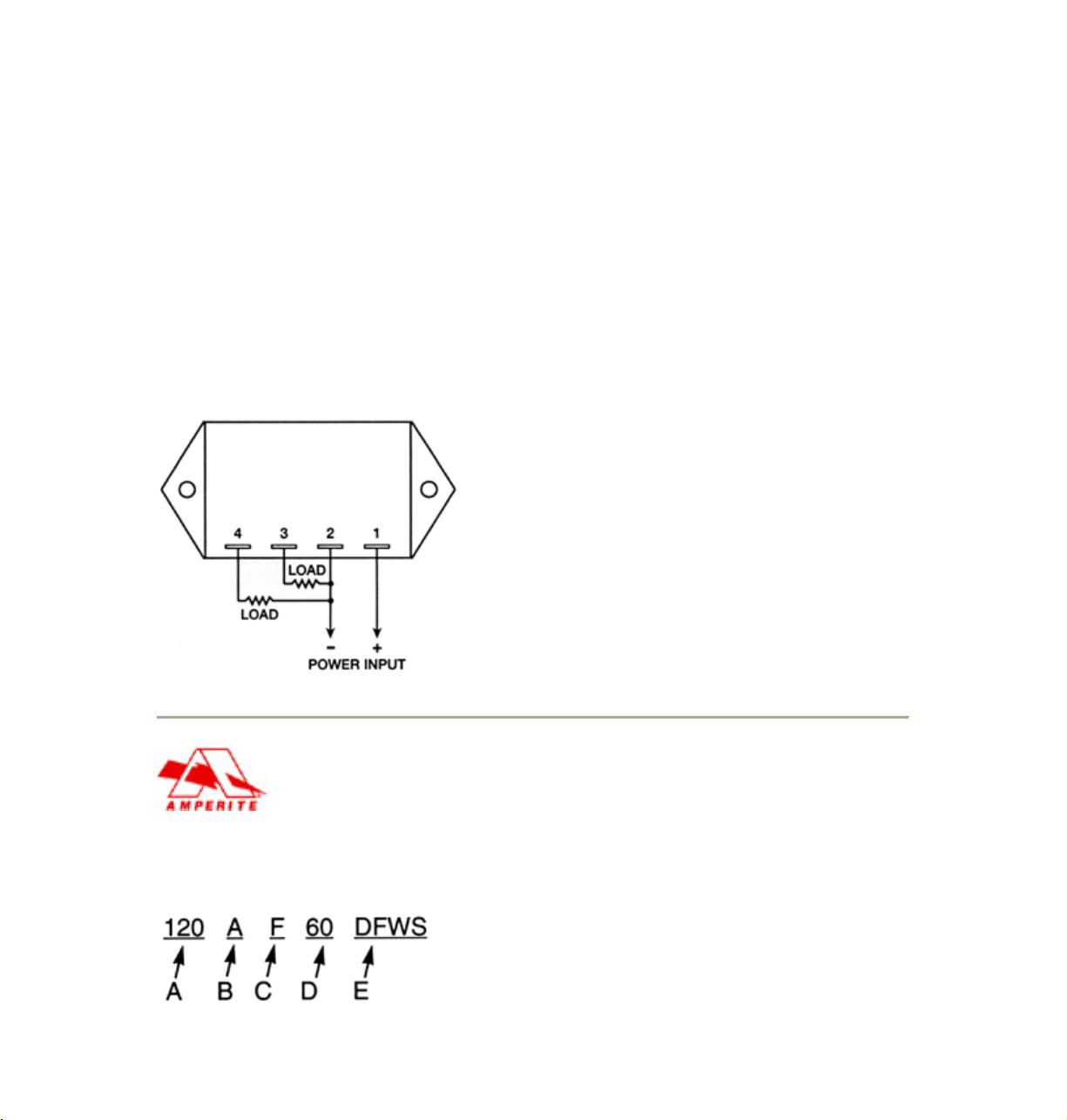

Wiring Diagram:
Ordering Information:
Ordering Information: Definition of a part number for the Amperite DFWS Series
Alternating Flasher:
Example:
A: Denotes nominal input voltage. Voltages available: 12, 24, 48,120, and 240 volts AC;
12, 24, 36, 48, and 110 volts DC. For other voltages consult factory.
B: Denotes type of input power required for operation
A = AC - Alternate Current
D = DC - Direct Current
C: Insert F for flasher.
D: Denotes number of flashes per minute (FPM). Standard rates are 30, 45, 60, 75, 90,
and 120 FPM. Custom rates are available from 1 to 1000 FPM.
E: Denotes Amperite DFWS Series solid state alternating flasher.
Solving Your Relay Requirements Since 1922
