AMP HSN1 Quick Start Manual

For Technical Support, Contact AMP

at [phone] (9 am - 5 pm PST)

or [email protected]

Connect amplier RF output SMA connector to antenna

Connect the RF output from the CNT1 video transmitter to
RF input SMA connector.

STEP

STEP

STEP

Note

When setting up your system, the transmit and receive
antennas should be greater than 25 feet apart to
prevent serious damage to or destruction of the
receiver’s front end

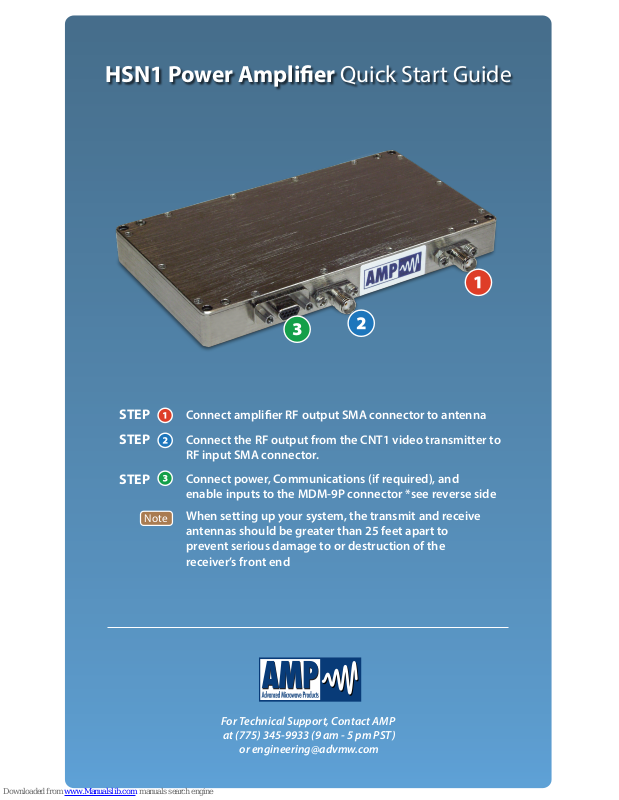

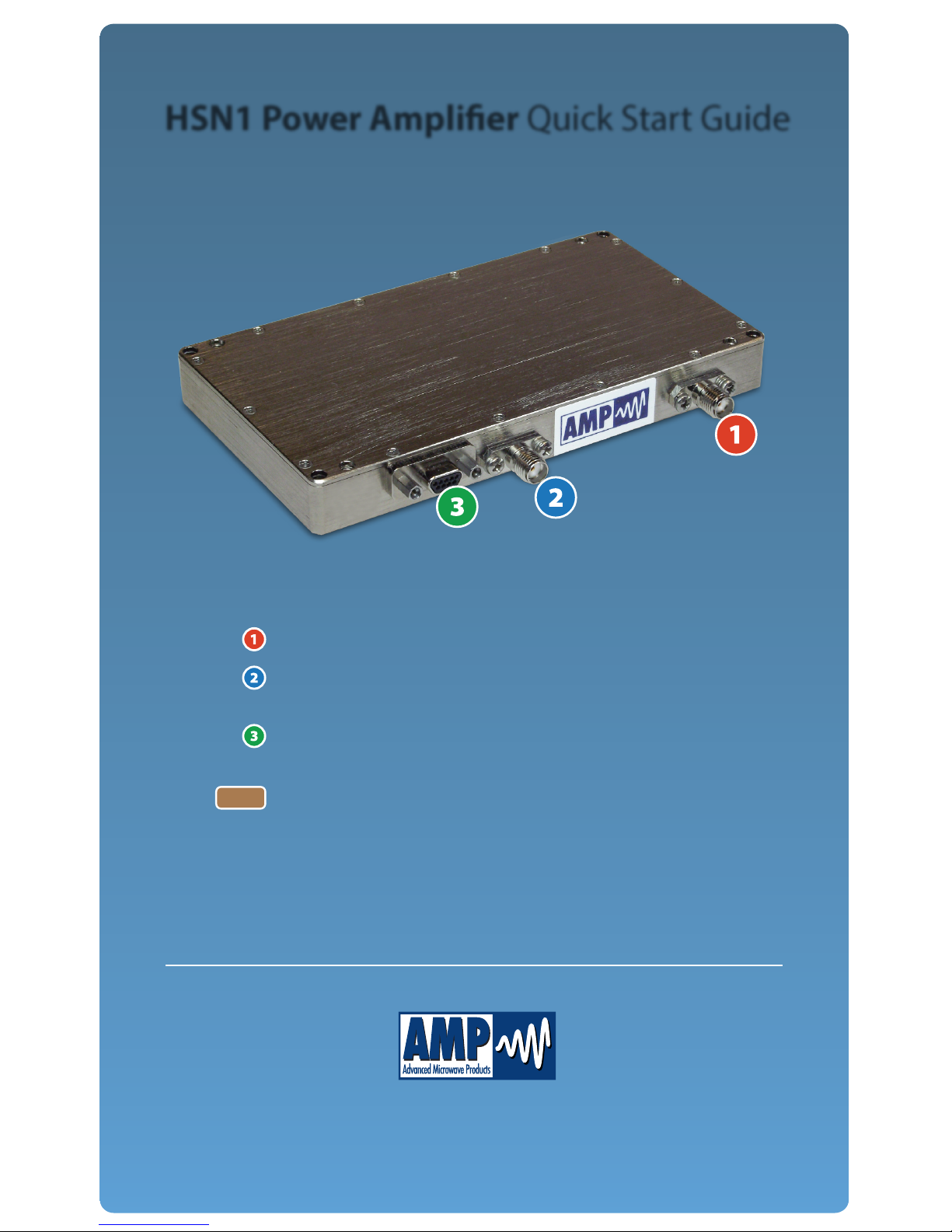

HSN1 Power Amplier Quick Start Guide

Connect power, Communications (if required), and
enable inputs to the MDM-9P connector *see reverse side

AQS-HSN1-C

Advanced Microwave Products

PO Box 1437
2465 Old Highway 40 West, Suite 200
Verdi, NV 89439

How to Congure Your Amplier

The HSN1 power amplier does not require any conguring unless it includes optional variable
output level. If included, the power level is set via commands using the Comm port. See the HSN1
Interface Control Document (ICD) for more details.

SMA Female

RF Input

SMA Female

RF Output

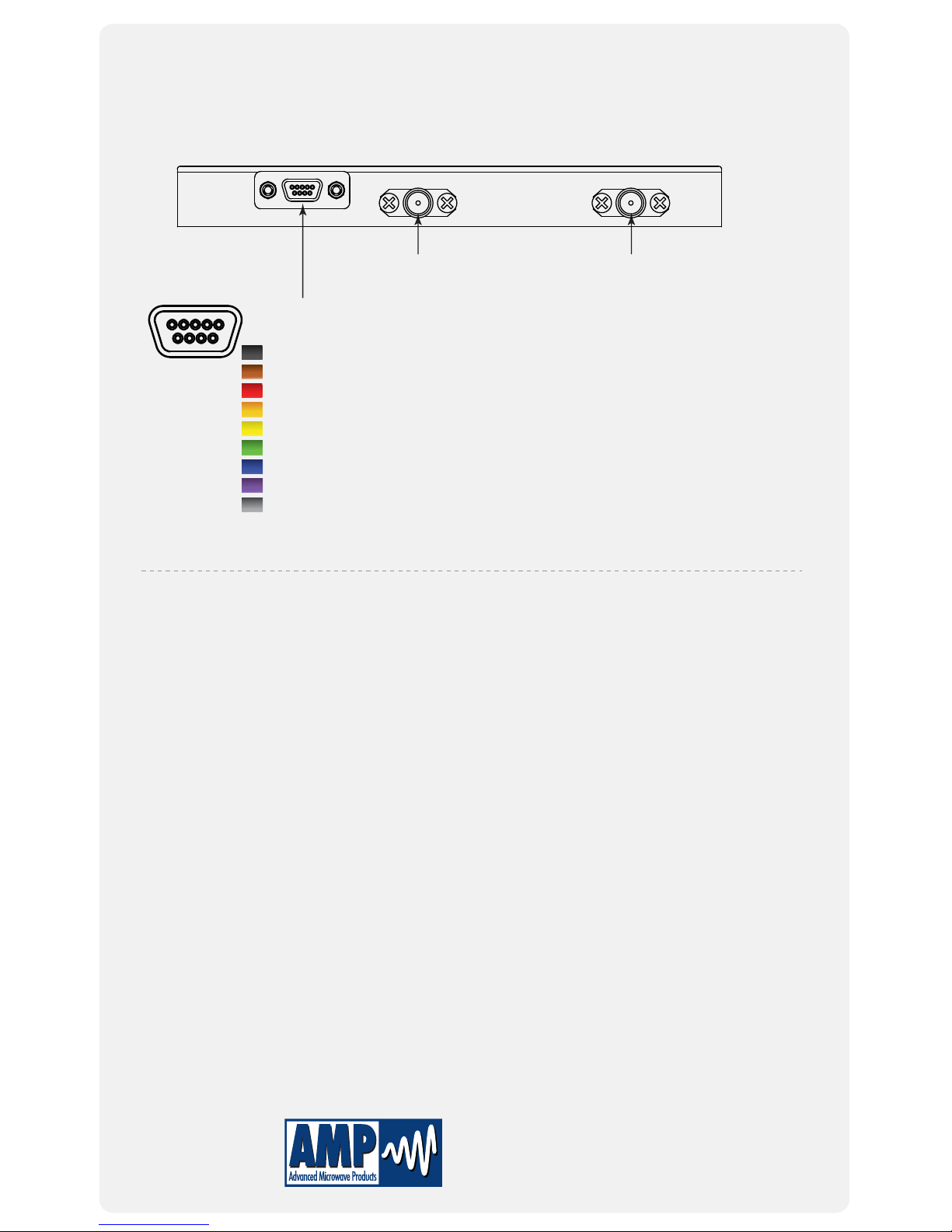

Wiring Your HSN1 Power Amplier

MDM-9P
Power & Conguration

1:
2:
3:
4:
5:
6:
7:
8:
9:

+11 to 16 VDC Input
Ground
Ground
Ground
Enable (Open=On, Ground (or <1.5 Vdc)=O )
NC/Tx Comm­Tx Comm+
Rx Comm+
NC/Rx Comm-

1 5

6 9
