AMP HSD1 Quick Start Manual

For Technical Support, Contact AMP

at [phone] (9 am - 5 pm PST)

or [email protected]

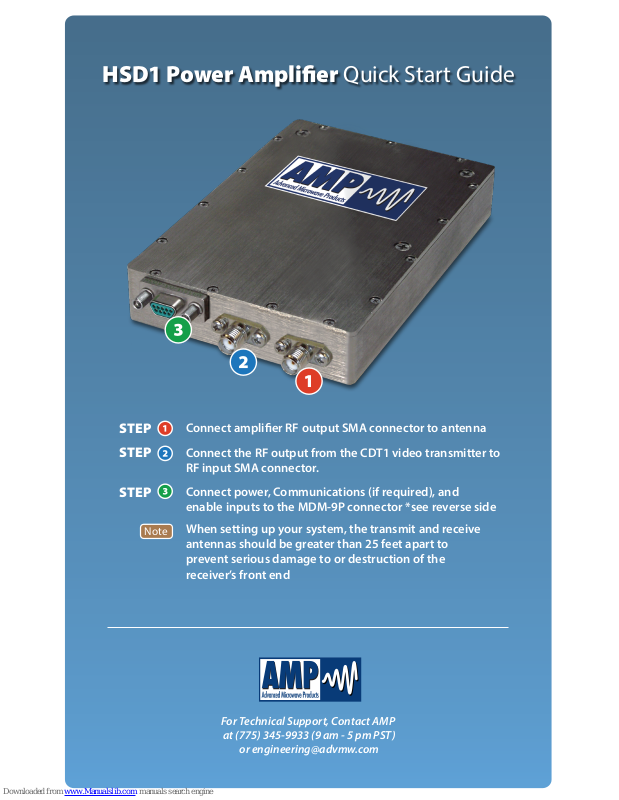

Connect amplier RF output SMA connector to antenna

Connect the RF output from the CDT1 video transmitter to
RF input SMA connector.

STEP

STEP

STEP

Note

When setting up your system, the transmit and receive
antennas should be greater than 25 feet apart to
prevent serious damage to or destruction of the
receiver’s front end

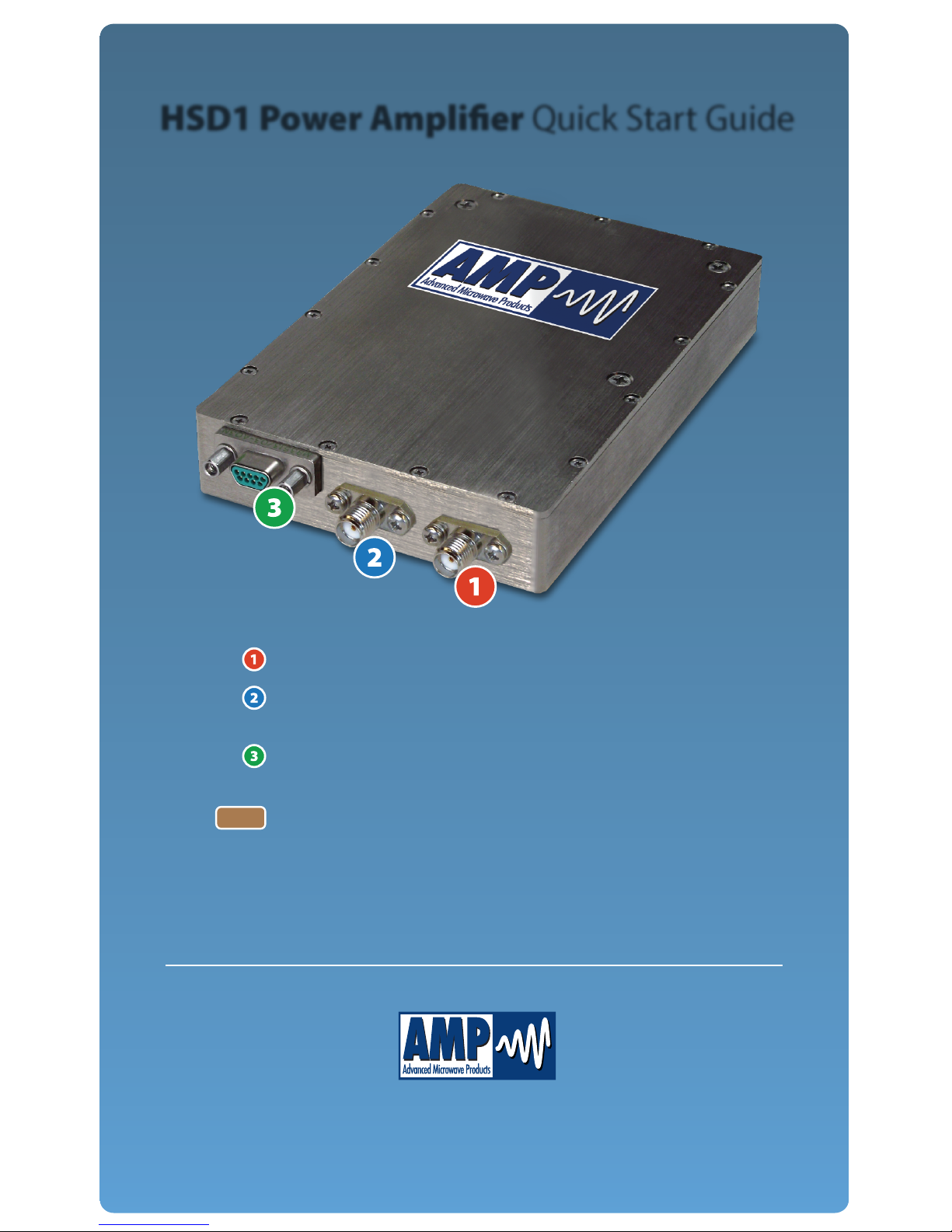

HSD1 Power Amplifier Quick Start Guide

Connect power, Communications (if required), and
enable inputs to the MDM-9P connector *see reverse side

AQS-HSD1-B

Advanced Microwave Products

8748 Technology Way
Reno, NV 89521
Phone: [phone]

How to Congure Your Amplier

The HSD1 power amplier does not require any conguring unless it includes optional variable
output level. If included, the power level is set via commands using the Comm port. See the HSD1
Interface Control Document (ICD) for more details.

SMA Female

RF Input

SMA Female

RF Output

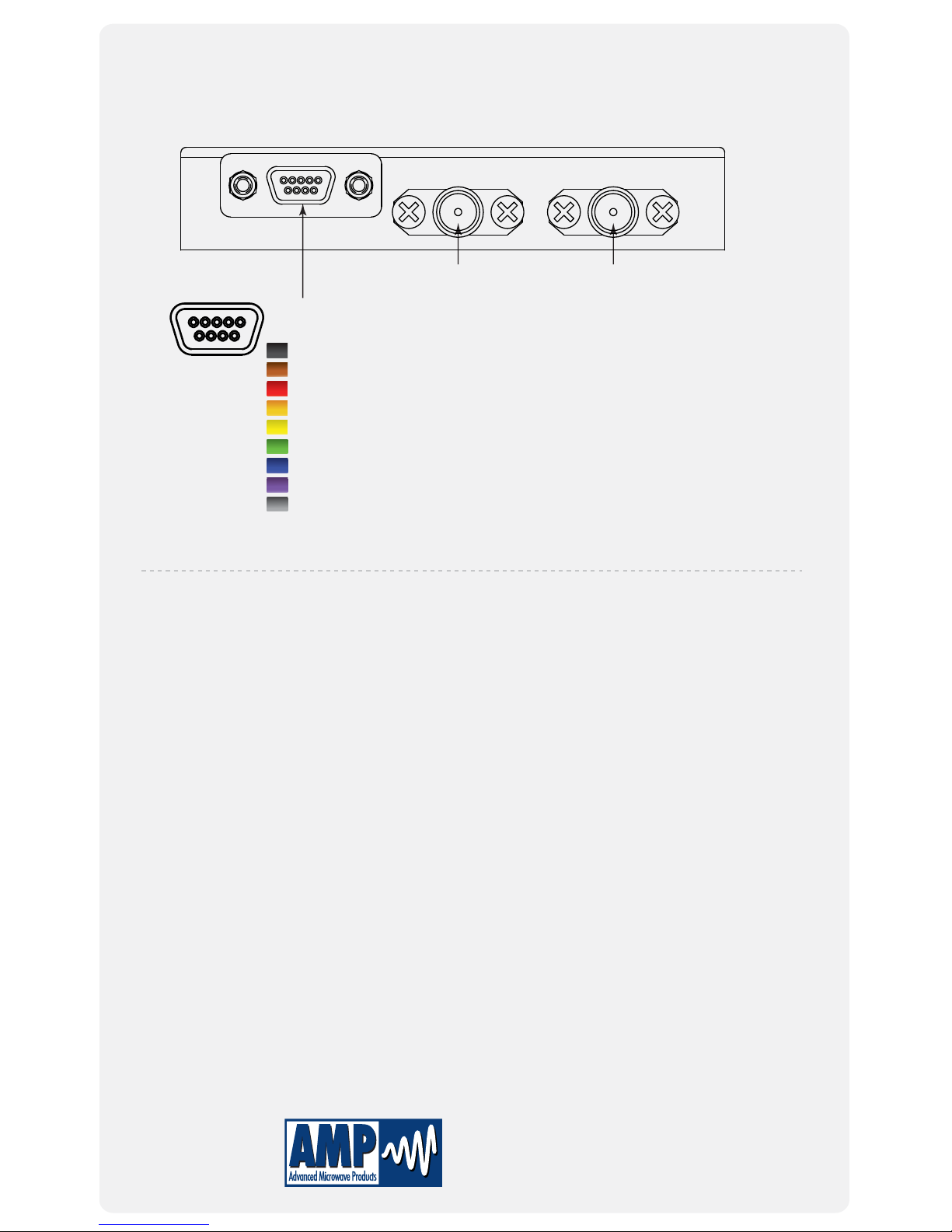

Wiring Your HSD1 Power Amplier

MDM-9P
Power & Conguration

1:
2:
3:
4:
5:
6:
7:
8:
9:

+11 to 16 VDC Input
Ground
Ground
Ground
Enable (Open=On, Ground (or <1.5 Vdc)=O )
NC/Tx Comm­Tx Comm+
Rx Comm+
NC/Rx Comm-

1 5

6 9
