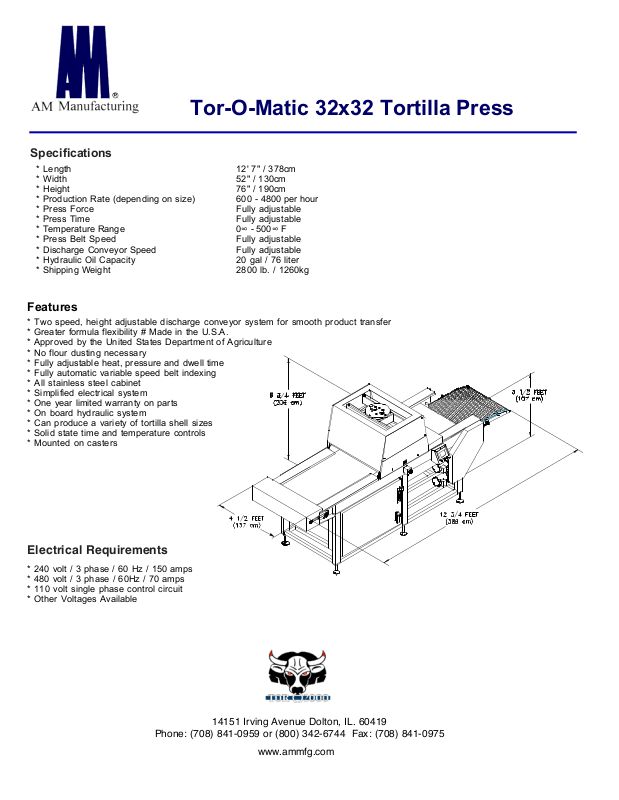

Tor-O-Matic 32x32 Tortilla Press
Specifications
Features
Electrical Requirements
14151 Irving Avenue Dolton, IL. 60419
Phone: (708) 841-0959 or (800) 342-6744 Fax: (708) 841-0975
www.ammfg.com
* Two speed, height adjustable discharge conveyor system for smooth product transfer
* Greater formula flexibility # Made in the U.S.A.
* Approved by the United States Department of Agriculture
* No flour dusting necessary
* Fully adjustable heat, pressure and dwell time
* Fully automatic variable speed belt indexing
* All stainless steel cabinet
* Simplified electrical system
* One year limited warranty on parts
* On board hydraulic system
* Can produce a variety of tortilla shell sizes
* Solid state time and temperature controls
* Mounted on casters
* 240 volt / 3 phase / 60 Hz / 150 amps
* 480 volt / 3 phase / 60Hz / 70 amps
* 110 volt single phase control circuit
* Other Voltages Available
* Length
* Width
* Height
* Production Rate (depending on size)
* Press Force
* Press Time
* Temperature Range
* Press Belt Speed
* Discharge Conveyor Speed
* Hydraulic Oil Capacity
* Shipping Weight
12' 7" / 378cm
52" / 130cm
76" / 190cm
600 - 4800 per hour
Fully adjustable
Fully adjustable
0∞ - 500∞ F
Fully adjustable
Fully adjustable
20 gal / 76 liter
2800 lb. / 1260kg
