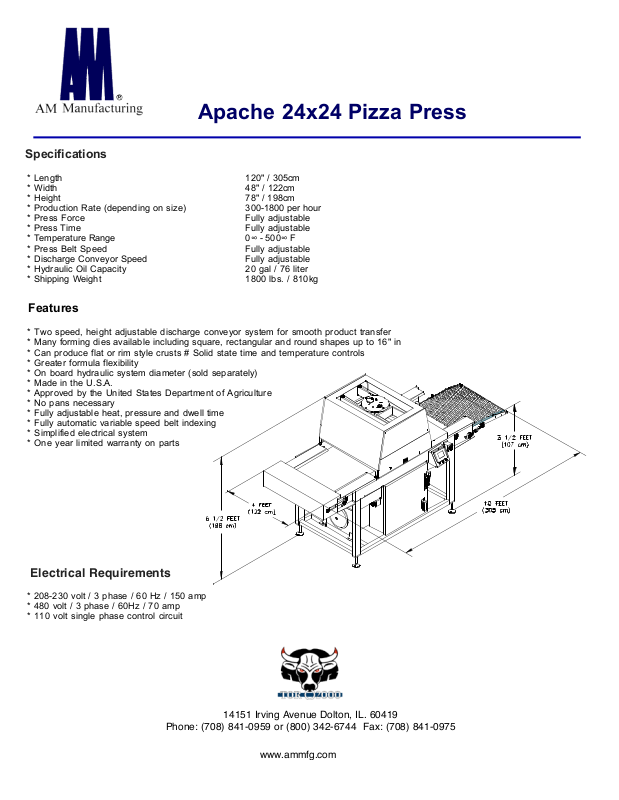

Apache 24x24 Pizza Press
Specifications
Features
Electrical Requirements
14151 Irving Avenue Dolton, IL. 60419
Phone: (708) 841-0959 or (800) 342-6744 Fax: (708) 841-0975
www.ammfg.com
* Length
* Width
* Height
* Production Rate (depending on size)
* Press Force
* Press Time
* Temperature Range
* Press Belt Speed
* Discharge Conveyor Speed
* Hydraulic Oil Capacity
* Shipping Weight
120" / 305cm
48" / 122cm
78" / 198cm
300-1800 per hour
Fully adjustable
Fully adjustable
0∞ - 500∞ F
Fully adjustable
Fully adjustable
20 gal / 76 liter
1800 lbs. / 810kg
* Two speed, height adjustable discharge conveyor system for smooth product transfer
* Many forming dies available including square, rectangular and round shapes up to 16" in
* Can produce flat or rim style crusts # Solid state time and temperature controls
* Greater formula flexibility
* On board hydraulic system diameter (sold separately)
* Made in the U.S.A.
* Approved by the United States Department of Agriculture
* No pans necessary
* Fully adjustable heat, pressure and dwell time
* Fully automatic variable speed belt indexing
* Simplified electrical system
* One year limited warranty on parts
* 208-230 volt / 3 phase / 60 Hz / 150 amp
* 480 volt / 3 phase / 60Hz / 70 amp
* 110 volt single phase control circuit
