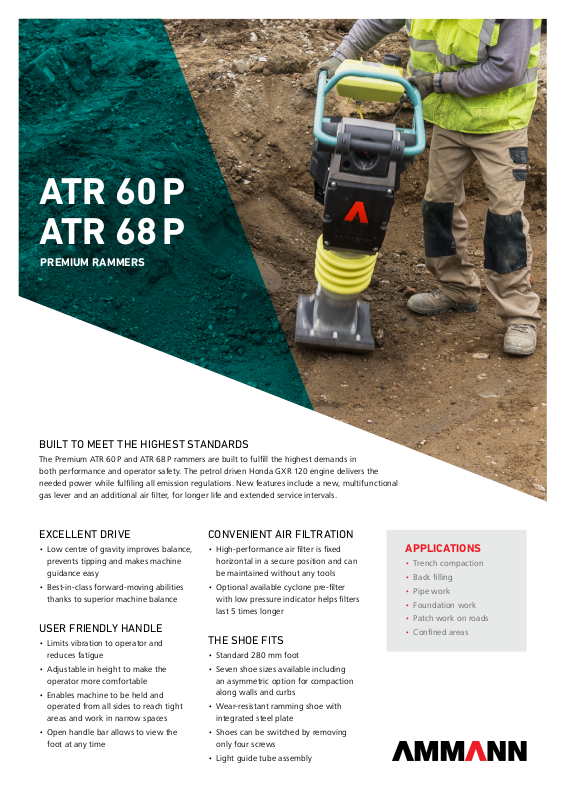

ATR 60 P
ATR 68 P
PREMIUM RAMMERS
BUILT TO MEET THE HIGHEST STANDARDS
The Premium ATR 60 P and ATR 68 P rammers are built to fulfill the highest demands in
both performance and operator safety. The petrol driven Honda GXR 120 engine delivers the
needed power while fulfiling all emission regulations. New features include a new, multifunctional
gas lever and an additional air filter, for longer life and extended service intervals.
EXCELLENT DRIVE
• Low centre of gravity improves balance,
prevents tipping and makes machine
guidance easy
• Best-in-class forward-moving abilities
thanks to superior machine balance
USER FRIENDLY HANDLE
• Limits vibration to operator and
reduces fatigue
• Adjustable in height to make the
operator more comfortable
• Enables machine to be held and
operated from all sides to reach tight
areas and work in narrow spaces
• Open handle bar allows to view the
foot at any time
CONVENIENT AIR FILTRATION
• High-performance air filter is fixed
horizontal in a secure position and can
be maintained without any tools
• Optional available cyclone pre-filter
with low pressure indicator helps filters
last 5 times longer
THE SHOE FITS
• Standard 280 mm foot
• Seven shoe sizes available including
an asymmetric option for compaction
along walls and curbs
• Wear-resistant ramming shoe with
integrated steel plate
• Shoes can be switched by removing
only four screws
• Light guide tube assembly
APPLICATIONS
• Trench compaction
• Back filling
• Pipe work
• Foundation work
• Patch work on roads
• Confined areas
Page 2
TECHNICAL SPECIFICATIONS
ATR 60 P / ATR 68 P PREMIUM RAMMERS

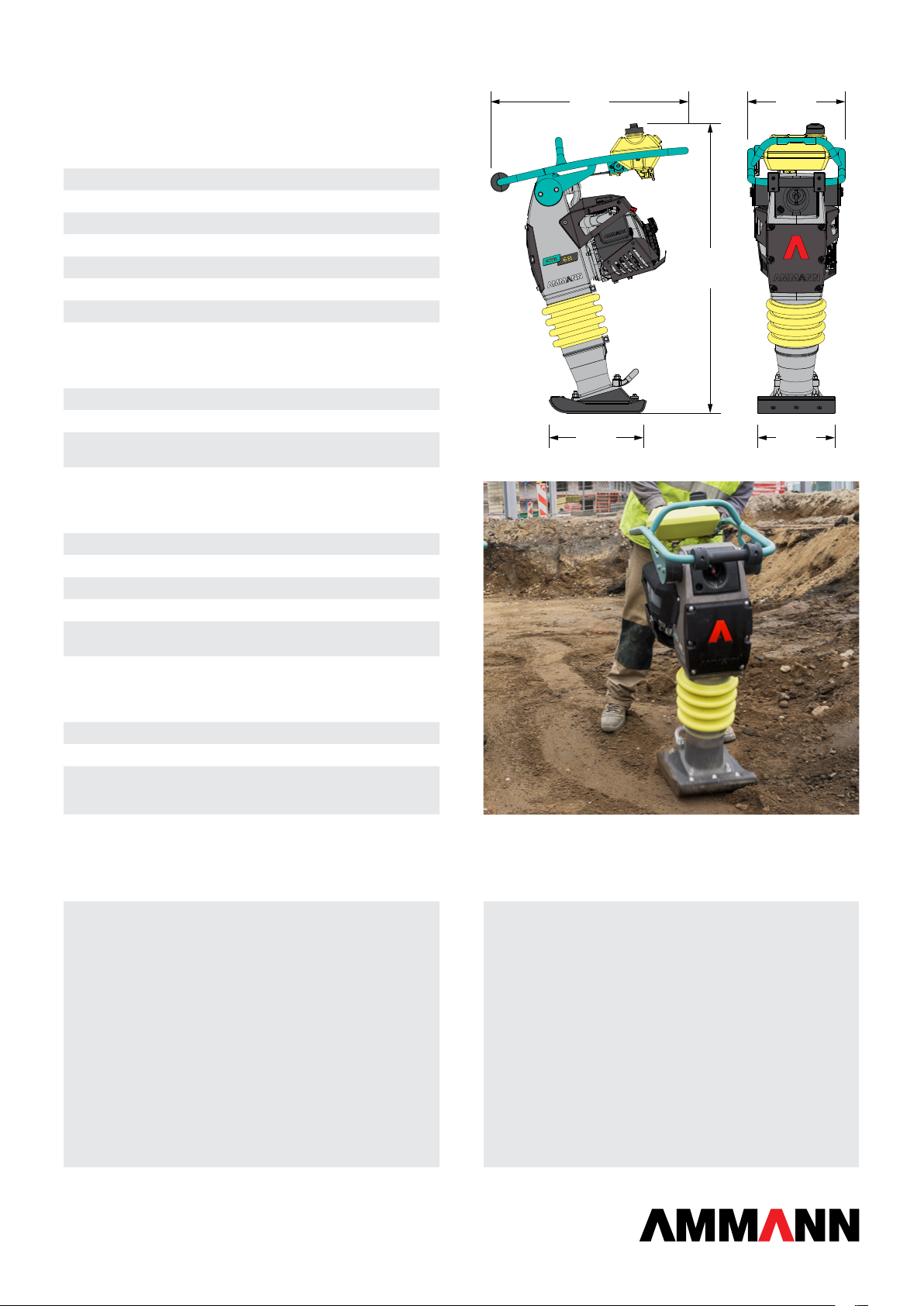

WEIGHT & DIMENSIONS
ATR 60 P ATR 68 P
MACHINE WEIGHT 62 kg (137 lb) 68 kg (150 lb)
A FOOT LENGTH 340 mm (13.4 in) 340 mm (13.4 in)
B FOOT WIDTH 280 mm (11 in) 280 mm (11 in)
C HANDLE LENGTH 710 mm (28 in) 710 mm (28 in)
D MACHINE HEIGHT 1020 mm (40.2 in) 1020 mm (40.2 in)
E HANDLE WIDTH 355 mm (14 in) 355 mm (14 in)
ENGINE
ENGINE Honda GXR 120 Honda GXR 120
FUEL Petrol Petrol
ENGINE OUTPUT
AT RP M
2.7 kW (3.7 HP)
4300
2.7 kW (3.7 HP)
COMPACTION FORCES
4300
710
C
340
355
E
D
1020
A
280
B
PERCUSSION RATE 680 bpm 680 bpm
STROKE HEIGHT 65 mm (2.6 in) 65 mm (2.6 in)
CENTRIFUGAL FORCE 11.5 kN (2,6 lbf) 13 kN (2.9 lbf)
SURFACE CAPACITY 225 m²/h (2422 ft²/h) 225 m²/h (2422 ft²/h
MAX. COMPACTION
PERFORMANCE *
45 cm (18 in) 50 cm (18 in)
MISCELLANEOUS
FUEL TANK CAPACITY 3.2 l (0.8 gal) 3.2 l (0.8 gal)
TRAVEL SPEED 13.5 m/min (0.5 mph) 13.5 m / min (0.5 mph)
OPTIONAL FOOT
SIZES WIDTH
* depending on ground conditions
(6.5 –7.87– 9.1–13 –16 in)
165–200–230–
330–400 mm
165–200–230–
330–400 mm
(6.5 –7.87– 9.1–13 –16 in)
STANDARD EQUIPMENT
• Multifunctional gas throttle
• Additional air filter system
• Vibration isolated guide handle
• Carburator with integrated accelerator pump
for trouble free quick engine start
• Oil alert system with LED indicator
• Large fuel tanks
• High quality, wear resistant 280 mm base plate
• Honda engine with reliable starter
• Convenient rolls for easy loading and unloading
• Petrol engine requires no fuel mixing at the job site
OPTIONAL EQUIPMENT
• Adaptor plate for 10 cm height reduction
• Cyclone pre cleaner for air filter extends lifetime of the
filter by 5 times
• Seven different sized foot plates
from 165 mm to 400 mm
• 340 mm asymmetric foot plate for compaction
up to walls and curbs
• Transport wheels
• Operation hour meter
