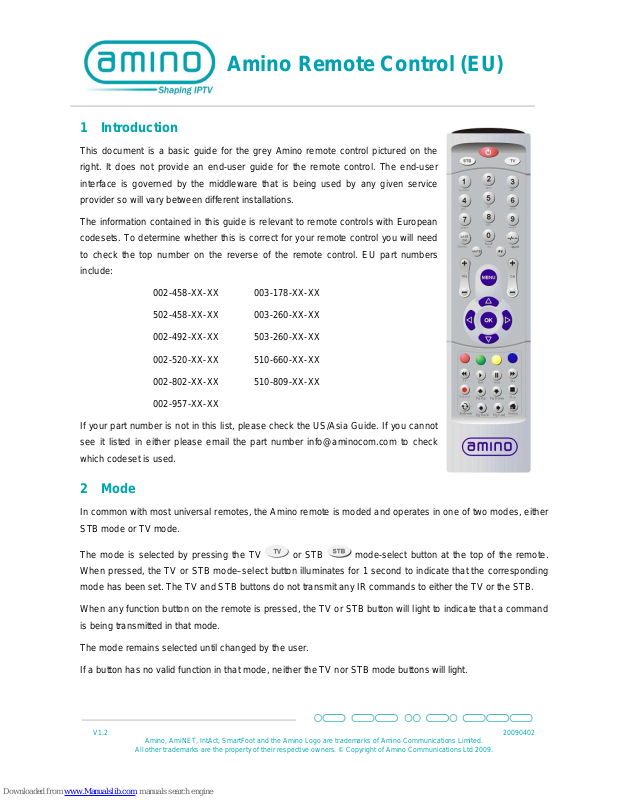

Amino Remote Control (EU)

1 Introduction

This document is a basic guide for the grey Amino remote control pictured on the
right. It does not provide an end-user guide for the remote control. The end-user
interface is governed by the middleware that is being used by any given service
provider so will vary between different installations.

The information contained in this guide is relevant to remote controls with European
codesets. To determine whether this is correct for your remote control you will need
to check the top number on the reverse of the remote control. EU part numbers
include:

002-458-XX-XX
502-458-XX-XX
002-492-XX-XX
002-520-XX-XX
002-802-XX-XX
002-957-XX-XX

003-178-XX-XX
003-260-XX-XX
503-260-XX-XX
510-660-XX-XX
510-809-XX-XX

If your part number is not in this list, please check the US/Asia Guide. If you cannot
see it listed in either please email the part number [email protected] to check
which codeset is used.

2 Mode

In common with most universal remotes, the Amino remote is moded and operates in one of two modes, either
STB mode or TV mode.

The mode is selected by pressing the TV

or STB mode-select button at the top of the remote.
When pressed, the TV or STB mode–select button illuminates for 1 second to indicate that the corresponding
mode has been set. The TV and STB buttons do not transmit any IR commands to either the TV or the STB.

When any function button on the remote is pressed, the TV or STB button will light to indicate that a command
is being transmitted in that mode.

The mode remains selected until changed by the user.
If a button has no valid function in that mode, neither the TV nor STB mode buttons will light.

V1.2 20090402

Amino, AmiNET, IntAct, SmartFoot and the Amino Logo are trademarks of Amino Communications Limited.

All other trademarks are the property of their respective owners. © Copyright of Amino Communications Ltd 2009.

3 TV Compatibility

In order for the remote to transmit the correct signals to control the TV, the remote must first be programmed
with the 3-digit code corresponding to the make and model of TV in use.

This is done in the following way:

 Identify the make of the TV that is to be controlled. For example, Sony, Magnavox, Philips etc,

and find it in the Table of TV Brand Codes below.

 Simultaneously press and hold the TV

and OK buttons on the remote – after

approximately 2 seconds, the TV button will light.

 Release the TV and OK buttons – the TV button remains illuminated.
 Now enter the 3-digit brand code according to the make of the TV that is being controlled.
 As each of the digits are entered, the TV button will briefly flash off and on again
 When the third digit has been entered, the TV button will go out.
 If a TV brand code has been entered that the remote does not recognise, the TV button will flash

rapidly for a second and remain illuminated. If this happens, re-enter the correct TV brand code.

 Verify that the remote control works with the TV.
 If no brand code is entered, or the brand code entered is incomplete, after several seconds, the

remote will exit the TV brand code entry mode and the TV brand code will be unchanged.

 The remotes are supplied by default with TV Brand Code 000.

Most TV makes have more than one brand code listed in the brand code table – if this is the case try all brand
codes that are listed for that make until a suitable match is found.

If no brand code is listed for the TV, try brand codes for common televisions such as Philips and NEC.

3.1 Table of TV Brand Codes

Please note: Certain codes are only available in newer remote controls (in cluding 002-458-01-01 and any part
number starting with a 5). If it is not available in your remote then after entering it the TV button will flash rapidly
for a second and remain illuminated. Please contact your STB provider to see if a newer version of your remote
is available.

TV Manufacturer Brand Codes

ADMIRAL 041, 045, 091, 102, 108
AIKO 089
AIWA 294, 295

AKAI

006, 010, 023, 119, 135, 159, 164, 179,
189, 198

AKURA 133
ALBA 124, 133, 236

TV Manufacturer Brand Codes

ALBIRAL 197
AMSTRAD 130, 151
ANAM 117
ARC EN CIEL 057
ARCAM 057, 076
ARISTONA 075

Amino Communications Ltd: Buckingway Business Park, Anderson Road, Swavesey, Cambridge, CB24 4UQ Tel: [phone] Fax: [phone]

US: 3625 Brookside Parkway, Suite 150, Alpharetta, GA 30022 Tel: [phone] Fax: [phone]

Email: [email protected], Website: www.aminocom.com

Amino Communications Ltd: Buckingway Business Park, Anderson Road, Swavesey, Cambridge, CB24 4UQ Tel: [phone] Fax: [phone]

US: 3625 Brookside Parkway, Suite 150, Alpharetta, GA 30022 Tel: [phone] Fax: [phone]

Email: [email protected], Website: www.aminocom.com

TV Manufacturer Brand Codes

ARTHUR MARTIN 045, 164
ASA

041, 045, 052, 078, 087, 102, 108, 142,
205, 209, 215, 255

ASTRA 151
ATANTIC 076
ATLANTIC 076
ATORI 151
AUDIOSONIC 118, 132, 151
AUSIND 049, 141

AUTOVOX

009, 035, 048, 049, 060, 078, 095, 105,
108, 139, 142

BAIRD 110, 135
BANG & OLUFSEN 108, 341, 342
BASIC LINE 132, 133
BAUER 145
BAUR 004, 006, 012, 013, 022, 156
BEKO 249, 250

BLAUPUNKT

022, 023, 024, 025, 047, 074, 220, 221,
222, 223, 224, 226, 257, 258

BRANDT 057, 065, 073, 090, 182
BRIONVEGA 102, 105, 108
BRITANNIA 076
BRUNS 082, 099, 102, 108
BSR 039, 069, 162, 190, 198
BUSH 045, 124, 133, 164, 174, 213, 215
BUSH (UK) 048, 156, 161
CANDLE 079
CENTURY 102, 108

CGE

049, 081, 098, 140, 153, 161, 162, 198,
220, 225, 227

CITIZEN 079
CLARIVOX 082, 096, 197
CLATRONIC 118, 133
CONCERTO 079
CONDOR 076
CONTEC 015, 117

CONTINENTAL
EDISON

057, 065, 090
CRAIG 117
CROSLEY

002, 049, 102, 108, 140, 198, 220, 225,

227
CROWN 254

CTC CLATRONIC 026
CXC 117

TV Manufacturer Brand Codes

DAEWOO 010, 150, 151, 261
DANSAI 010
DECCA 027, 058, 060, 097, 110, 169
DECCA (UK) 027, 058, 060, 110, 168
DEGRAAF 045, 135
DIXI 099, 151
DOMEOS 010
DORIC 103
DUAL 009, 060, 161, 164, 210
DUAL-TEC 060, 151, 162, 211
DUMONT 026, 052, 078, 102, 108, 198, 212, 215
DYNATRON 010
ELBE 155, 197, 203
ELECTRO TECH 151
ELEKTRONSKA 077
ELMAN 026, 162
ELTA 151
EMERSON 092, 102, 108, 112, 117, 126, 130
ERRES 010
ETRON 198
EUROPHON 026, 058, 060, 077, 109, 162, 200
FENNER 010, 151

FERGUSON

028, 037, 055, 065, 078, 086, 088, 113,
118, 136, 146, 197, 199, 228, 231, 234

FIDELITY 045, 076, 228
FIDELITY (UK) 056, 059, 193, 228
FILMNET 114
FINLANDIA 045, 232

FINLUX

002, 026, 049, 052, 078, 081, 087, 108,
141, 142, 198, 205, 209, 212, 215, 255,
349, 350, 351

FIRST LINE 198
FISHER

002, 009, 014, 051, 060, 080, 082, 098,
102, 108, 198, 209

FORGESTONE 228
FORMENTI 045, 049, 076, 108, 145, 154, 198

FORMENTI­PHOENIX

002, 043, 045, 059, 141

FORTRESS 108
FRONTECH 045, 118, 198
FUJITSU 126
FUNAI 039, 069, 117, 118, 126
FUTURETECH 117
GBC 002, 014, 132, 151, 162, 198

Amino Communications Ltd: Buckingway Business Park, Anderson Road, Swavesey, Cambridge, CB24 4UQ Tel: [phone] Fax: [phone]

US: 3625 Brookside Parkway, Suite 150, Alpharetta, GA 30022 Tel: [phone] Fax: [phone]

Email: [email protected], Website: www.aminocom.com

TV Manufacturer Brand Codes

GEC 045, 110, 128, 232
GEC (UK) 003, 008, 058, 060, 110, 128, 156
GELOSO 002, 041, 045, 132, 151, 162, 198

GENERAL
TECHNIC

268
GENEXXA 045, 133

GOODMANS 014, 110, 137, 164, 230
GORENJE 098, 106
GRAETZ 045

GRANADA

014, 045, 049, 058, 060, 110, 111, 135,

198, 232
GRANADA (UK)

008, 014, 045, 049, 058, 060, 103, 131,

152, 156, 164
GRUNDIG

022, 023, 047, 049, 071, 074, 138, 202,

204, 214, 215, 282, 283, 284, 285
HANSEATIC 002, 012, 014, 043, 059, 156

HANTAREX 058
HEMMERMANN 006
HIFIVOX 033, 057

HINARI

007, 014, 045, 126, 135, 151, 164, 198,

201

HITACHI

000, 001, 003, 008, 014, 029, 033, 034,

045, 060, 063, 070, 128, 156, 160, 182,

183, 184, 186, 187, 188, 189, 194, 198,

205, 232, 234
HYPER 059, 060, 151, 162

HYUNDAI 353
IMPERIAL

045, 049, 081, 098, 140, 161, 162, 220,

225, 227
INGERSOL 151

INNO HIT 058, 060, 084, 110, 133, 137, 151, 201
INNOVATION

259, 260, 261, 262, 264, 265, 266, 271,

272, 276, 277, 278
INTERFUNK

003, 004, 006, 012, 018, 045, 049, 108,

164, 179, 182, 198, 223
IRRADIO 049, 132, 133, 137, 141, 151, 201

ISUKAI 133

ITT

003, 004, 005, 006, 007, 008, 018, 041,

045, 049, 124, 129, 135, 150, 160, 164,

174, 192, 198, 209, 233, 243

ITT-NOKIA

003, 004, 005, 006, 007, 008, 018, 041,

045, 049, 124, 129, 135, 150, 160, 164,

174, 192, 198, 209, 233, 243
JVC 007, 072, 144, 158, 159, 174, 179

KAISUI 059, 132, 133
KAMOSONIC 060
KARCHER 059, 060, 084, 109, 132, 151, 156, 205
KAWASHO 076
KENDO 026

TV Manufacturer Brand Codes

KENNEDY 002, 035, 095, 198
KONKA 270
KORTING 043, 101, 102, 108, 154
KTV 060, 117
LENOIR 060, 151
LEYEO 118

LG(GOLDSTAR)

059, 060, 076, 079, 137, 149, 151, 156,
162, 164, 315, 320, 321, 322, 323, 324,
325, 326, 327, 328, 329, 330, 331, 332,
333, 334, 335, 336, 337, 338, 339, 340

LIFETEC

259, 260, 261, 262, 264, 265, 266, 267,
268, 269, 271, 276, 277, 278

LOEWE OPTA 012, 013, 058, 061, 108
LOGIC 169, 228
LOGIK 055, 168, 228
LOWEWE 083
LUMA 035, 045, 190
LUXMAN 079

LUXMAN STEREO
TUNER

079

LUXOR

000, 006, 018, 034, 042, 045, 046, 049,
060, 067, 135, 137, 156, 160, 191, 192,
198

LYCO 118
MAGNADYNE

002, 006, 026, 058, 064, 077, 102, 108,
162, 198

MAGNAFON 026, 049, 058, 059, 064, 076, 109, 200
MANESTH 010
MARANTZ 010
MARELLI 108
MARK 010

MATSUI

006, 045, 060, 069, 110, 115, 124, 127,
130, 151, 156, 168, 169

MAXIMAL 007, 198
MCMICHAEL 128

MEDION

259, 260, 261, 262, 264, 265, 266, 267,
268, 269, 271, 272, 276, 277, 278

MEMOREX 151
METZ 023, 074, 100, 104, 108, 148, 207, 208
MGA 123
MICROMAXX 259, 262, 264, 265, 271, 276, 277, 278
MINERVA 022, 023, 049, 138, 214, 215
MISTRAL 228

MITSUBISHI

014, 020, 023, 066, 119, 120, 123, 167,
169, 174

MIVAR

049, 050, 058, 059, 076, 077, 137, 143,
203

MTC 079

Amino Communications Ltd: Buckingway Business Park, Anderson Road, Swavesey, Cambridge, CB24 4UQ Tel: [phone] Fax: [phone]

US: 3625 Brookside Parkway, Suite 150, Alpharetta, GA 30022 Tel: [phone] Fax: [phone]

Email: [email protected], Website: www.aminocom.com

TV Manufacturer Brand Codes

MULTITECH 026, 058, 060, 064, 098, 132, 151
MURPHY 045, 209
MURPHY (UK) 008, 103
N.E.I. 010, 096
NAD 134
NEC 014, 171, 172, 173

NECKERMANN

045, 060, 098, 108, 156, 193, 198, 221,

223, 224
NEDIATOR 010

NICAMAGIC 076
NIKKAI 110, 133, 164, 170, 201
NOBLIKO 026, 049, 059, 064, 138, 141
NOGAMATIC 057

NOKIA

003, 004, 005, 006, 007, 008, 018, 041,

045, 049, 124, 129, 135, 150, 160, 164,

174, 192, 198, 209, 233, 243, 246, 279,

348
NORDMENDE

003, 029, 033, 045, 053, 054, 057, 105,

113, 159, 179, 181, 182, 189, 194, 263
OCEANIC 032, 165, 198

OCEANIC (F) 003, 006, 032, 044, 166
ONCEAS 060
ONWA 117

ORION

006, 039, 069, 085, 121, 124, 125, 130,

148, 151, 168, 169, 198, 237, 242
OSAKA 201

OSAKI 110, 133, 201
OSUME 015
OTTO VERSAND 002, 012, 014, 022, 060, 156, 174, 198
PAEL 059, 141

PANASONIC

003, 020, 021, 045, 070, 131, 175, 196,

256, 274
PANORAMIC 235

PATHE MARCONI 057
PATHE' CINEMA (F) 043, 059, 162, 166, 197
PAUSA 151
PAUZA 151
PERDIO 089, 110

PHILCO

002, 049, 081, 098, 102, 108, 140, 161,

162, 175, 220, 225, 227, 245, 247

PHILIPS

010, 036, 059, 062, 068, 075, 076, 102,

108, 128, 203, 228, 229, 243, 244, 251,

273
PHOENIX 108

PHONOLA 075, 108
PIONEER 029, 045, 134, 182

TV Manufacturer Brand Codes

PRANDONI-PRINCE 041, 045, 049, 058, 141
PRANDONI-

PROMCE

045, 049, 058

PRIMA 045
PROFEX 198
PROTECH 064, 118, 198

QUELLE

004, 006, 012, 022, 023, 039, 049, 052,
060, 078, 137, 138, 141, 142, 164, 168,
205, 209, 214, 215, 220, 221, 223, 224,
225, 227, 255, 257, 258

RADIOMARELLI 010, 045, 066, 077, 108
RADIONETTE 003, 205, 209
RADIOLA 229
RANK 048, 215
RBM 213, 215
RBM (UK) 048
REDIFFUSION 045, 066, 164, 198, 233
REDIFFUSION (UK) 006, 008, 103

REX

007, 010, 035, 041, 045, 095, 190, 206,
210, 211

RFT 099, 251
ROADSTAR

132, 151, 286, 287, 288, 289, 290, 291,
292, 293

ROTEL 015

SABA

029, 033, 042, 045, 053, 054, 057, 058,
065, 073, 093, 102, 107, 108, 113, 179,
181, 182, 189, 194, 263

SACCS 197
SAISHO

045, 060, 116, 124, 130, 151, 167, 168,
169

SALORA

001, 004, 006, 007, 034, 045, 067, 129,
135, 152, 156, 160, 164, 191, 192, 193,
198, 232

SAMBERS 026, 049, 058, 064, 109, 137, 141, 200
SAMSUNG

010, 060, 084, 098, 110, 118, 137, 151,
201, 314, 315, 316 317, 318, 319; 354

SANYO

014, 015, 040, 060, 080, 082, 098, 102,
110, 111, 129, 135, 169, 174, 205, 209,
255

SBR 068, 075, 128, 228
SCHAUB LORENZ 045

SCHNEIDER

002, 007, 009, 045, 051, 059, 060, 075,
132, 136, 162, 164, 210, 211, 229

SCOTT 117, 126
SEG 026, 060, 082, 099
SEI 064, 069, 108, 130, 148, 198

SELECO

007, 010, 035, 041, 045, 095, 190, 206,
210, 211

SENTRA 160
SHARP 014, 015, 019, 176, 178

Amino Communications Ltd: Buckingway Business Park, Anderson Road, Swavesey, Cambridge, CB24 4UQ Tel: [phone] Fax: [phone]

US: 3625 Brookside Parkway, Suite 150, Alpharetta, GA 30022 Tel: [phone] Fax: [phone]

Email: [email protected], Website: www.aminocom.com

TV Manufacturer Brand Codes

SIAREM 002, 026, 058, 064, 102, 108, 198
SICATEL 197

SIEMENS

015, 022, 023, 045, 074, 201, 220, 221,

222, 223, 224, 226, 257, 258
SILVER 118

SINGER 002, 026, 102, 108

SINUDYNE

002, 006, 010, 026, 039, 064, 069, 085,

094, 102, 108, 124, 130, 132, 148, 163,

198
SKANTIC 045

SKYWORTH

298, 299, 300, 301, 302, 303, 304, 305,

306, 307, 308, 309, 310, 311
SOLAVOX 045, 164, 201

SONOKO 010, 118, 151
SONY 014, 017, 112, 168, 169, 275
SOUNDESIGN 117
SSS 117

STERN

007, 010, 035, 041, 045, 095, 190, 206,

210, 211
SUNKAI 069

SUPRA 079
TANDBERG 016, 033, 061, 102, 142, 177, 179, 208
TANDY 019, 045, 133, 153
TASHIKO 014
TATUNG 027, 058, 060, 097, 110, 168, 169
TCL 296, 297
TCM 262, 264, 271, 276, 277, 278
TECHNICS 131
TECHWOOD 079
TEKNIKA 117, 123, 126
TELE 114
TELEAVIA 057, 065, 073, 182

TELEFUNKEN

029, 030, 031, 055, 073, 113, 147, 159,

179, 180, 181, 182, 199, 216, 217, 218,

219, 220, 225, 227, 252, 263
TELETECH 151

TEMPEST 238, 239, 240, 241
TENSAI 133, 209
TEXET 060

TV Manufacturer Brand Codes

THOMSON

033, 048, 053, 057, 063, 065, 073, 090,
124, 157, 159, 179, 181, 182, 189, 194,

253, 352
THORN 074, 086, 209, 225, 227, 228
THORN-

FERGUSON

028, 037, 055, 065, 078, 086, 088, 113,

118, 136, 146, 197, 199, 228
TMK 014, 079, 147

TOSHIBA

014, 038, 048, 122, 127, 170, 174, 185,

215, 280, 281
TRANS

CONTINENS

045
TRISTAR 228

TRIUMPH 048, 058, 212
UHER 043, 045, 048, 049, 051, 131, 154
ULTRAVOX 002, 026, 059, 102, 108, 198
UNITED 288, 290, 312, 313
UNIVERSUM 118, 205
UNIVOX 197
VEGAVOX 081
VEXA 010, 151
VICTOR 144, 159
VIDEOTON 248
VORTEC 010, 065
VOXSON 041, 045, 049, 102, 108
WALTHAM 045
WATSON 043, 220, 224

WATT RADIO

002, 006, 026, 059, 064, 076, 109, 197,

198, 200
WEGA 014, 108, 198

WEGA COLOR 102
WELTBLICK 010
WESTON 162

WHITE
WESTINGHOUSE

010, 026, 043, 059, 076, 140, 154
YOKO 060, 151
ZANUSSI

007, 010, 035, 041, 045, 095, 190, 206,

210, 211
ZENITH 343, 344, 345, 346, 347

ZOPPAS 045

4 STB Compatibility

At short range all the Amino remote controls will work with all Amino Set-Top Boxes. At longer range it may be
necessary to ensure the correct STB brand code has been selected. This only applies to remote part numbers
beginning 510. Remote part numbers beginning 002, 003, 502 or 503 will only will with A103/A110(H)/A120/

A124/A500 boxes at longer distances. If you have been given an incompatible remote control please consult
your service provider.

Remote Part Number STB Brand Code (default supplied is in bold)
A103/A110(H)/A120/A124/A500 A125/A130(H)(M)/A530

002-XXX-XX-XX 000 N/a
003-XXX-XX-XX 000 N/a
502-XXX-XX-XX 000 N/a
503-XXX-XX-XX 000 N/a
510-660-XX-XX 000 100
510-809-XX-XX 000 100

Once you have identified the correct brand code in the table above

 Simultaneously press and hold the STB

and OK buttons on the remote – after

approximately 2 seconds, the STB button will light.

 Release the STB and OK buttons – the STB button remains illuminated.
 Now enter the 3-digit brand code – as each of the digits are entered, the STB button will briefly

flash off and on again.

 When the third digit has been entered, the STB button will go out.
 If an STB brand code has been entered that the remote does not recognise, the STB button will

flash rapidly for a second and remain illuminated. If this happens, re-enter the correct STB brand
code.

 Verify that the remote control works with the STB.
 If no brand code is entered, or it is incomplete, after several seconds, the remote will exit the STB

brand code entry mode and the STB brand code will be unchanged.

5 Batteries

The remote is powered by 3 x AAA, MN2400, UM-3 or LR03 batteries. The use of alkaline batteries is strongly
recommended. Battery life (using alkaline batteries) is typically around 6 months of 30-minutes intermittent use
per day.

The battery compartment cover can be secured by a screw. The screw is supplied fitted into the base of the
remote. In order to fit the battery cover screw:

 Remove the battery compartment cover.
 Remove the silver screw at the base of the remote using a 0pt Posidrive™ screwdriver.
 Fit the batteries and re-fit the battery cover.
 Fit the screw into the hole in the base of the battery compartment cover and tighten.

Amino Communications Ltd: Buckingway Business Park, Anderson Road, Swavesey, Cambridge, CB24 4UQ Tel: [phone] Fax: [phone]

US: 3625 Brookside Parkway, Suite 150, Alpharetta, GA 30022 Tel: [phone] Fax: [phone]

Email: [email protected], Website: www.aminocom.com
