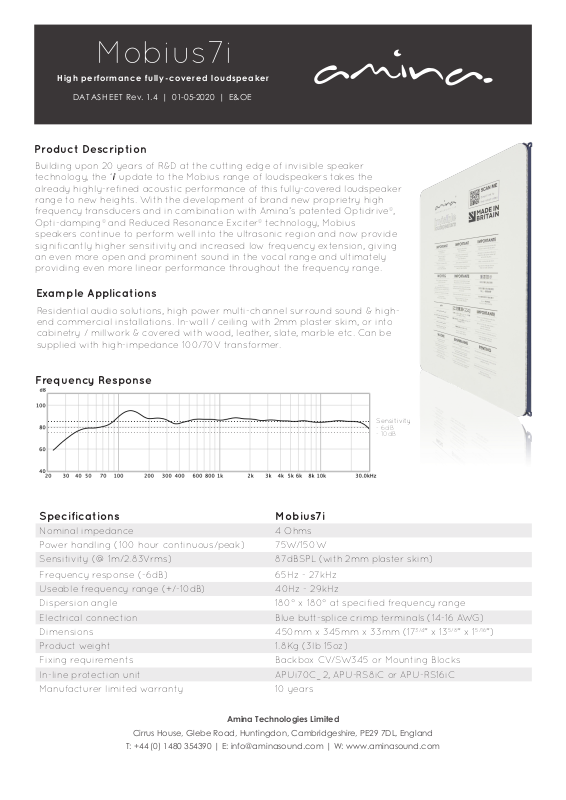

Mobius7i
- 6dB
- 10dB
High performance fully-covered loudspeaker
DATA S H E ET Rev. 1.4 | 01-05-2020 | E&OE
Product Description
Building upon 20 years of R&D at the cutting edge of invisible speaker
technology, the ‘i’ update to the Mobius range of loudspeakers takes the
already highly-refined acoustic performance of this fully-covered loudspeaker
range to new heights. With the development of brand new proprietry high
frequency transducers and in combination with Amina’s patented Optidrive®,
Opti-damping® and Reduced Resonance Exciter® technology, Mobius
speakers continue to perform well into the ultrasonic region and now provide
significantly higher sensitivity and increased low frequency extension, giving
an even more open and prominent sound in the vocal range and ultimately
providing even more linear performance throughout the frequency range.
Example Applications
Residential audio solutions, high power multi-channel surround sound & highend commercial installations. In-wall / ceiling with 2mm plaster skim, or into
cabinetry / millwork & covered with wood, leather, slate, marble etc. Can be
supplied with high-impedance 100/70V transformer.
Frequency Response
Sensitivity
Specifications Mobius7i
Nominal impedance 4 Ohms
Power handling (100 hour continuous/peak) 75W/150W
Sensitivity (@ 1m/2.83Vrms) 87dBSPL (with 2mm plaster skim)
Frequency response (-6dB) 65Hz - 27kHz
Useable frequency range (+/-10dB) 40Hz - 29kHz
Dispersion angle 180° x 180° at specified frequency range
Electrical connection Blue butt-splice crimp terminals (14-16 AWG)
Dimensions 450mm x 345mm x 33mm (17
Product weight 1.8Kg (3lb 15oz)
Fixing requirements Backbox CV/SW345 or Mounting Blocks
In-line protection unit APUi70C_2, APU-RS8iC or APU-RS16iC
Manufacturer limited warranty 10 years
3/4
” x 13
5/8
” x 1
5/16
”)
