AMN12310
TM
WHDI
Receiver
Module Datasheet
Version 0.5
Version 0.5
AMIMON Confidential 1
Page 2
Important Notice
Important Notice
AMIMON Ltd. reserves the right to make corrections, modifications, enhancements, improvements, and other changes to its products
and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant
information before placing orders and should verify that such information is current and complete. All products are sold subject to
AMIMON's terms and conditions of sale supplied at the time of order acknowledgment.
AMIMON warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with
AMIMON's standard warranty. Testing and other quality control techniques are used to the extent AMIMON deems necessary to
support this warranty. Except where mandated by government requirements, testing of all parameters of each product is not
necessarily performed.
AMIMON assumes no liability for applications assistance or customer product design. Customers are responsible for their products
and applications using AMIMON components. To minimize the risks associated with customer products and applications, customers
should provide adequate design and operating safeguards.
AMIMON does not warrant or represent that any license, either express or implied, is granted under any AMIMON patent right,
copyright, mask work right, or other AMIMON intellectual property right relating to any combination, machine, or process in which
AMIMON products or services are used. Information published by AMIMON regarding third-party products or services does not
constitute a license from AMIMON to use such products or services or a warranty or endorsement thereof. Use of such information
may require a license from a third party under the patents or other intellectual property of the third party, or a license from AMIMON
under the patents or other intellectual property of AMIMON.
Reproduction of information in AMIMON data books or data sheets is permissible only if reproduction is without alteration and is
accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an
unfair and deceptive business practice. AMIMON is not responsible or liable for such altered documentation.
Resale of AMIMON products or services with statements different from or beyond the parameters stated by AMIMON for that product
or service voids all express and any implied warranties for the associated AMIMON product or service and is an unfair and deceptive
business practice. AMIMON is not responsible or liable for any such statements.
All company and brand products and service names are trademarks or registered trademarks of their respective holders.
Contact Us
US Office
2350 Mission College Blvd.
Suite 500
Santa Clara, CA 95054
Tel: +1 650 641 7178
Version 0.5
AMIMON Confidential 2
Israeli Headquarters
2 Maskit St.
Building D, 2nd Floor
P.O.Box 12618
Herzlia 46733, Israel
Tel: +972-9-962-9222
Fax: +972-9-956-5467
[email protected]
Japan Office
FS Building 9F.
1-14-9 Higashi-Gotanda Shinagawa-ku
Tokyo 141-0022,
Japan
TEL +81-3-3444-4305
[email protected]
Page 3
Revision History
Version Date Description
0.1 - Initial Release
0.2 15.6.08 Revision
Board Mechanical size
Reset and Wake-up Timer modified
RF frame modified
Power switch on RF removed
Operating Conditions and Electrical Characteristics modified
AMN11310 Block Diagram modified
Unhide Certification & Compliance
Power requirements
Mini-MAC changed to MAC.
WHDI Module Configuration
Connector Schematics
Stack up
Test Points and Jumpers
0.3 20.7.08 Fixed link to STMF datasheet p-18.
Fixed Table 1: Rx WHDI Connector Pin List
Fixed recommended stack up table p- 29
0.4 03.08.08 Add section MCLK Specifications
0.5 2.9.08 Change in FCC chapter
Revision History
Version 0.5
AMIMON Confidential 3
Page 4
Table of Contents
S
Table of Contents
Important Notice......................................................................................................2
Revision History ......................................................................................................3
Table of Contents ....................................................................................................4
List of Figures .........................................................................................................6
List of Tables ..........................................................................................................6
Chapter 1 ..........................................................................................................8
Introduction ..........................................................................................................8
1.1 Features ...................................................................................................................................................8
Chapter 2 ........................................................................................................11
Overview ........................................................................................................11
2.1 AMN2210 WHDI Baseband Receiver ....................................................................................................12
2.2 STM32F MAC µController...................................................................................................................... 12
2.3 AMN3210 WHDITM 5GHz Transceiver ...................................................................................................13
2.4 Power Amplifier (PA)............................................................................................................................. 13
2.5 Board Connector (WHDITM Connector) .................................................................................................13
2.6 Clocks ....................................................................................................................................................13
2.6.1 40MHz Crystal Oscillator ................................................................................................................. 13
2.6.2 40Mhz Digital Clock ......................................................................................................................... 13
2.6.3 10Mhz Micro Controller Clock ......................................................................................................... 13
2.7 CY22150 External Video PLL ................................................................................................................ 14
Chapter 3 ........................................................................................................15
Interfaces ........................................................................................................15
3.1 Video Data Input and Conversions.......................................................................................................15
3.2 Video Interface Output Timing Diagram ............................................................................................... 16
3.2.1 Timing Requirements ...................................................................................................................... 16
3.3 Audio Data Capture ............................................................................................................................... 17
Version 0.5
AMIMON Confidential 4
Page 5
Table of Contents
3.3.1 I2S Bus Specification ....................................................................................................................... 18
3.4 Management Buses and Connectors ................................................................................................... 21
3.4.1 Two-Wire Serial Bus Interface......................................................................................................... 21
3.4.2 Interrupts.......................................................................................................................................... 22
3.4.3 WHDI Module Configuration ............................................................................................................ 23
3.5 Reset and Wake-up Timer ..................................................................................................................... 23
Chapter 4 ........................................................................................................26
WHDI Connector Pins ............................................................................................26
4.1 Signals ...................................................................................................................................................26
4.2 Connector Schematics ..........................................................................................................................27
4.3 Pin List................................................................................................................................................... 28
Chapter 5 ........................................................................................................30
Electrical Specifications ..........................................................................................30
5.1 Operating Conditions and Electrical Characteristics .......................................................................... 30
Chapter 6 ........................................................................................................32
Design Guidelines .................................................................................................32
6.1 Digital Layout Recommendation ..........................................................................................................32
6.1.1 Stack Up .......................................................................................................................................... 32
6.1.2 General Guidelines .......................................................................................................................... 33
6.1.3 WHDI Lines...................................................................................................................................... 33
6.1.4 Power and Ground .......................................................................................................................... 33
6.2 RF Design Recommendation ................................................................................................................33
6.2.1 RF Components .............................................................................................................................. 33
6.2.2 Power Management ........................................................................................................................ 33
6.3 Test Points and Jumpers ...................................................................................................................... 34
Chapter 7 ........................................................................................................36
Mechanical Dimensions ..........................................................................................36
7.1 RF Shield frame and cover.................................................................................................................... 38
Version 0.5
AMIMON Confidential 5
Page 6
List of Figures
List of Figures

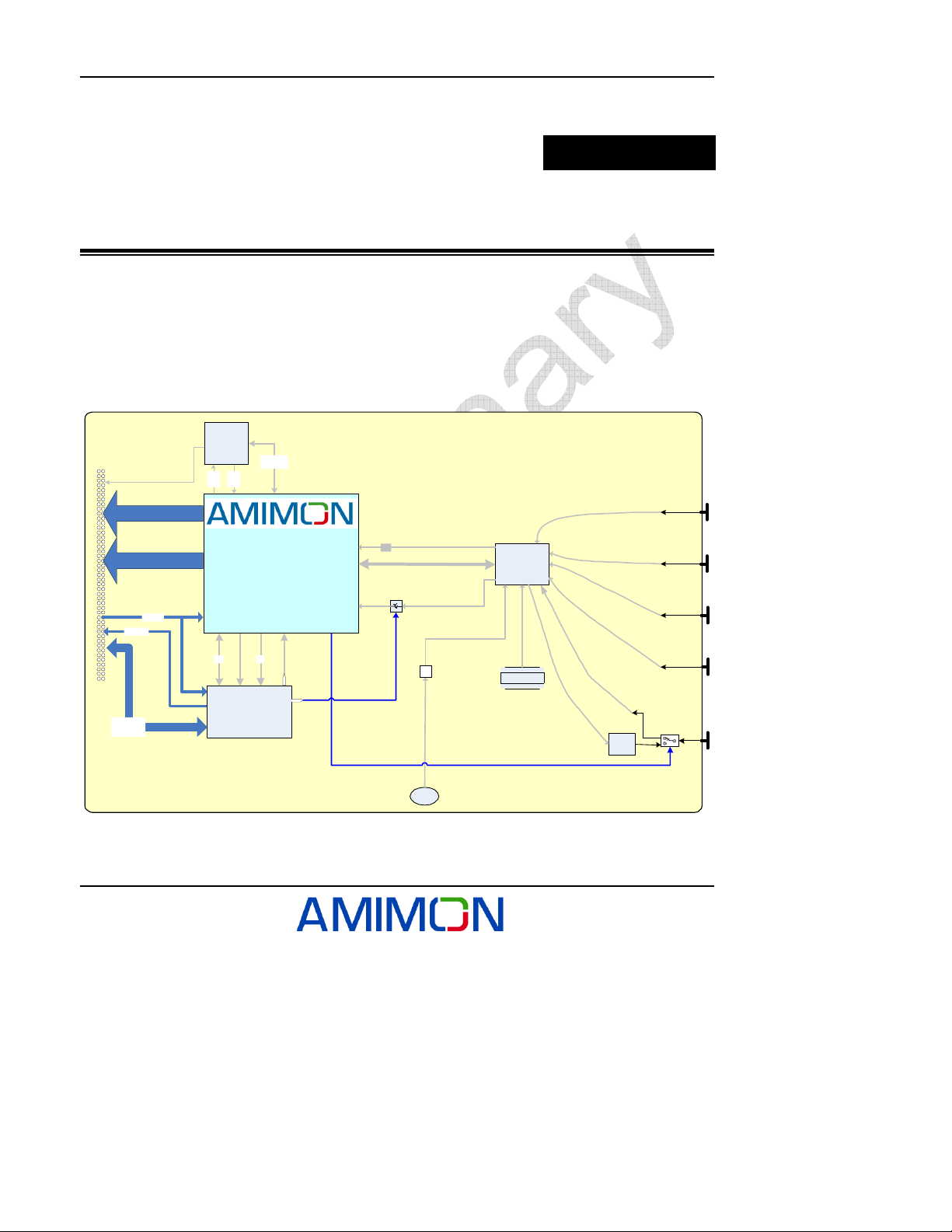

Figure 1: AMN12310 Block Diagram.......................................................................................................................11
Figure 2: WHDI Baseband Receiver Chipset .......................................................................................................... 12

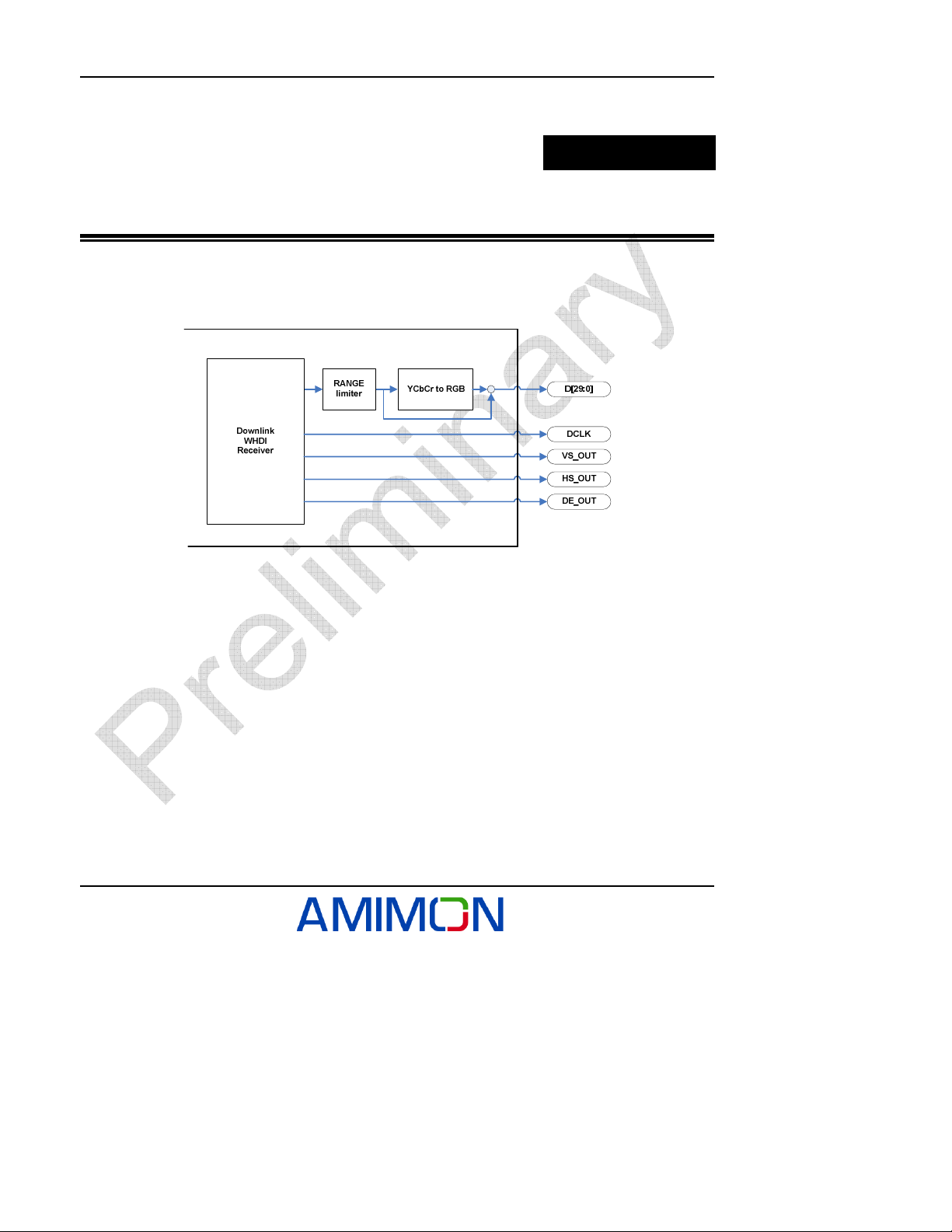

Figure 3: Video Data Receiver Path........................................................................................................................15

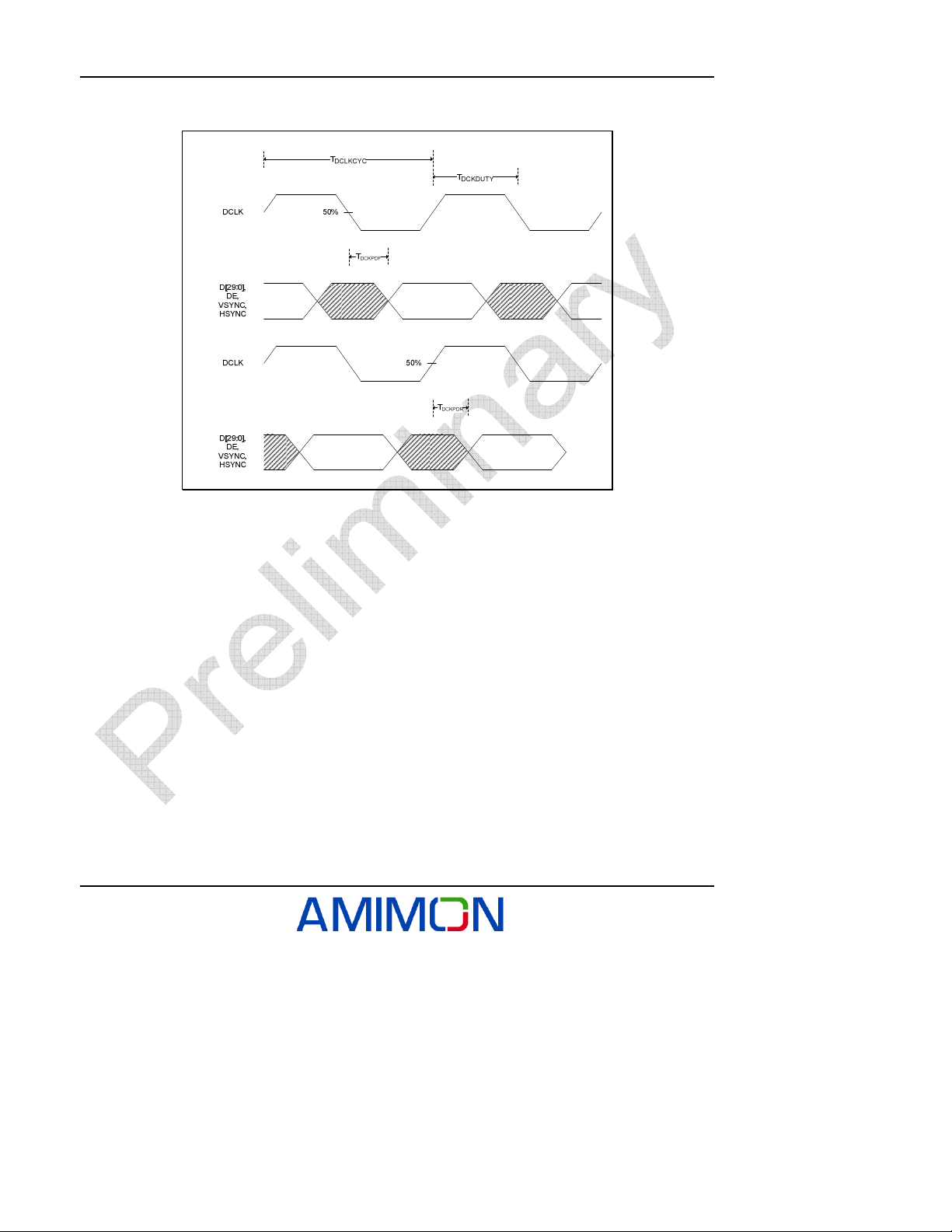

Figure 4: Timing Diagram ........................................................................................................................................ 17

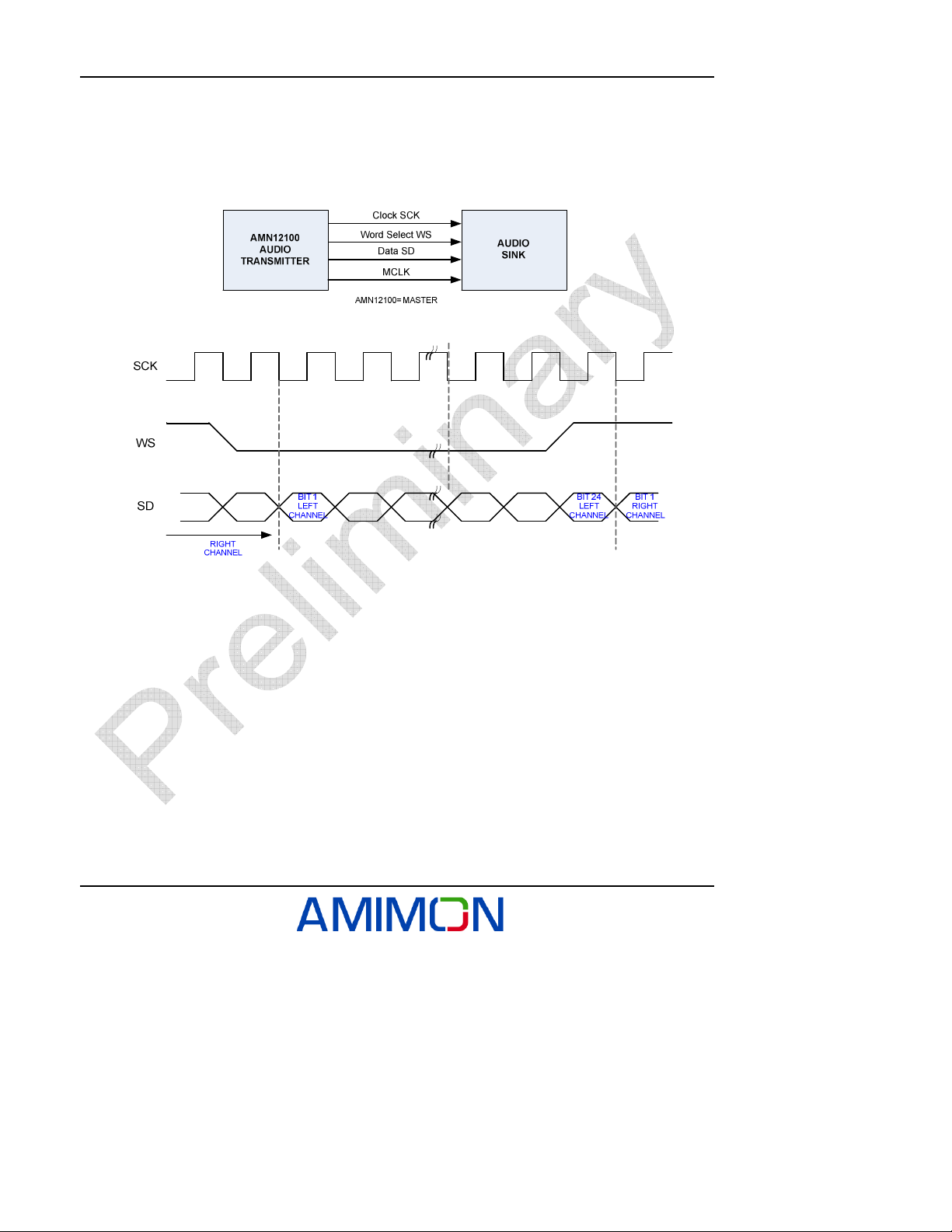

Figure 5: I2S Simple System Configurations and Basic Interface Timing ............................................................... 18

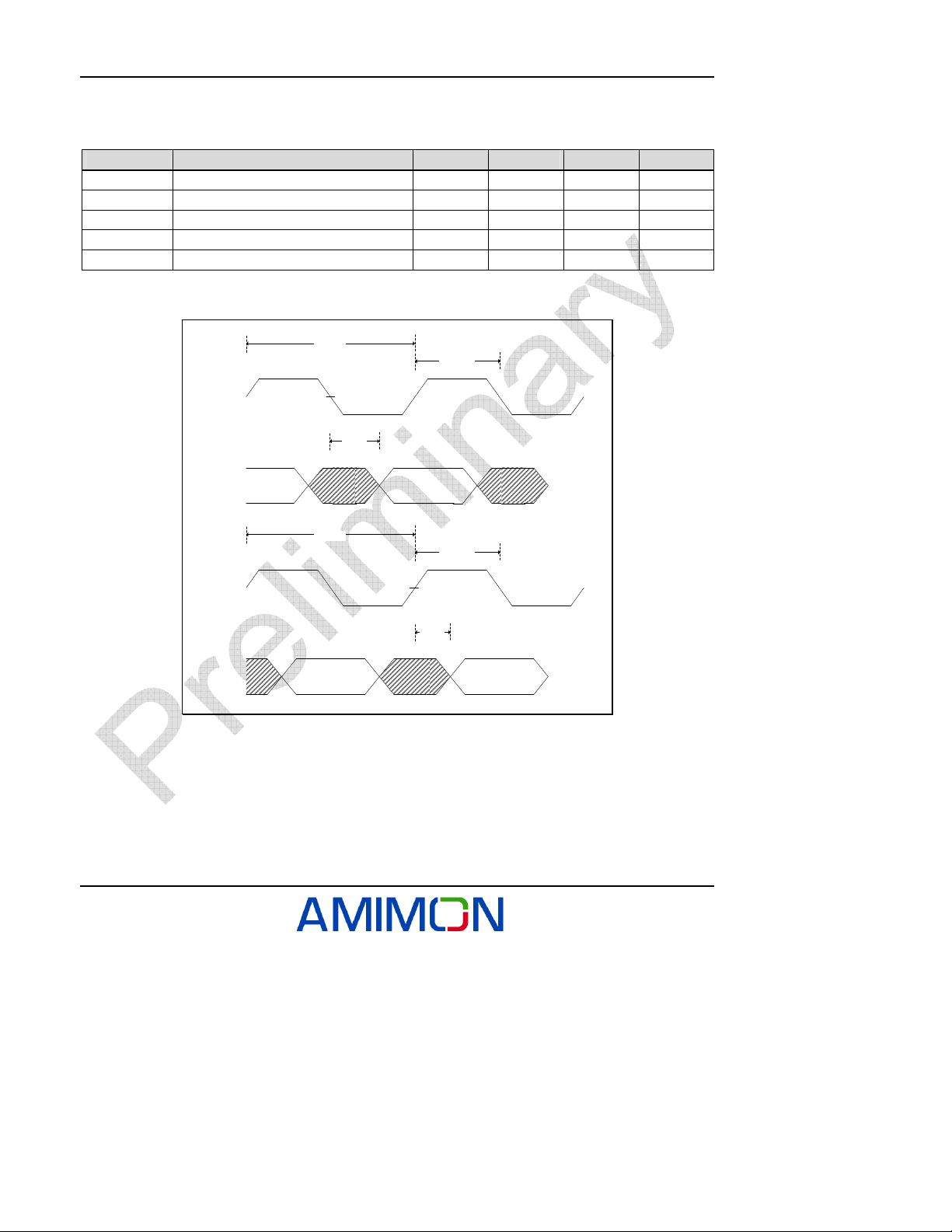

Figure 6: I2S Output Timings ................................................................................................................................... 19

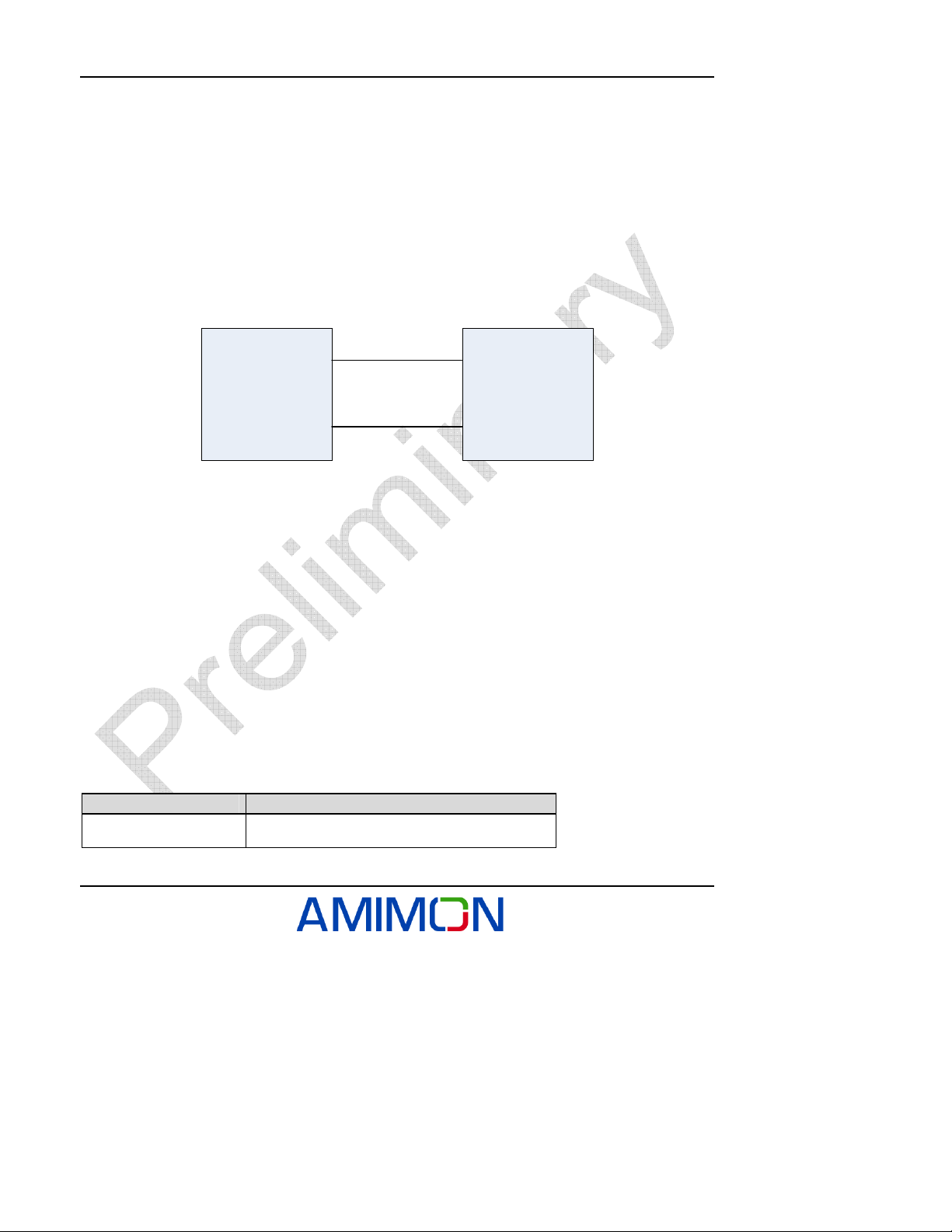

Figure 7: Two-Wire/Application-MAC Connection................................................................................................... 21
Figure 8: Two-Wire MAC Write Commands ............................................................................................................ 22
Figure 9: Two-Wire Read Command....................................................................................................................... 22
Figure 10: Reset Time Diagram .............................................................................................................................. 23
Figure 11: Reset Mechanism .................................................................................................................................. 24
Figure 12: WHDI Connector .................................................................................................................................... 27

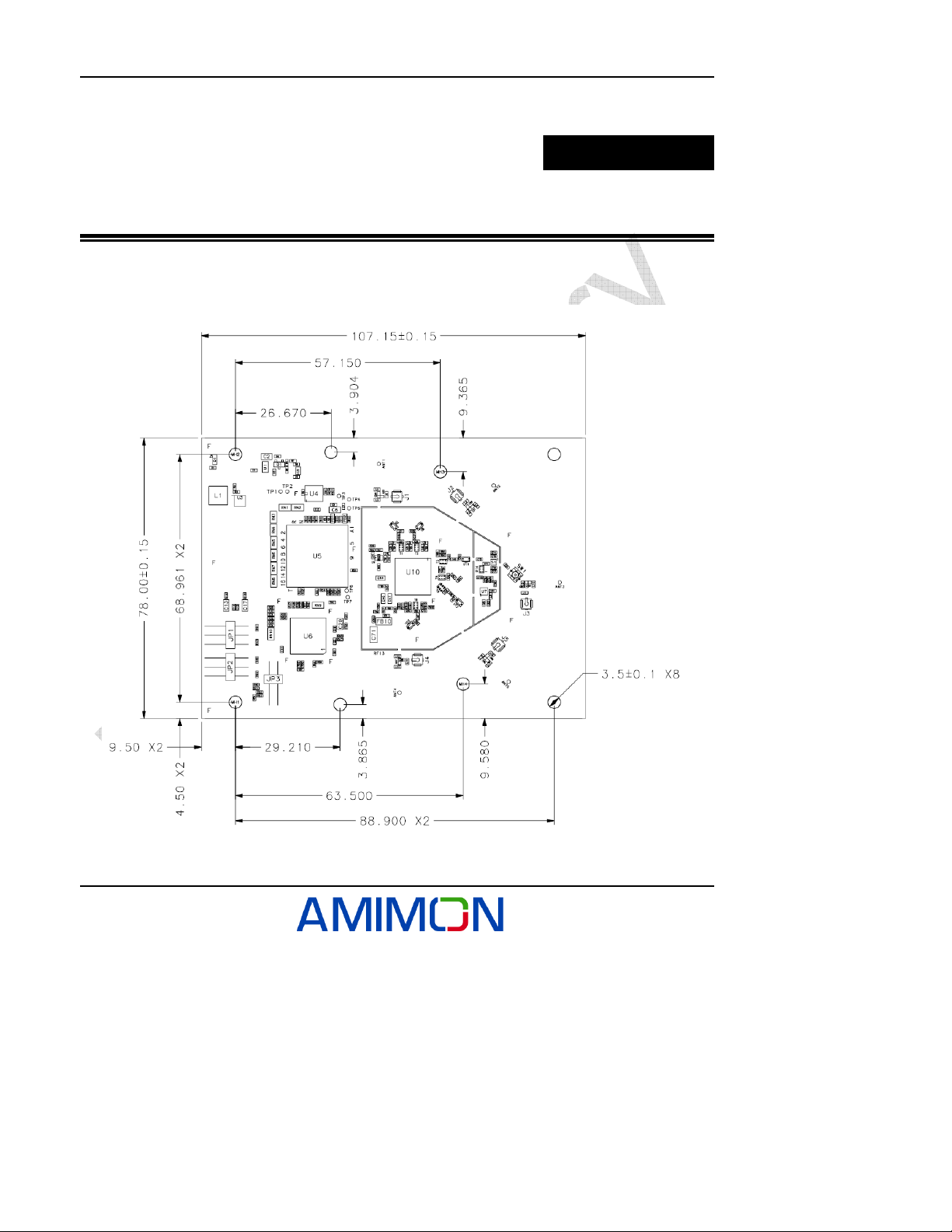

Figure 13: Mechanical Dimensions Top View ......................................................................................................... 36
Figure 14: Mechanical Dimensions Bottom View .................................................................................................... 37
Figure 15: RF-Shield Frame ....................................................................................................................................38
Figure 16: RF-Shield Cover ..................................................................................................................................... 38
List of Tables
Table 2: Common Supported Video Input Resolutions ........................................................................................... 16
Table 3: Video Channel Mapping ............................................................................................................................ 16
Table 4: Video Interface .......................................................................................................................................... 16
Table 5: Audio Interface Output Timing................................................................................................................... 19
Table 6: MCLK timing. .............................................................................................................................................20
Table 7: Device Addresses ..................................................................................................................................... 21
Table 8: Reset Timing Requirements......................................................................................................................24
Table 9: WHDI Connector Signals ..........................................................................................................................26
Table 10: Rx WHDI Connector Pin List ................................................................................................................... 28
Table 11: Absolute Maximum Ratings over Operating Case Temperature Range................................................. 30
Table 12: Recommended Operating Conditions ..................................................................................................... 30
Fixed Table 1: Rx WHDI Connector Pin List ........................................................................................ 3
Version 0.5
AMIMON Confidential 6
Page 7
List of Tables
Table 13: Electrical Characteristics over Recommended Range of Supply Voltage and Operating
Conditions........................................................................................................................................... 30
Table 14: Digital Layout Recommendation .............................................................................................................32
Version 0.5
AMIMON Confidential 7
Page 8
Introduction
Chapter 1
Introduction
The AMN12310 is the second generation of WHDITM receiver board. It is based on AMIMON's W HDI receiver
chipset: the AMN2210 baseband receiver and the AMN3210 RFIC receiver.
The AMN12310 WHDITM wireless receiver module, together with the AMN11310 wireless transmitter module,
presents the ultimate solution for converting any High Definition (HD) system into a wireless one. These add-on
modules enable wireless A/V applications that easily fit into the living room and eliminate traditional A/V wiring.
The perfect HD video and audio quality and the high robustness are unmatched by any other wireless technology,
and present a true alternative to cable. The WHDI system transmits uncompressed video and audio streams
wirelessly and thus simplifies and eliminates system issues, such as: lip-sync, large buffers and other burdens
like retransmissions or error propagation.
1.1 Features
• Uncompressed and uncompromised HD video quality, using AMIMON's baseband chipsets:
AMN2210: WHDITM Baseband Receiver
AMN3210: WHDITM RFIC Receiver
• WHDI – Wireless High Definition Interface:
Digital video: 30-bit RGB or YCrCb
Digital audio: I2S and SPDIF
Two-wire serial bus slave interface
One interrupt line
• Supports any uncompressed video resolutions, including:
HD: 720p, 1080i, 1080p, 576i, 576p, 480p, 480i
PC: VGA (640x480), SVGA (800x600), XGA (1024x768)
Panel: 854x800, 1280x768, 1366x768
• Audio:
Up to 3Mbps audio stream:
I2S: Two PCM channels (sampled up to 48 KHz x 24 bit)
SPDIF: Including AC-3, DTS
• Strong 256-bit AES encryption
• User-defined two-way channel with minimum 10 Kbps for data and control
• Less than 1mSec latency between source and sink
Version 0.5
AMIMON Confidential 8
Page 9
Introduction
• Small mechanical footprint:
With PCB integrated antennas
• RF characteristics:
MIMO technology, using 5GHz unlicensed band, 18MHz bandwidth.
Coexists with 802.11a/n and 5.8GHz cordless devices.
Support for Automatic Transmission Power Control (ATPC).
No line of sight needed between transmitter and receiver. It has a range of over 30 meters, suitable for
almost any room.
14mW typical transmission power of the uplink channel.
Maximum 45mW transmission power of the uplink channel.
Minimum -65 dBm received signal power for successful operation
• Current consumption
Option to to disable 40MHz digital clock to AMN2210 from AMN3210.
• Power requirements:
3.3V (±5%), ~4.2W
• Certification & Compliance:
FCC
This product is for indoor use only in the band of 5.15-5.25GHz.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by Amimon for compliance could void the
user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
MIC
This device has complied with Japan Radio law:
Item 19-11 of Article 1 paragraph 1 of certification ordinance.
Item 19-3 of Article 1 paragraph 1 of certification ordinance.
Version 0.5
AMIMON Confidential 9
Page 10
Introduction
• Caution: The module should be positioned so that personnel in the area for prolonged periods may safely
remain at least 20 cm (8 in) in an uncontrolled environment from the module.
Version 0.5
AMIMON Confidential 10
Page 11
Overview
Chapter 2
Overview
The AMN12310 WHDI Video Display Unit (VDU) is designed to be at the receiver end of the WHDI downstream.
The AMN12310 receives wireless downstream transmission, demodulates it and regenerates the video, audio
and control content transmitted by the AMN11310 WHDI transmitter. The receiver works at the 5GHz unlicensed
band. Figure 1 displays a block diagram of the AMN12310. It has an MIMO design of five wireless input channels,
and one slow rate output wireless channel, which generates an upstream channel for data content transmissions.
The outputs from the VDU are digital uncompressed video, digital audio and control, all via the WHDI connector.
The MAC uC is responsible for the control and the management.
CY22150
Video
PLL
Control
CLK
Two-Wire
In
VIDEO
CLK
Out
Clk40M_OE
CLK40M
rssi
AMN3210
clken
DIG_CLK (40M)
3.3V_RAIL
fb
3.3V
3.3V
40M XTAL
PA
RX_ANT0_P/N
Interrupt
Control
TwoWire
Audio
RESET
PIN#62
Connector
TH
80 PinWHDI
AMN2210
WHDITM Baseband Receiver
UC_MAC_CLK
(Clock 10MHz)
SPI
Int
PIN 5#
PIN#37-40
uC
MAC
S_RESET_B
PIN#61
PIN#15
Figure 1: AMN12310 Block Diagram
Version 0.5
AMIMON Confidential 11
Page 12
Overview
The main building blocks of the AMN12310 are as follows:
• AMN2210 WHDI Baseband Receiver, as briefly described on page 12
• STM32F MAC µController, as briefly described on page 12
• AMN3210 WHDITM 5GHz Transceiver, as briefly described on page 13
• Power Amplifier (PA), as briefly described on page 13
• Board Connector (WHDITM Connector), as described on page 13
• Clock enable switch for input 40M clock to AMN2110, as described on page 13
• 40MHz Crystal Oscillator, as described on page 13
• CY22150 External Video PLL, as described on page 14
2.1 AMN2210 WHDI Baseband Receiver
The AMN2210 WHDITM baseband receiver chip is the heart of the AMN12310 WHDI Receiver module. The
AMN2210 interfaces the A/V source through the WHDI connector, and is controlled on board by the MAC uC.
WHDITM Baseband Receiver
ADC
ADC
ADC
ADC
ADC
DAC
Downlink
De-modulation
Uplink
modulation
AMN2210

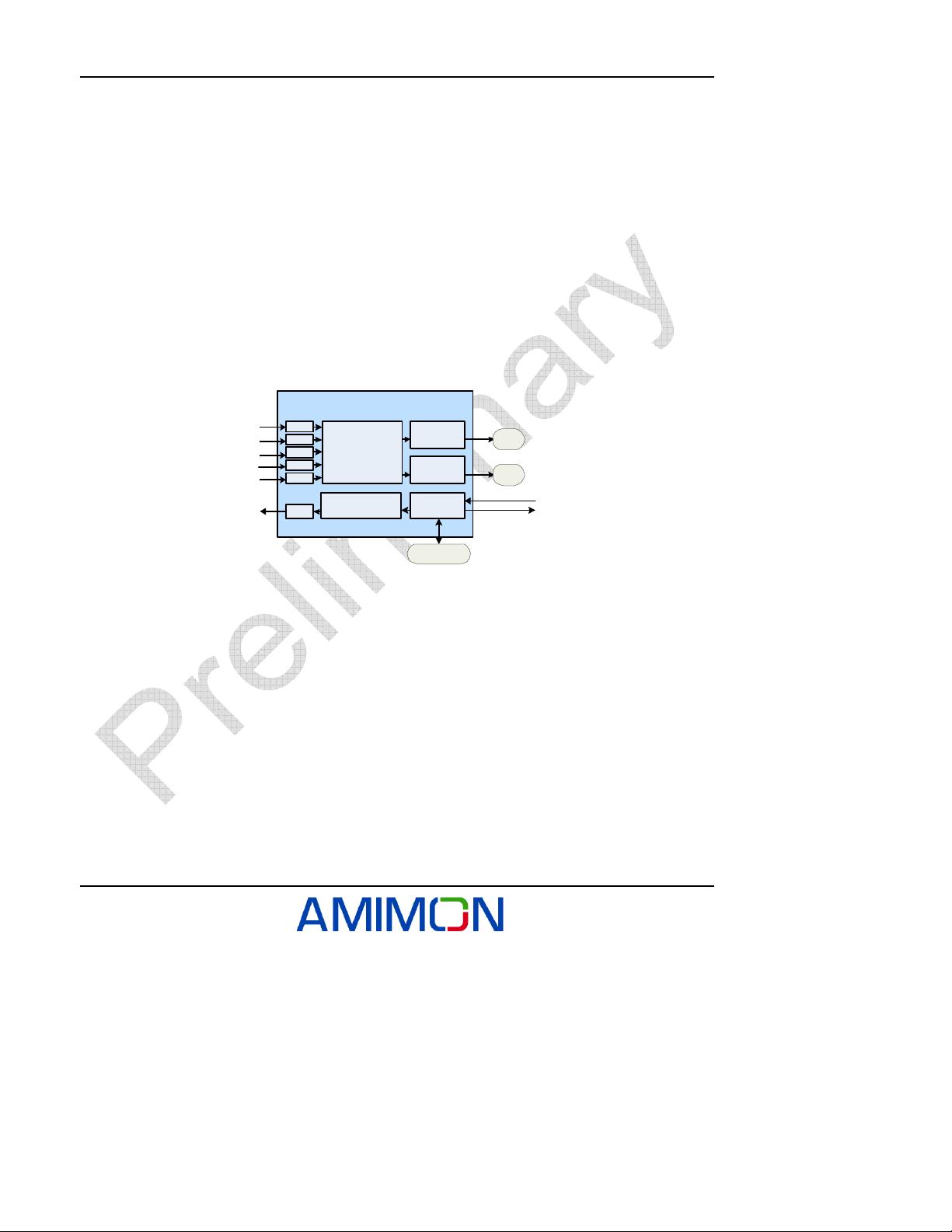

Figure 2: WHDI Baseband Receiver Chipset
Video
Interface
Audio
Interface
Control
MiniMAC
MicroController
Video
Sink
Audio
Sink
The AMN2210 is based on MIMO technology receiving up to five input channels. Five analog-to-digital converters
and one digital-to-analog converter are embedded within the chip.
The AMN2210 internal PLL accepts an input clock frequency of 40MHz. The input frequency is multiplied and
then used as an internal system clock.
2.2 STM32F MAC µController
The STM32F Microcontroller is based on an ARM 32-bit Cortex™-M3 CPU, with 128 Kbytes of embedded Flash
memory. It is used as an external microcontroller for implementing the MAC layer of the WHDI link.
The STM32F Internal PLL accepts an input clock frequency of 10MHz and generates an internal 60MHz system
clock. The STM32F also has the option to work with an internal 4-to-16 MHz crystal oscillator.
Version 0.5
AMIMON Confidential 12
Page 13
Overview
2.3 AMN3210 WHDITM 5GHz Transceiver
The VDU uses AMN3210 WHDI receiver chip. The AMN3210 is a fully integrated Zero-IF MIMO receiver
specifically designed for WHDI applications using OFDM modulation for single-band 4.9GHz to 5.9GHz. The
device includes:
• Five Complete Downlink Zero-IF Receivers
• One Uplink Direct Conversion Transmitter
• Integrated Synthesizer/VCO
• Internal DC Servo Loops
• RSSI, RF and Baseband Control Interface
• Power Management Unit
• 3-Wire SPI Interface
To complete RF front-end solution, the AMN3210 uses external PA, RF Band Pass Filters (BPF), RF BALUNs
and a few passive components.
2.4 Power Amplifier (PA)
In order to extend the operating range for the AMN12310 upstream, the RF transmitter uses a power amplifier.
The power amplifier has an output power detector for TPC purposes.
AMN12310 uses Sharp IRM053U7 PA.
2.5 Board Connector (WHDITM Connector)
For information regarding the connector specification and pin-outs see section 4.1, Signals, page 26.
2.6 Clocks
2.6.1 40MHz Crystal Oscillator
An on-board 40MHz crystal oscillator is connected to the AMN3210 chip.
2.6.2 40Mhz Digital Clock
AMN3210 drives the 40MHz clock to the baseband AMN2210 through a buffer (with output enable).
This clock is named DIG_CLK. The control to the output buffer is named Clk40M_OE.
2.6.3 10Mhz Micro Controller Clock
The DIG_CLK (40MHz) clock is divided by four by the AMN2210 and generates 10MHz that drives the STM32F
UC.
Version 0.5
AMIMON Confidential 13
Page 14
Overview
2.7 CY22150 External Video PLL
An external PLL is used for re-generating the video clock. The PLL receives a lower speed clock (generally
limited to 10 MHz), which is generated inside the AMN2210 according to the video parameters. The PLL
multiplies the clock to the desired speed dictated by the incoming video format (for example: 74.25Mhz for 720p
or 1080i).
Version 0.5
AMIMON Confidential 14
Page 15
3.1 Video Data Input and Conversions
Interfaces
Chapter 3
Interfaces
Figure 3: Video Data Receiver Path
Figure 3 shows the basic control over the video data output. Essentially the receiver mirrors the video format of
the transmitter end and so most of the configurations are done on the transmitter end.
The video output data is uncompressed digital video up to 3*10 bits in width. The video interface provides a direct
connection to the inputs of a display device, an HDMI transmitter, or any other video interface device.
Color Space Converter
The receiver can output either RGB or YCbCr color space. For more details, you may refer to the MAC registers
in the programmer's reference guide.
Color Range Limiter
The YCbCr data range can be limited to 16-235.
Version 0.5
AMIMON Confidential 15
Page 16
Interfaces
Common Video Output Format
Table 2 lists the common supported video output resolutions.
Table 2: Common Supported Video Input Resolutions
Color Space Video Format
RGB/YCbCr 4:4:4 24 27 27 65 74.25 74.25
Bus
Width
Input Pixel Clock (MHz)
480i 480p XGA 720p 1080i
Video Channel Mapping
The 30 bit video output signals are mapped to the RGB and YCbCr color space according to the options
described in the following table:
Table 3: Video Channel Mapping
Option D[29:20] D[19:10] D[9:0]
#1 RED (Cr) GREEN (Y) BLUE (Cb)
#2 RED (Cr) BLUE (Cb) GREEN (Y)
#3 GREEN (Y) RED (Cr) BLUE (Cb)
#4 GREEN (Y) BLUE (Cb) RED (Cr)
#5 BLUE (Cb) RED (Cr) GREEN (Y)
#6 BLUE (Cb) GREEN (Y) RED (Cr)
The AMN123100 allows any of the output video channels options. The first option is the default from power-up. In
order to change the video channel mapping, refer to the appropriate programmer's reference guide.
3.2 Video Interface Output Timing Diagram
3.2.1 Timing Requirements
Important: The following parameters relate to the AMN2210 baseband chipset and not to the entire AMN12310
board.
Table 4: Video Interface
Symbol Parameter MIN TYP MAX Units
TDCKCYC DCLK period 12.5 40 Ns
TDCKFREQ DCLK frequency 25* 80 MHz
TDCKDUTY DCLK duty cycle 40% 60% Ns
TDCKPDR
TDCKPDF
* It is possible to support lower clock frequency using an external PLL for video clock generation.
Version 0.5
AMIMON Confidential 16
Propagation delay after DCLK rising edge
Propagation delay after DCLK falling edge
1.0 4.0 Ns
1.0 4.0 Ns
Page 17
3.2.1.1 Timing Diagram
EDGE = 0 EDGE = 1
Interfaces
Figure 4: Timing Diagram
3.3 Audio Data Capture
AMN12310 audio processing logic block receives the audio stream from the WHDI wireless link and regenerates
the appropriate clock and data. If the transmitter end was configured to SPDIF audio interface, then the audio is
output on the receiver side through the SPDIF. The same is true for the I2S interface.
No constraints exist for a coherent video and audio clock, where coherent means that the audio and the video
clock must have been created from the same clock source. The AMN12310 supports two-channel audio-sampling
frequencies of up to 48 KHz, 32 bits per sample.
Version 0.5
AMIMON Confidential 17
Page 18
Interfaces
3.3.1 I2S Bus Specification
The AMN12310 supports a standardized communication structure inter-IC sound (I2S) bus. As shown in Figure 5,
the bus has three lines: continuous serial clock (SCK), word select (WS) and serial data (SD). In addition, it has a
MCLK signal which is synchronized to and a multiple of the WS. The external device generating SCK and WS is
the AMN12310.
Figure 5: I2S Simple System Configurations and Basic Interface Timing
The AMN12310 outputs exactly 32 bits for each channel (left and right). By default, the serial data is valid on the
leading (LOW to HIGH) edge of the clock signal, but it can also be configured to be valid on the edge (HIGH to
LOW) of the clock signal. The WS is also valid by default on the leading edge of the clock signal. The WS line
changes one clock period before the first bit of the transmitted channel.
The AMN12310 mirrors the transmitter's end audio inputs and so the MSB and the LSB position are defined at
the audio source at the transmitter side. In case the audio samples in the transmitter are less than 32 bits long,
they are padded with zeroes to generate receiver output samples of 32 bits.
3.3.1.1 MUTE
The AMN12310 has an error detection mechanism. It outputs a high MUTE signal in case of bad audio reception
(bad frames).
Version 0.5
AMIMON Confidential 18
Page 19
3.3.1.2 Timing Requirements
Table 5: Audio Interface Output Timing
Symbol Parameter MIN TYP MAX Units
TSCKCYC SCK period 325 976 ns
TSCKFREQ SCK frequency 1.024 3.072 MHz
TSCKDUTY SCK duty cycle 40 60 %
TDCKPDR Propagation delay after SCK rising edge 25 ns
TDCKPDF Propagation delay after SCK falling edge 25 ns
3.3.1.3 Timing Diagram
T
SCKCYC
T
SCKDUTY
Interfaces
SCK
EDGE = 1EDGE = 0
SD,WS
SCK
SD,WS
50%
T
SCKCYC
T
DCKPDF
50%
T
DCKPDR
T
SCKDUTY
Figure 6: I2S Output Timings
3.3.1.4 MCLK Specifications
In addition, AMN2210 outputs a MCLK signal which is synchronized to and a multiple of the WS. The default
configuration of the MCLK frequency is 256 times the sampling frequency of the audio signal. For example, if the
audio sampling frequency is 48 KHz, the MCLK frequency will be 12.288 MHz. The following table provides the
specification of the MCLK –
Version 0.5
AMIMON Confidential 19
Page 20
Interfaces
Table 6: MCLK timing.
Symbol Parameter MIN TYP MAX Units
T
MCKCYC
T
MCKFREQ
T
MCKDUTY
T
DCKPDR
T
DCKPDF
T
JITTER-CYC-
CYC
MCK period 244.14
MCK frequency 4.096*
MCK duty cycle 40
Propagation delay after MCK
rising edge
Propagation delay after MCK
falling edge
Cycle-to-cycle jitter*** 5
81.38 ns
12.288** MHz
60 %
25 ns
25 ns
ns
* The minimum frequency is obtained by using the minimum audio sampling frequency of 32 KHz and the
minimum clock rate multiplication of 128.
** The maximum frequency is obtained by using the minimum audio sampling frequency 48 KHz and the
minimum clock rate multiplication of 256.
*** The cycle-to-cycle jitter is based on the system clock of the AMN2210, which is 200 MHz.
Version 0.5
AMIMON Confidential 20
Page 21
Interfaces
3.4 Management Buses and Connectors
3.4.1 Two-Wire Serial Bus Interface
The WHDI application observes and controls the AMN12310 via a Two-Wire interface and an interrupt line
connecting the application microcontroller and the AMN12310 MAC microcontroller. The protocol of the TwoWire-bus for the WHDI application / MAC interface is described in the following sections.
The Two-Wire bus is bidirectional and, as its name implies, it has only two wires: a Serial Clock Line (SCL) and a
Serial Data Line (SDA). The Two-Wire architecture includes master and slave devices. The master initiates a
data transfer on the bus and generates the clock signal. The AMN12310 MAC operates as a slave device. Each
slave device is recognized by a unique address and can operate as either a receive-only device or a transmitter
with the ability to both receive and send information.
SDA
Application
MicroController
(Two-Wire Master)
Figure 7: Two-Wire/Application-MAC Connection
On top of the Two-Wire low level operation described in sections 3.4.1.3 and 3.4.1.4, the WHDI Application and
the MAC microcontrollers communicate with each other in a defined protocol, which avoids all possibilities of
confusion. The protocol defines command oriented transactions between the application and the WHDI MAC.
Each Two-Wire command has a predefined data byte length and is defined to be exactly one Two-Wire
transaction long.
SCL
WHDI MAC
(Two-Wire Slave)
3.4.1.1 Two-Wire Timing
Generally, the clock frequency of the bus is dictated by the slowest device on the Two-Wire interface. However,
the selected MAC supports the 100 KHz SCL frequency rate.
Refer to STM32F Two-wire reference application note for detailed description of the physical protocol and timing.
http://www.st.com/stonline/products/literature/ds/13587.pdf, pp 55-59.
3.4.1.2 Device Addresses
The MAC device address may be altered by two jumpers on VDU/VSU board.
Table 7: Device Addresses
Device Address
MAC uC
Alternatively, the device address can be set in the MAC SW in advance.
Version 0.5
AMIMON Confidential 21
0x62 or 0x82 or 0x90 or 0x70
(Board configuration dependant)
Page 22
Interfaces
3.4.1.3 MAC uC Write Operation
Figure 8 demonstrates a write transaction which sends 2 data bytes and which ends with the master stop bit.
Each write transaction sends one or more data bytes to the MAC, beginning at an explicit 2 bytes long address.
Multiple data bytes may be written as the MAC stores the received register data until the master sends a stop bit.
The MAC updates the register value upon a successful termination of a write transaction.
Two-Wire Slave address ack
...
I
6
writeI
5
register address ack
...
A
A
15
14
register address ack
A
8
...
A
A
7
A
6
0
register data0 ack
...
D7 D0D6
register data1 ack
...
D
D
7
6
D
STOPSTART
0
Figure 8: Two-Wire MAC Write Commands
3.4.1.4 MAC uC Read Operation
This operation reads from a specific 2- byte address. The read transaction is divided into two parts. In the first
part, the Two-Wire master sends a write command to the slave containing only the required start address. (The
address is always 2 bytes long.) In the second part, multiple bytes may be read from consecutive addresses. The
MAC puts the appropriate data on the Two-Wire bus and the internal address is automatically incremented. A
stop bit is sent by the master only when the entire transaction has been completed.
Two-Wire Slave address ack r egister address ack register address
START
I
6
writeI
5
...
A
15
A
A
14
...
A
8
7
Figure 9: Two-Wire Read Command
A
6
ack
Two-Wire slave address ack
A
0
...
I
START Data Byte 0
6
readI
5
...
register data ack
register data ack
Data Byte 1
STOP
3.4.1.5 WHDI Application/MAC Protocol
The WHDI programmer’s reference defines the MAC registers data structure. Each register has an associated
group id and index offset address.
The group id and the index offset are each 1 byte long. Together they define a register address that is 2 bytes
long.
Each register has an attributed length (in byte units). All registers within the same group have the same length.
A Two-Wire transaction to a specific register includes 2 bytes of register address and the register data bytes. The
register is written in one transaction. If the transaction terminates ahead of time or is too long, the MAC issues an
error interrupt and does not store the received values. The register is read in one transaction, as described in
section 3.4.1.4. If the read transaction finishes ahead of time, the MAC issues an error interrupt.
3.4.2 Interrupts
There is one interrupt connected to the WHDI connector. The interrupt source is the AMN2210 MAC uC. For
details about the interrupt, please refer to the programmer's user guide. . The interrupt active polarity is set in SW
or by configuration resistors on board – see 3.4.3.
Version 0.5
AMIMON Confidential 22
Page 23
Interfaces
3.4.3 WHDI Module Configuration
In order to distinguish between boards and by the SW, there is an on board ID that can be read by the STM32F.
WHDI_MODULE_ID (Details)
Amimon Project
Part Number
AMN11310 Rev. 2.0 1 0 0 0 0 0 0 0
AMN12310 Rev. 2.0 1 0 1 0 0 0 1 0
[7] [6] [5] [4] [3] [2] [1] [0]
Tx="0",
Rx="1"
Interrupt Polarity:
"0"=falling, "1"=rising
I2C Address: "00"=0x62,
"01"=0x72, 10"=0x60, 11"=0x70
MODULE_ID
Comments
3.5 Reset and Wake-up Timer
The AMN11100 has one hard
described in Figure 11. Assertion of the STM32F reset switches the clock of uC to the internal oscillator until the
Albatross does not assert an INIT_DONE interrupt. Assertion of the Albatross reset enables the generation of the
10 MHz clock. After a hard reset, the MAC asserts the SW reset signal which just clears the registers without
resetting the clock generation scheme.
When the INIT_DONE is asserted, it indicates the completion of the Albatross initialization and that the 10 MHz
clock is stable. At that point, the uC switches to the external clock source from the Albatross and enable
communication with the application microcontroller.

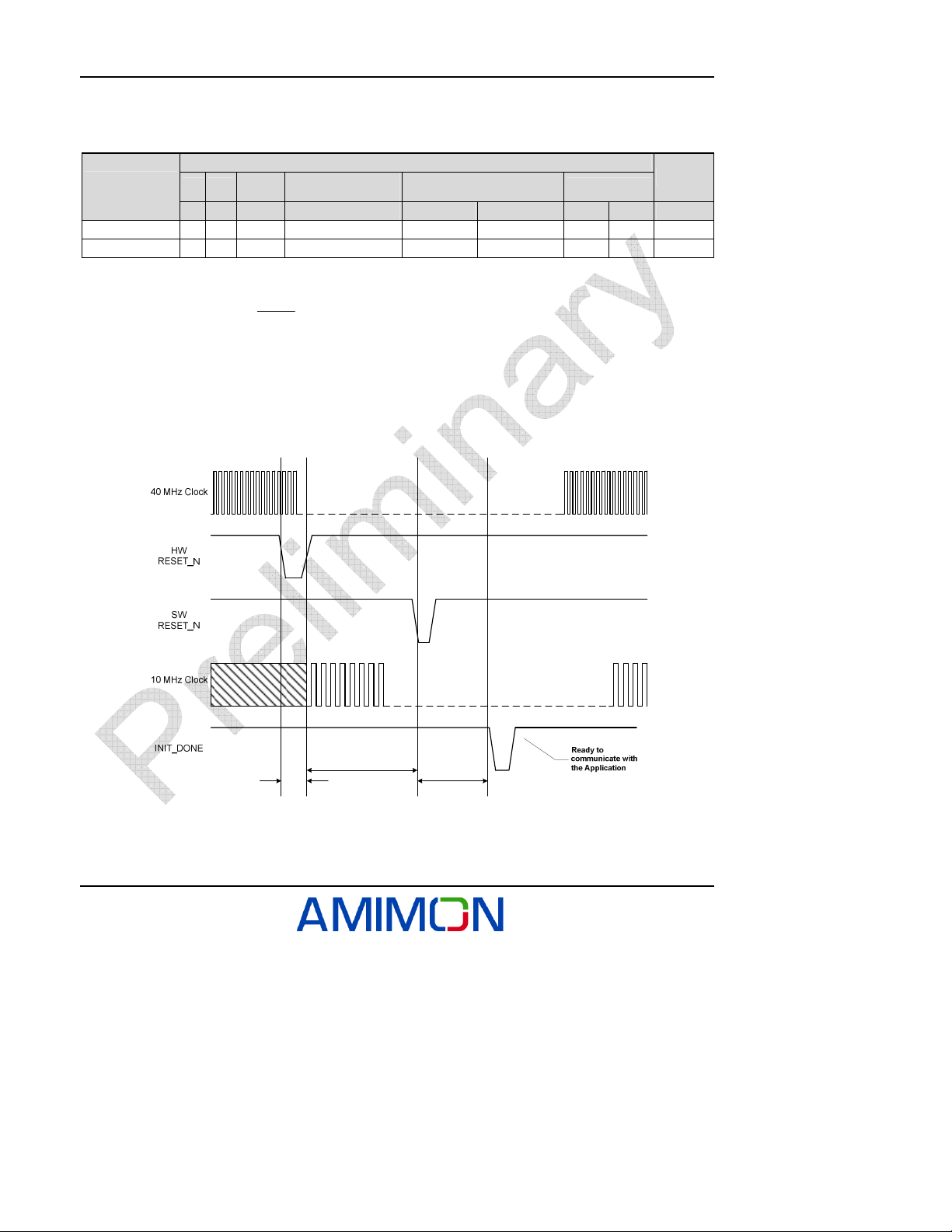

RESET
input pin connected directly to the AMN2110 and to the STM32F uC, as
ST
T
clkrstT−
rst
T
init
Figure 10: Reset Time Diagram
Version 0.5
AMIMON Confidential 23
Page 24
Interfaces
The following table specifies the timing parameters -
Table 8: Reset Timing Requirements
Symbol Parameter Condition MIN TYP MAX Units
T
RST-CLK
T
ST,RST
T
INIT
Time from assertion of the HW reset until valid
clock is generated
Time from assertion of the HW reset until the
STM32F completes the internal initialization
Time from assertion of the HW/SW reset until the
AMN2210 completes the internal initialization
40 MHz clock is valid –
few us after power up
Power is stable 4.5 ms
1.7 ms
300 ns

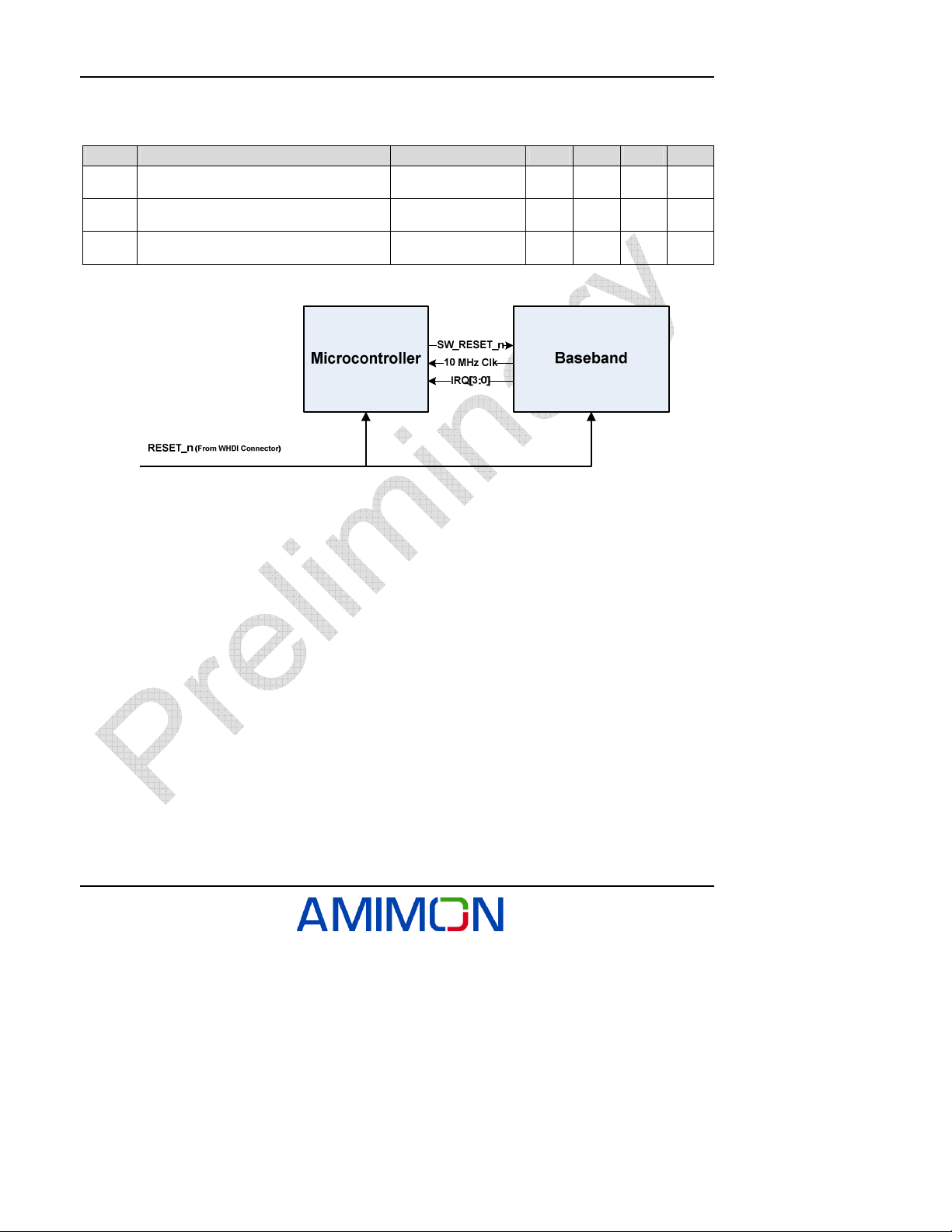

The following figure specifies the reset schema and related signals -
Figure 11: Reset Mechanism
Version 0.5
AMIMON Confidential 24
Page 25
Interfaces
Version 0.5
AMIMON Confidential 25
Page 26
WHDI Connector Pins
Chapter 4
WHDI Connector Pins
4.1 Signals
Table 9: WHDI Connector Signals
# of
Pin Name Description/Functionality Group Direction
Pins
30 D[29:0] 30-bit RGB (10:10:10) or YCrCb (10:10:10) Video Out
1 DCLK Video data clock Video Out Up to 78.125 MHz
1 DE Data enable Video Out
1 H_SYNC Horizontal sync Video Out
1 V_SYNC Vertical sync Video Out
1 SPDIF SPDIF audio interface Audio Out
1 SD I2S audio interface Serial Data signals Audio Out
1 SCLK I2S continuous serial clock Audio Out Up to 3.072Mbps
1 WS(LRCLK) I2S Word Select (Left/right clock) which defines
1 MCLK
1 SDA Two-wire Serial Bus Data (Slave Mode) Control I/O Control I/F for WHDI
1 SCL Two-wire Serial Bus Clock (Slave Mode) Control In Control I/F for WHDI
1 INT Interrupt from WHDI module Control Out
1
RESET
1 MUTE (TBD6) MUTE signal Audio Out
also the sampling rate
I2S master clock coherent to WS according to
specified ratio
Reset / Power-down line Control In
Audio Out
Audio Out
Rate is adjustable on RX
side
Signals audio error and can
be used by the next audio
device down the line to
mute the audio when errors
occur
Remarks
2 TBD[5:4]
8 3.3V VCC Power Power 300 mA maximum rating per
17 GND Ground Power Power
Version 0.5
AMIMON Confidential 26
TBD4, TBD5, are reserved in, AMN12310 as an
option for RS232 connection to STM32F UART2.
TBD TBD
pin
Page 27

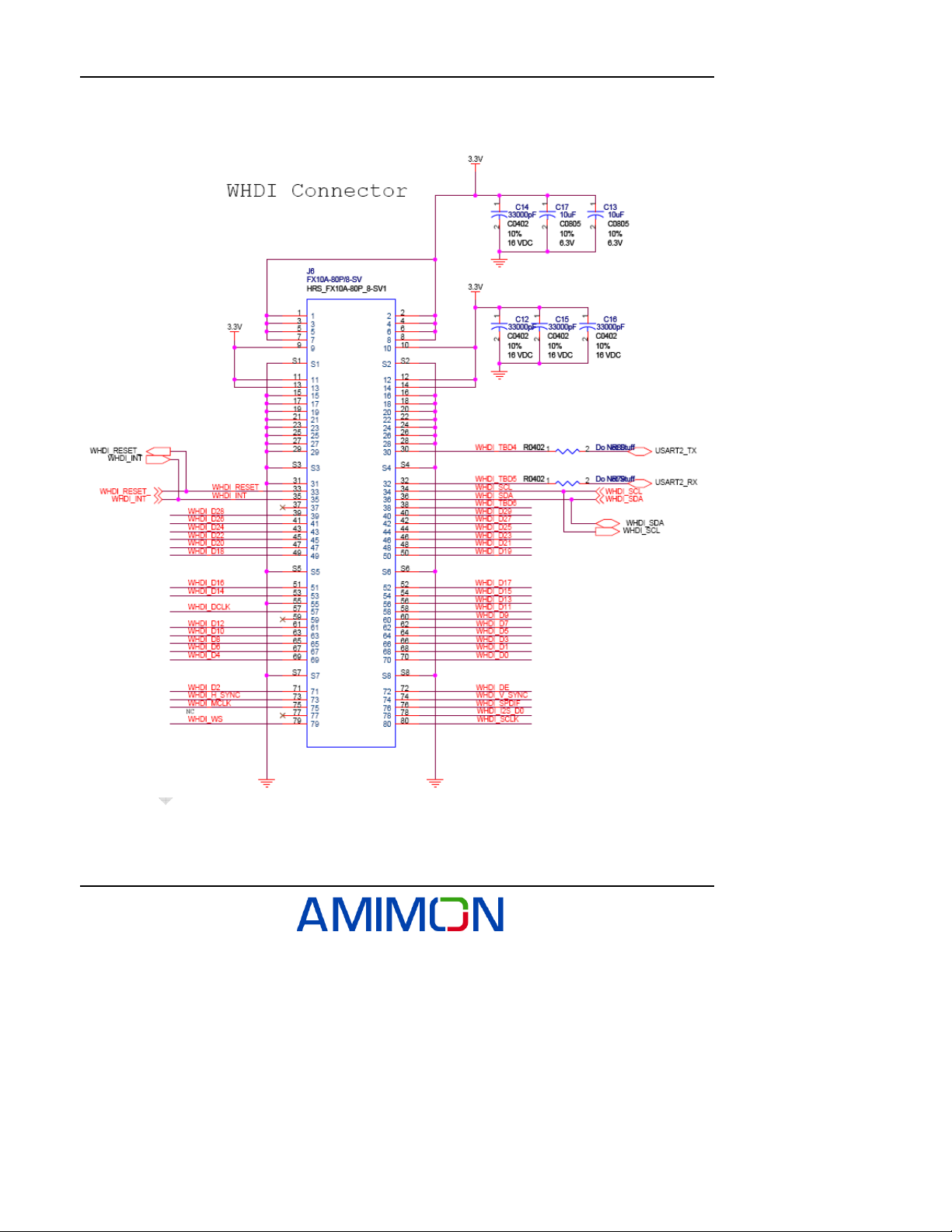

4.2 Connector Schematics
WHDI Connector Pins
Figure 12: WHDI Connector
Version 0.5
AMIMON Confidential 27
Page 28
WHDI Connector Pins
4.3 Pin List
Table 10: Rx WHDI Connector Pin List
Pin
Number
1 3.3V 2 3.3V 41 WHDI_D26 42 WHDI_D27
3 3.3V 4 3.3V 43 WHDI_D24 44 WHDI_D25
5 3.3V 6 3.3V 45 WHDI_D22 46 WHDI_D23
7 3.3V 8 3.3V 47 WHDI_D20 48 WHDI_D21
9 3.3V 10 3.3V 49 WHDI_D18 50 WHDI_D19
11 3.3V 12 3.3V 51 WHDI_D16 52 WHDI_D17
13 3.3V 14 3.3V 53 WHDI_D14 54 WHDI_D15
15 GND 16 GND 55 GND 56 WHDI_D13
17 GND 18 GND 57 WHDI_DCLK 58 WHDI_D11
19 GND 20 GND 59 NC 60 WHDI_D9
21 GND 22 GND 61 WHDI_D12 62 WHDI_D7
23 GND 24 GND 63 WHDI_D10 64 WHDI_D5
25 GND 26 GND 65 WHDI_D8 66 WHDI_D3
27 GND 28 GND 67 WHDI_D6 68 WHDI_D1
29 GND 30 WHDI_TBD4 69 WHDI_D4 70 WHDI_D0
31 GND 32 WHDI_TBD5 71 WHDI_D2 72 WHDI_DE
33 WHD_RESET_ 34 WHDI_SCL 73 WHDI_H_SYNC 74 WHDI_V_SYNC
35 WHDI_INT 36 WHDI_SDA 75 WHDI_MCLK 76 WHDI_SPDIF
37 NC 38 MUTE
39 WHDI_D28
Signal
Pin
Number
40 WHDI_D29
Signal
(TBD6)
Pin
Number
77 NC 78 WHDI_I2S_D0
79 WHDI_LRCLK
Signal
Pin
Number
80 WHDI_SCLK
Signal
Version 0.5
AMIMON Confidential 28
Page 29
WHDI Connector Pins
Version 0.5
AMIMON Confidential 29
Page 30
Electrical Specifications
Chapter 5
Electrical Specifications
5.1 Operating Conditions and Electrical Characteristics
The following tables describe the operating conditions and electrical characteristics required for working with the
AMN12310.
Table 11: Absolute Maximum Ratings over Operating Case Temperature Range
Supply input-voltage range, VI 0 to 3.6 V
Ambient temperature range
Storage temperature range, Tstg
Table 12: Recommended Operating Conditions
Parameter Min. Typ. Max. Unit
DVDD Module supply voltage 3.15 3.3 3.45 V
VSS Supply ground 0 V
VIH High-level input voltage 0.7 DVDD V
VIL Low-level input voltage 0.3 DVDD V
VOH High-level output voltage (DV
VOL Low-level output voltage (DV
DD
= MIN, I
DD
= MIN, I
= MAX) 0.8 DVDD V
OH
= MAX) 0.22 DVDD V
OL
IOH High-level output current -8 mA
IOL Low-level output current 8 mA
Ta Operating ambient temperature 0 70
0°C to 70°C
-40°C to 125°C
°
C
Table 13: Electrical Characteristics over Recommended Range of Supply Voltage and Operating Conditions
Parameter Test Conditions Min. Typ. Max. Unit
I
Input current V
I
I
Off-state output current V
OZ
I
Module supply
DVDD
C
Input capacitance 10 pF
i
C
Output capacitance 10 pF
o
= VSS to DVDD
I
= DV
O
DV
with activity on all I/O terminals
or 0 V
DD
= Max., Video Clock = 74.25 MHz,
DD
1500 mA
µ
±
20
±
20
A
µ
A
Version 0.5
AMIMON Confidential 30
Page 31
Electrical Specifications
Version 0.5
AMIMON Confidential 31
Page 32
Design Guidelines
Chapter 6
Design Guidelines
6.1 Digital Layout Recommendation
To better understand the layout guidelines, please refer to the AMN12310 Schematics which are part of the HDK
package.
6.1.1 Stack Up
Recommended stack up for six layers design:
• Total thickness: 1.15mm
• Tolerance thickness: 10%
Table 14: Digital Layout Recommendation
Lay.
Layer Name
No.
1 Component side
(CS)
Space 8.6 mil
2 Ground 2 oz
Space 4 mil
3 Ground 2 oz
Space 4 mil
4 Power / Ground 2 oz
Space 4 mil
5 Ground 2 oz
Space 8.6 mil
6 Print Side (PS) 1-1.5 oz Trace Width - 5mil, Separation between differential lines – 6 mil, differential impedance - 107
Board Thickness 1.15 MM +/- 10%
Material FR4 HITG
Layer
Stack-up
1-1.5 oz 1) Trace Width -14mil, Separation -12 mil (to ground plane) - 50 OHM COPLANAR.
Unit Control Impedance/Notes
2) Trace Width - 5.5 mil, Separation between differential lines – 5.5 mil, differential impedance 103 OHM.
3) Trace Width – 5 mil, Separation between differential lines – 6 mil, differential impedance 107 OHM.
OHM.
Version 0.5
AMIMON Confidential 32
Page 33
Design Guidelines
6.1.2 General Guidelines
• Keep traces as short as possible.
• Traces should be routed over full solid reference plans.
• Sensitive lines like reset and clocks should be routed with special care.
These lines should be routed over full solid power plans (ground or power).
Traces should be routed at least two times the trace width away from other lines in the same routing
layer.
Place a series resistor ~30 ohm at the clock source.
• Keep digital signals away from the analog side.
6.1.3 WHDI Lines
• Place series resistors on all output lines (near the outputs pins).
• Series resistors on input lines are unnecessary. (The series resistors should be placed on the interface
board.)
6.1.4 Power and Ground
• Use a solid ground plan.
• Ground plans separation is unnecessary.
• Place decoupling capacitors near power pins. (Refer to the schematics and BOM for recommended values.)
• Analog power pins should be filtered with ferrite beads. (Refer to the schematics and BOM for recommended
values.)
• Add as many ground vias as possible, for better ground connections between layers and better heat
dissipation.
6.2 RF Design Recommendation
6.2.1 RF Components
All passive components must have compatible performance with components used in the Amimon reference
design.
6.2.2 Power Management
The RF power rail 3.3V_RAIL is separated from the digital power rail 3.3 with ferrite bead.
Version 0.5
AMIMON Confidential 33
Page 34
Design Guidelines
6.3 Test Points and Jumpers
Reference Name Type Functionality Reference Name Type Functionality
TP1 SMD RXHP_3 TP28 TH 3.3V
TP2 SMD RXHP_4 TP29 SMD 3.3V
TP3 SMD RFSPI_CLK TP30 SMD MAC_TRST
TP4 SMD RFSPI_DOUT TP31 SMD MAC_TDI
TP5 SMD RSSI_DETECT TP32 SMD MAC_TCK
TP6 SMD LD TP33 SMD GND
TP7 SMD SPI_CS TP34 SMD GND
TP8 TH GND TP35 SMD 3.3V
TP9 SMD CLK40M TP36 SMD ALBATROSS_TDO
TP10 TH GND TP37 SMD GND
TP11 SMD GND TP38 SMD 3.3V
TP12 SMD GND TP39 SMD 3.3V
TP13 TH GND TP40 SMD HW_ID_0
TP14 SMD GND TP41 SMD HW_ID_1
TP15 SMD 3.3V J1 SMD RF- UFL CON
TP16 SMD GND J2 SMD RF- UFL CON
TP17 TH 1.2V J3 SMD RF- UFL CON
TP18 SMD RXHP_1 J4 SMD RF- UFL CON
TP19 SMD RXHP_0 J5 SMD RF- UFL CON
TP20 SMD UC_MAC_CLK J6 -CONNECTOR SMD WHDI_CON
TP21 TH GND J7 -CONNECTOR SMD UC JTAG
TP22 SMD GND JP1 pin 1-2 JUMPER MAC_TXD
TP23 SMD 3.3V JP1 pin 2-3 JUMPER ALB_TXD
TP24 SMD 3.3V JP2 pin 1-2 JUMPER MAC_RXD
TP25 SMD MAC_RST JP2 pin 2-3 JUMPER ALB_RXD
TP26 SMD MAC_TMS
TP27 SMD 3.3V SW1 SWITCH RF_TEST_SW
JP3 JUMPER BOOT0
Version 0.5
AMIMON Confidential 34
Page 35
Design Guidelines
Version 0.5
AMIMON Confidential 35
Page 36
Mechanical Dimensions
The following shows the mechanical dimensions for the AMN12310:
Mechanical Dimensions
Chapter 7

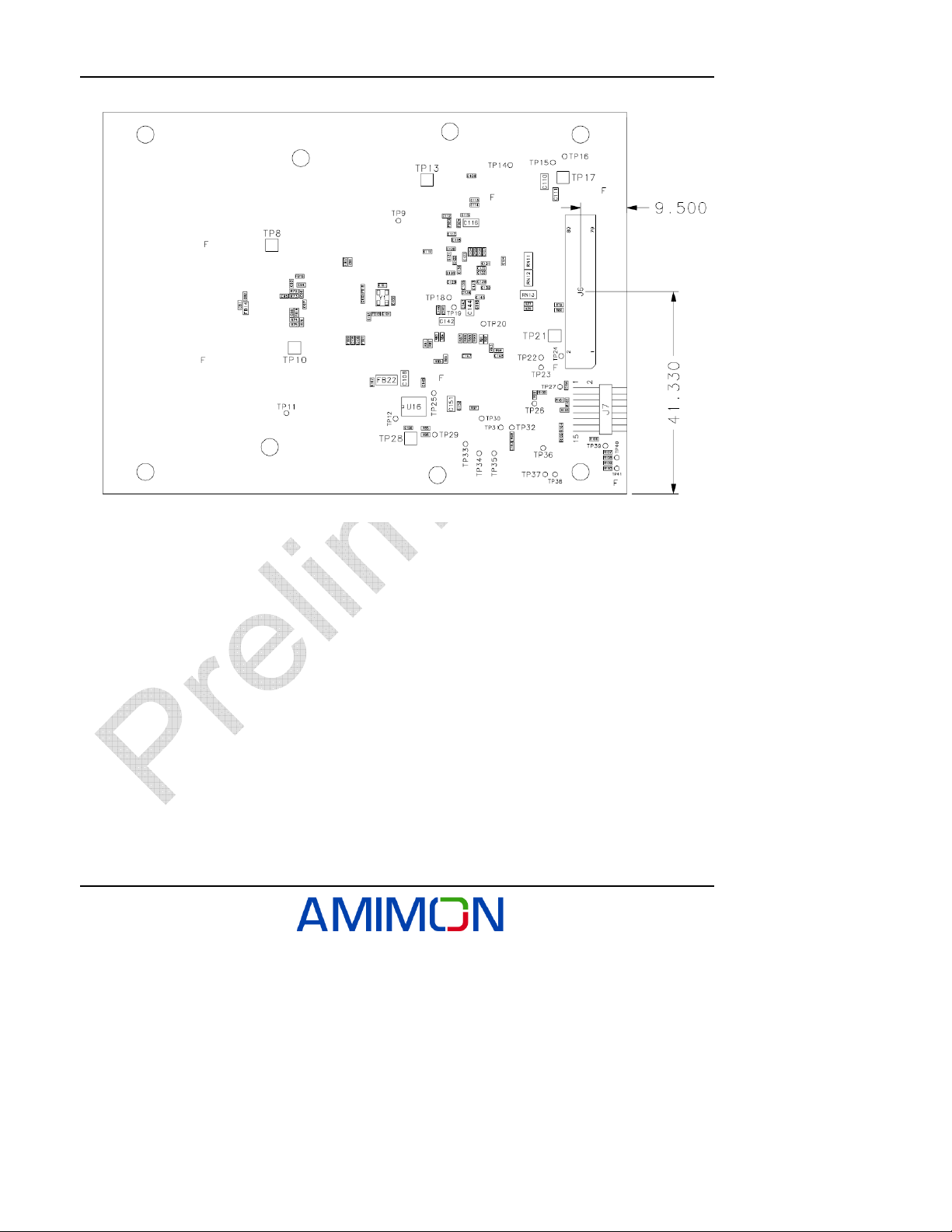

Figure 13: Mechanical Dimensions Top View
Version 0.5
AMIMON Confidential 36
Page 37
Figure 14: Mechanical Dimensions Bottom View
Mechanical Dimensions
Version 0.5
AMIMON Confidential 37
Page 38
7.1 RF Shield frame and cover

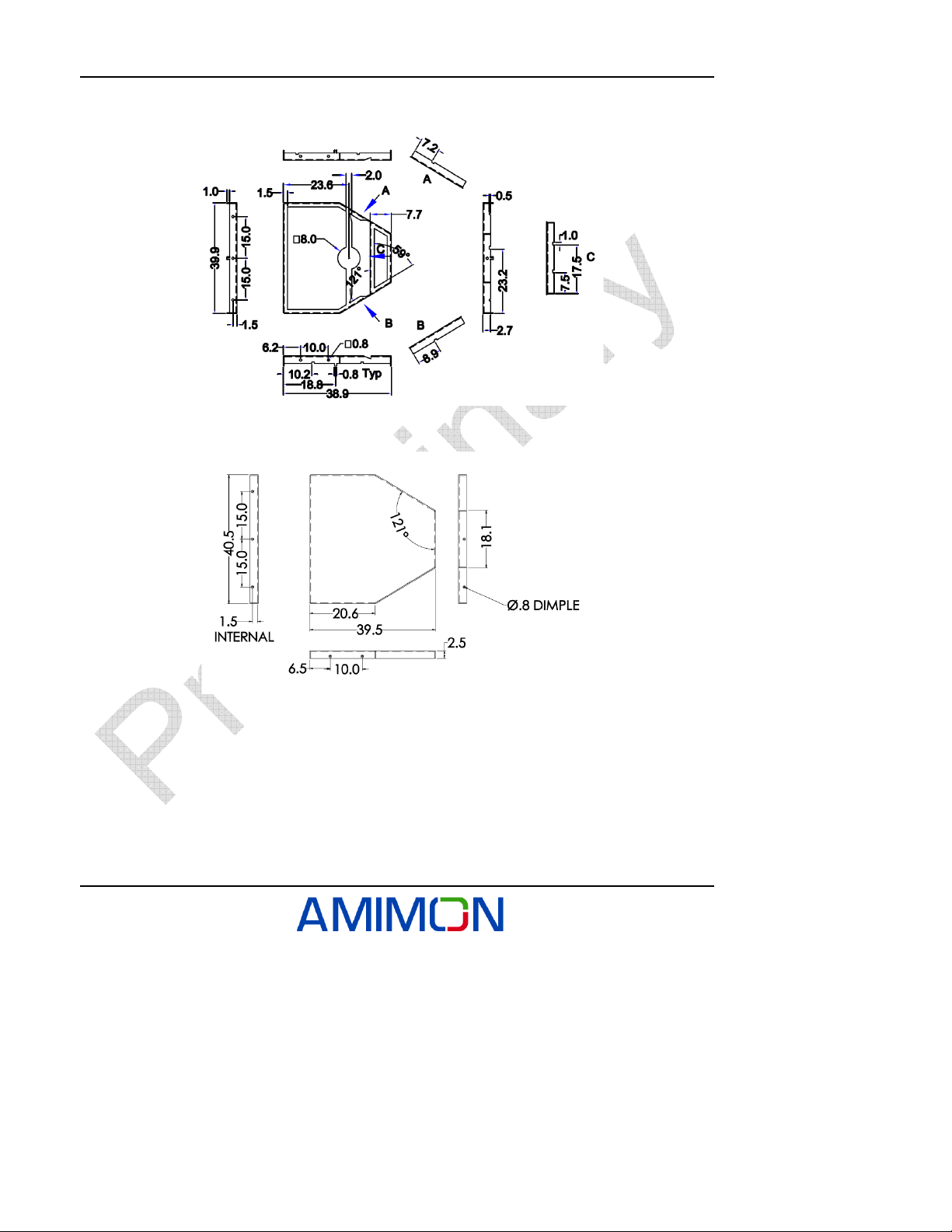

Figure 15: RF-Shield Frame
Mechanical Dimensions
Figure 16: RF-Shield Cover
Version 0.5
AMIMON Confidential 38
Page 39
Mechanical Dimensions
Version 0.5
AMIMON Confidential 39
Loading...
